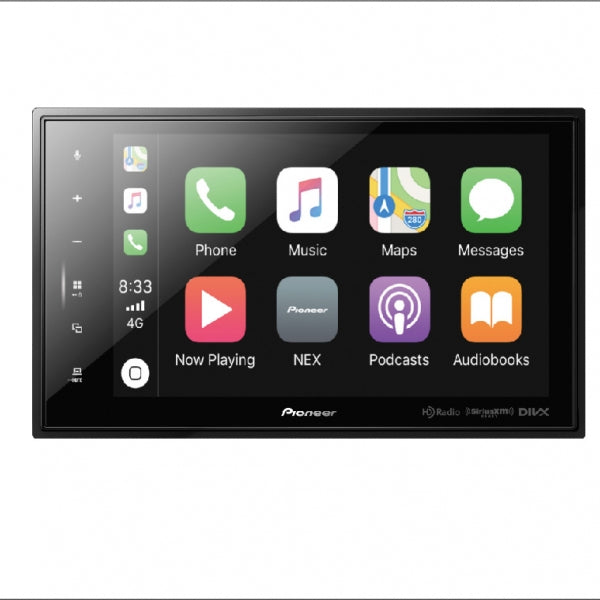

Pioneer DMH-C5500NEX

Pioneer DMH-C5500NEX

Regular price $650.00 USD
Regular price Sale price $650.00 USD
Sale Sold out
Shipping calculated at checkout.

If you thought there was no replacing your factory radio, check out Pioneer's DMH-C5500NEX digital multimedia receiver. Its 1" thick display and separate "black box" circumvent the old problem of chassis depth. An astonishing 8" capacitive touchscreen offers lots of customizable color options, while the separate, compact chassis contains all the electronics and entertainment, including Apple CarPlay™, Android Auto™, Bluetooth®, and an HD Radio® tuner. Pioneer includes a 12" cable to connect the screen and chassis, but extension cables are available so you can mount the chassis in a more convenient spot.

Product Highlights:

  • Digital multimedia player with AM/FM tuner
  • Touchscreen and chassis can be installed together or independently
  • Fits problem vehicles where standard radios won't fit
  • Plays media loaded with MP3, WMA, AAC, and high-res FLAC music files
  • 8" capacitive touchscreen display
  • Built-in Bluetooth for hands-free calling and music streaming

Smartphone Features:

  • Android Auto compatible
  • Apple CarPlay compatible
  • WebLink allows access to apps like YouTube and Yelp
  • Display and command of select music, navigation, and other apps with iPhone and Android
  • Pandora and Spotify control with iPhone and Android
  • Siri Eyes Free control for select iPhones
  • Voice Command for select Android smartphones
  • 13-band graphic EQ
  • Time alignment and Auto EQ (mic required, not included)
  • Compatible with SiriusXM satellite radio tuner

Inputs: Rear USB input, two rear audio/video inputs, dual camera inputs (second input uses a rear A/V input)
Outputs: video output, 6-channel preamp outputs (4-volt front, rear, sub)
wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)


Built-in amplifier (14 watts RMS/50 peak x 4 channels)
-Compatible with most factory steering wheel audio controls (adapter required)
-Works with iDataLink Maestro module
-Retains factory features in a wide selection of vehicles
-Displays engine performance and other vehicle data on touchscreen
-Wireless remote included (optional wired remote)
-Optional touchscreen/chassis extension cables
warranty: 1 year

Specifications:

  • AUX Input - Mini (rear), RCA (rear)
  • Audio/video Input - Mini (rear), RCA (rear)
  • USB Input Rear
  • Backup Camera Input - Yes
  • Second Camera Input - Yes
  • CarPlay - Yes
  • Android Auto - Yes
  • Siri Control - Yes
  • Alexa Voice Control - No
  • Android Control - Yes
  • Memory Card Slot - USB memory
  • Bluetooth Compatible - Built-in
  • Satellite Radio Ready - SiriusXM 3.0
  • HD Radio - Built-in
  • Navigation - Optional
  • iPod Compatibility
  • Full size - No
  • Nano - 7
  • Touch - 6/5
  • iPhone - XSMax/XS/XR/X/8+/8/7+/7/6S+/6S
  • RMS Power (CTA-2006) - 14 watts
  • RMS Power (Manufacturer) - 22 watts
  • Peak Output - 50 watts
  • RMS Power Bandwidth - 20-20kHz
  • Preamp Outputs - 6-channel
  • Sub Preamp Outputs - Yes
  • Switchable Rear Preamp Outputs - No
  • Video Screen - Yes
  • Navigation App Compatible (iOS) - Apple,Google,Waze
  • Navigation App Compatible (Android) - Google, Waze
  • Preamp Voltage - 4 volts
  • Screen Size - 8
  • Display Color
  • Key Button Color Variable
  • EQ Bands - 13
  • Wireless Remote - Yes
  • Steering Wheel Control Compatible - Adapter required
  • FM Sensitivity - 12 dBf
  • European Tuning - No
  • Radio Data System - Yes
  • Music File Playback - MP3, WMA, AAC, FLAC,WAV
  • High-res Playback - FLAC (192kHz)
