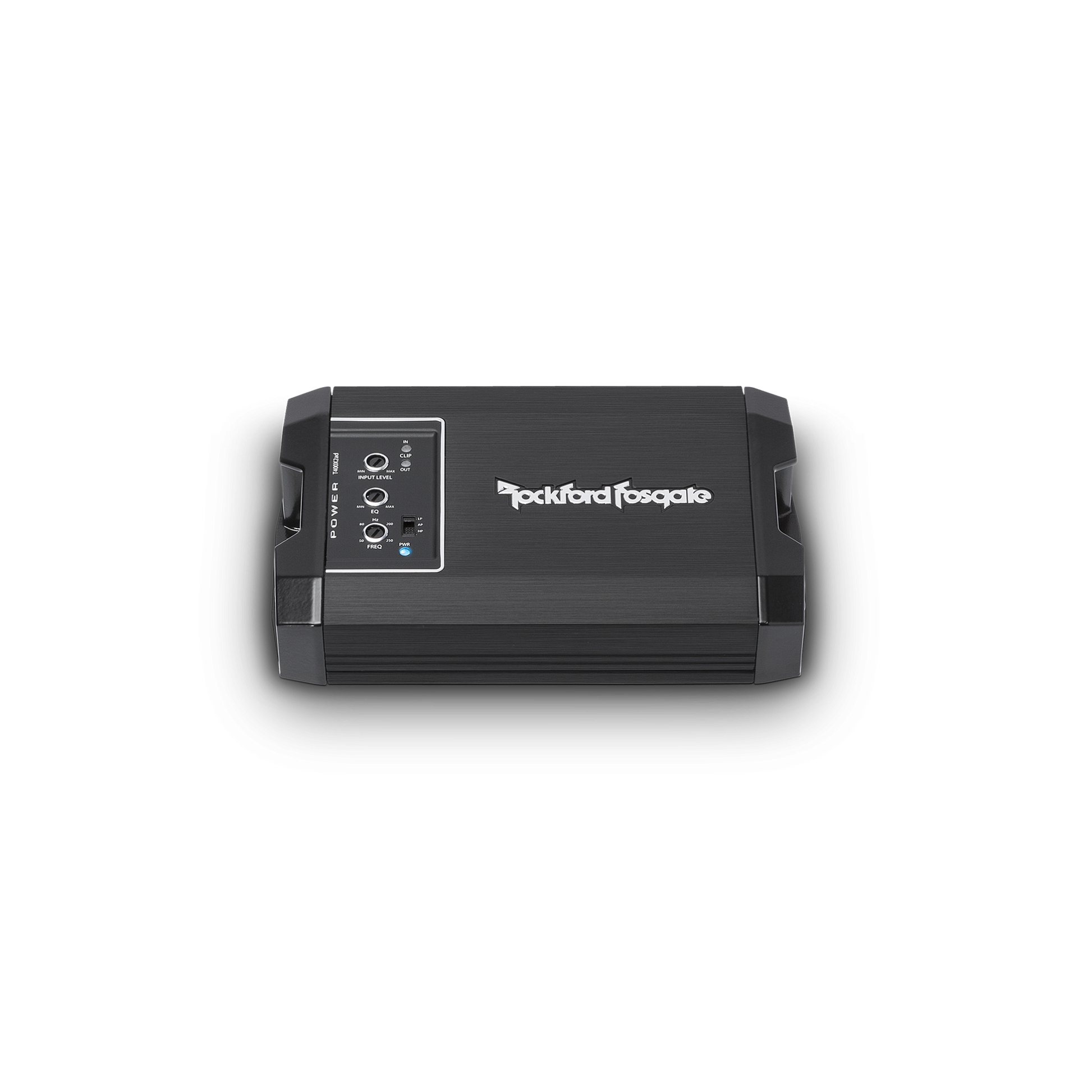

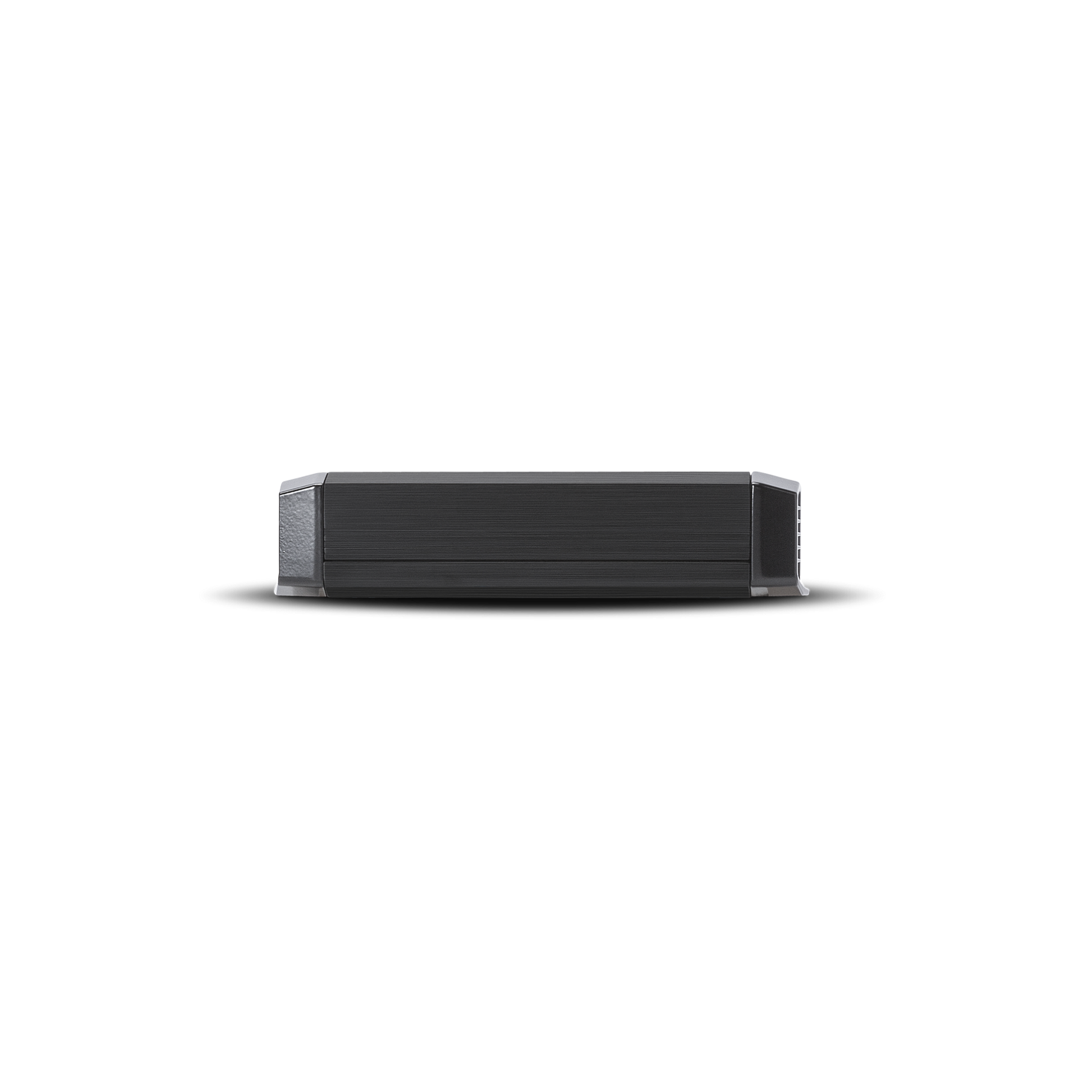

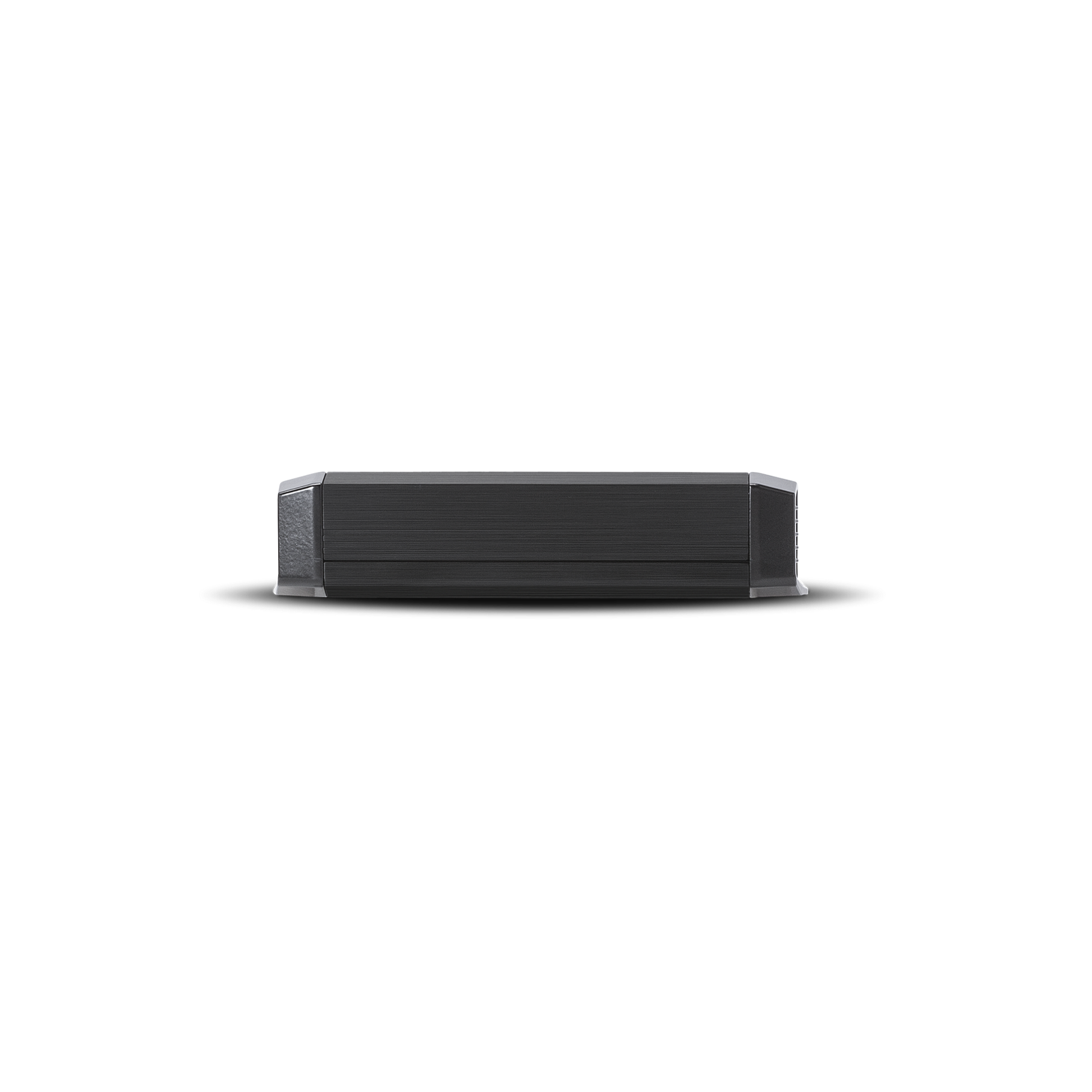

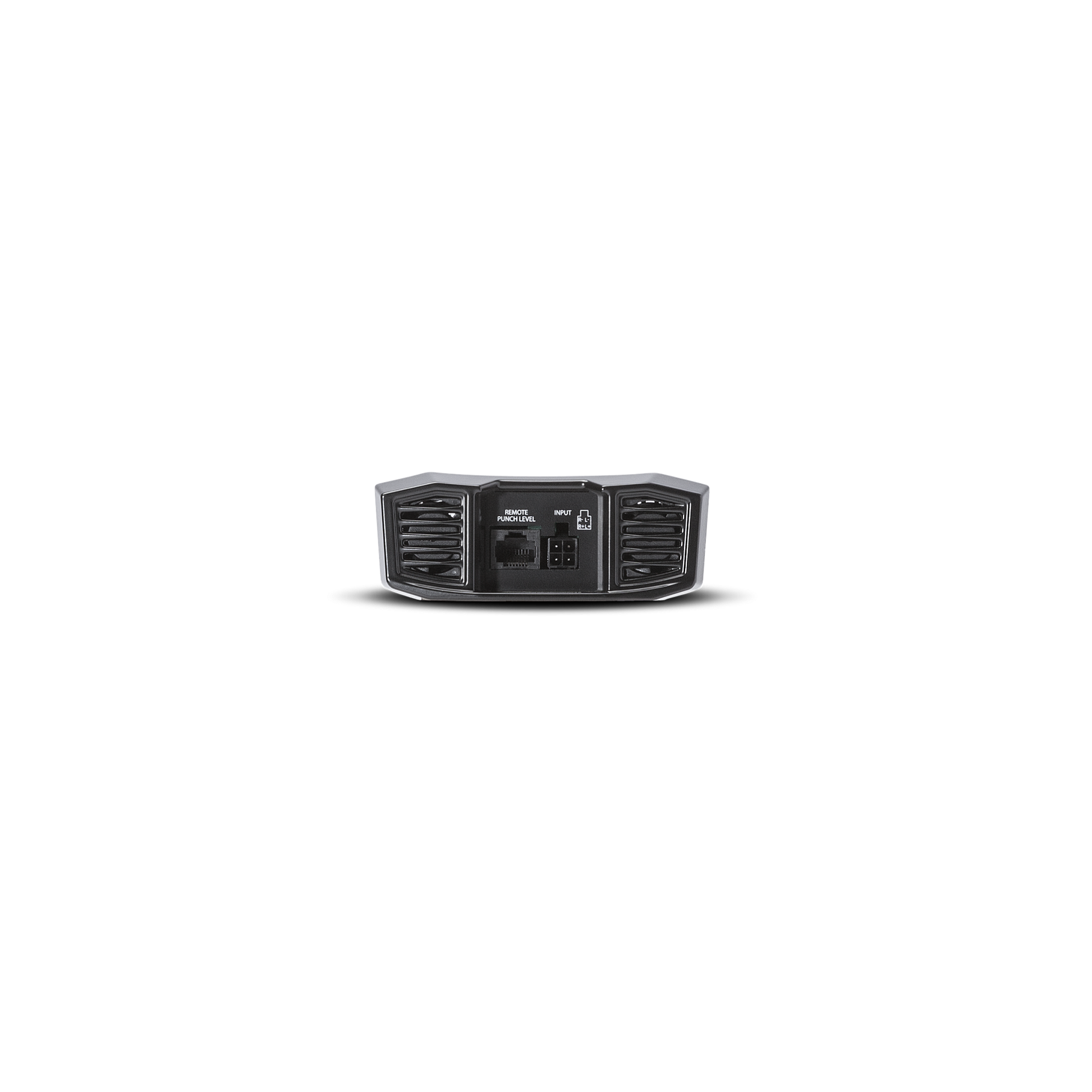

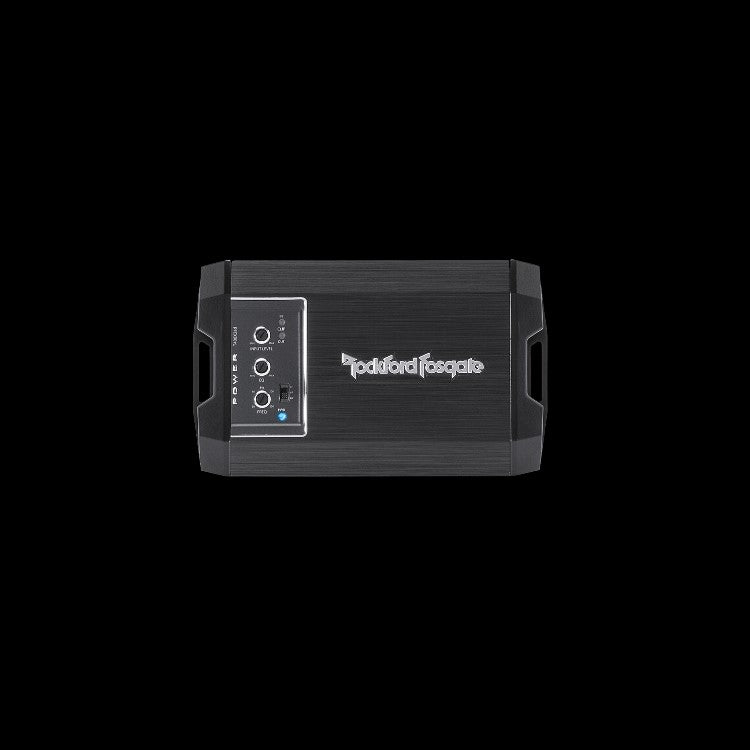

The Rockford Fosgate Power T400X2ad is an ultra-compact two-channel amplifier. Even though the amplifier is only 7-3/8" x 4-1/4", it puts out 200 watts per channel at 4 ohms or 2 ohms. In bridged mono, the output is 400 watts at 4 ohms.
2-channel car amplifier
200 watts RMS x 2 at 2 to 4 ohms
400 watts RMS x 1 bridged output at 4 ohms (4-ohm stable in bridged mode)
CEA-2006 compliant
Class AD amplifier design
Constant Power technology maintains full output power despite impedance changes
C.L.E.A.N. gain setup system includes clip lights and test tone CD
differential input circuitry helps eliminate hum
dual-fan forced induction cooling
variable high- and low-pass filters (50-250 Hz, 12 dB/octave)
variable Punch EQ (bass/treble boost: 0-18 dB at 45 Hz, 0-14 dB at 12,500 Hz)
optional PLC2 Punch Level Control wired remote with clip light available
preamp and speaker-level inputs
signal-sensing turn-on with speaker-level inputs eliminates need for remote turn-on lead
8-gauge power and ground leads and a 60-amp fuse recommended — wiring and hardware not included with amplifier
no onboard fuses — when installing multiple amps in a system, an additional 60-amp in-line fuse between the distribution block and the amplifier is recommended
7"W x 1-15/8"H x 4-1/4"D
Specifications:
RMS Power Output (Watts x Channels) - 200 x 2
Peak Power Output (Watts x Channels) - 223 x 2
Power at 2 Ohms (Watts x Channels) - 200 x 2
Bridged Power (Watts x Channels) - 400 x 1
Minimum Impedance Bridged - 4
Minimum Impedance Unbridged - 2
Best Frequency Response - 20-20000 Hz
THD at Rated RMS Power - 1%
Signal to Noise Ratio - 90 dB
Input Voltage - 14.4v
Amplifier Class - A/D
Low-Pass Crossover Frequency - 50-250 Hz
Low-Pass Slope (dB/octave) - 12 dB/octave
High-Pass Crossover Frequency - 50-250 Hz
High-Pass Slope (dB/octave) - 12 dB/octave
Bass Boost - 0-18 dB
Bass Boost Frequency - 45 Hz
Fan Cooled - Yes
Fuse Rating - 60
Speaker Level Inputs Harness
Preamp Outputs - No
Width (inches) - 7
Height (inches) - 1-5/8
Depth (inches) - 4-1/4
