Rockford Fosgate T400X4ad
Rockford Fosgate T400X4ad
Regular price
$519.99 USD
Regular price
Sale price
$519.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

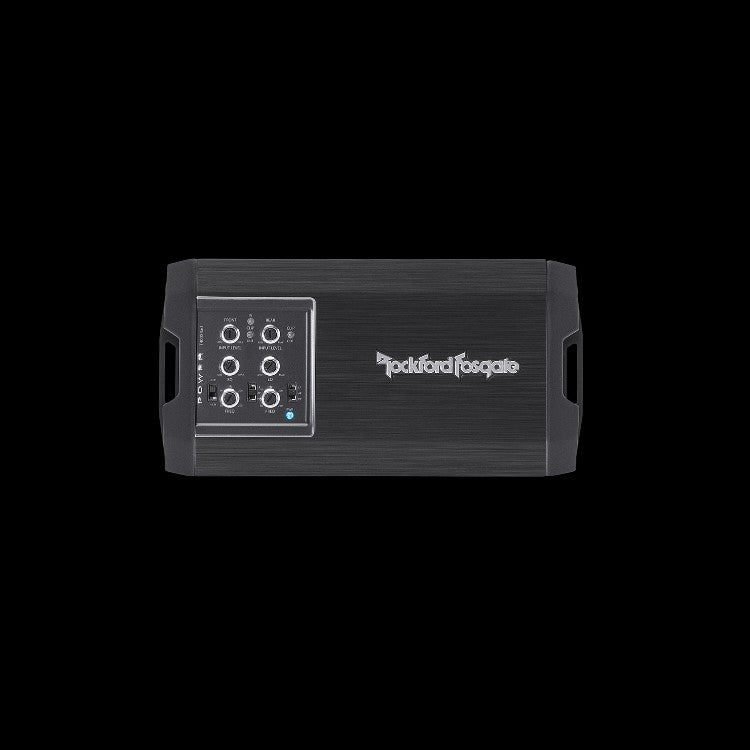

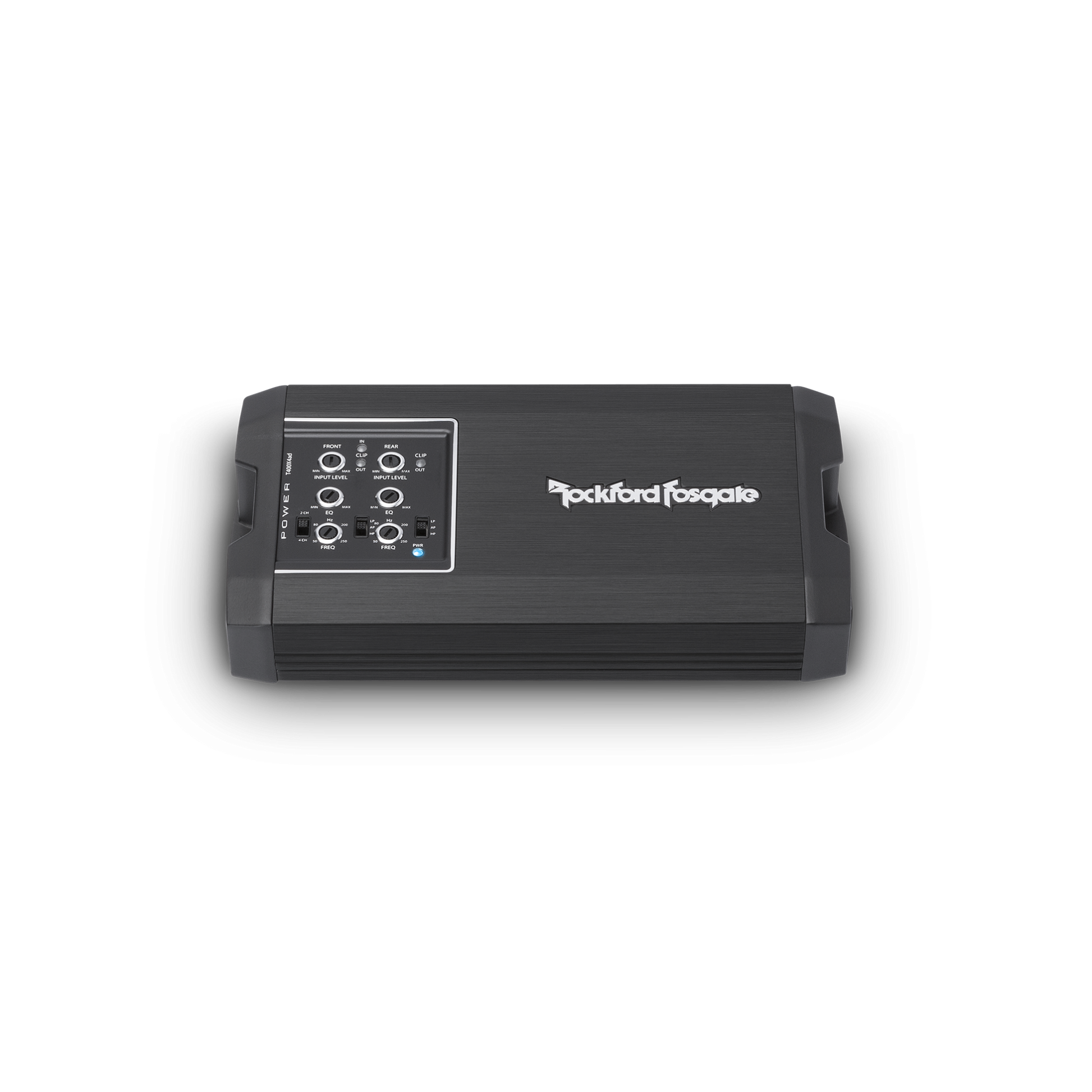

The Rockford Fosgate Power T400X4ad is an ultra-compact four-channel amplifier. Even though the amplifier is only 8-5/8" x 4-1/4", it puts out a full 100 watts per channel at 4 ohms or 2 ohms. In bridged mono, the output is 400 watts at 4 ohms.
4-channel car amplifier
100 watts RMS x 4 at 2 to 4 ohms
200 watts RMS x 2 bridged output at 4 ohms (4-ohm stable in bridged mode)
CEA-2006 compliant
Class AD amplifier design
Constant Power technology maintains full output power despite impedance changes
C.L.E.A.N. gain setup system includes clip lights and test tone CD
differential input circuitry helps eliminate hum
dual-fan forced induction cooling
variable high- and low-pass filters (50-250 Hz, 12 dB/octave)
variable Punch EQ (bass/treble boost: 0-18 dB at 45 Hz, 0-14 dB at 12,500 Hz)

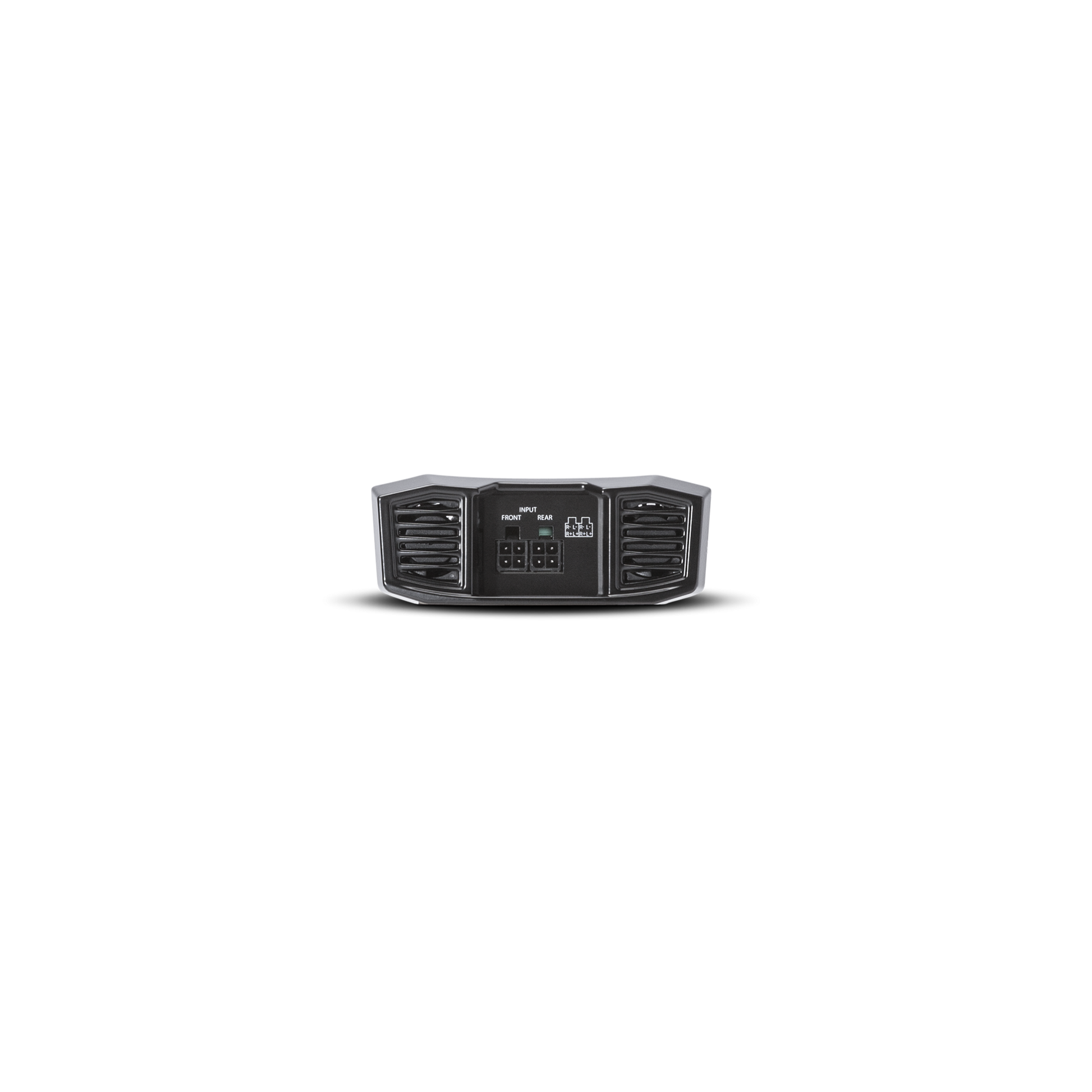

preamp and speaker-level inputs (quick-connect input harnesses included)
signal-sensing turn-on with speaker-level inputs eliminates need for remote turn-on lead
8-gauge power and ground leads and a 60-amp fuse recommended — wiring and hardware not included with amplifier
no onboard fuses — when installing multiple amps in a system, an additional 60-amp in-line fuse between the distribution block and the amplifier is recommended
8-5/8"W x 1-5/8"H x 4-5/16"D
Specifications:
RMS Power Output (Watts x Channels) - 100 x 4
Peak Power Output (Watts x Channels) - 290 x 2
Power at 2 Ohms (Watts x Channels) - 100 x 4
Bridged Power (Watts x Channels) - 200 x 2
Minimum Impedance Bridged - 4
Minimum Impedance Unbridged - 2
Best Frequency Response - 20-20000 Hz
THD at Rated RMS Power - 1%
Signal to Noise Ratio - 90 dB
Input Voltage - 14.4v
Amplifier Class - A/D
Low-Pass Crossover Frequency - 50-250 Hz
Low-Pass Slope (dB/octave) - 12 dB/octave
High-Pass Crossover Frequency - 50-250 Hz
High-Pass Slope (dB/octave) - 12 dB/octave
Bass Boost - 0-18 dB
Bass Boost Frequency - 45 Hz
Fan Cooled - Yes
Fuse Rating - 60
Speaker Level Inputs - 4 RCA
Preamp Outputs - No
Width (inches) - 8-5/8
Height (inches) - 1-5/8
Depth (inches) - 4-5/16
