Kenwood KAC-M3001

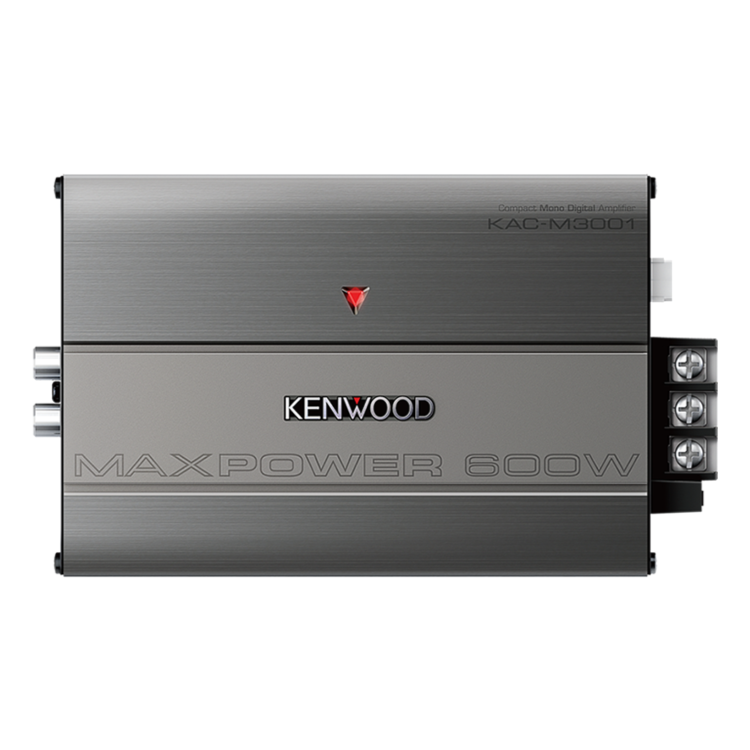

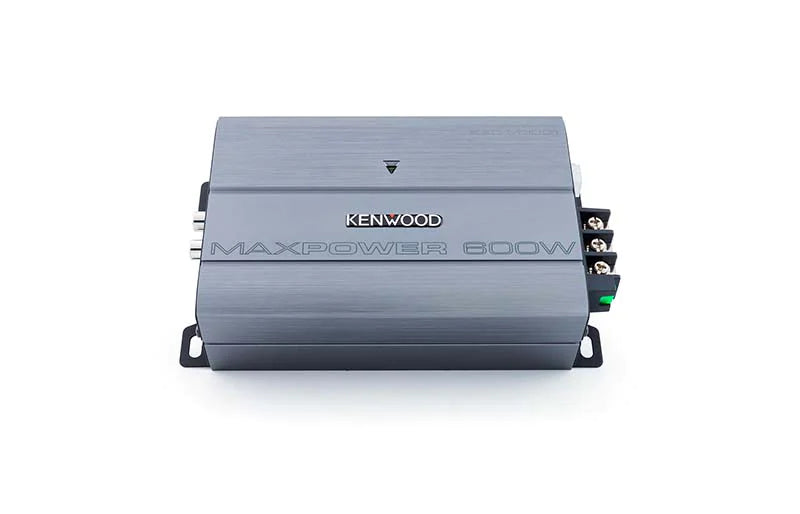

Kenwood KAC-M3001: Compact Mono Digital Amplifier

• RMS POWER Output 4Ω: 200W x 1
• RMS POWER Output 2Ω: 300W x 1
• Dimensions(WxHxD): 5-11/16" x 1-3/4" x 3-7/8"
• Singal Sensing Turn-on
• Conformal Coating *1

Many of today’s powersports have very limited space to work in and tend to be a harsh environment for electronics because of the exposure to outdoor environments. KENWOOD’s compact performance amplifiers are small in size so they fit even the most limited installation areas. The amplifiers also use a conformal coated main PCB (printed circuit boards) which offer extra layers of protection to help prevent moisture or damp air from damaging the product.

Title	Compact Mono Digital Amplifier
Amplifier Type	Class D
CTA-2006-D Value	Maximum Dynamic Power	220W at 4ohms and ≤ 10% THD + N
	Continuous Power Output	200W at 4ohms and ≤ 1% THD + N
	Signal to Noise	78dBA reference 1 Watt RMS
Maximum Power Output	600W
Specifications	Signal to Noise Ratio	97dB (Reference: Rated Power into 4Ohms at 14.4V)
	Frequency Response	20 Hz-200Hz (+0dB, -3dB)
	Input Impedance	10k ohm
	Speaker Impedance	4Ω (2Ω to 8Ω allowable)
	Bridged connection	-

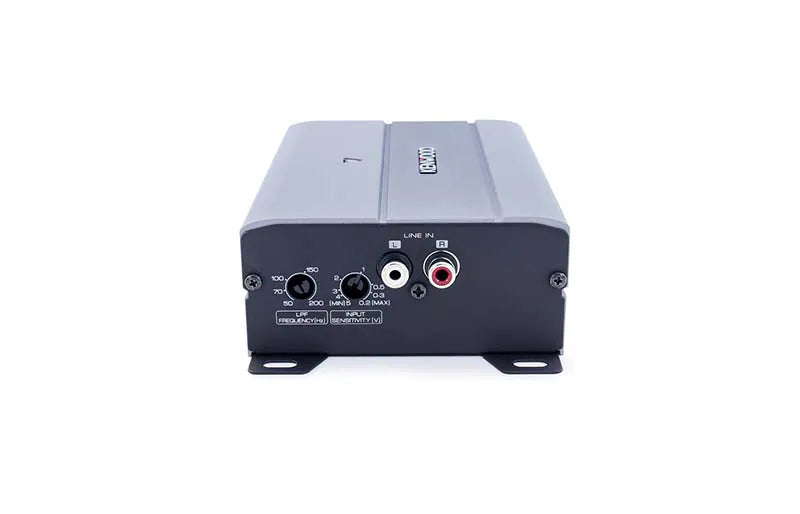

Audio Section	Low-Pass Filter	Built in Variable Low-Pass Filter (50Hz-200Hz, -24dB/oct)
	High-Pass Filter	-
	Filter Selector 1	-
	RCA Input Sensitivity	0.2 V - 5.0 V
	Speaker Level Input Sensitivity	4.0 V - 12.0 V

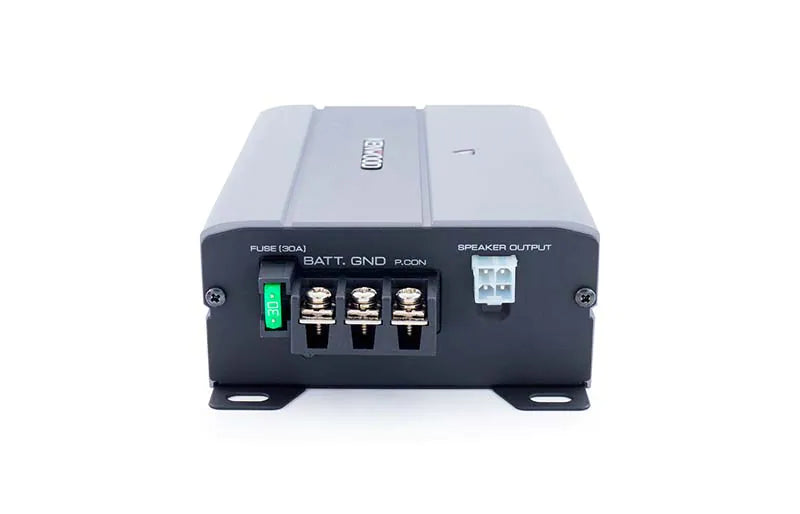

Terminals	Battery & Ground	Screw Type Terminal Block (Ni) (M4)
	Speaker Output	MOLEX Connector with AWG16 200mm Wire
	Line In	RCA (Ni)
General	Dimensions(WxHxD)	'5-11/16 X '1-3/4 X '3-7/8 inch
	Weight(kg)	-
	Operating Voltage	14.4V（11-16V allowable）
	Current Consumption	20 A
Key Features	CEA-2006 Compliant Class D 2 Ohms Load Capability Speaker Level Input Signal Sensing Turn-on Power MOS-FET Switching Power Supply Extruded Aluminum Heat Sink Design
Others	Triangle Indicator
