Rockford Fosgate P1S4-12

Rockford Fosgate P1S4-12

Regular price $109.99 USD
Regular price Sale price $109.99 USD
Sale Sold out
Shipping calculated at checkout.

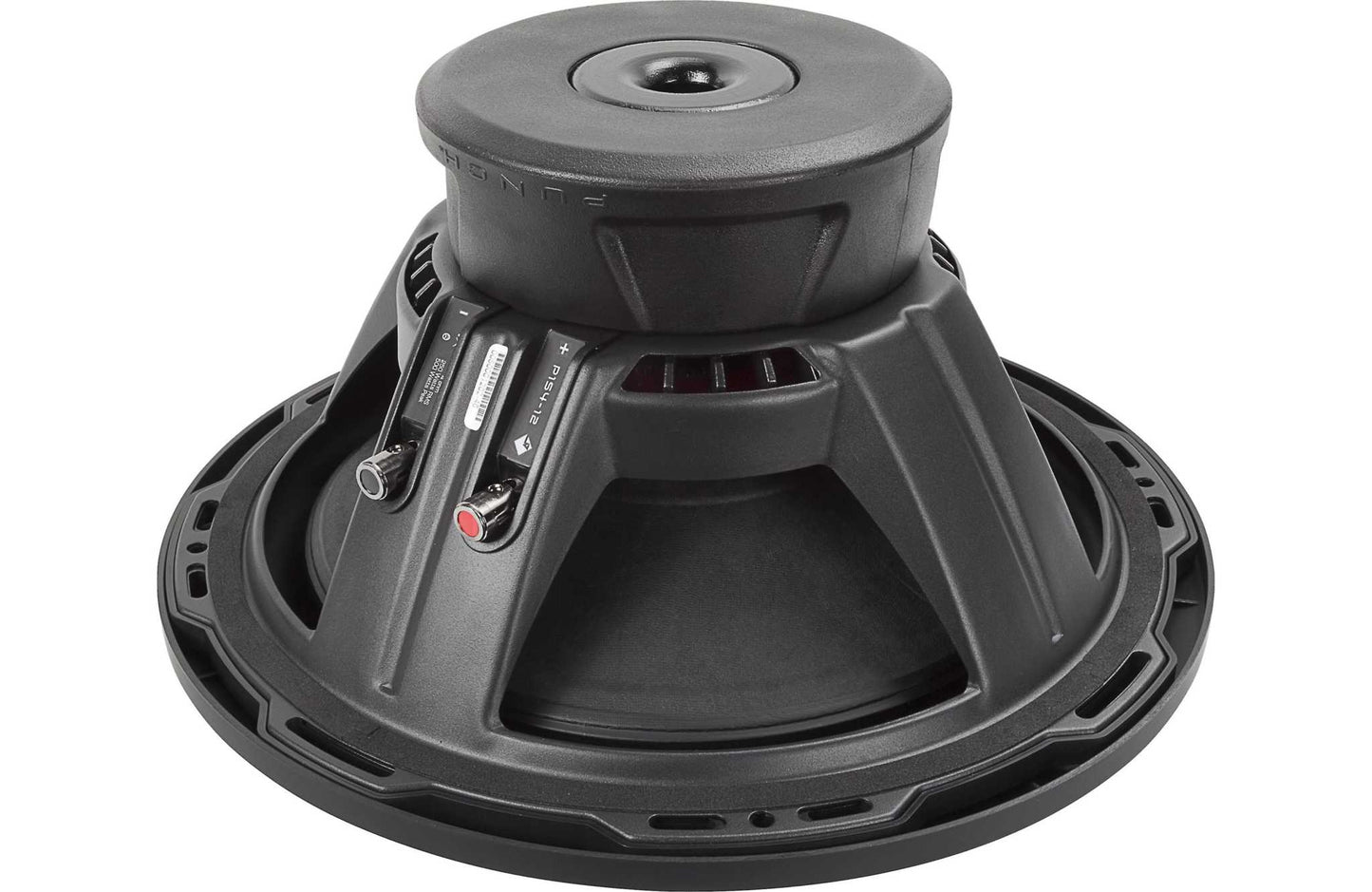

Punch 12" P1 4-Ohm SVC Subwoofer

P1S4-12

Rockford Fosgate P1 12" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology in the Punch P1 woofer increases woofer surface cone area by up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.

FEATURES AT A GLANCE

  • Kevlar fiber reinforced paper cone
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Linear spider with embedded 16 AWG tinsel leads
  • Custom 10-AWG nickel plated push terminals
  • StampCast basket with integrated spider venting
  • Rubberized ABS trim ring with optional grille
  • Extended pole piece and bumped vented backplate
  • 1 Year Warranty
  • Protective PVC textured magnet cover

Specifications:

  • Power Handling (Watts RMS)
  • -250 Watts RMS
  • -500 Watts Max
  • Voice Coil Type: Single Voice Coil
  • Subwoofer Type: Standard
  • Nominal Impedance: 4-Ohm
  • Le (mH): 3.01
  • Voice Coil Diameter: 2.0" (51.6 mm)
  • Magnet Weight (oz): 45 oz. (1.28 kg.)
  • Size: 12"
  • Speaker Connector: Dual 10 AWG compression
  • Fs (Hz): 25
  • Qts: 0.55
  • Qes: 0.56
  • Xmax (mm): 9.0
  • Qms: 3.40
  • Vas (Liters): 88.3
  • Re (Ohms): 3.6
  • Sd (cm2): 548
  • SPL (dB @ 1w/1m): 86
  • SPL (dB @ 2.8v/1m): 89
  • Cutout Diameter: 11.22 in. (285 mm)
  • Mounting Depth: 6.0 in. (152.4 mm)
  • Woofer Displacement: 0.081 cu. ft. (2.3 Liters)
  • Sealed Box Volume (Vb): 1.02 cu. ft. (28.8 Liters)
  • Vented Box Volume (Vb): 1.79 cu. ft. (50.6 Liters)
  • Shipping Weight: 11.7 Lbs. (5.3 kg)
