Kenwood DRV-A601WDP
Kenwood DRV-A601WDP

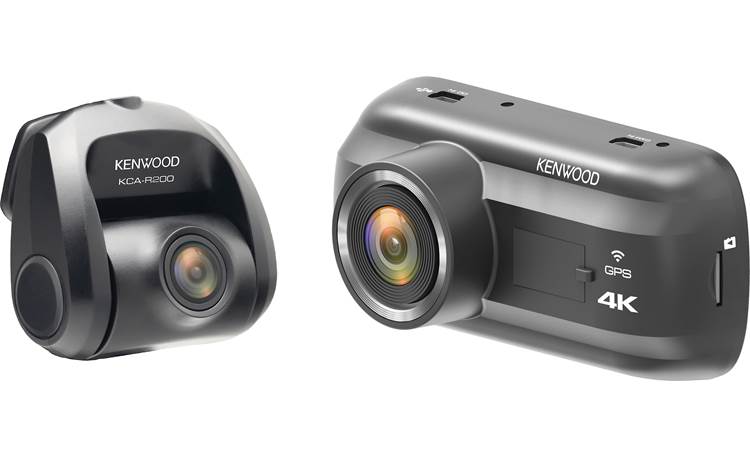

Front & Rear Camera Package: DRV-A601WDP
High Definition Recording & Wireless Link
Dual Camera package is equipped with 8.3 Megapixel* 4K (Front Camera) and 3.7 Megapixel Wide Quad Hi-Vision (Rear Camera) recording and provides easy data transfer to your smartphone through Wireless Link.
*In Dual Camera Mode, both cameras maximum recording resolution is 3.7 Megapixel. Rear cam must be turned off in menu setting to enable front cam 8.3 Megapixel recording.
| Front Camera | Rear Camera | ||
| Hard Specification | Screen size | 3.0inches full color TFT | - |
|---|---|---|---|
| Operating voltage | 5V / 2A; 12-24V DC | DC 5V | |
| Current Consumption | 650mA | 120mA | |
| Super Capacitor | Yes | - | |
| Button | Touch Button | - | |
| Wireless Link | Yes | - | |
| Microphone | Built-in | - | |
| Speaker | Built-in | - | |
| GPS Receiver | Built-in | - | |
| G-sensor | Built-in | - | |
| Collision sensitivity | -4.0G to +4.0G (0.1G Step) | - | |
| Image sensor | 1/2.5 CMOS sensor | 1/2.8 CMOS sensor | |
| Valid Pixel | 8.57M Pixels (3864x2218) |
5.14M Pixels (2616 x 1964) |
|
| Number of Pixel | 8.48M Pixels (3872x2192) |
3.7M Pixels (2560 x 1440) |
|
| Angles of view | Horizontal : 129° Vertical : 72° Diagonal :130° |
Horizontal : 129° Vertical : 66° Diagonal :161° |
|
| Lens rotation | - | Yes(180∘) | |
| Image reversal (Upside down) | Yes | - | |
| Lens | F1.8 | F2.0 | |
| Polarization Filter | Bundled | No | |
| Operating temperature | -10℃ to +60℃ | -10℃ to +60℃ | |
| Noise Protection | Yes | Yes | |
| OSD Menu Language | Inmplemented languages | EN/DE/FR/NL/IT/ES/PT/RU/PL/CZ/RO | - |
| Recording Specification | Recording resolution | Single:3840 x 2160 4K Dual:1440P (Front) + 1440P(Rear) |
2560 x 1440 Quad HD |
| Frame rate | 30FPS | 30FPS | |
| HDR | - | - | |
| WDR | Yes | Yes | |
| Recording Mode | 1 / 3 / 5 min | - | |
| Voice recording | Yes(ON/OFF） | - | |
| Video format | H.264 / MOV | H.264 / MOV | |
| Audio format | Linear PCM | Linear PCM | |
| Picture format | JPEG (Max.3840 x 2160) |
- | |
| Recording media | microSDXC/SDHC card 8GB to 256GB UHS Speed Class 3 (U3) |
- | |
| Port | DC-IN | mini USB-B type | - |
| AV Out/HD Out | HDMI | - | |
| AV In (Rear Cam) | Yes | - | |
| SD Slot | microSD | - | |
| Size | Dimensions WxHxD(Main unit) | 106mm*50.5mm*40.5mm 4-3/16" x 2" x 1-9/16" |
63mm*66mm*36mm 2-1/2" x 2-5/8" x 1-7/16" |
| Dimensions WxHxD(Bracket attached) | 106mm*90mm*40.5mm 4-3/16" x 3-9/16" x 1-9/16" |
63mm*66mm*36mm 2-1/2" x 2-5/8" x 1-7/16" |
|
| Weight(Main unit) | 108g | 334g | |
| DC/Rear cam Cable Length | 4m | 8m | |
| Bundled Accessory | SD Card | microSD 64GB | - |
| DC Cable | Cigar Lighter Car Charger Adapter (12-24V, 4m) | Hardware Kit (12-24V, 4m) |
|
| Car Mount Bracket | J Type Mount(Build-in GPS) Mounting Bracket (3M Tape & Suction Cup) |
3M Tape | |
| Manual /Warranty card | Quick Start Guide | Yes | |
| USB Cable | Yes/110cm | - | |
| Spare 3M Adhesive Pad | Yes/2pcs | Yes/2pcs | |
| Cable Clips | Yes/4pcs | - | |
| Optional Accessory | Rear Cam | - | |
| Hardwire Kit | CA-DR1030 | - | |
| Application | PC Viewer | Windows/Mac | - |
| Requirement for Windows | Windows 10, 8.1, 7 | - | |
| Requirement for Mac | Mac OS X 10.11 (El Capitan) or later |
- | |
| Languages for PC Viewer | EN/DE/FR/NL/IT/ES/PT/RU/PL/CZ/RO | - | |
| Smartphone App | Android/iOS | - | |
| Requirement for Android | Android 5.0.2 and above | - | |
| Requirement for iOS | iOS 9.0 and above | - | |
| Languages for Smartphone App | EN/DE/FR/NL/IT/ES/PT/RU/PL/CZ/RO | - |
