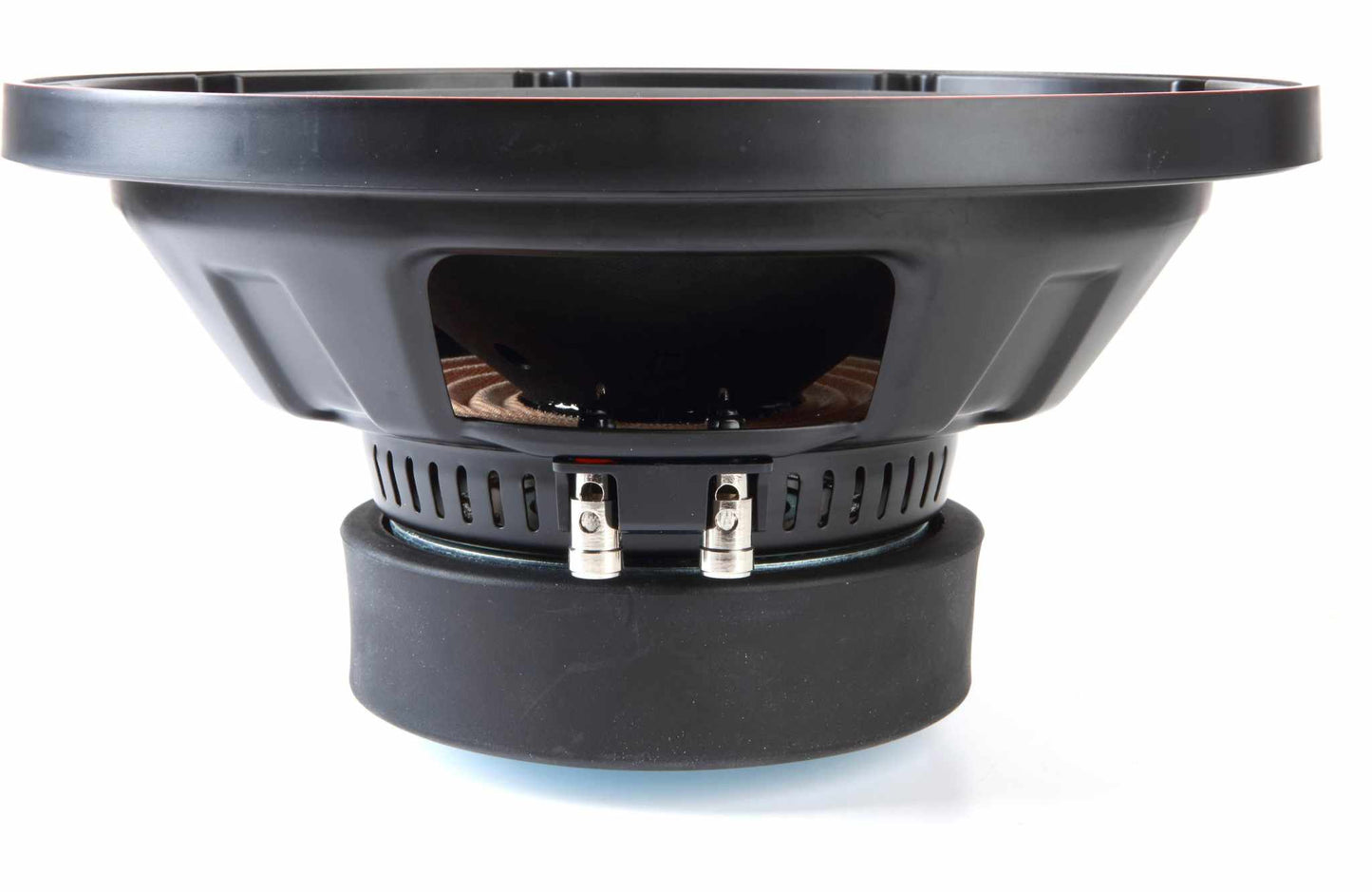

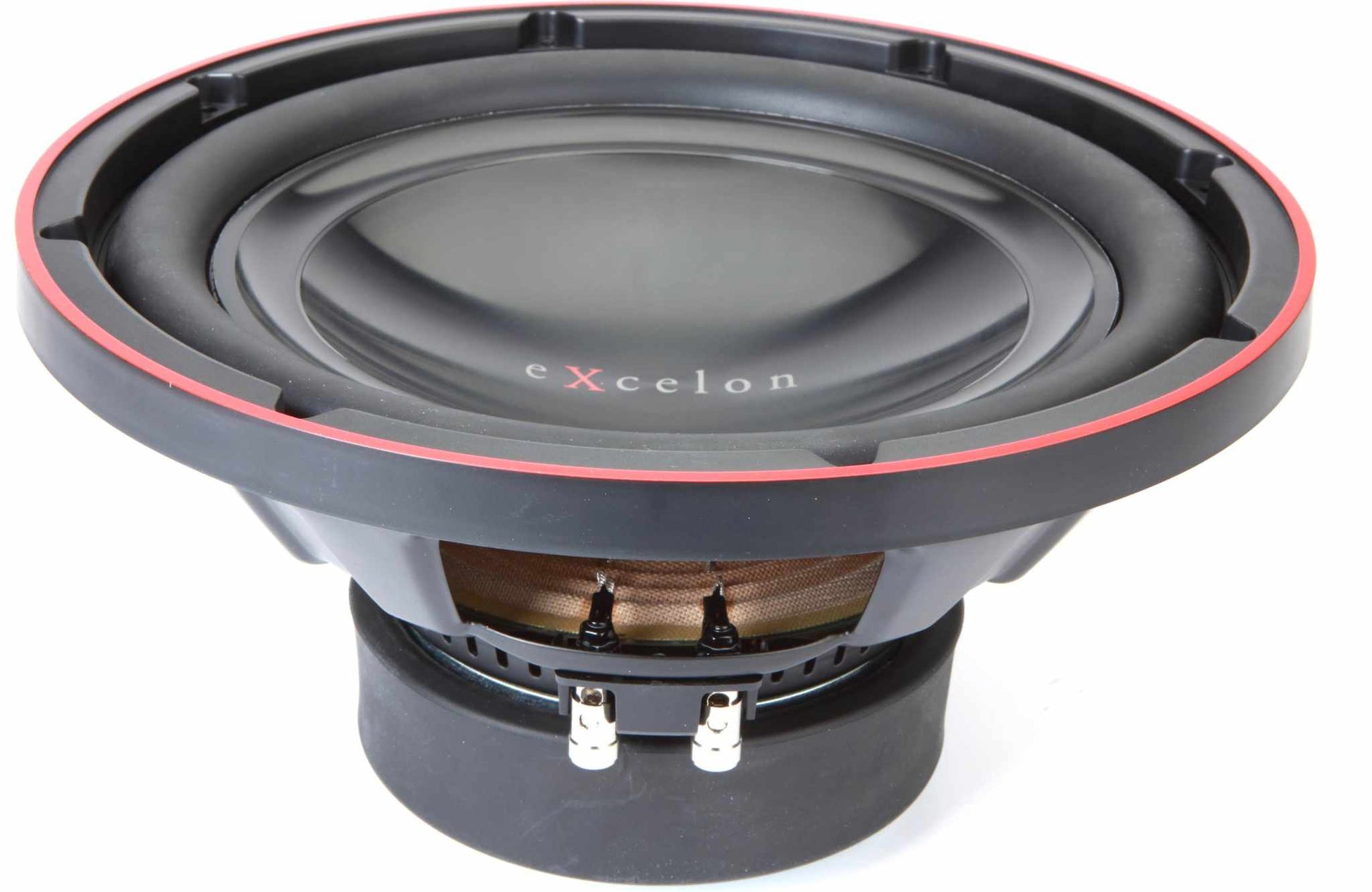

Kenwood KFC-XW1221HP
Kenwood KFC-XW1221HP
KFC-XW1221HP
12" Subwoofer (2Ω)
Product Highlights:
- Peak Power 2000W
- PP Dual Area Cone
- Closed Yoke with Advanced Airflow Control
- Stress Controlled Spider
- Robust Thermal Management System
PP Dual Area Cone
This gives its diaphragm the rigidity required for higher power handling and delivers more accurate bass.
Closed Yoke with Advanced Airflow Control
The KFC-XW1221HP has a robust thermal management system, implemented with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control.
Stress Controlled Spider
Computer-optimized damper controls stress and increases mechanical durability.
The Best Match
KFC-XR1221HP "High Performance" Class Subwoofer is precisely power matched with the eXcelon X502-1 amplifier.
Recommended Enclosures
| Model | Type | Inner Volume | W | H | D | Mounting Hole | SW | SH | SL |
|---|---|---|---|---|---|---|---|---|---|
| KFC-XW1221HP | Sealed | 1.25 cft (35.4 liter) | 18" (457mm) | 14-1/4" (362mm) | 11-3/4" (299mm) | 11-1/8" (282mm) | |||
| Ported | 1.50 cft (42.5 liter) | 20" (508mm) | 14-1/4" (362mm) | 15-1/2" (394mm) | 1-3/8" (35mm) | 12-3/4" (324mm) | 29" (736mm) |
General Features:
| ELECTRICAL | ||
|---|---|---|
| Impedance (Ω) | 2 | |
| Peak Input Power (W) | 2000 | |
| RMS Power (W) | 500 | |
| Sensitivity (dB at 1m) | 81 | |
| Frequency Response (Hz) | 25 ~ 300 | |
| MOUNTED SPEAKER | ||
| Size | 300mm | 12 inch |
| Diaphragm | Paper | |
| Cap | Injection PP | |
| Surround | Rubber | |
| Basket | Steel | |
| Gasket | ABS | |
| Magnet | Ferrite | φ155-φ75-t32 |
| DIMENSION | ||
| Width | 326mm | 12 - 13/16 inch |
| Height | 326mm | 12 - 13/16 inch |
| Cut-out Diameter | 279mm | 11 inch |
| Depth | 165.8mm | 6 - 1/2 inch |
| Mounting Depth | 147mm | 5 - 13/16 inch |
| WEIGHT | ||
| Woofer without Gasket | 6.4 kg | 14.1 lb |
| Gross Weight | 7.4 kg | 16.3 lb |
| Weight of Magnet | 2340 g | 82.4 oz |
| ACCESSORY | Tapping Screw Φ4 x 35, 8pcs | |
| Polyethylene Foam 1000 x 13 mm | ||
| Instruction Manual | ||
| Warranty Card | ||
| SPECIAL FEATURE | Injection PP Dual Area Cone | |
| Closed Yoke with Advanced | ||
| Airflow Control | ||
| Aluminum Bobbin | ||
