XR-1801PHigh-Resolution Audio Certified
7" Component Speaker

RICH AND IMMERSIVE HIGH-RESOLUTION AUDIO

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

GLASS FIBER CONE

The glass fiber cone combines high-strength with lightweight materials, allowing the speaker to reproduce all sounds from impactful bass notes to delicate tones.

WOOFER CAP WITH CIRCLE RIB

The circle rib provides enhanced woofer stability, ensuring bass is deep and clear.

SURROUND ROLL SHAPE

Asymmetrical thickness of the surround roll shape provides better focussed bass.

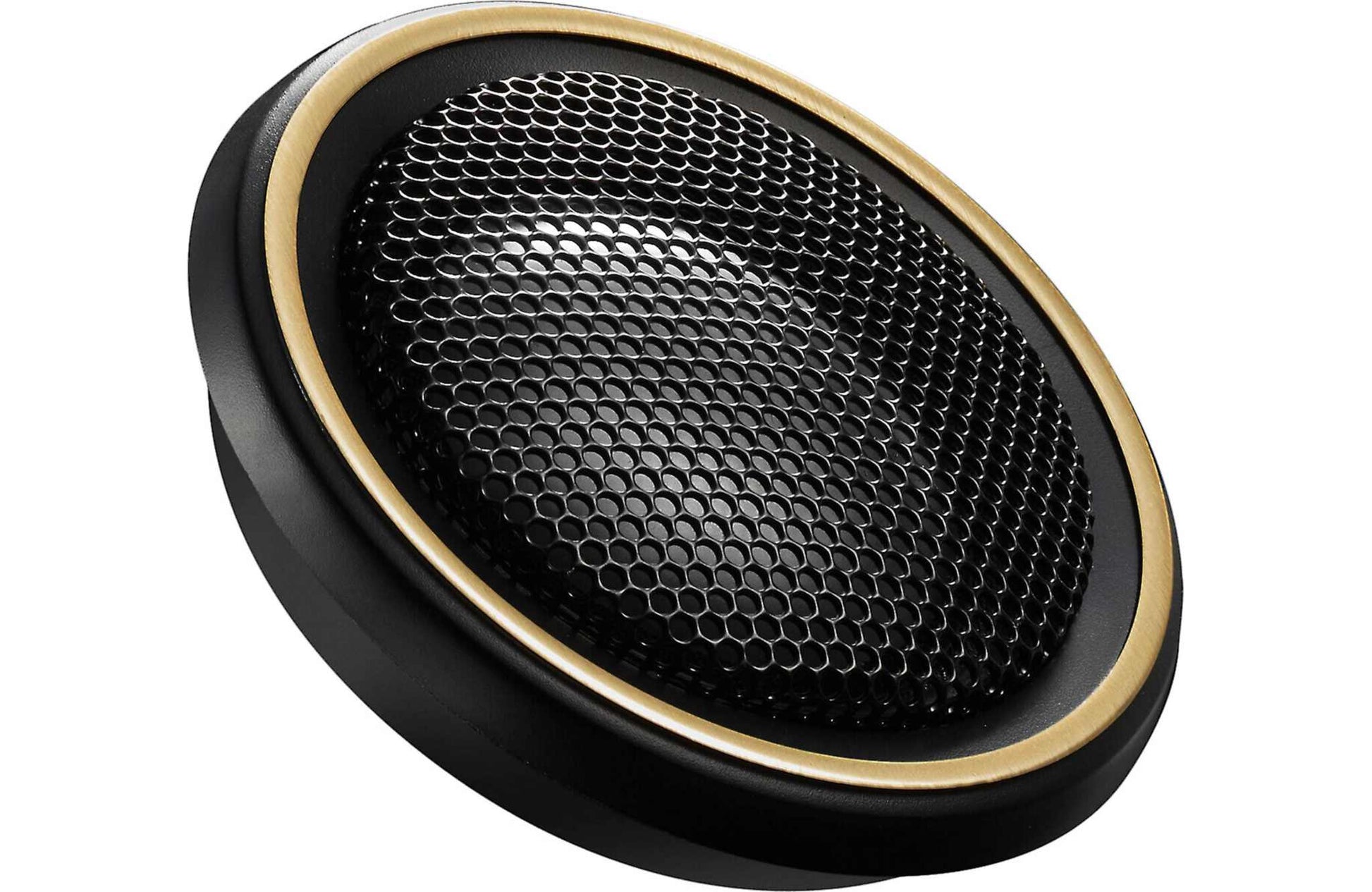

1-3/16” LARGE TWEETER DESIGNED FOR HIGH RESOLUTION

1-3/16” (30mm) tweeters have a larger surface area than most tweeters which allows clear reproduction of vocal sound up through ultra high frequency range. Both flush and surface mountng options are included.

With its compound curvature diaphragm, a large 1-3/16” (30mm) titanium hard dome provides the ultimate in high frequency performance.

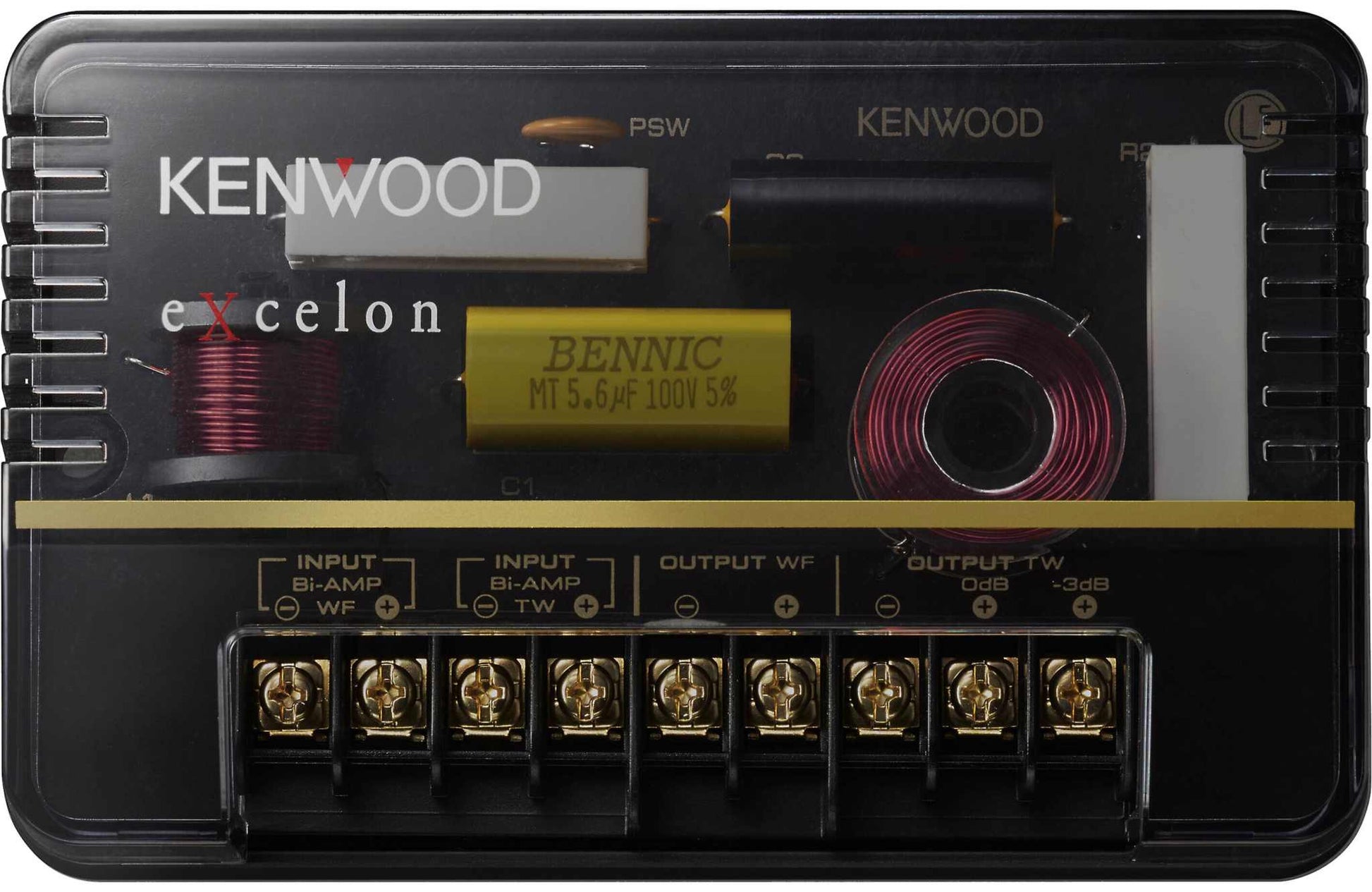

NEW BI-AMP CONNECTION

The XR-1801P's include bi-ampable crossover network box, allowing you to power the tweeter and woofer individually from the XR401-4 or other combinations of individual amplifier channels. The network box is further optimized with a high-reliability polyswitch and resistor to protect the tweeter from being overdriven.

WOOFER MULTI-BRACKET

A multi-bracket is included to make installation easier in a varierty of vehicle types. 6"x9" or multi-use bracket.

Product highlights:

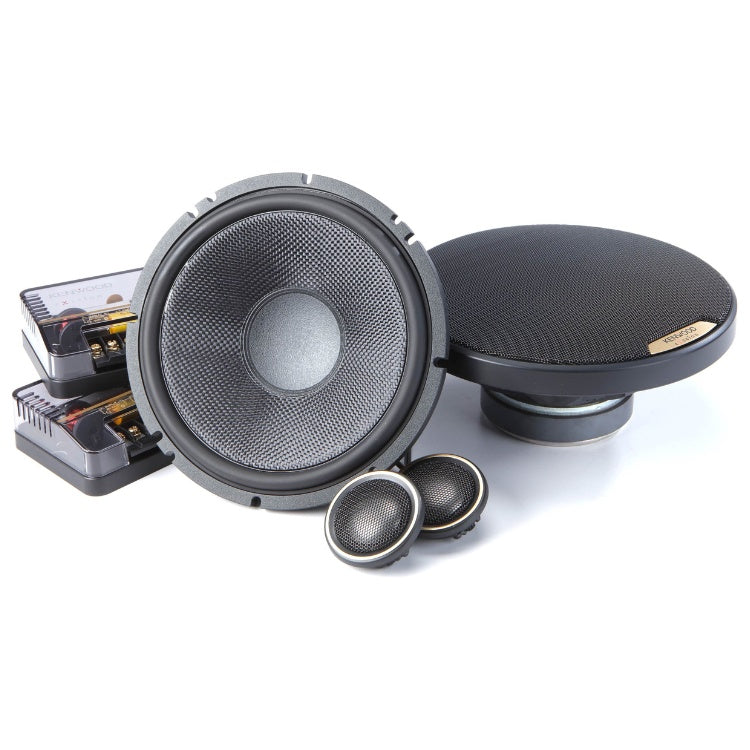

• component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers

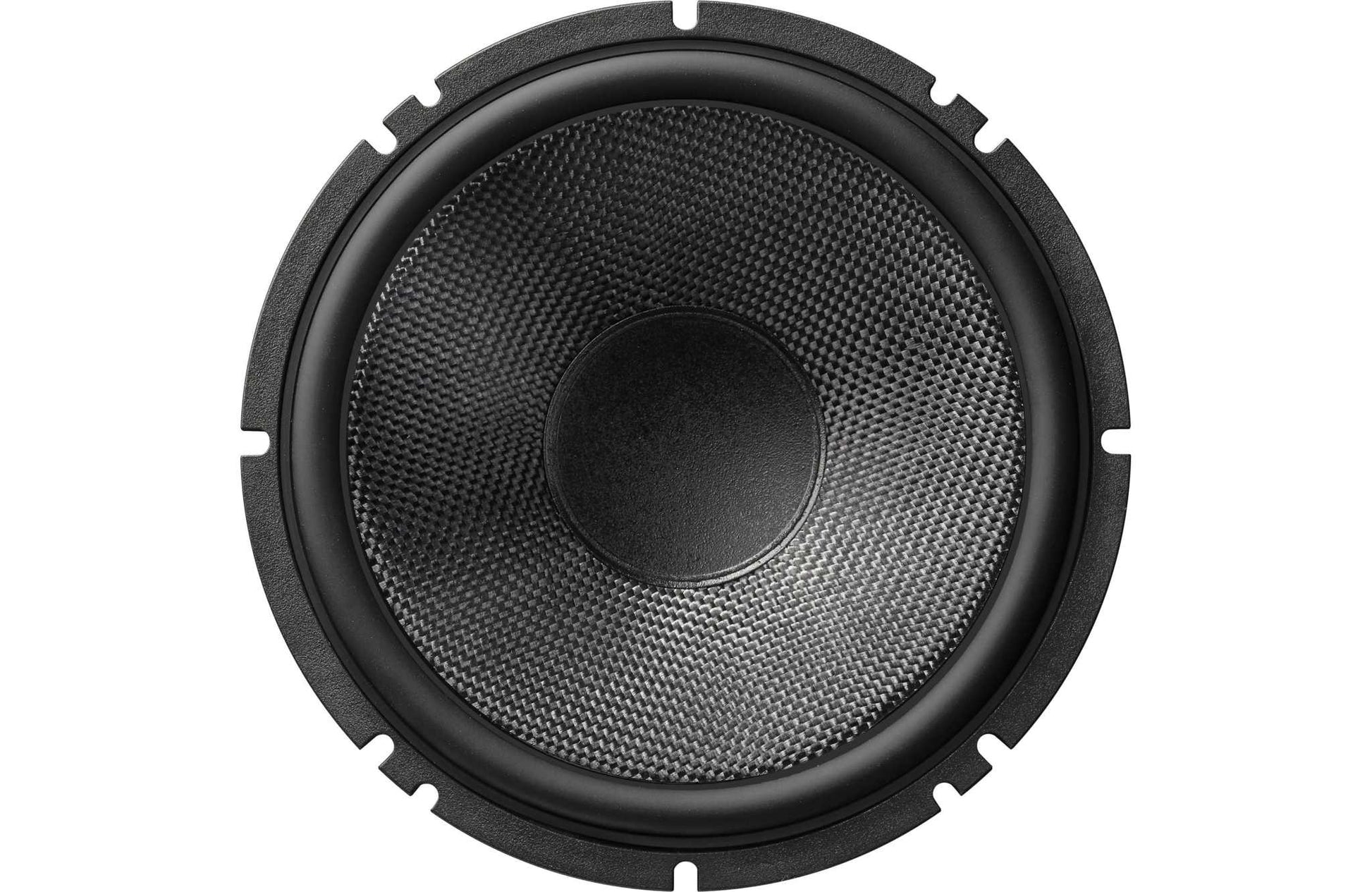

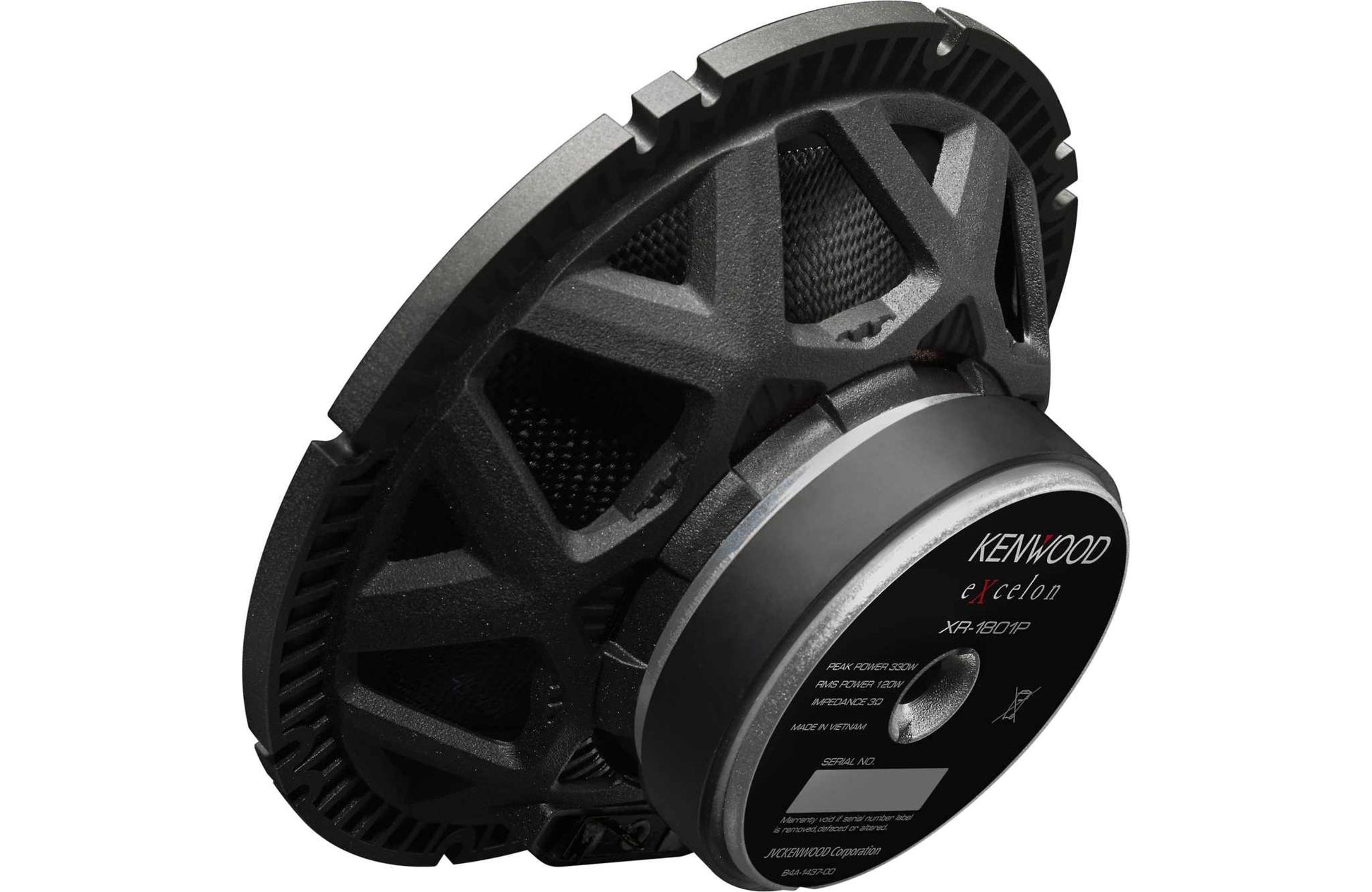

• 7" glass fiber woofer with rubber surround
• 1-3/16" titanium hard dome tweeter with neodymium magnet
• includes flush- and surface-mount tweeter hardware
• external crossover with two-level tweeter attenuation and bi-amp capability
• handles up to 120 watts RMS (330 watts peak power)
• frequency response: 52-35,000 Hz
• sensitivity: 87 dB
• impedance: 3 ohms
• woofer top-mount depth: 2-1/2"

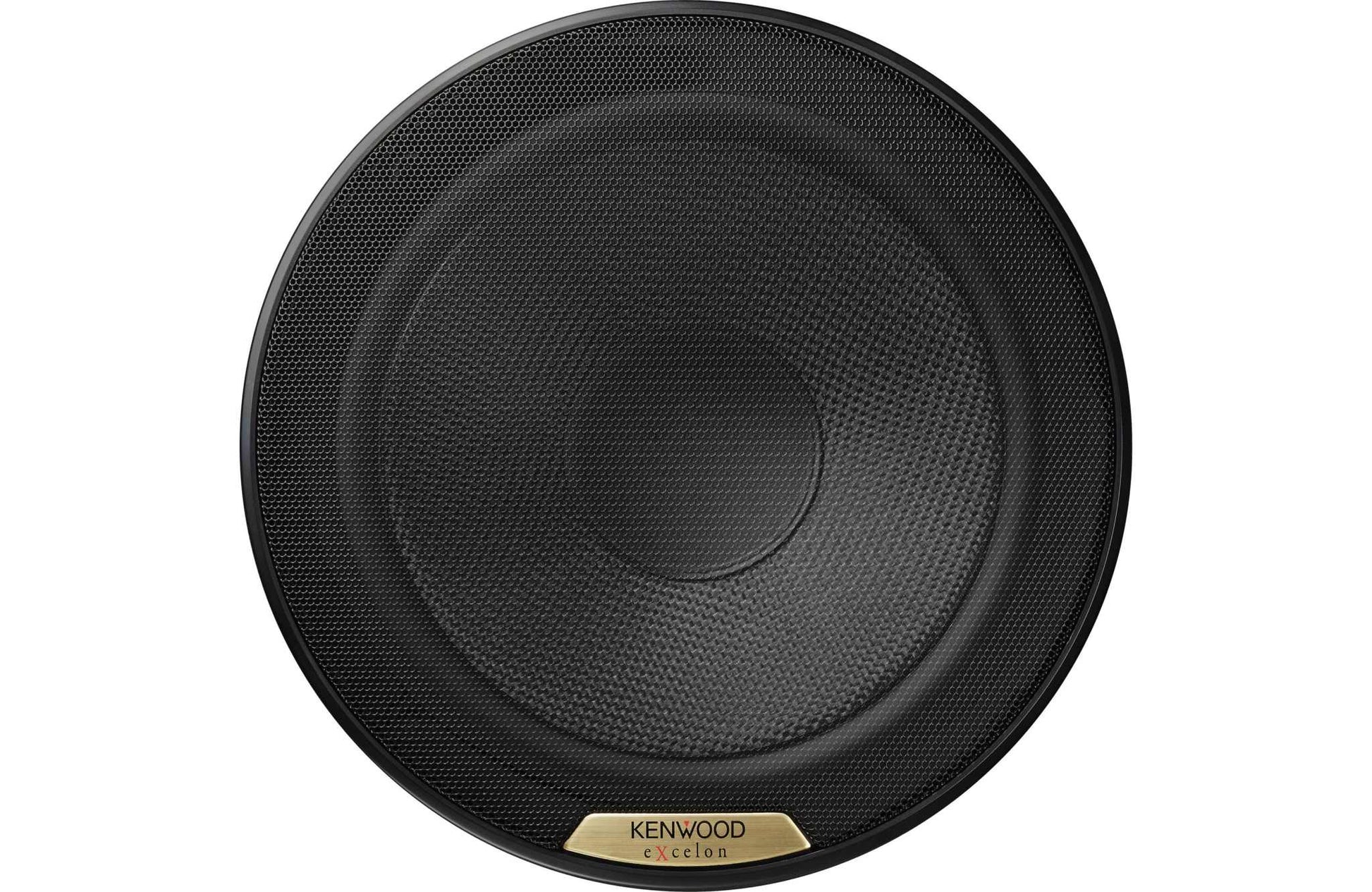

• grilles included
• warranty: 2 years
