Kenwood XR401-4

XR401-4

Class D 4 Channel Power Amplifier

Product Highlights:

• RMS 75W x4 (4Ω)
• RMS 100W x4 (2Ω)
• Variable Low-pass Filter
• Variable High-pass Filter
• Speaker Level Input

• Signal Sensing Turn-on
• Wired Remote Level Control Included
• Dimension: (W)8-11/16” x (H)1-3/8” x (D)6-5/8”
• Weight: 3.3lbs (1.6kg)

Rich and Immersive High-Resolution Audio

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

HIGH PERFORMANCE PARTS

Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving high-resolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.

DEEP BASS SOUND

By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.

ENHANCED SIGNAL TO NOISE RATIO

The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.

SPECIALIZED CIRCUIT DESIGN

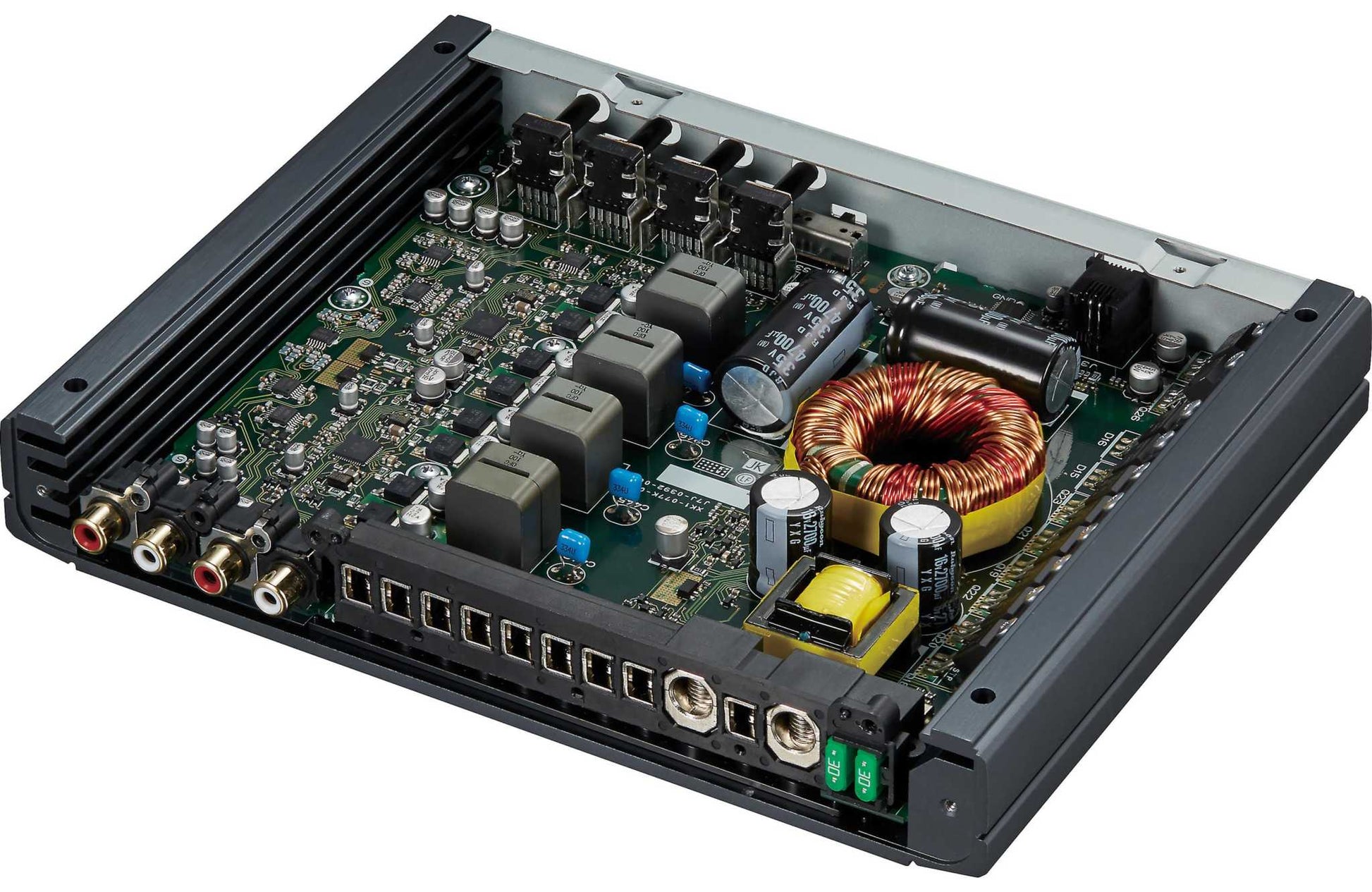

The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.

WIRED REMOTE CONTROL

The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.

Features:

• Operating Voltage: 14.4V (11 - 16 V allowable)
• Current Consumption: 37 A
• Dimensions (W x H x D): 220 x 35 x 169 mm (8-11/16 x 1-3/8 x 6-5/8)
• Weight: 1.5 kg (3.3 lbs.)
• Warranty: 2-Year
