 2.7" Marine/Motorsports Digital Media Receiver

Model: PMX-2

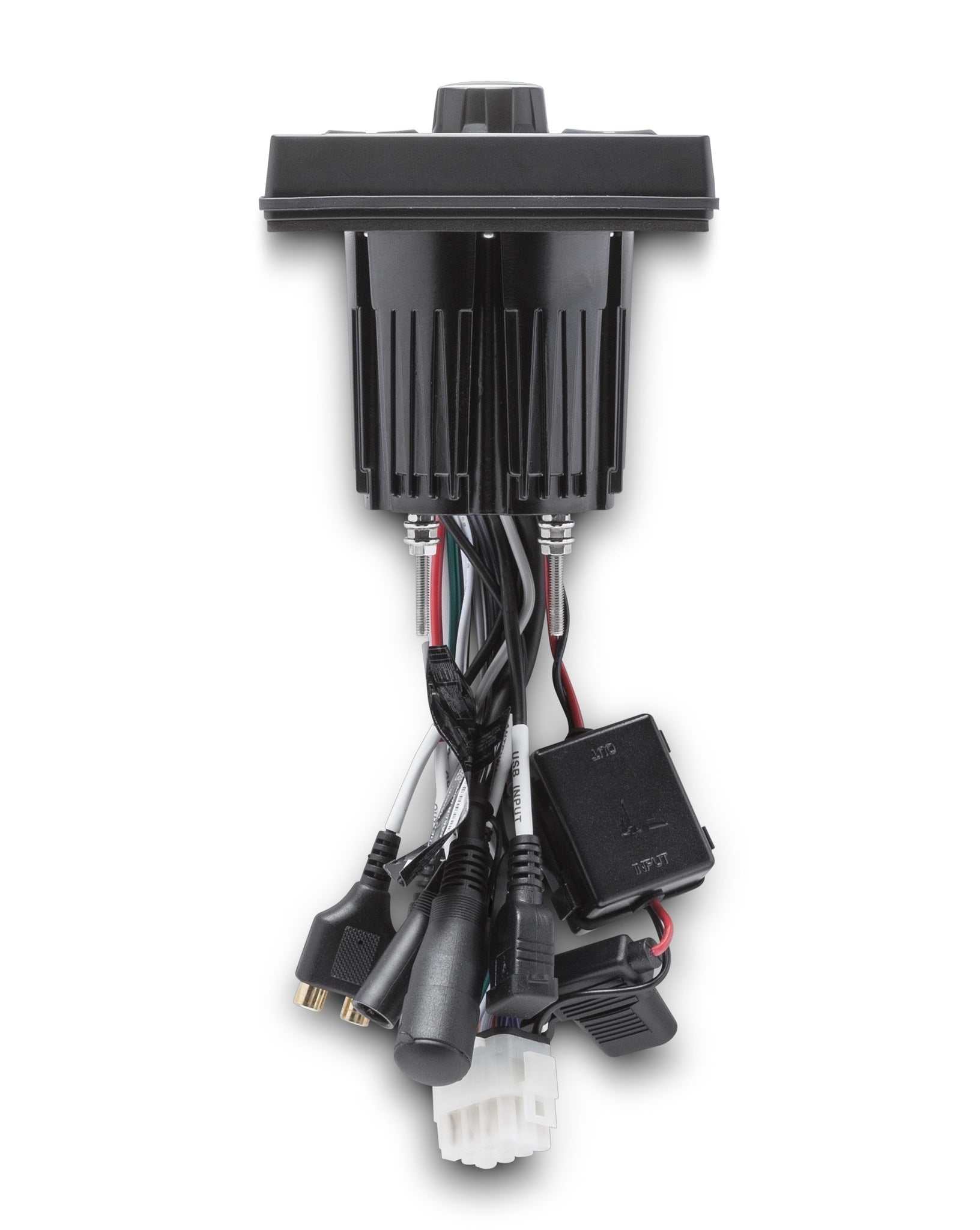

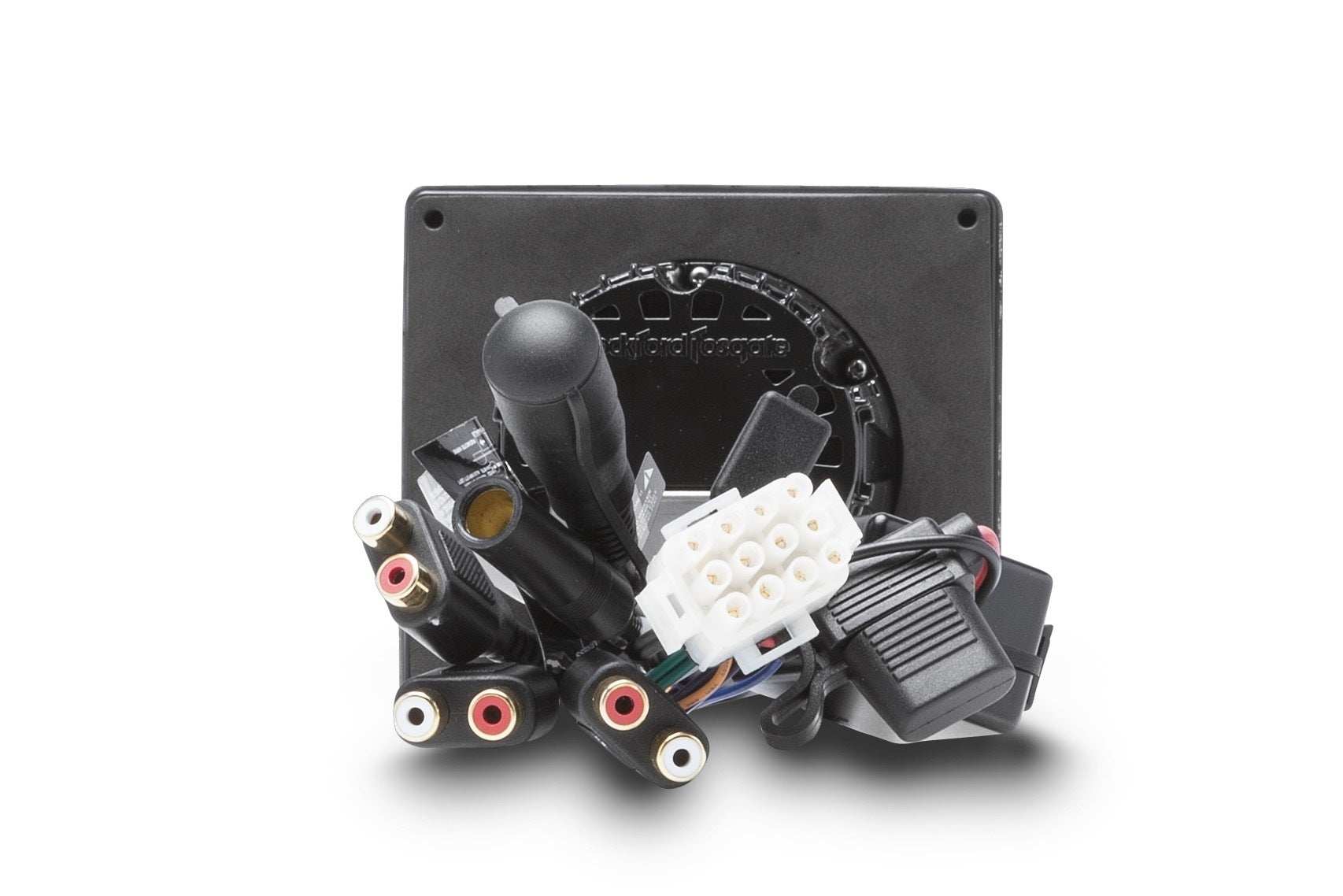

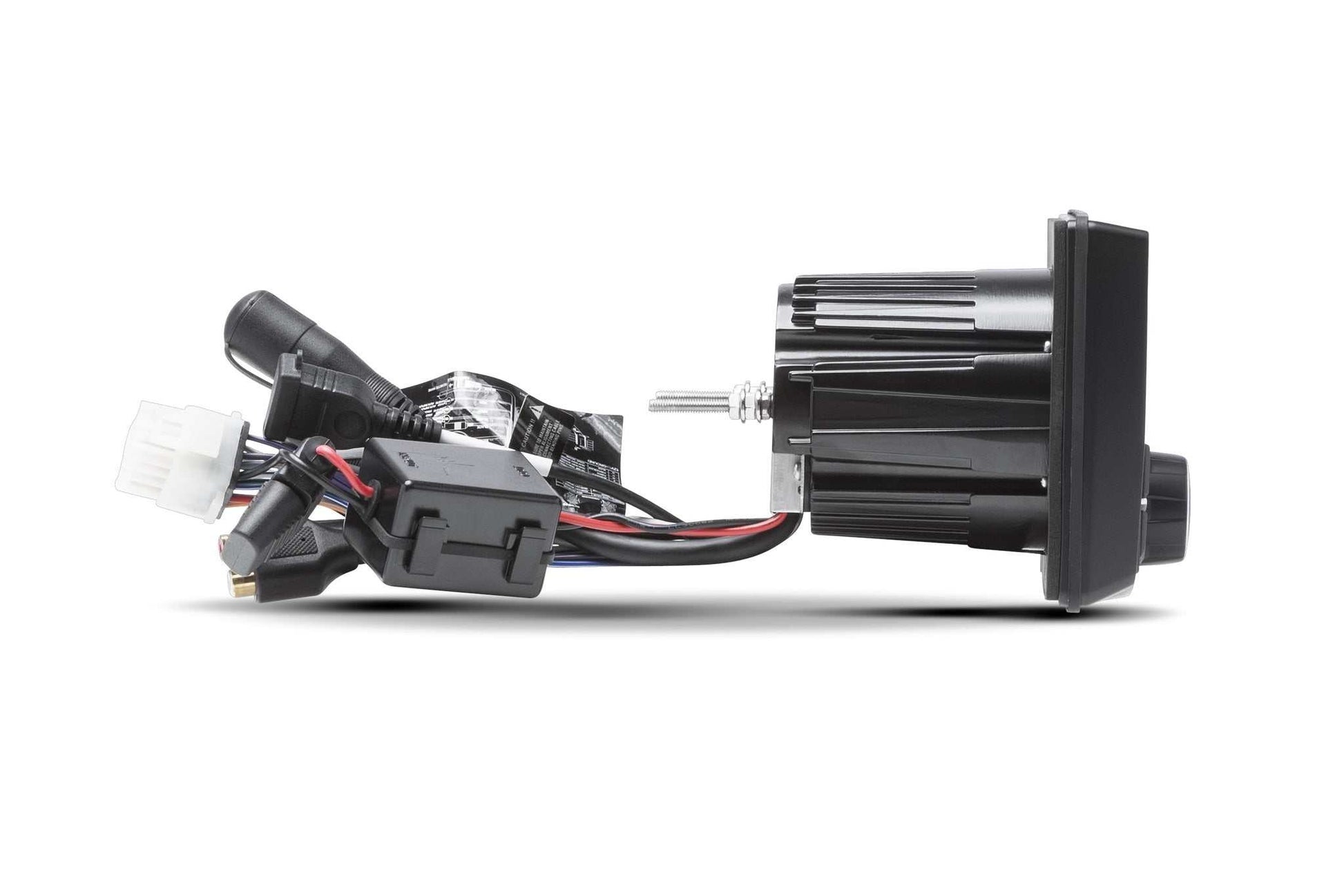

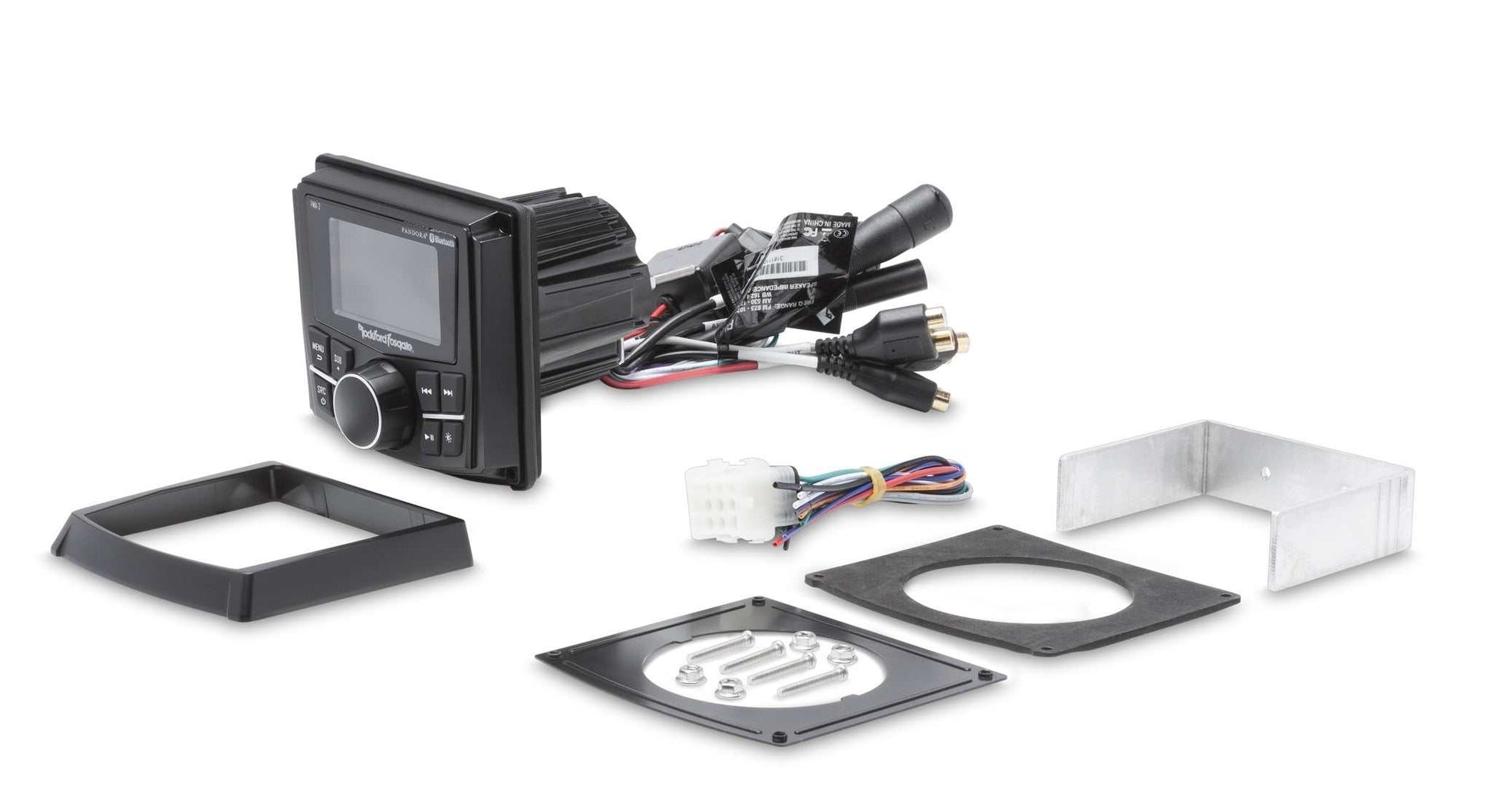

The PMX-2 compact digital media receiver is designed for marine and motorsports applications.

The PMX-2 features a 2.7"full color TFT display for optimum viewing - even in full sun - that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such Pandora control capabilities and Bluetooth audio steaming with album art support1 this unit becomes a true command center of any system. 1Android devices equipped with limited functionality. Please refer to owners manual for details.

Output flexibility comes with a 4x50W @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of after-market amplifiers for more power and output. Add-in the EEPROM memory system, custom GUI interface, and wired remote expansion capabilities and you have the only media receiver you'll ever need.

FEATURES AT A GLANCE

  • AUX and USB Inputs with USB Charging
  • ISO8846/SAE J1171 Ignition Protection Certified
  • Pandora Internet Radio
  • A2DP and AVRCP Bluetooth Wireless Streaming
  • FCC, CE, IC, and C-Tick Certified
  • Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
  • IPX6 Marine Grade for prevention of water intrusion
  • 7-Band Graphic EQ
  • AM/FM/WB Tuner
  • Independent Subwoofer Level Control
  • iPod playback with on-screen display
  • Low Voltage Warning Alert
  • Multi-region radio frequencies
  • 2-Year Warranty
  • On Board Punch EQ Control
  • 2.7" full color display w/ auto dimming backlighting
  • *Antenna not included
  • Zone Control: 1 Zone / 1 Source (F/R or Sub)

Specifications:

FM TUNER Sensitivity: 8 dB
AM TUNER Frequency Range: 530 kHz - 1710 kHz
AM TUNER Usable Sensitivity: 40 dB
RCA Output Voltage: 2V RMS (Does not clip at full output)
RCA Output Impedance: 500Ω
Operating Voltage: 10.5 V - 16 V
Speaker Impedance: 2-Ohms
Fuse Rating: 20 A
Dimensions (HxWxD): Width 4.5" (11.5cm); Face Depth 1.5" (3.8cm); Mount Depth 2.9" (7.4cm); Height 4.2" (10.6cm)
USB Capacity: 32Gb max; 999 Folders max; 999 Songs max
Media Player Audio Format Compatibility: MP3; WMA; FLAC
Compatible Remotes: PMX-1R, PMX-0R (3 Remote Limit, 100 ft Total Wired Distance)
Android Compatibility: Bluetooth® Only
Speaker Outputs: Yes
Bluetooth®: Yes, 3.0+EDR, A2DP 1.3
Pandora® Internet Radio: Yes
Device Type: Digital-Media Receiver
WB TUNER Frequency Range: 162.40 - 162.55 (US & Canada)
Tuner Number Of Presets: 18 FM / 12 AM / 6 WB
USB Version: 2.0
USB Charging: Yes
Steering Wheel Control Ready: No
Frequency Response: 20 Hz - 20 kHz
Multi-Zone/Multi-Source: No
FM TUNER Frequency Range: 87.5 MHz - 107.9 MHz
Power Output: CEA-2006 Power Rating 25W x 4 @ 4Ω RMS; 50W x 4 @ 2Ω Peak; ≤1.0% THD+N
Clock: No
Speaker Outputs: Yes (4 Channel)
RCA OUTPUTS: (1 pr) Front; (1 pr) Rear (or Sub-out)
Display Size: 2.7" Color TFT
SiriusXM-Ready®: No
USB Output Current: 1A
Apple®/Android™ Compatible: Yes. Limited functionality on Android. See owners manual.
AUX Input: Yes (1pr)
Back Panel Cutout: 3" (77mm)
