Rockford Fosgate RFK-HD24
Rockford Fosgate RFK-HD24
*2023.5+ Harley's need to have the most up to date software installed before upgrading to the TMA-1000X4i amplifier. The amplifier will also need to be updated and tuned-message us for more information*
Amp Installation Kit for 2024+ Harley-Davidson
RFK-HD24
The RFK-HD24 is an aftermarket amplifier installation kit designed specifically for the Rockford Fosgate TMA-1000X4i amplifier. The system features an Skyline™ OS interface connector, amp mounting plate for Road Glide and Street Glide, and a complete plug-and-play wiring harness for uncompromising precision with a true plug-and-play system. This installation kit is only sold with the HD24-STG2 & HD24-STG3 kit.
Plug and Play Design: A true plug-and-play solution in a single box, complete with direct fit model-specific amplifier mounting plate. Designed to seamlessly integrate with the Harley-Davidson® Skyline™ OS — eliminating the need to flash the radio — making installation truly effortless.
Element Ready™: Purpose-built for the harsh motorcycle environment, this kit includes watertight, grommeted installation harnesses with OEM-style and Deutsch™ DT connectors. Designed to withstand water, dirt, UV exposure, and constant vibration, it ensures long-lasting, reliable audio performance.
Compatibility Chart: Please review below tab for fitment before purchasing.
Loud. Clear. Relentless.
The RFK-HD24 is an aftermarket amplifier installation kit designed specifically for the Rockford Fosgate TMA-1000X4i amplifier. The system features an amp mounting plate for Road Glide and Street Glide, and a complete plug-and-play wiring harness for uncompromising precision with a true plug-and-play system.

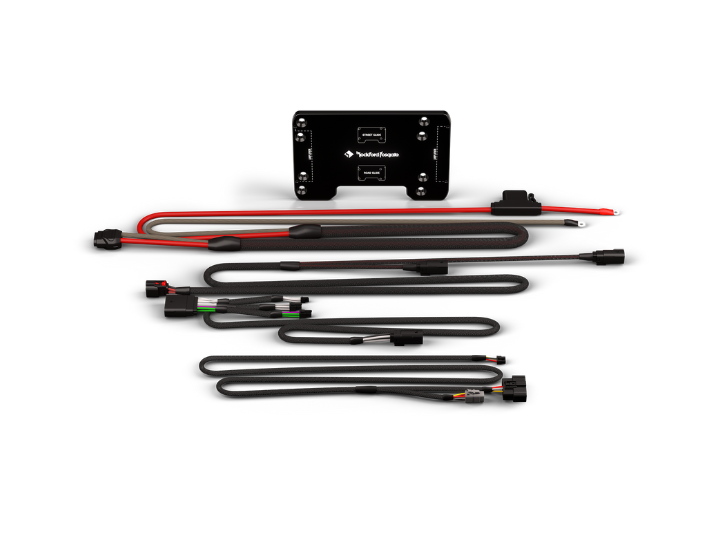

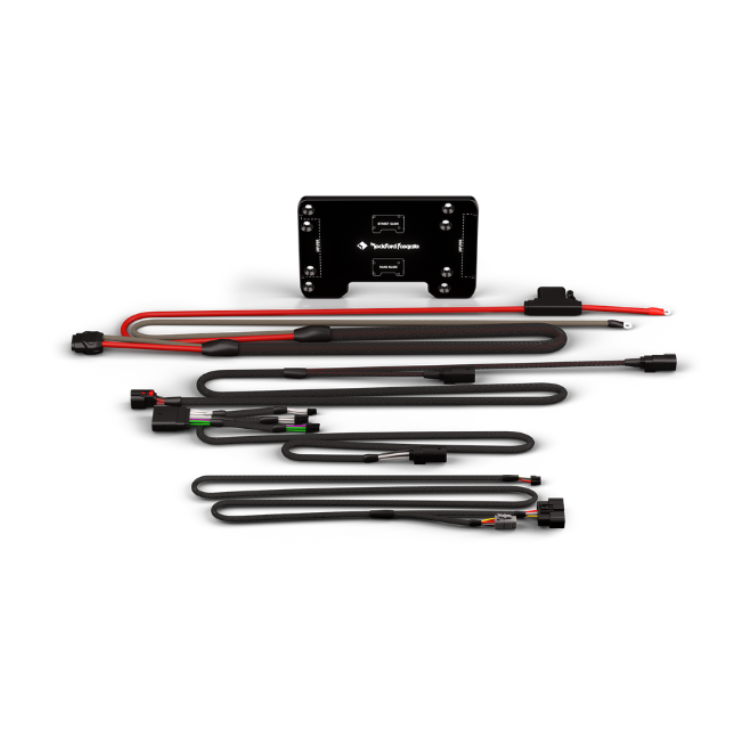

Components:

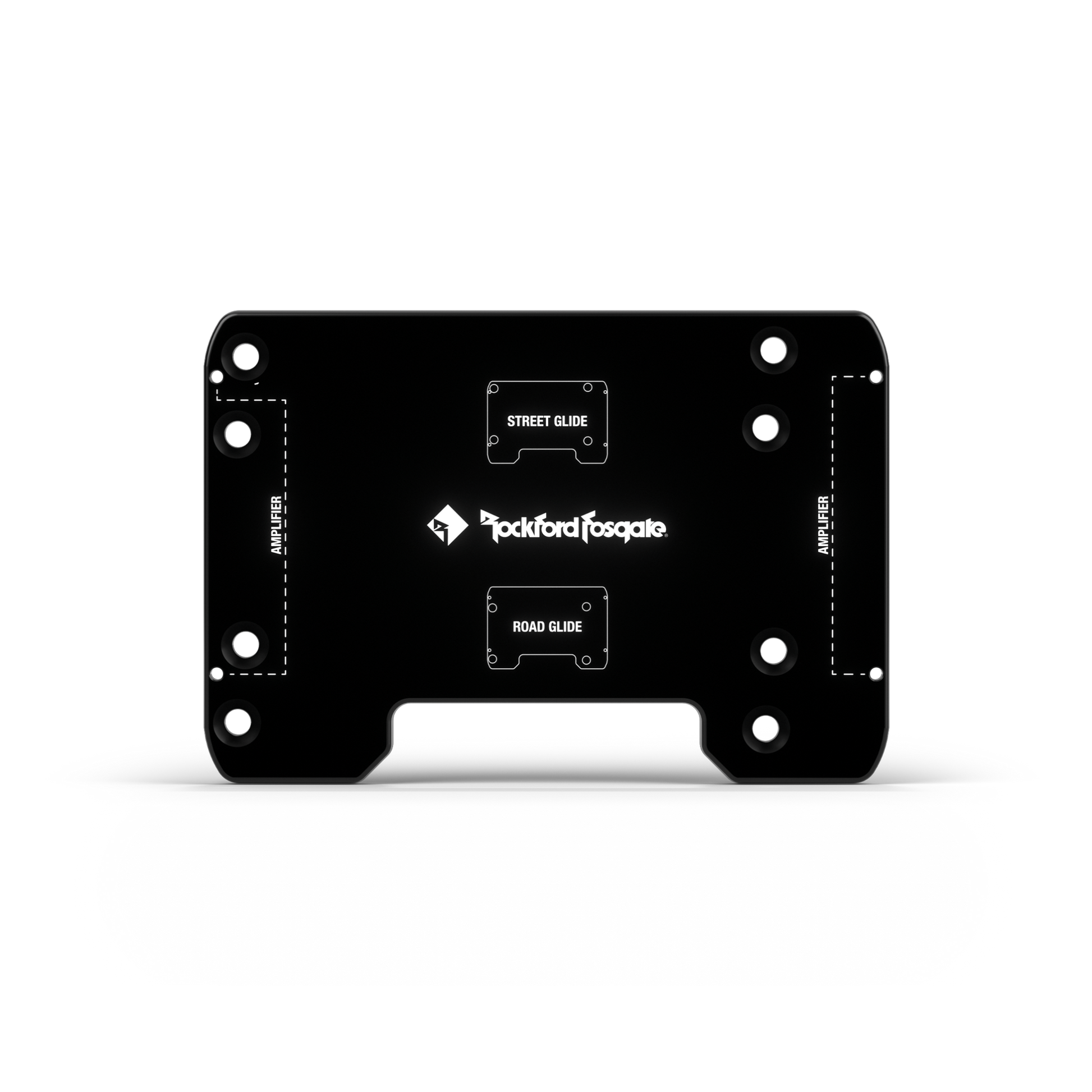

• (1) Amp mounting plate
• (1) Skyline™ OS connector

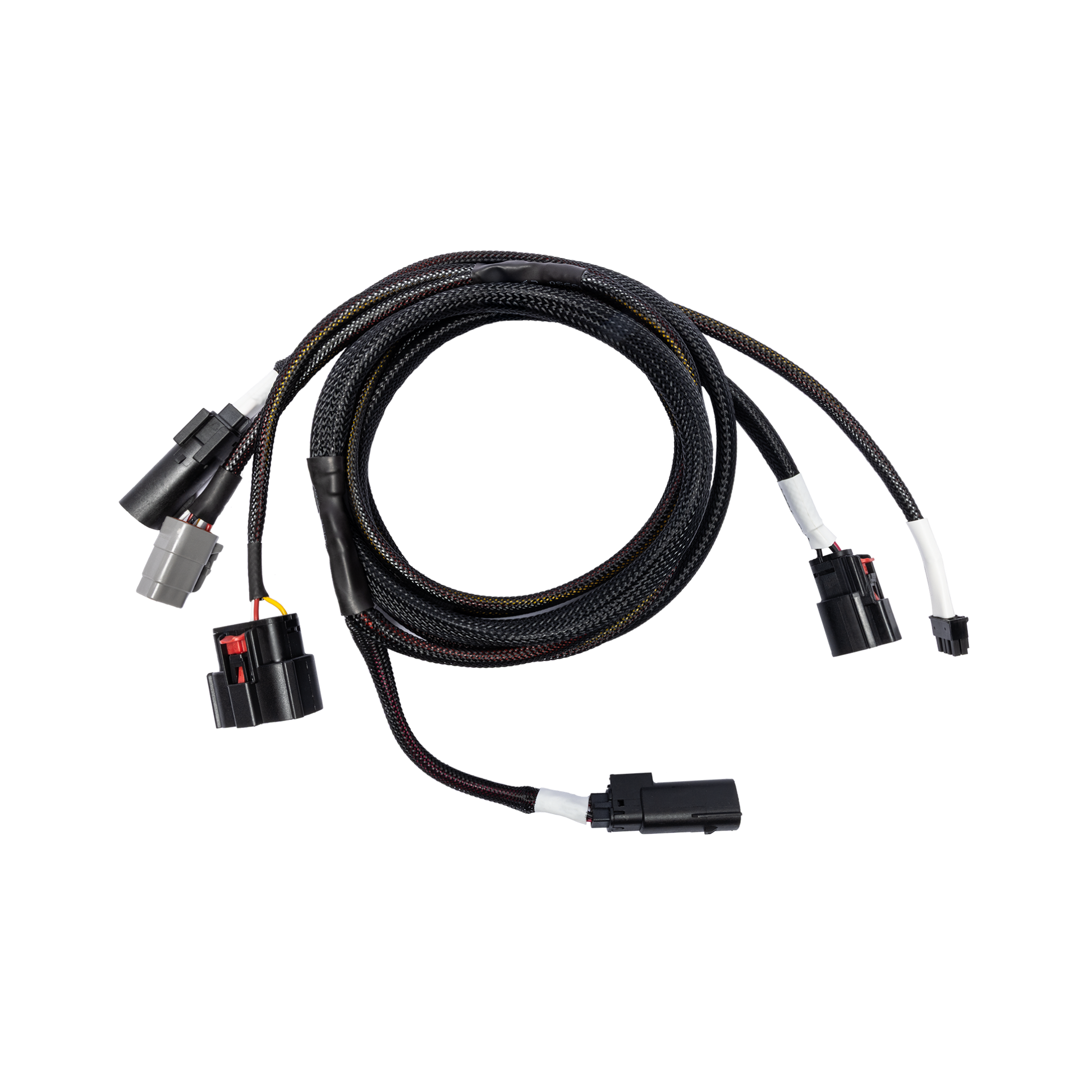

• (1) Complete wiring harness
• (1) Power/ground harness
• Mounting hardware
FEATURES AT A GLANCE
- Purpose-Built for 2024+ Harley-Davidson® touring motorcycles
- Plug-and-Play design for easy installation
- Supports up to 8-speaker audio systems
- Designed for use with TMA-1000X4i amplifier
- Cast aluminum amp bracket has provisions for Street Glide and Road Glide
- Element Ready™ to withstand the harsh outdoor environment like dust, water, and UV rays

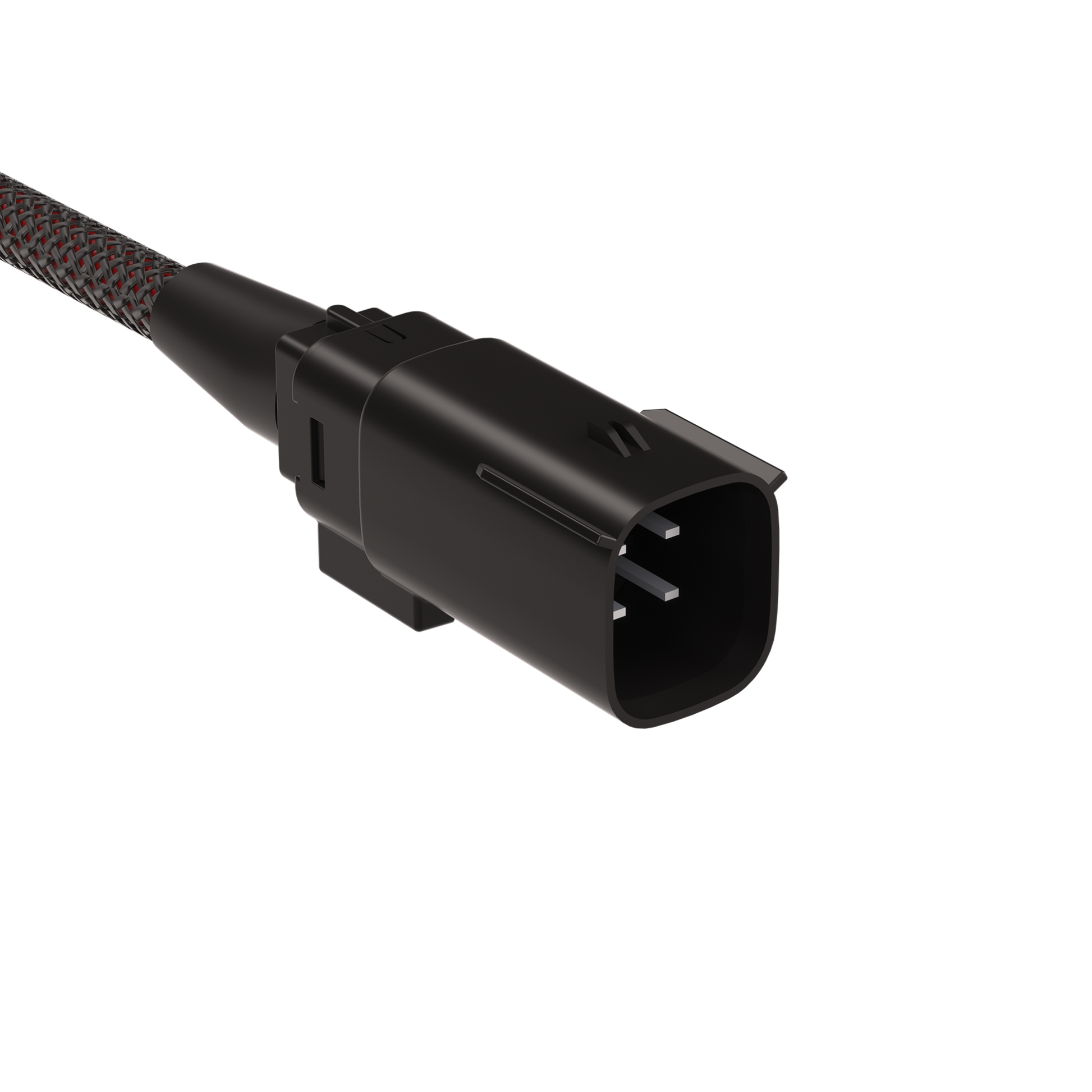

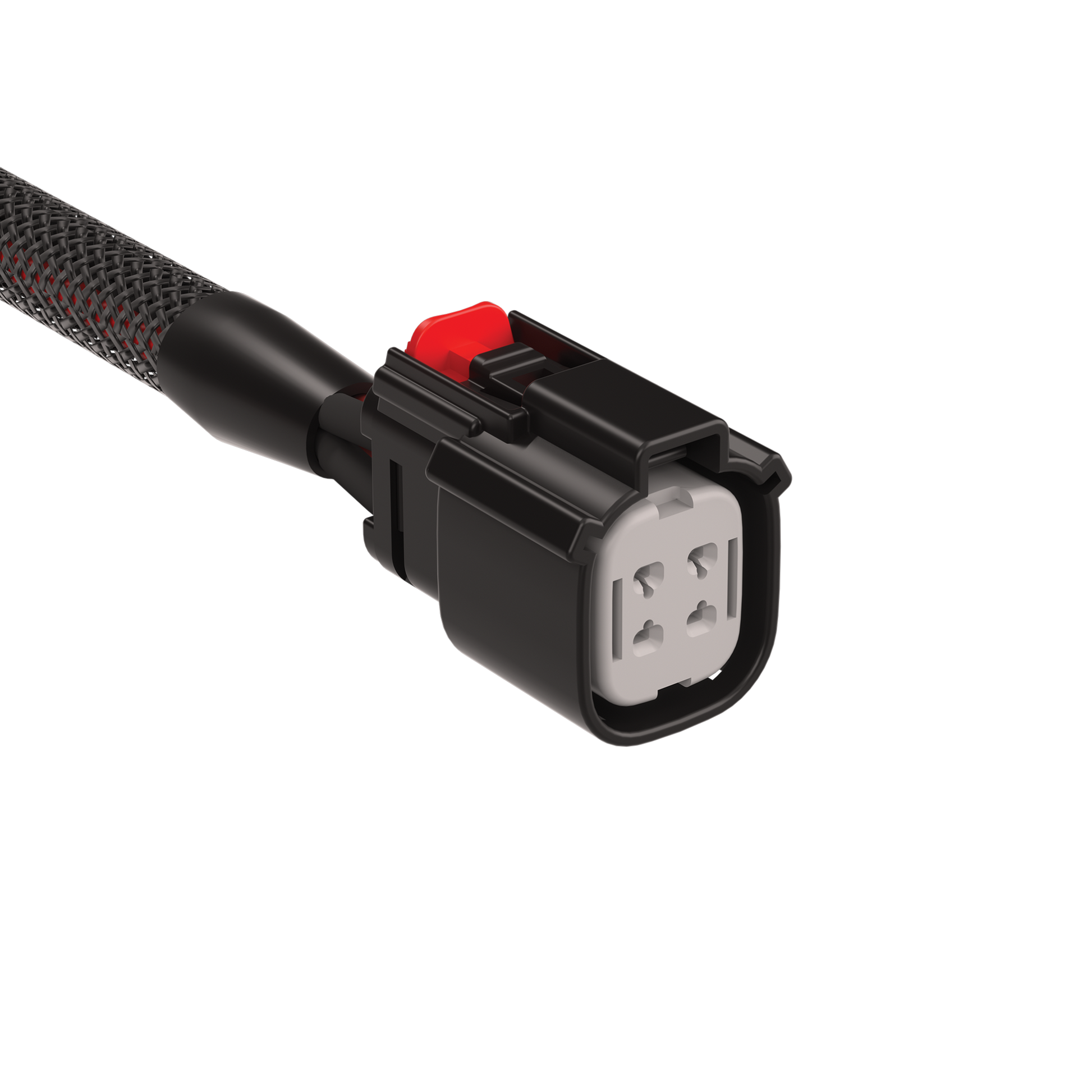

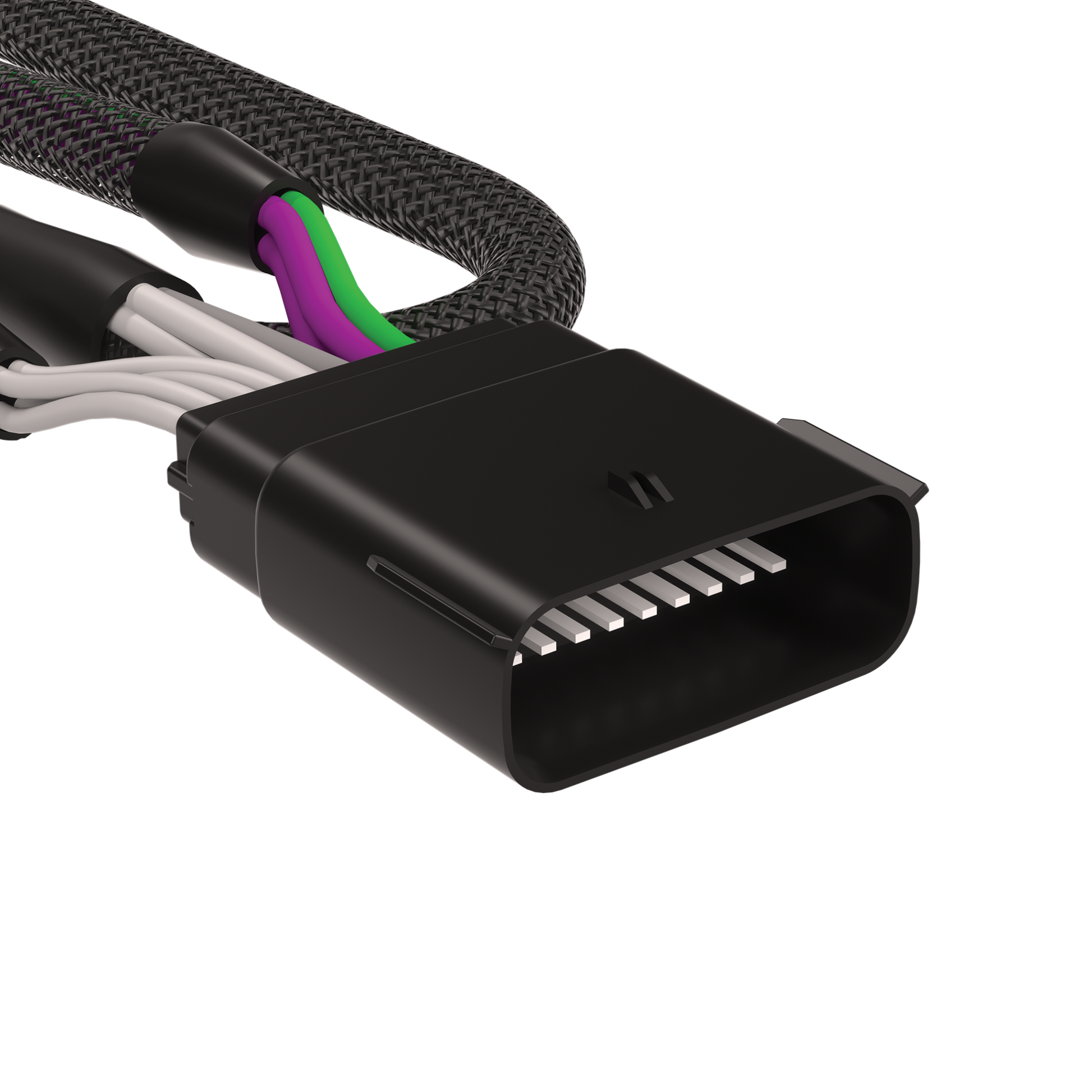

- Quick connection to factory wiring with Molex MX150 connectors
- Plugs directly into factory A2B connector to facilitate quick amp upgrade
- Connects amplifier output directly to existing factory speaker wiring
- Harness includes expansion for lower fairing, Tour-Pak® and saddlebags
- One-time removal of gas tank and fairing streamlines future upgrades

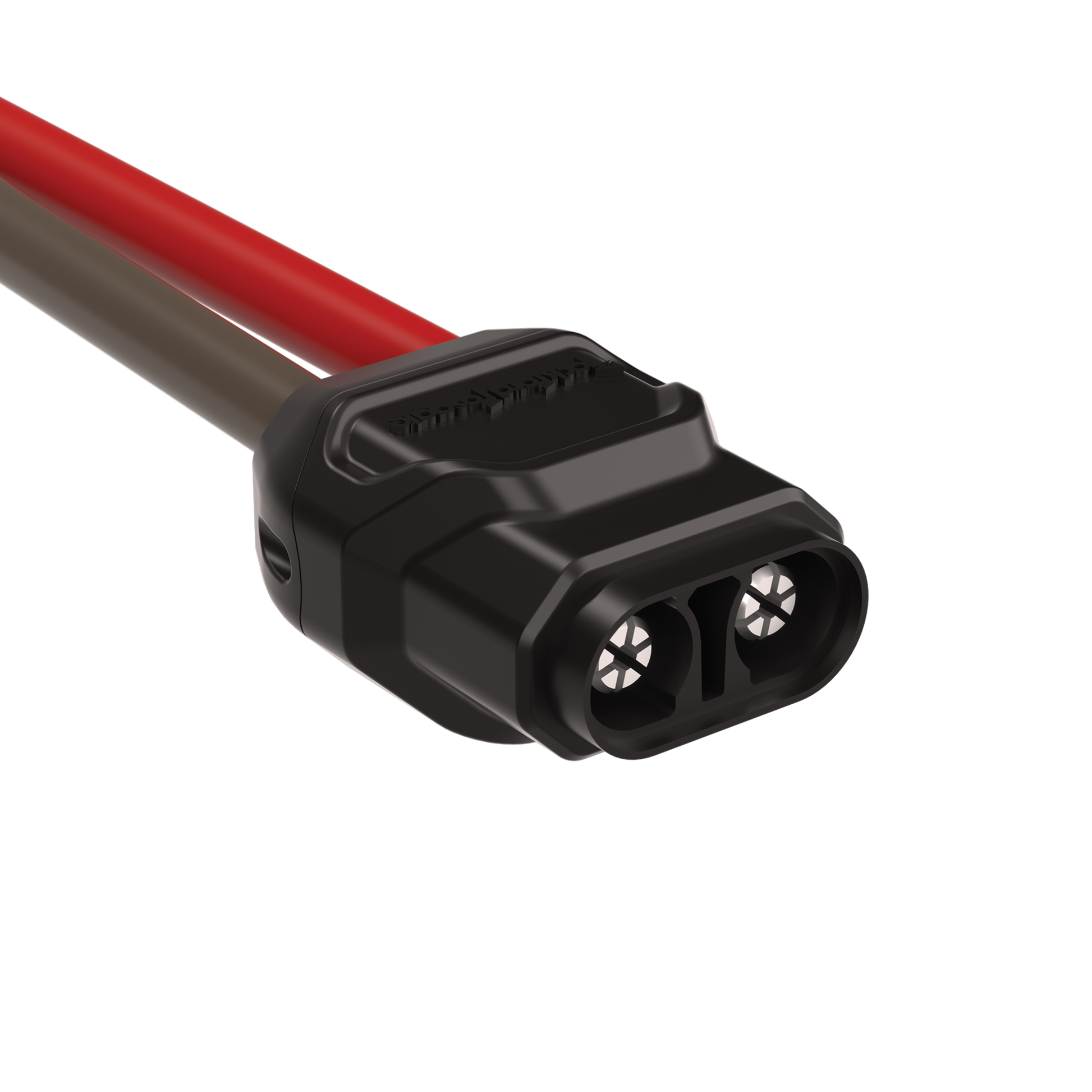

- ER5N power connector increases contact area for improved current transfer
- Cables use 100% pure crystal-oxygen free copper (PC-OFC)
- Full Spec Cable meets or exceeds AWG (American Wire Gauge) requirements
- 2-Year Warranty
Specifications:
- Battery PWR/GND Gauge: 8 AWG
- Amplifier PWR/GND Gauge: 8 AWG
- Dual Amp Installation Kit: No
- Fuse Size: 60 Amp
- Fuse Type: MAXI
- In The Box:

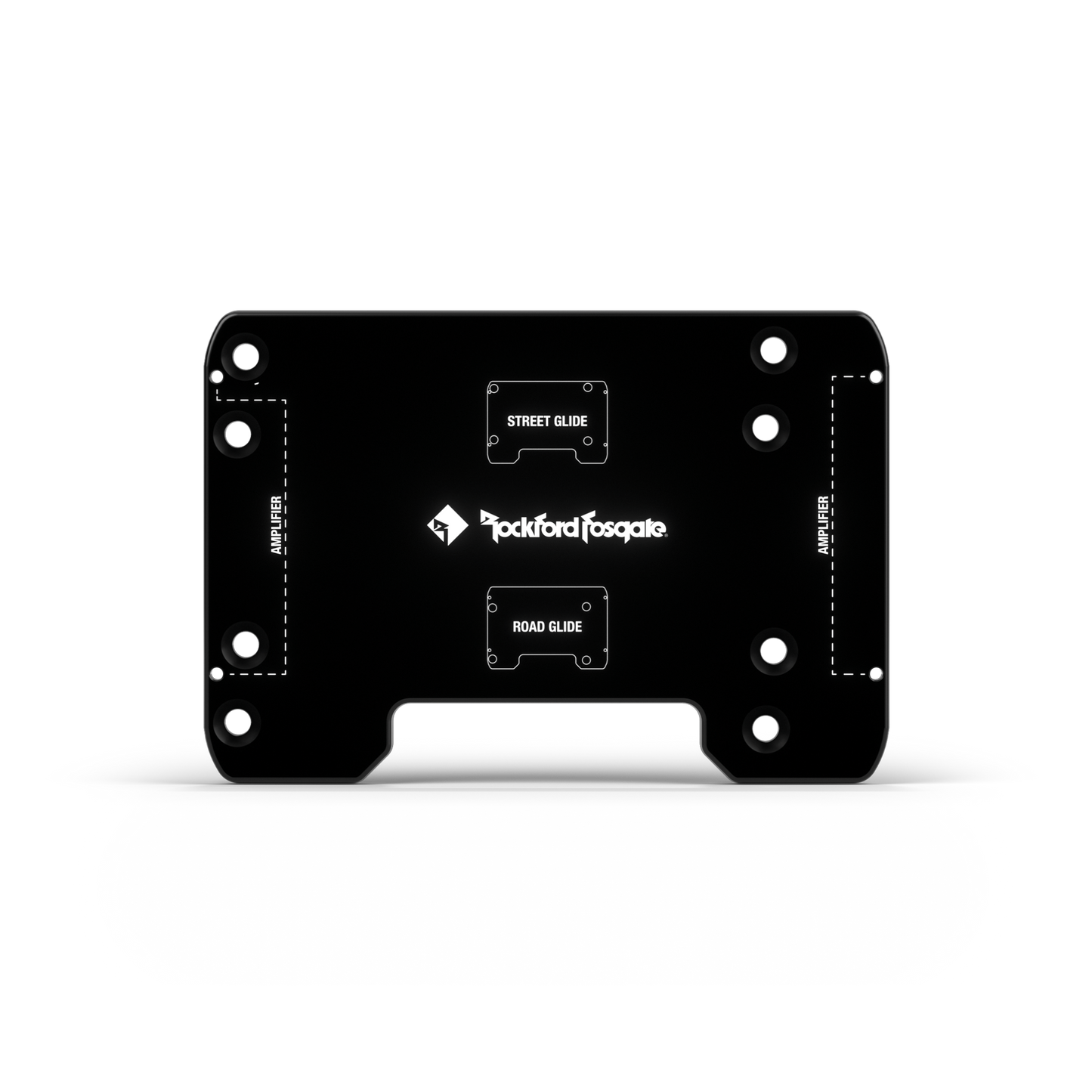

-(1 ea) 1415-80570-01 Amp Mounting Plate

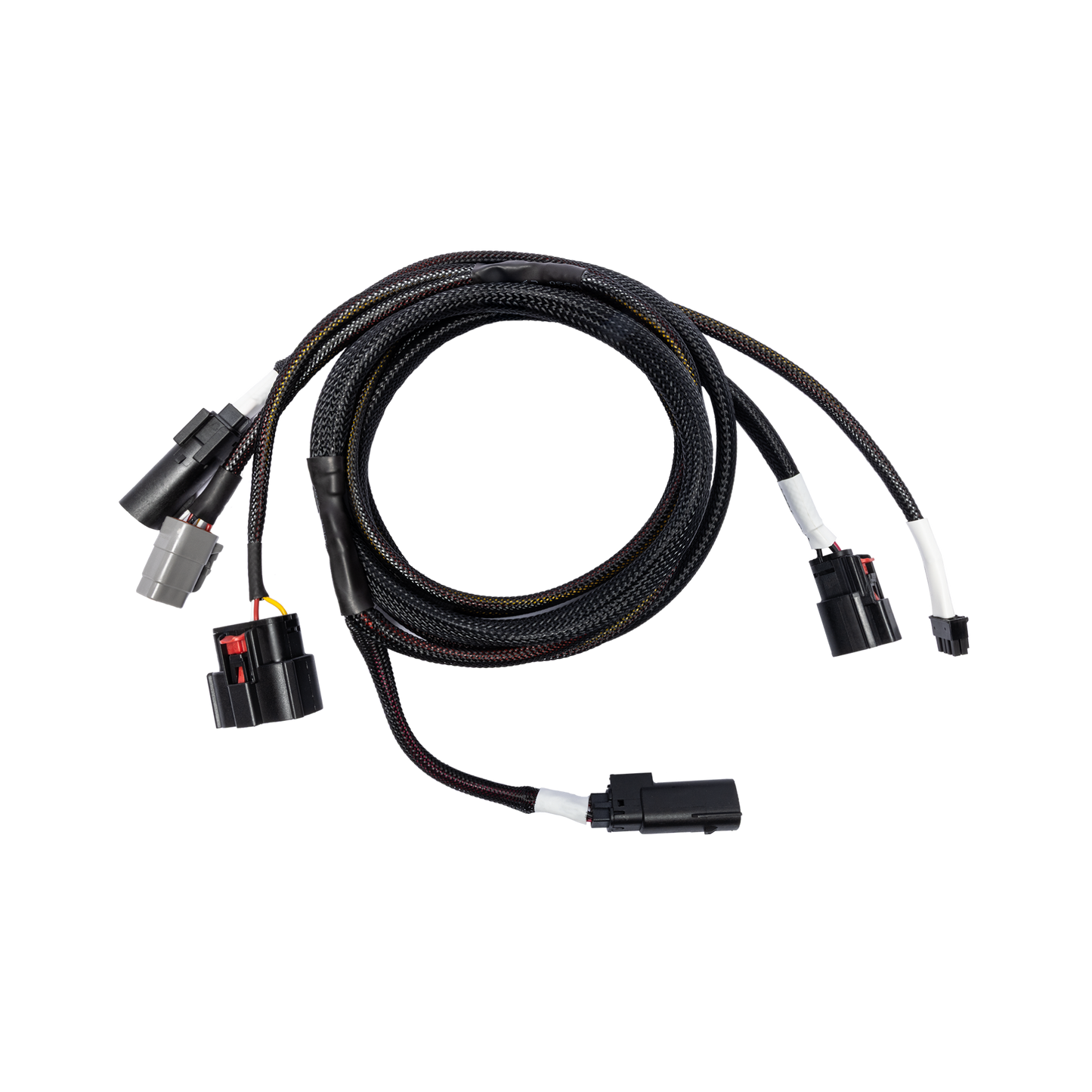

-(1 ea) 1560-80703-01 Rear Output Harness
-(1 ea) 1560-80704-01 Power Harness

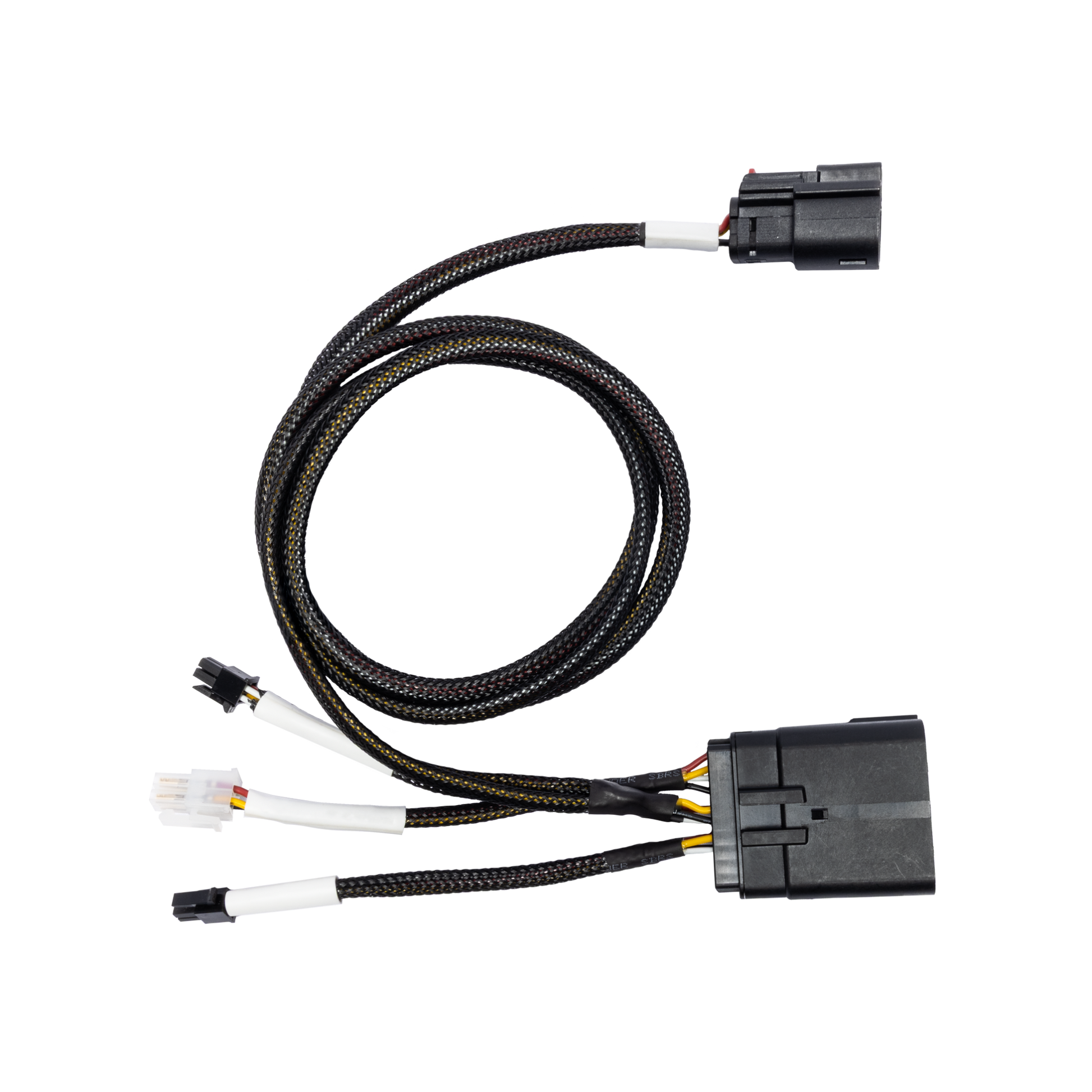

-(1 ea) 1560-80705-01 A2B & Speaker Harness
