DB Drive Dual 8" Subwoofer Package
DB Drive Dual 8" Subwoofer Package
Couldn't load pickup availability

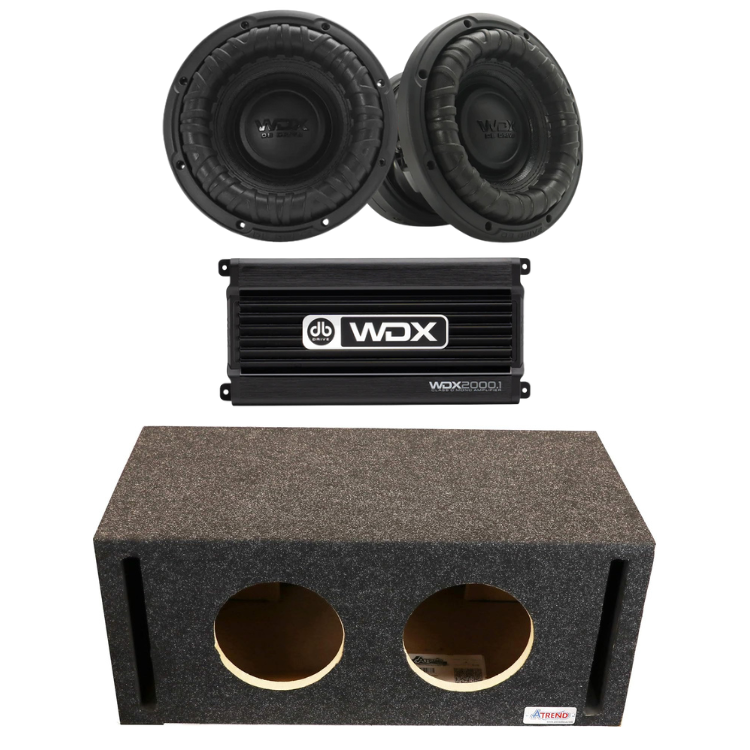

DB Drive Dual 8" Subwoofer Package
- Two (2) DB Drive WDX85GR.4 Subwoofers
- One (1) DB Drive WDX2000.1 Amplifier

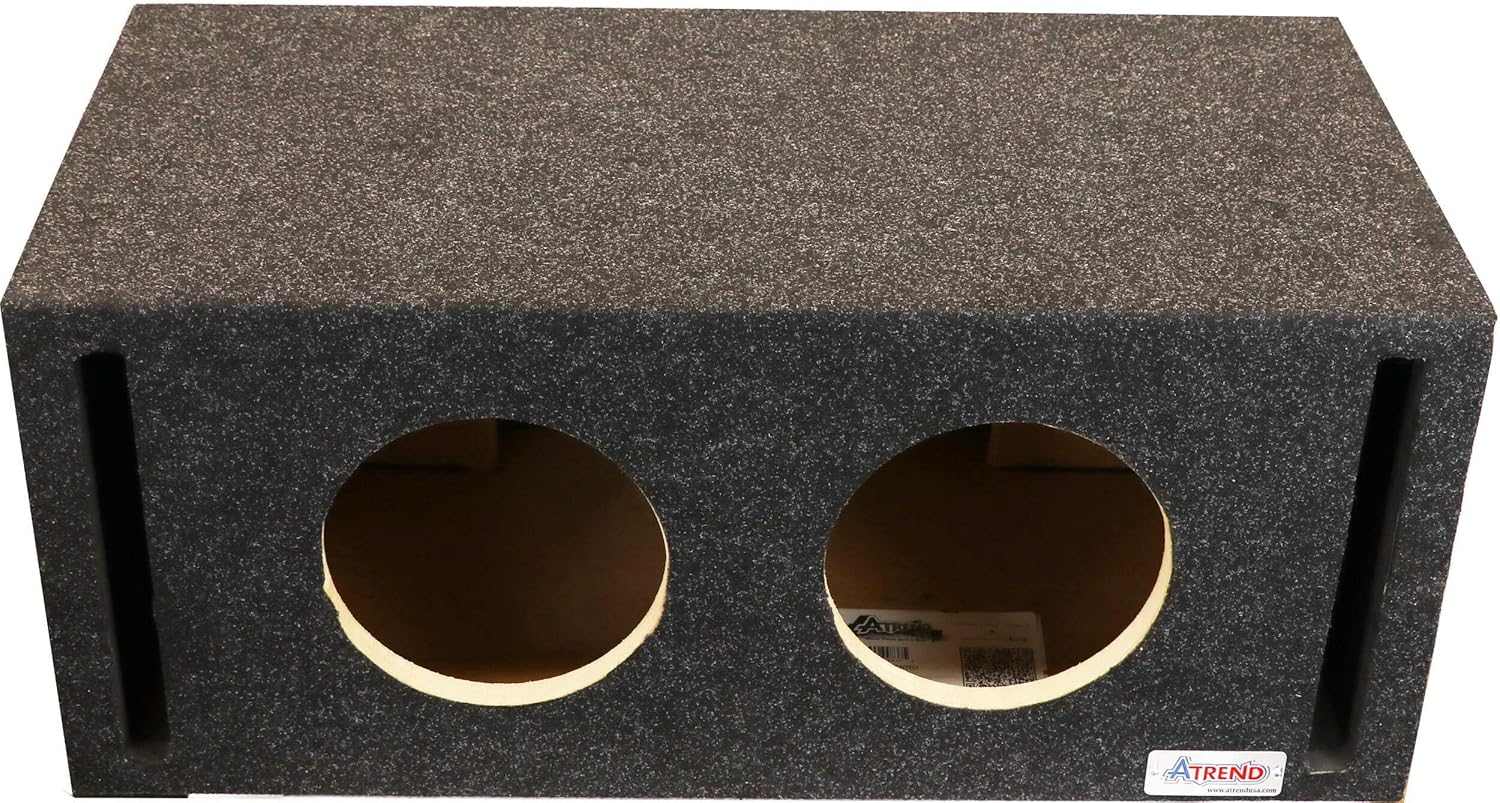

- One (1) Dual Vented 8" Subwoofer Box

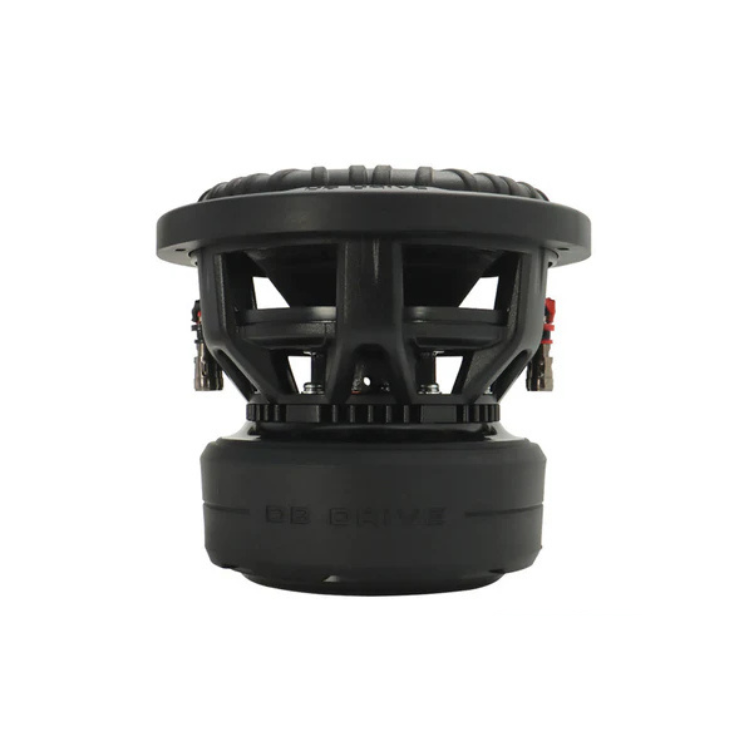

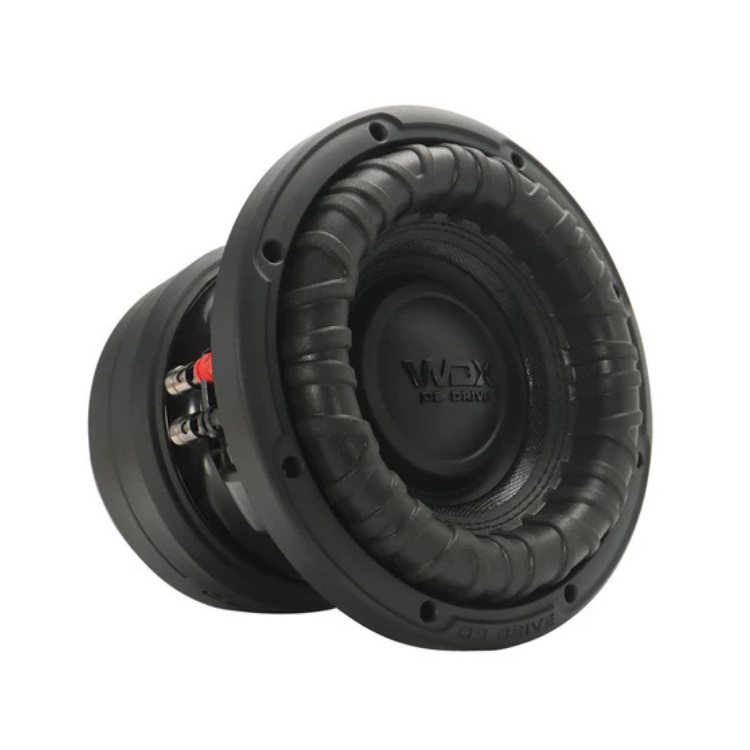

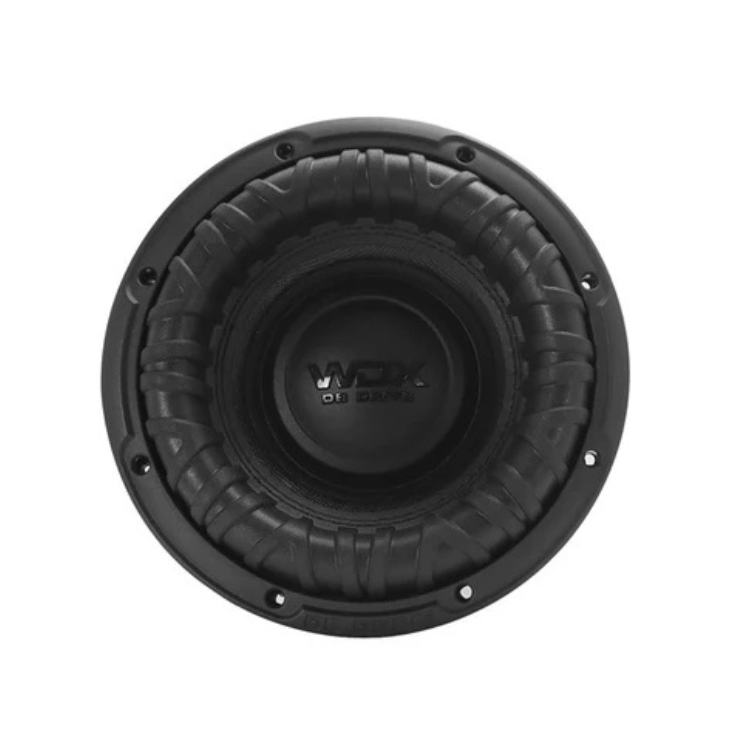

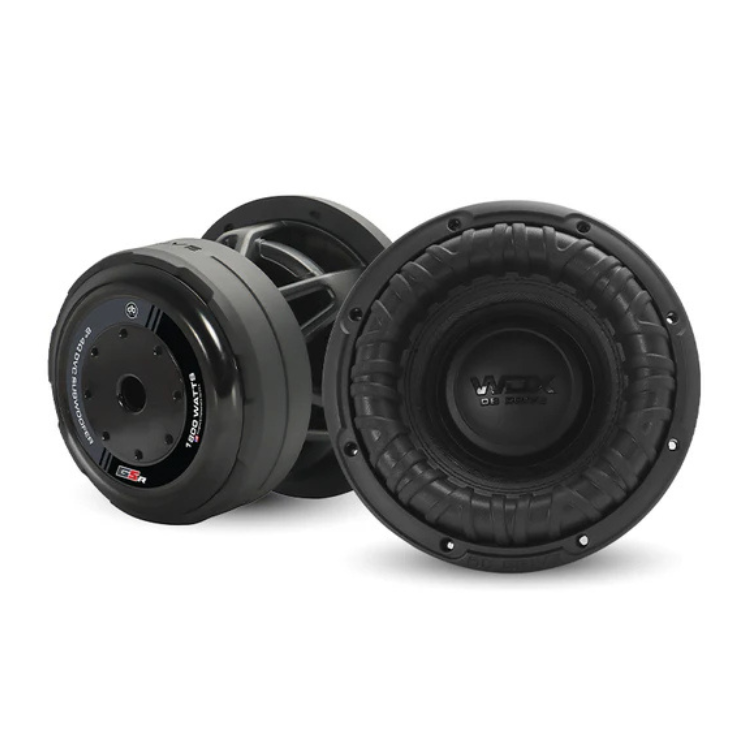

WDX8G5R.4 : 8 in. Dual 4-Ohm Subwoofer
Designed for high-quality sound and durability, the WDX8G5R.4 features a 2.5" anodized aluminum voice coil, non-pressed paper cone, and reinforced foam surround. With a dynamic power handling of 1800 Watts and dual 4Ω voice coils, this woofer delivers powerful bass and precise audio. It is perfect for any audio system.
Features:
- 2.5″ 4 layer Anodized aluminum high temperature voice coil
- Non-Pressed paper cone
- Double-stitched reinforced foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover
Specifications:
- Dynamic Power Handling: 1800 Watts
- Nominal Power Handling: 900 Watts
- Impedance: Dual 4Ω Voice Coil
- Resonant Frequency (fs): 44.912 Hz
- D.C. Voice Coil Resistance (Re): 2 x 3.2Ω
- Mechanical Quality Factor (Qms): 2.869
- Electrical Quality Factor (Qes): 0.906
- Total Quality Factor (Qts): 0.698
- Equivalent Air Volume (Vas): 4.191 L
- Mechanical Compliance of Suspension (CMS): 73.013 mm/N
- Mass of Diaphragm/Coil (Mms): 171.997 g
- Force Factor (BL): 18.512
- Sound Pressure Level (SPL): 78.1 dB

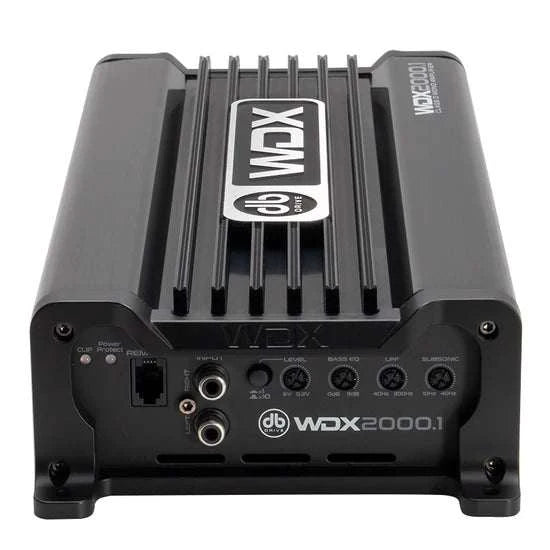

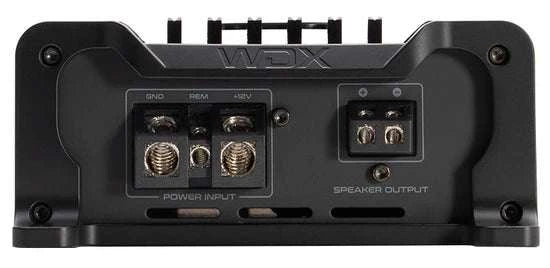

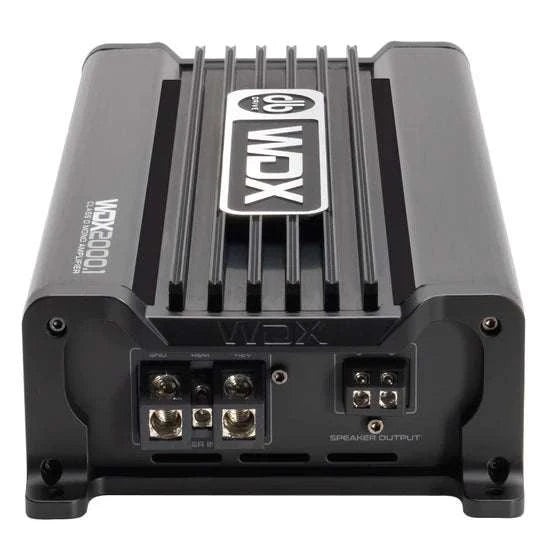

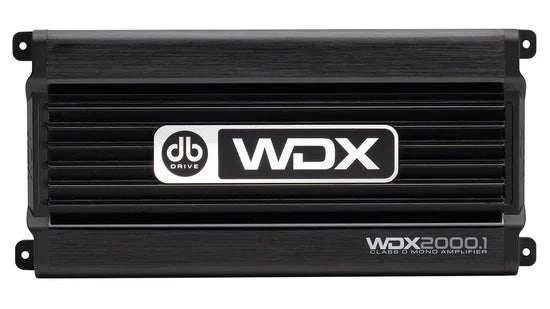

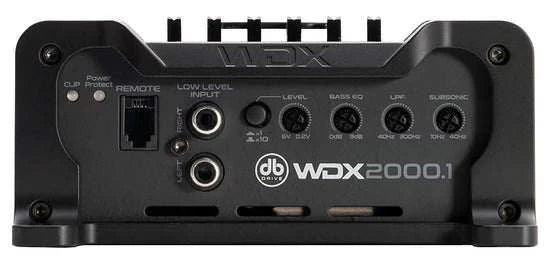

WDX2000.1 : Mono Class D Amplifier
Turn up the power with the DB Drive WDX2000.1 – where performance meets precision! Introducing the DB Drive WDX2000.1 Class D Mono Amplifier – the perfect blend of power and innovation! Designed for those who crave unparalleled sound quality, this amplifier boasts a 1Ω Mono capability, delivering an impressive 2000W of power at 14.4 volts. With Direct Connect Speaker Terminals, 4 Gauge Power Wire Input, and Collective Heat Management, every feature is crafted for optimal performance and durability. The Adaptive Crossover Technology and Signal Evaluation Status Indicator ensure precise sound control, while the Audio Protection Circuit safeguards your investment. Whether you're pushing 1000W at 2Ω or 500W at 4Ω, the WDX2000.1 offers versatility and reliability. Elevate your audio experience with the WDX MINI AMPLIFIERS series and feel the difference every beat makes!
Features:
- CLASS “D” CIRCUITRY
- Direct Connect Speaker Terminals
- 4 Gauge Power Wire Input
- CHM- Collective Heat Management
- ACT – Adaptive Crossover Technology
- SESI – Signal Evaluation Status Indicator
- APC – Audio Protection Circuit
- Included Remote Level Control
Specifications:
| Rated Power @14.4 Volts | |
|---|---|
| 1 x 2000 Watts @ 1Ω | |
| 1 x 1000 Watts @ 2Ω | |
| 1 x 500 Watts @ 4Ω |
Parameters
| Frequency Response | 20Hz ~ 300KHz |
| S/N Ratio | < 95 dB |
| Low Level Input | 6V - 0.2V |
| Variable High Pass Filter (@ 12dB Slope) | 40Hz ~ 300Kz |
| Variable Low Pass Filter (@ 12dB Slope) | 10Hz ~ 40Khz |
| Bass Equalizer | 0dB - 9dB |
| Working Voltage | 12 - 15 Volts |
