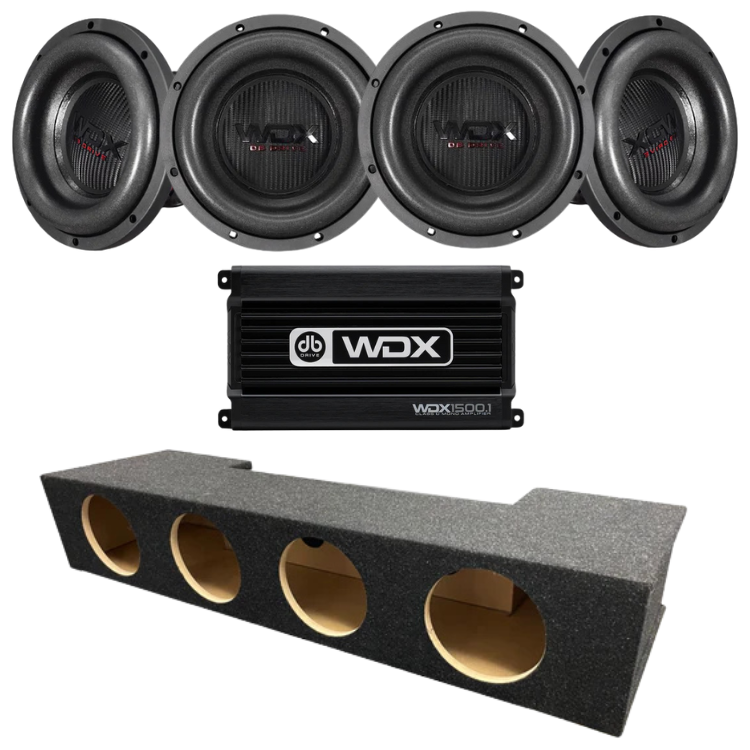

DB Drive Quad 8" Subwoofer Package
- Four (4) DB Drive WDX8G0.4 Subwoofers
- One (1) DB Drive WDX1500.1 Amplifier

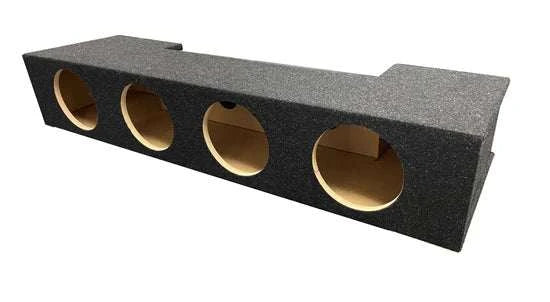

- One (1) Quad 8" Subwoofer Box

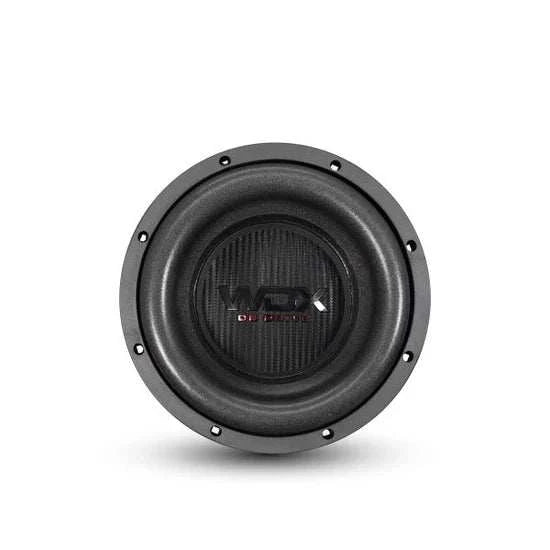

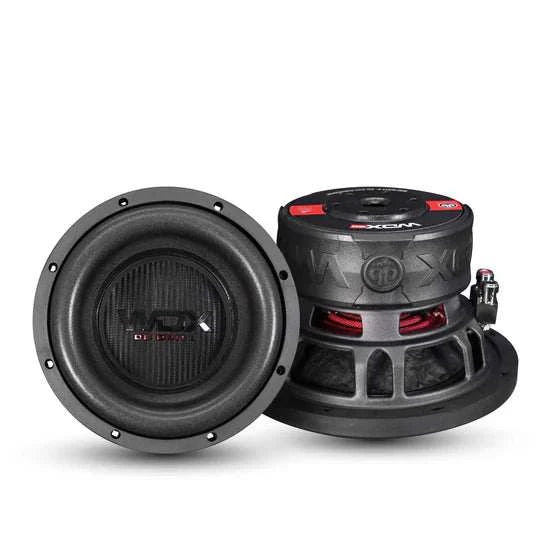

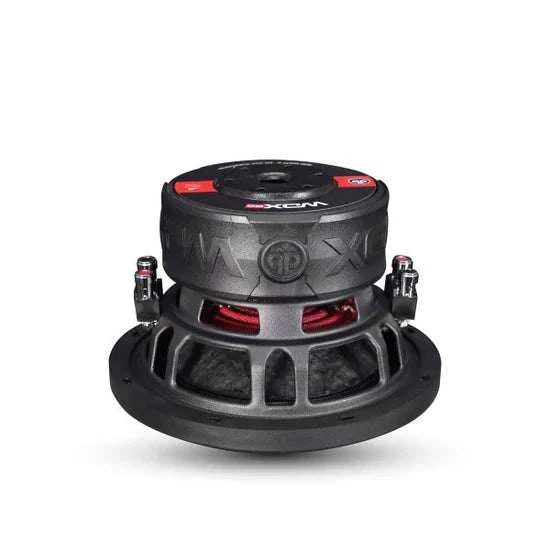

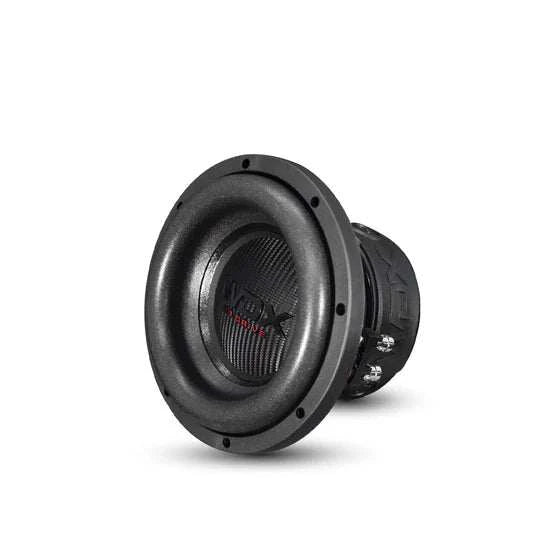

WDX8G0.4 : 8" Dual 4-Ohm Subwoofer
Feel the Bass, Embrace the Power with DB Drive WDX8G0.4! Unleash the full potential of your audio system with the DB Drive WDX8G0.4 8in Stamped Frame Woofer. Designed for those who crave powerful, high-quality sound, this subwoofer features a high-temperature voice coil and a reinforced paper cone, ensuring durability and exceptional performance. With its dual 4Ω voice coil, you get maximum flexibility in wiring configurations. The 800-watt max power and 400-watt nominal power ratings mean it can handle even the most demanding audio tracks with ease. The double-stitched foam surround and dual poly-cotton dampeners provide superior control and reduced distortion, while the large gauge compression terminals and protective magnet cover ensure longevity and reliability. Whether you're setting up a new system or upgrading an existing one, the DB Drive WDX8G0.4 is the perfect choice for delivering deep, rich bass that you can feel.
Features:
- 2″ High Temperature Voice coil
- Reinforced paper cone
- Dual poly-cotton dampeners
- Stamped Cast basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover

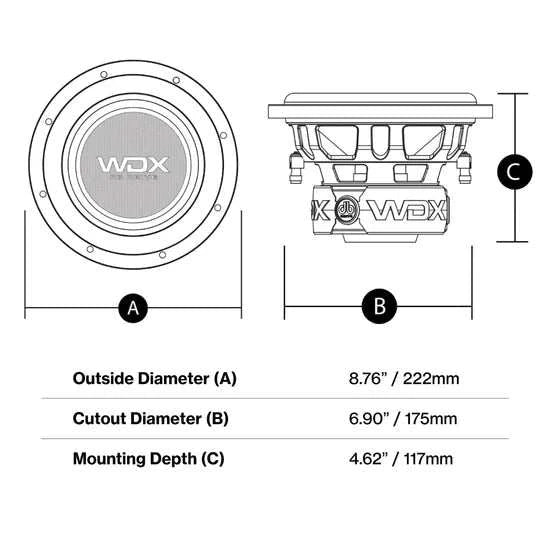

Specifications:
| Structure | 8” (20.3cm) Woofer |
|---|---|
| Dynamic Power Handling | 800 Watts |
| Nominal Power Handling | 400 Watts |
| Impedance | Dual 4Ω Voice Coil |
Parameters
| Resonant Frequency (fs) | 41.702Hz |
| D.C. Voice Coil Resistance (Re) | 3.2Ω x 2 |
| Mechanical Quality Factor (Qms) | 2.230 |
| Electrical Quality Factor (Qes) | 0.447 |
| Total Quality Factor (Qts) | 0.372 |
| Equivalent Air Volume to Cms (Vas) | 8.417 m |
| Mass of Diaphragm/Coil (Mms) | 93.321 g |
| Force Factor (Bl) | 9.745 |
| Sound Pressure Level (SPL) | 84.3dB |

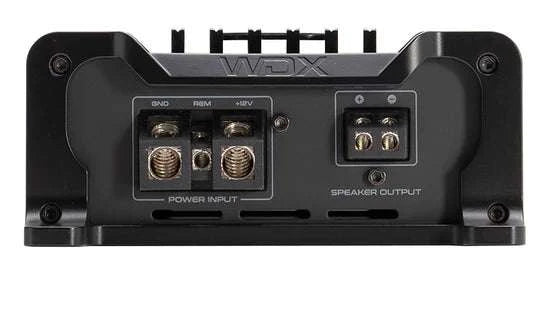

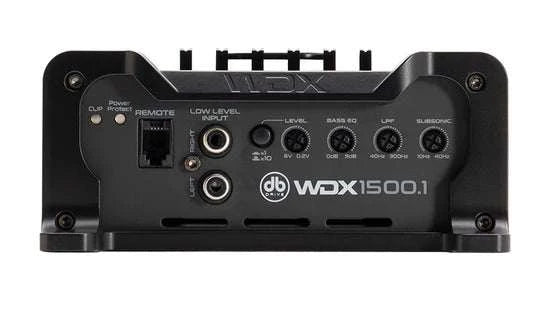

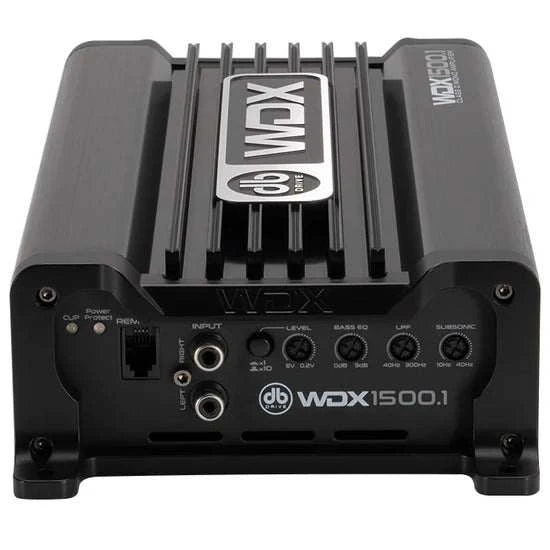

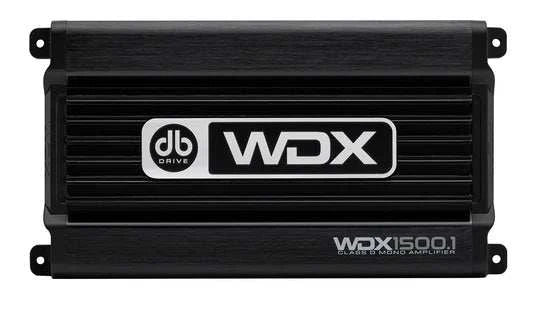

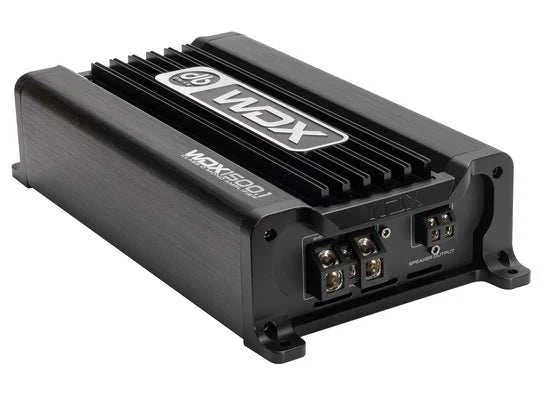

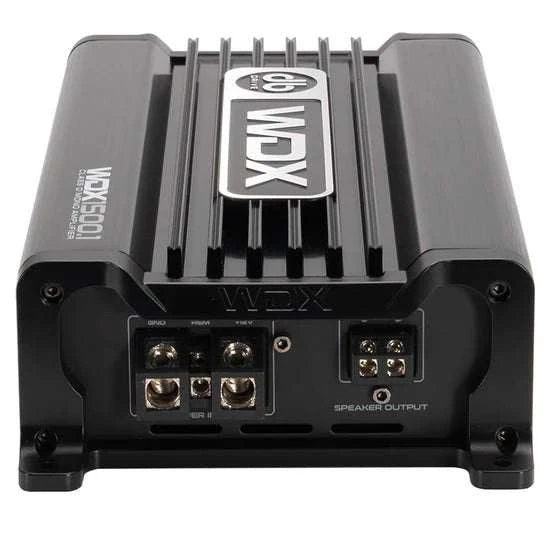

WDX1500.1 : Mono Class D Amplifier
Unleash the power of pure sound with the DB Drive WDX1500.1 Class D Mono Amplifier! Step up your audio game with the DB Drive WDX1500.1 Class D Mono Amplifier, the ultimate powerhouse for any sound enthusiast. With a staggering 1500W of rated power at 1Ω and advanced features like Direct Connect Speaker Terminals and 4 Gauge Power Wire Input, this amplifier is designed for those who demand nothing but the best. Its Collective Heat Management and Adaptive Crossover Technology ensure that your audio experience is not only powerful but also crystal clear and reliable. The Signal Evaluation Status Indicator and Audio Protection Circuit keep your system running smoothly, while the Variable Subsonic Filter allows you to fine-tune your sound to perfection. Whether you're a professional or a hobbyist, the WDX1500.1 offers unparalleled performance and versatility in a compact package, making it the perfect addition to any audio setup. Elevate your sound and experience the true potential of your music with DB Drive's WDX1500.1 Class D Mono Amplifier.
Features:
- CLASS “D” CIRCUITRY
- Direct Connect Speaker Terminals
- 4 Gauge Power Wire Input
- CHM- Collective Heat Management
- ACT – Adaptive Crossover Technology
- SESI – Signal Evaluation Status Indicator
- APC – Audio Protection Circuit
- Included Remote Level Control
Specifications:
| Rated Power @14.4 Volts | |
|---|---|
| 1 x 1500 Watts @ 1Ω | |
| 1 x 750 Watts @ 2Ω | |
| 1 x 375 Watts @ 4Ω |
Parameters
| Frequency Response | 20Hz ~ 300KHz |
| S/N Ratio | < 95 dB |
| Low Level Input | 6V - 0.2V |
| Variable High Pass Filter (@ 12dB Slope) | 40Hz ~ 300Kz |
| Variable Low Pass Filter (@ 12dB Slope) | 10Hz ~ 40Khz |
| Bass Equalizer | 0dB - 9dB |
| Working Voltage | 12 - 15 Volts |
