Focal PS 130 FE
Focal PS 130 FE
Couldn't load pickup availability
In their pursuit of sonic excellence, Focal discovered that a flax woofer cone produces a dynamic sound that's worthy of their reputation. At half the weight of fiberglass, these flax fibers help create a very rigid yet lightweight cone that ensures accuracy and limits unwanted vibrations.
Product highlights:

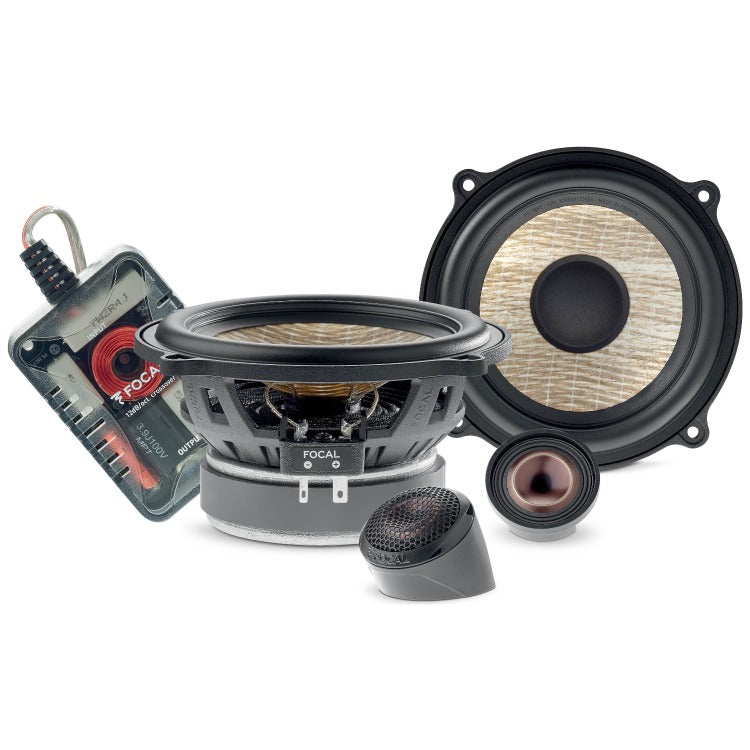

- 5-1/4" component speaker system includes two woofers, two tweeters, and two crossovers

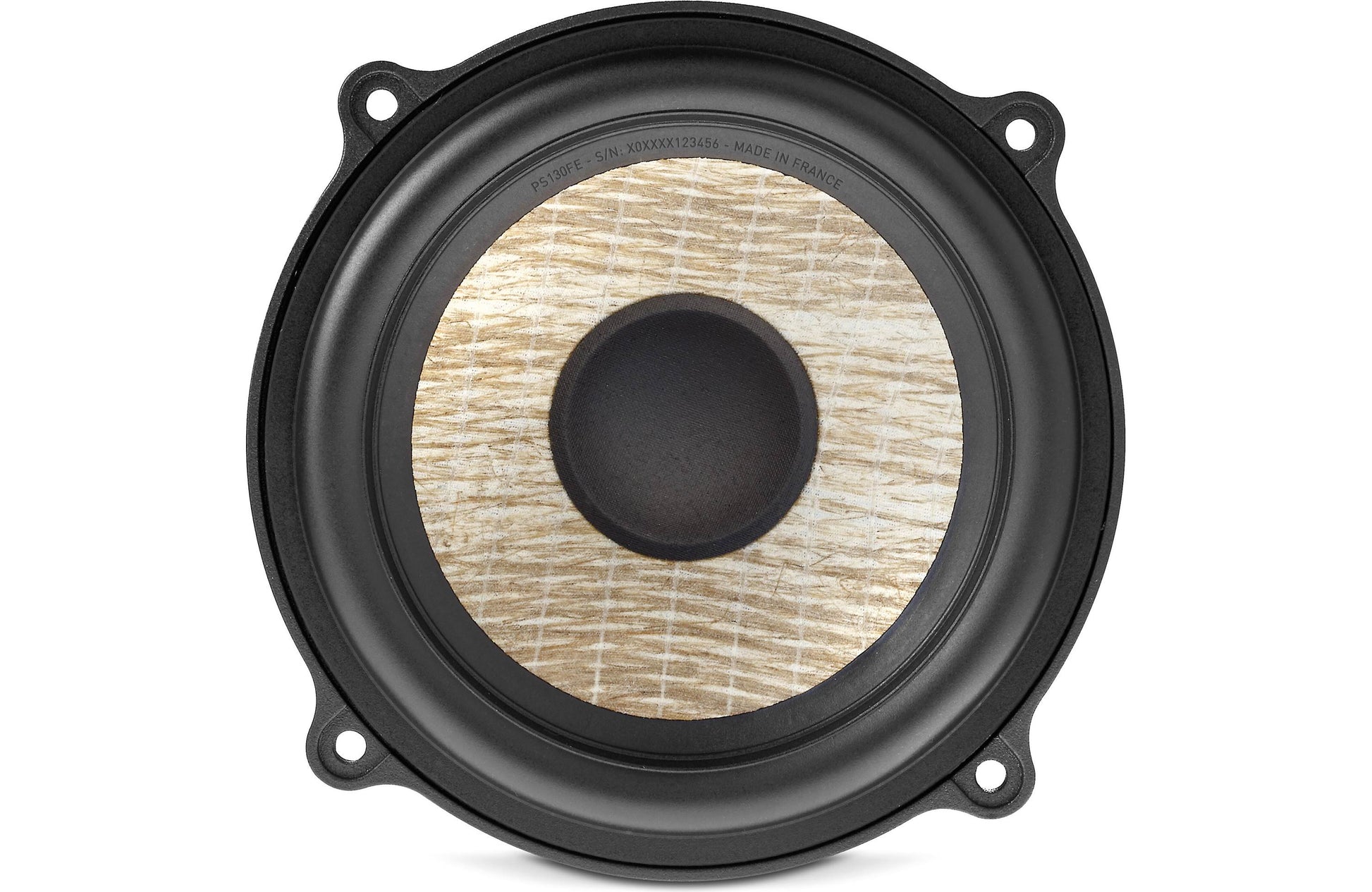

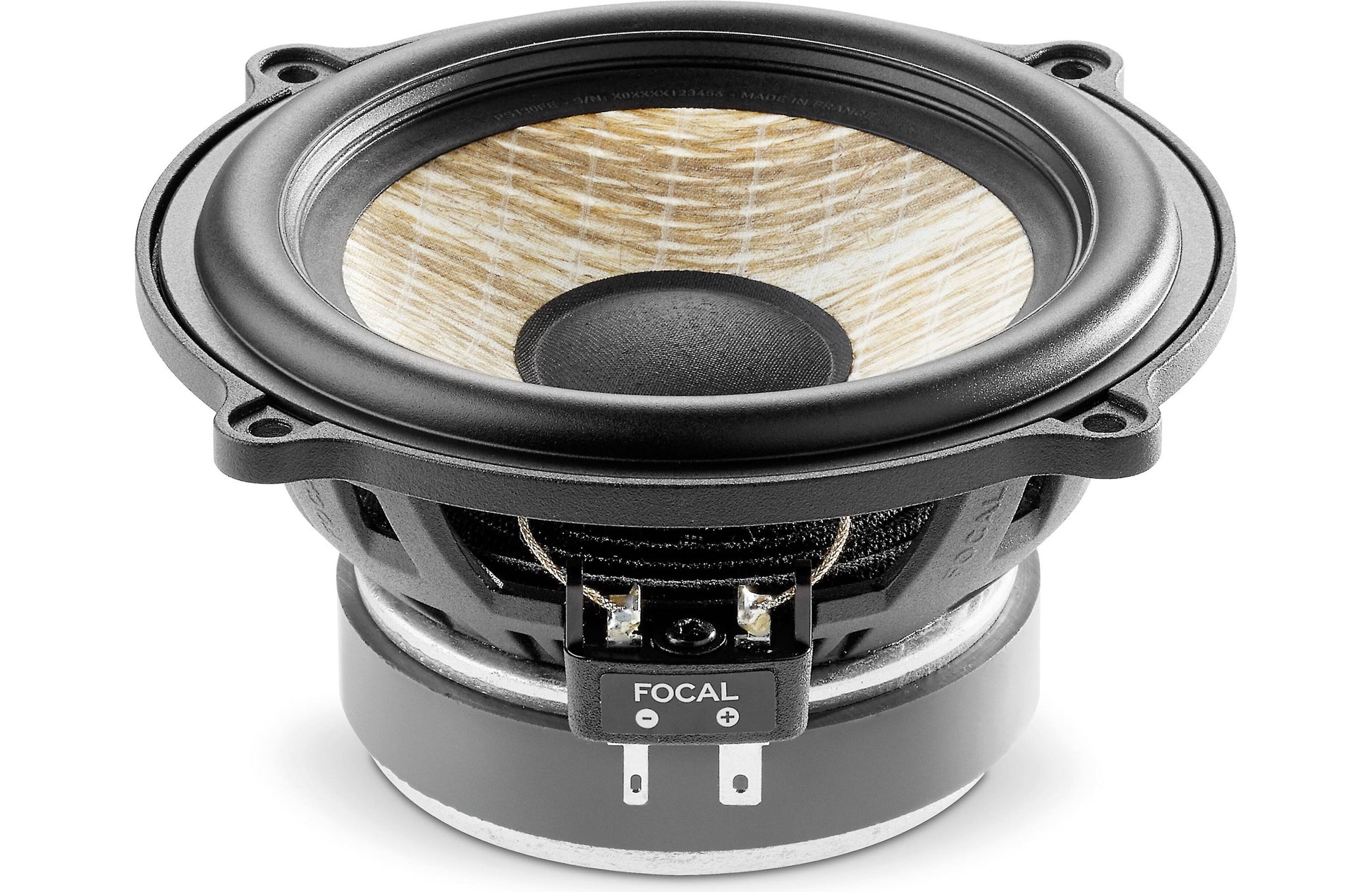

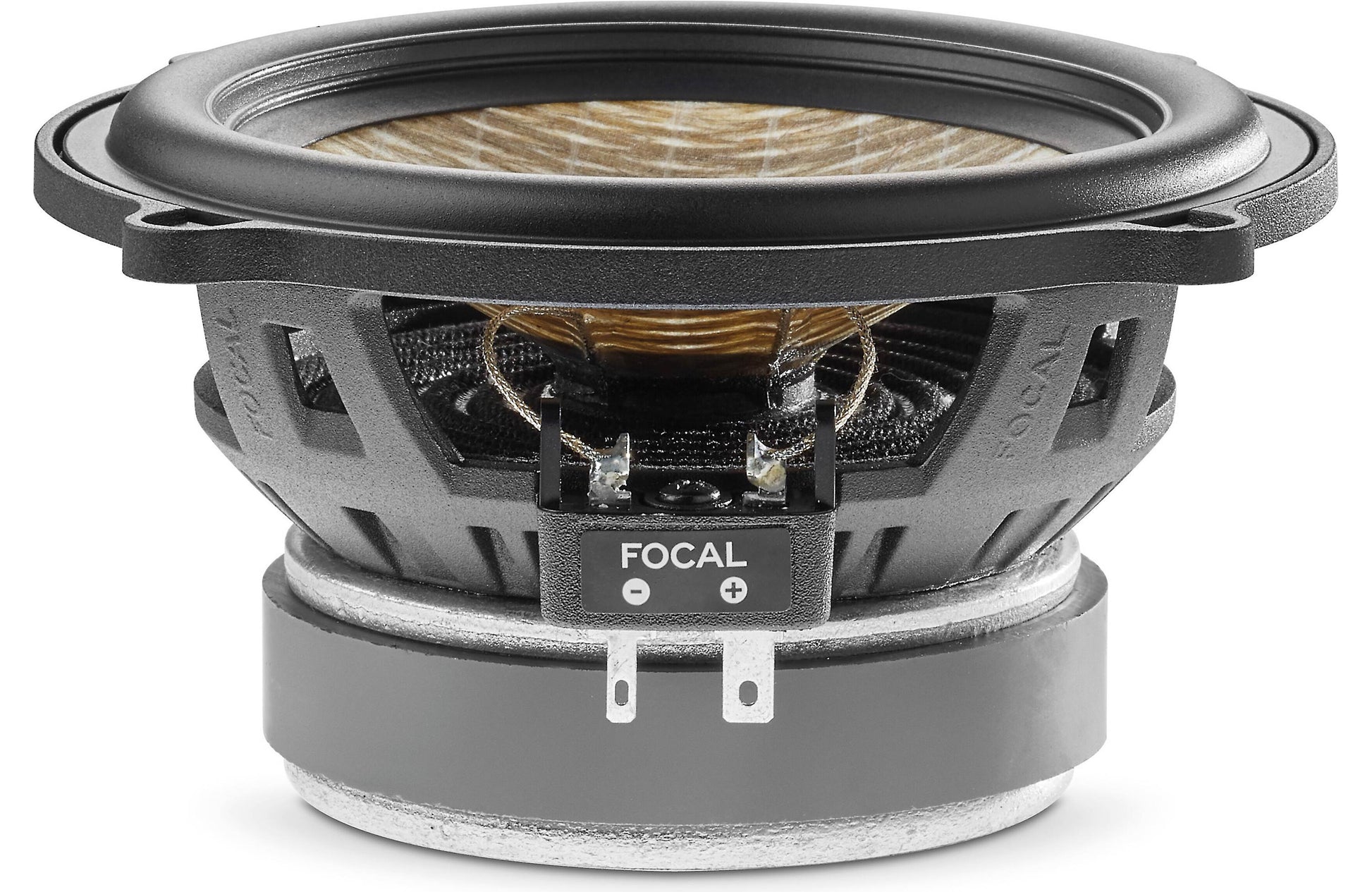

- flax woofer cone with "tuned mass damper" surround
- aluminum/magnesium inverted dome tweeter
- 4-ohm impedance
- handles up to 60 watts RMS (120 watts peak)
- frequency response: 75-28,000 Hz
- sensitivity: 90.5 dB at 2.83 volts
- mounting depth: 2-3/8"
- warranty: 1 year
What's in the box:
Focal PS 130 FE owner's manual
- Two PS 130 FE woofers

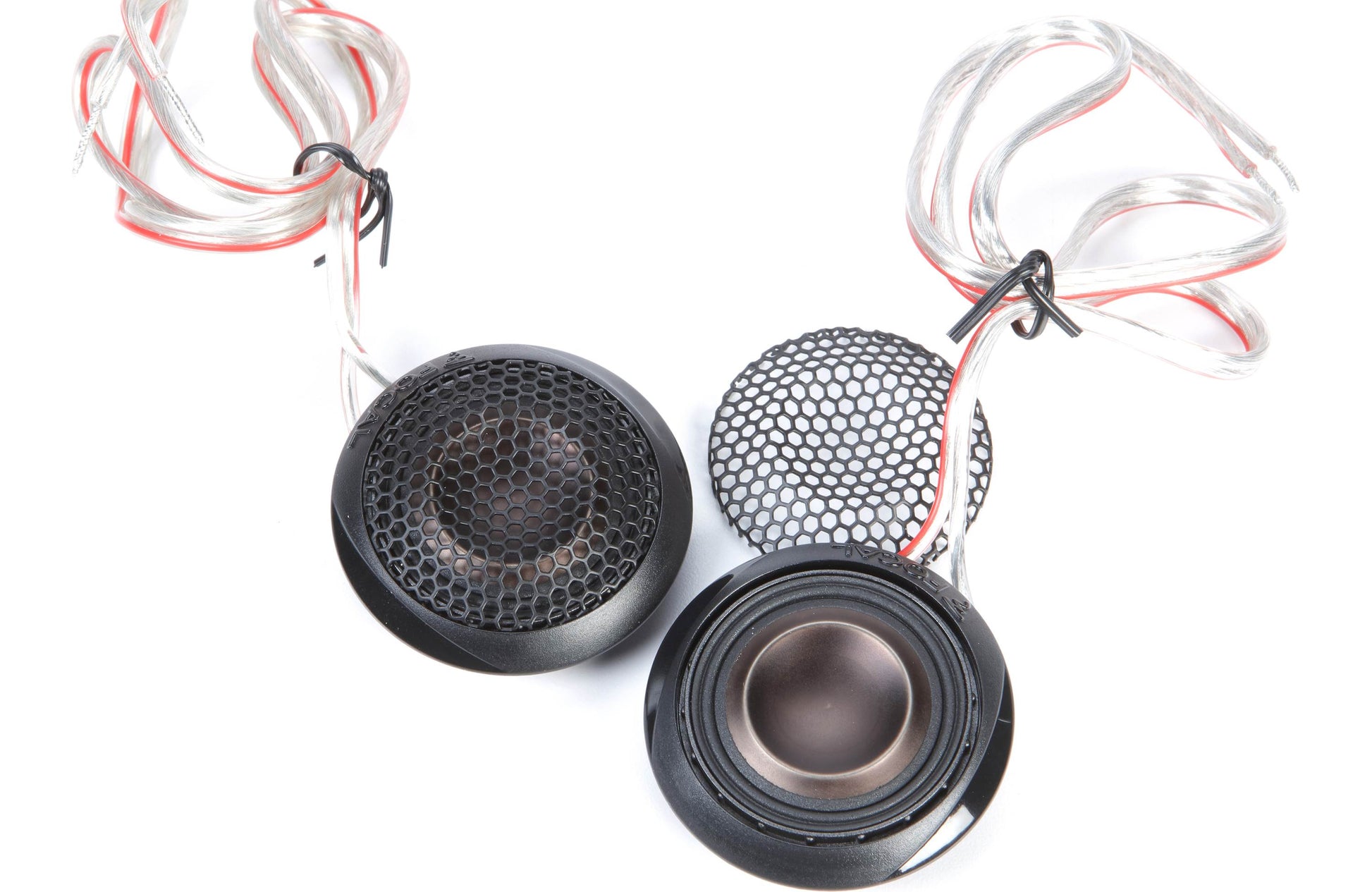

- Two TWFA1018 inverted dome tweeters (each has a 21" length of speaker wire attached)
- 2 Crossover networks
- 2 Woofer grilles
- 2 Woofer grille mounting rings
- 2 Tweeter grilles (installed)
- 2 Tweeter trim rings (installed)
- 2 OEM tweeter mounting rings
- 2 Tweeter angle mount cups
- 2 Woofer mounting gaskets
- 8 Speed clips
- Four 3/4" Screws
- Eight 1" Screws
- Owner's manual (English/ French/ German/ Italian/ Spanish/ Portuguese/ Dutch/ Polish/ Russian/ Chinese/ Korean/ Japanese)
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 5 | |
| Design | 2-way | |
| Tweeter Design | Inverted Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Aluminum/Magnesium | |
| Woofer Composition | Flax | |
| Woofer Surround | Rubber | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | N/A | |
| Sensitivity at 2.83 volts | 90.5 | |
| Frequency Response | 75 - 28k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 60 | |
| Peak Power Handling (Watts) | 120 | |
| Top-mount Depth (Inches) | 2 3/8 | |
| Bottom-mount Depth (Inches) | 2 9/16 | |
| Cutout Diameter or Length (inches) | 4 5/8 | |
| Mounting Height (Inches) |
0.405 |
|
Tweeter Dimensions:
| Flush Mount | Angled Surface Mount | |
| Mounting Height | 0.393" | 1.8" |
| Depth | 0.425" | (screw depth) |
| Frame Diameter | 2.046" | 2.07" x 2.15" |
| Cutout Diameter | 1.572" | N/A |

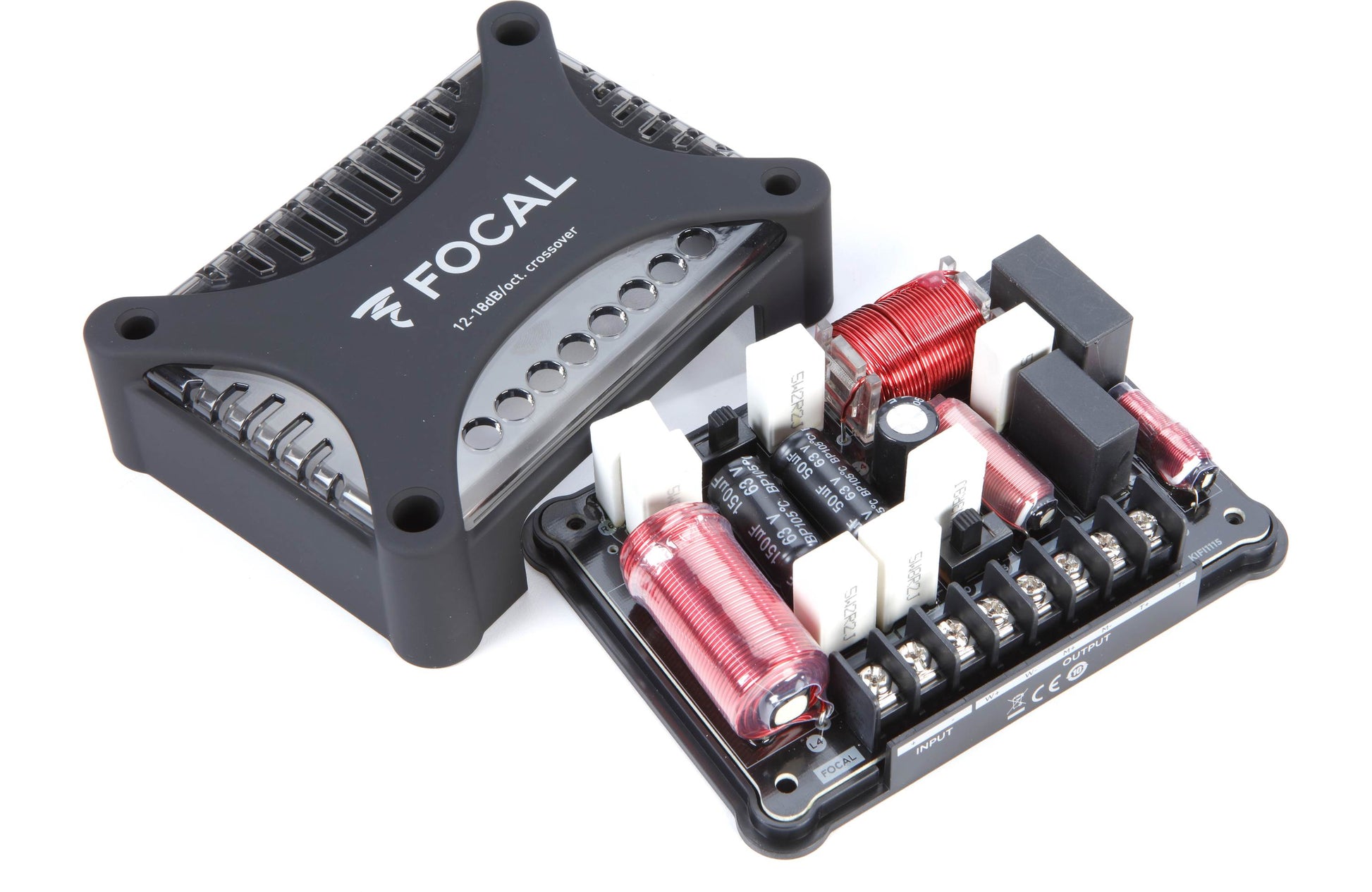

Crossovers: The input and output wires are attached to each crossover. The 12" input wires are not terminated (bare wire). Both the woofer and tweeter output wires are also 12" long; the woofer outputs are terminated with quick slides to easily attach to the woofers and the tweeter outputs are not terminated (bare wire). A switch inside each crossover lets you adjust the tweeter output level; choose -3 dB or 0 dB (flat). The crossovers use 2nd order high-pass and low-pass filters (12 dB/octave). The crossover point for both is 3 kHz.
Crossover Dimensions:
- Width: 2⅜"
- Height: 1⅛"
- Depth: 3⅜" (4⅞" including wires)
