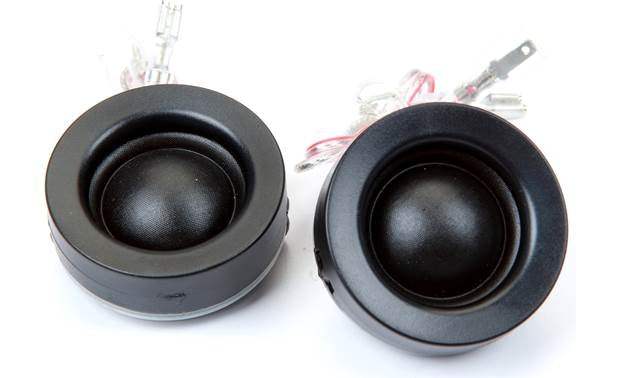

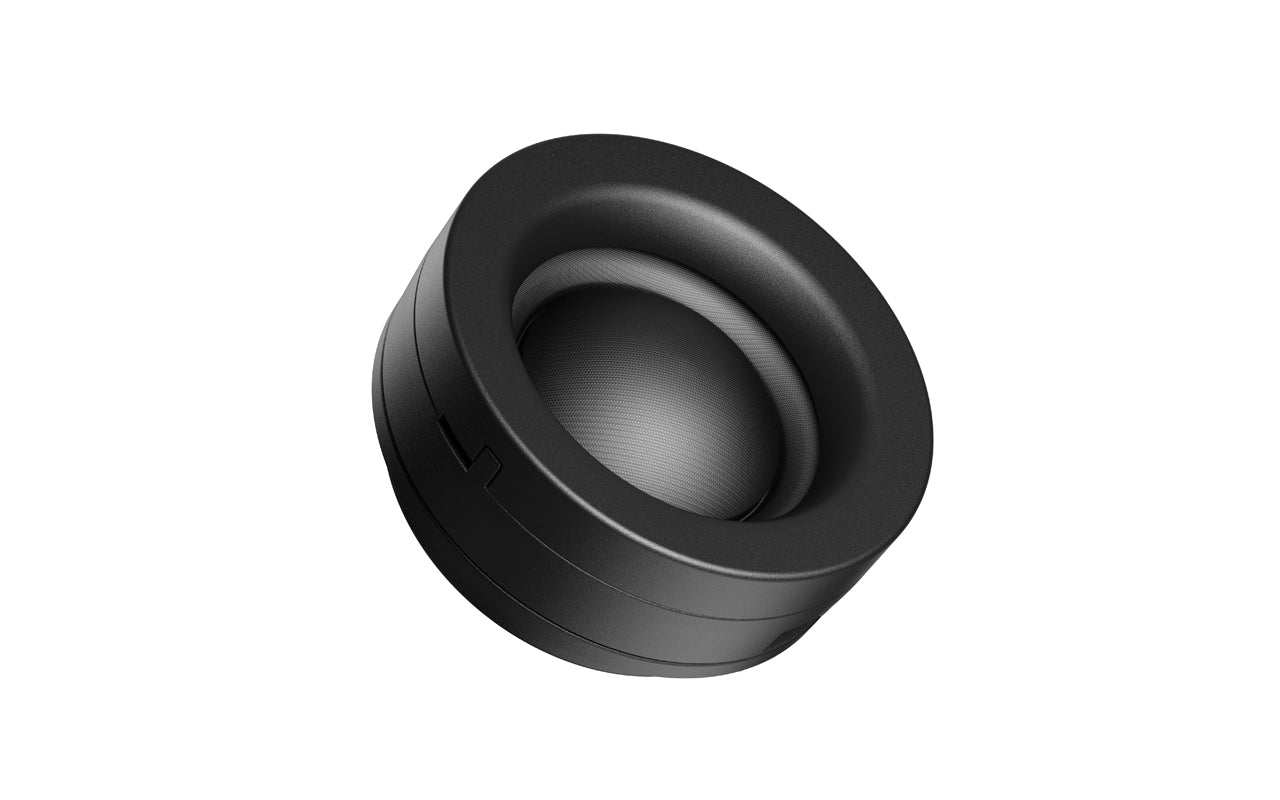

C 26 OE
1"|Tweeter|120 W|4 Ohm

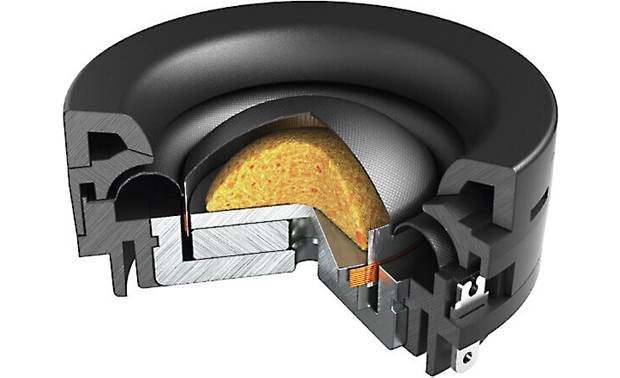

C 26 OE tweeter features a FEM (Finite Element Method) geometry designed to maximize performances when the tweeter is installed in the OEM placement.
C 26 OE includes a provided cable with built-in 6 dB/Oct. crossover designed to save space in a OEM upgrade scenario and mounting accessories.
| Component | Tweeter |
| Size mm (in.) | 26 (1) |
| Power Handling - Peak W | 120 |
| Power Handling - Peak Note | (Hi-Pass filtered @ 2,5kHz - 12 dB Oct.) |
| Impedance Ohm | 4 |
| Voice Coil Ø | 20 (0.8) |
| Frequency Response Hz | 1.8k ÷ 22.5k |
| Magnet size D x d x h mm (in.) | 19 x 0 x 3 (0.75 x 0 x 0.12) |
| Weight of one speaker kg (lb.) | 0,04 (0.08) |
| Magnet | Neodymium |
| Dome | Tetolon |
| D mm | 26 |
| Re Ohm | 3,7 |
| Fs Hz | 1500 |
| Le mH | 0,02 |
| Vas I | - |
| Mms g | 0,17 |
| Cms mm/N | 0,7 |
| BL T*m | 1,3 |
| Qts | 1,6 |
| Qes | 3,5 |
| Qms | 2,9 |
| Spl dB | 92 |
Physical Specifications:
| A | 38,63 mm | 1.52 in. |
| B | 33,33 mm | 1.31 in. |
| C | 17,7 mm | 0.99 in. |
| D | 4,36 mm | 0.17 in. |
Frequency response:
