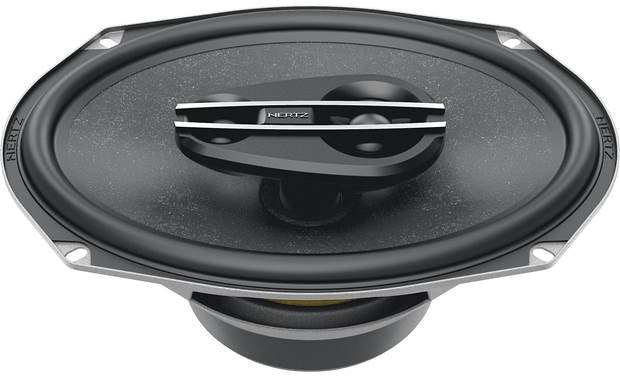

Hertz CX 690

Hertz CX 690

Regular price $319.99 USD
Regular price Sale price $319.99 USD
Sale Sold out
Shipping calculated at checkout.

CX 690

6x9"|Coaxials|300 W| 4 Ohm

The three-way elliptical coax CX 690 featuring a 6x9 in. cone was designed to achieve maximum performance in horizontal installations and offering, even in this difficult condition, an exceptional tone balance and power handling.

Component Coaxials
Size mm (in.) (6 x 9)
Power Handling - Continuous W 100
Power Handling - Peak W 300
Impedance Ohm 4
Tweeter diaphragm mm (in.) 40 (1.58)
Woofer Voice Coil Ø mm (in.) 30 (1.2)
Tweeter Voice Coil Ø mm (in.) 28 (1.1)
Frequency Response Hz 40 ÷ 23k
Woofer Magnet size D x d x h mm (in.) 100 x 32 x 15 (3.94 x 1.26 x 0.59)
Tweeter Magnet size D x h mm (in.) 19 x 3 (0.75 x 0.12)
Weight of one speaker kg (lb.) 1,55 (3.42)
Woofer Magnet High density flux ferrite
Tweeter Magnet Neodymium
Cone Semi-pressed paper + Mica
Dome PEI
Xmech mm (in.) 5,5 (0.22)

Technical Specifications:



D mm 139
Re Ohm 3,3
Fs Hz 70
Le mH 0,2
Vas I 11,1
Mms g 13
Cms mm/N 0,34
BL T*m 4,9
Qts 0,67
Qes 0,83
Qms 3,3
Spl dB 93,5
Electro-acoustic Specifications:



Physical Specifications:

CX 690

A 238 mm 9.37 in.
B 224 mm 8.82 in.
C 95 mm 3,74 in.
D 78,5 mm 3.09 in.
E 268 mm 10.55 in.
F 29 mm 1.14 in.



Frequency response:

CX 690
