Hertz HSP3

Hertz HSP3

$1,959.99 USD
$2,445.99 USD $1,959.99 USD
Sale Sold out
Shipping calculated at checkout.

Hertz HSP3

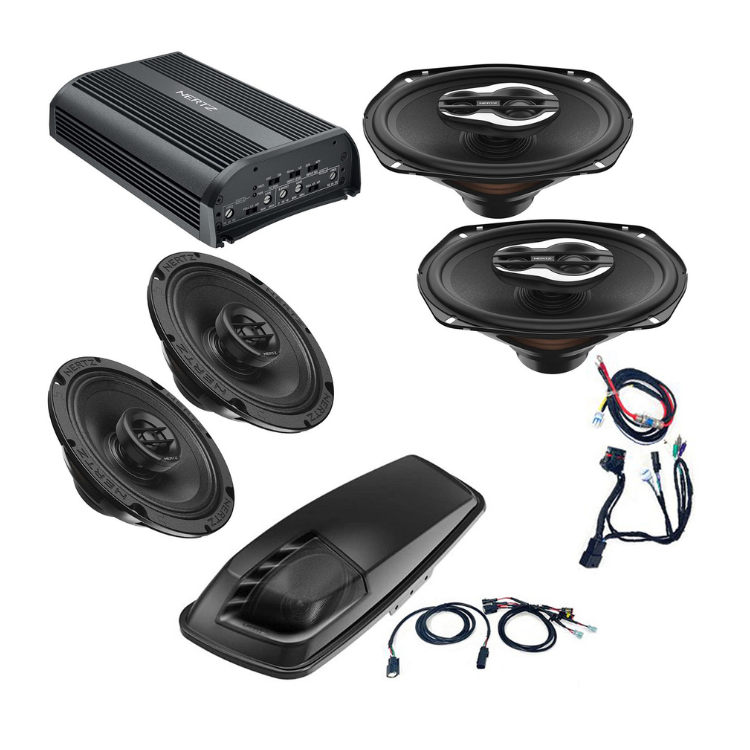

Harley Davidson Motorcycle Audio Kit

Hertz SP4.900 Amplifier + SX 165 NEO Coaxial Speakers + SX690 NEO Coax Speakers + HTHP14 T-Power Harness and HD14H Saddlebag Lid Kit with HBH14 Speaker Harness

Plug-and-Play audio kits designed for 2014+ Harley Davidson.

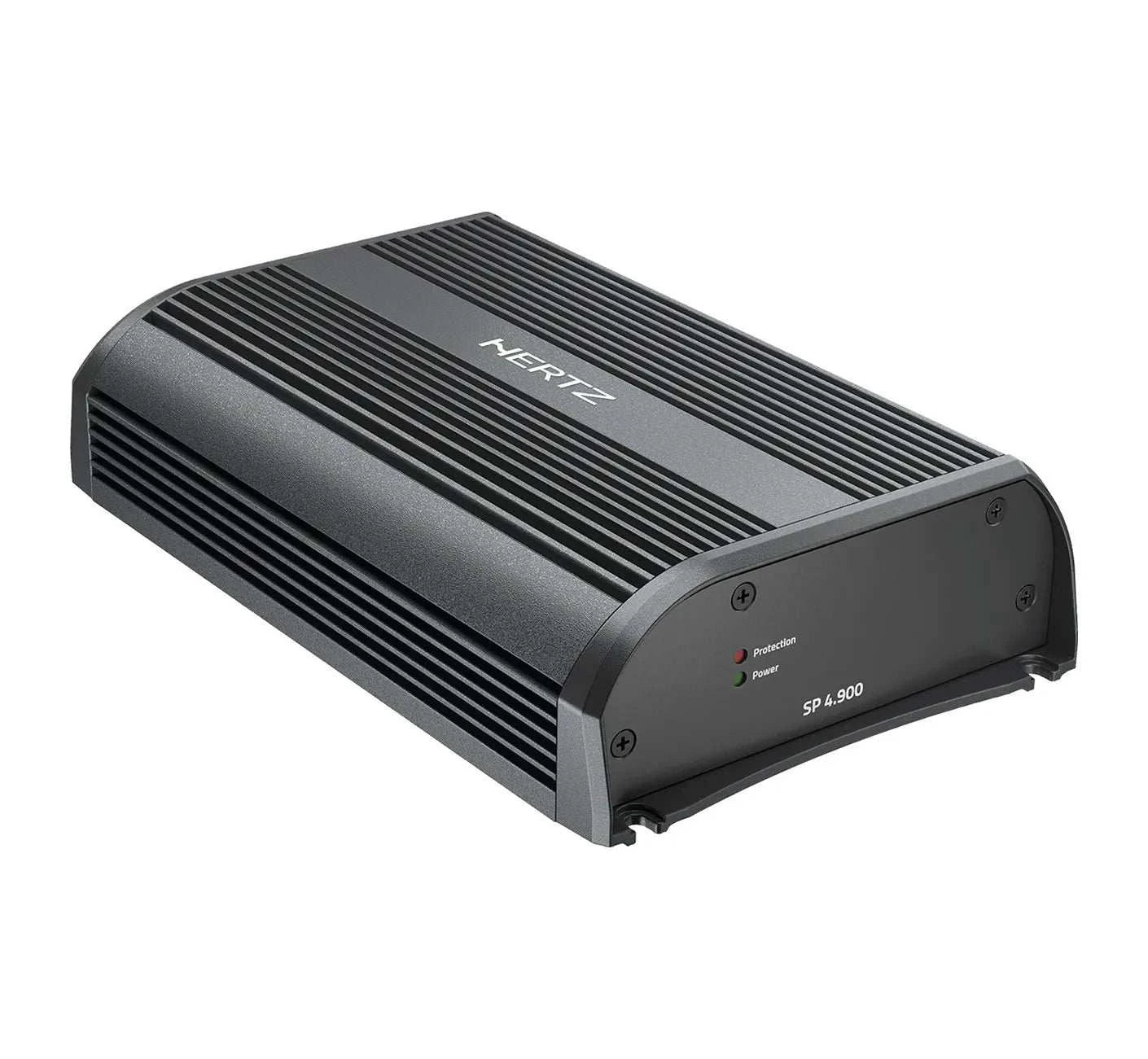

  • SP 4.900 Amplifier:

SP 4.900 is the first Hertz amplifier featuring the renewed Hertz ADC (Advanced D-Class) output stage, reaching up to 85% efficiency and delivering an impressive power rating of 160 x 4 (4Ω) W RMS or 500 W x 2 (4Ω) W RMS when bridged, with an ultra-compact size of 211.6 (8.3) x 130 (5.1) mm (in.). Being ultra-compact with impressive power, SP 4.900 is the ideal choice for Motorcycle application and for under-seat in sports cars and behind-seat installations in trucks.

  1. Up to 87% efficiency thanks to ADC (Advanced D-Class) output stage.
  2. USS (Universal Speakers Simulators) allows SP 4.900 to work with head units featuring the “speaker load detection” circuit.
  3. 160 W RMS x 4 (4Ω) with ultra-compact size 211.6 x 130 x 49 / 8.3 x 5.1 x 1.9 (mm/inch).
  4. IP55 aluminium chassis for maximum protection against humidity and external agents.
  5. No cooling fan to prevent internal accumulation of dirt 6. Sealed power cord, line inputs, and speaker outputs to prevent oxidation.
  6. Crossovers filters and controls on a single side to facilitate calibration when the product is installed.
Amp Physical Specifications

A 205 mm 8.07 in
B 211.6 mm 8.33 in
C 107 mm 4.212 in
D 130 mm 5.118 in
E 49 mm 1.929

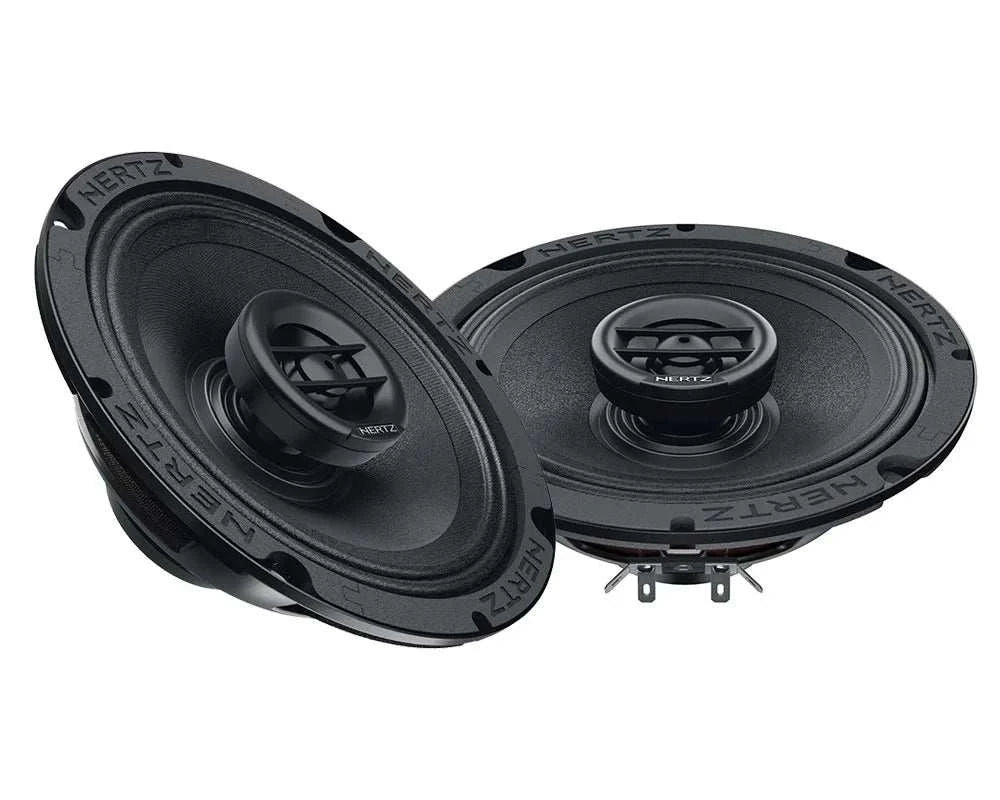

  • SX 165 NEO Coaxial Speakers:

Totally new NEO SPL coaxial SX 165 NEO cone is made with nature-proof high stiffness pressed-paper featuring innovative water/humidity resistant and anti-UV treatments. The double layer copper voice coil, wound on polyamide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance. SX 165 NEO features a large Hi-SPL 1.4” PEI dome tweeter with resettable solid-state protection circuit and a protective rubber gasket for high SPL and a safe outdoor use.

1. Nature-proof high stiffness pressed-paper cone featuring innovative water/ humidity resistant and anti-UV treatments.

2. Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.

3. Unparalleled power handling delivered by the double layer copper voice coil, wound on polyamide former.

4. Hi-SPL 1.4” Neodymium magnet PEI dome tweeter with resettable solid-state tweeter protection circuit.

5. Double faston terminals allow daisy-chaining of multiple units and provide compatibility with most common motorcycle connections.

  • Speaker Technical Specifications:

Component SPL COAXIAL
Size mm (in.) 165 (6.5)
Power Handling - Continuous W 100
Power Handling - Peak W 200
Impedance Ohm 4
Tweeter diaphragm mm (in.) PEI
Woofer Voice Coil Ø mm (in.) 38 (1.5)
Tweeter Voice Coil Ø mm (in.) 28 (1.1)
Frequency Response Hz 100 ÷ 20k
Woofer Magnet size D x d x h mm (in.) 70 x 45 x 7 (2.76 x 1.77 x 0.28)
Tweeter Magnet size D x h mm (in.) 19 x 3 (0.75 x 0.12)
Weight of one speaker kg (lb.) 0,94 (2.08)
Woofer Magnet Special Neodymium N38 H
Tweeter Magnet Special Neodymium N38 H
Cone Water repellent pressed paper

  • Speaker Electro-Acoustic Specifications:

D mm 128
Re Ohm 3,3
Fs Hz 110
Le mH 0,061
Vas I 4,92
Mms g 10,14
Cms mm/N 0,21
BL T*m 5,83
Qts 0,64
Qes 0,68
Qms 9,7
Spl dB 96.5



  • Speaker Physical Specifications:

SX 165 NEO

A 167,2 mm 6.58 in.
B 143,3 mm 5.64 in.
C 69,5 mm 2.74 in.
D 57,8 mm 2.28 in.

  • Speaker Frequency Response:

SX 165 NEO

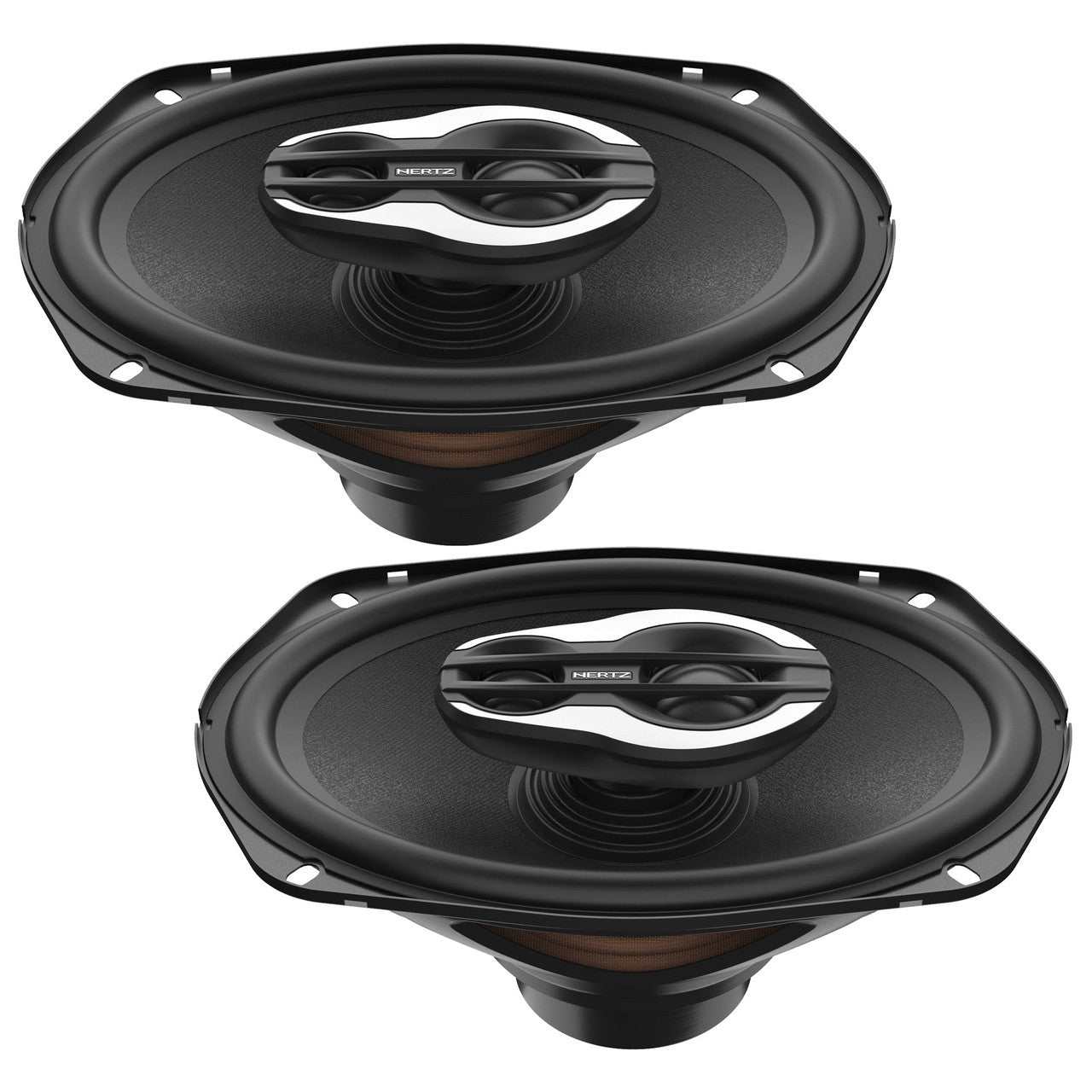

  • SX690 NEO Coax Speakers

SX 690 H NEO coaxial for 2024 Harley is a real beast with a Hi-SPL Mid-Hi unit based on a 1.4” dome tweeter and 1” dome super tweeter with a resettable solid-state protection circuit. The cone is made with nature-proof high-stiffness pressed paper featuring innovative water/humidity resistance and anti-UV treatments. The double-layer copper voice coil wound on polyimide former ensures unparalleled power handling. New motor units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance.

1. Nature-proof high stiffness pressed-paper cone featuring innovative water/ humidity resistant and anti-UV treatments.

2. Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.

3. Unparalleled power handling delivered by the double-layer copper voice coil, wound on polyimide former.

4. Hi-SPL Mid-Hi unit based on 1.4” dome tweeter and 1” dome super tweeter with resettable solid-state tweeter protection circuit.

5. Double faston terminals allow daisy-chaining of multiple units and provide compatibility with the most common motorcycle connections.

  • Speaker Technical Specifications:

Component SPL COAXIAL
Size mm (in.) in. 6 x 9
Power Handling - Continuous W 130
Power Handling - Peak W 260
Impedance Ohm 4
Tweeter diaphragm mm (in.) 29 (1.14)
Woofer Voice Coil Ø mm (in.) 38 (1.5)
Tweeter Voice Coil Ø mm (in.) 25 (1)
Frequency Response Hz 65 ÷ 24k
Woofer Magnet size D x d x h mm (in.) 110 x 45 x 20 (4.33 x 1.77 x 0.79)
Tweeter Magnet size D x h mm (in.) 24,5 x 6 x 3,5 (0.96 x 0.24 x 0.14)
Weight of one speaker kg (lb.) 1,69 (3.73)
Woofer Magnet Special Neodymium N38 H
Tweeter Magnet Special Neodymium N38 H
Cone Water repellent pressed paper
Dome Tetolon

  • Electro-Acoustic Specifications:

D mm 169
Xmax mm 5,5
Re Ohm 3
Fs Hz 65
Le mH 0,4
Vas I 11,29
Mms g 36,1
Cms mm/N 0,16
BL T*m 7,665
Qts 0,62
Qes 0,78
Qms 2,9
Spl dB 94



  • Physical Specifications:

SX 690 H NEO

A 237,5 mm 9.35 in.
B 225 mm 8.86 in.
C 93 mm 3.66 in.
D 85 mm 3.35 in.
E 163 mm 6.42 in.
F 154 mm 6.06 in.



  • Frequency Response:

SX 690 H NEO

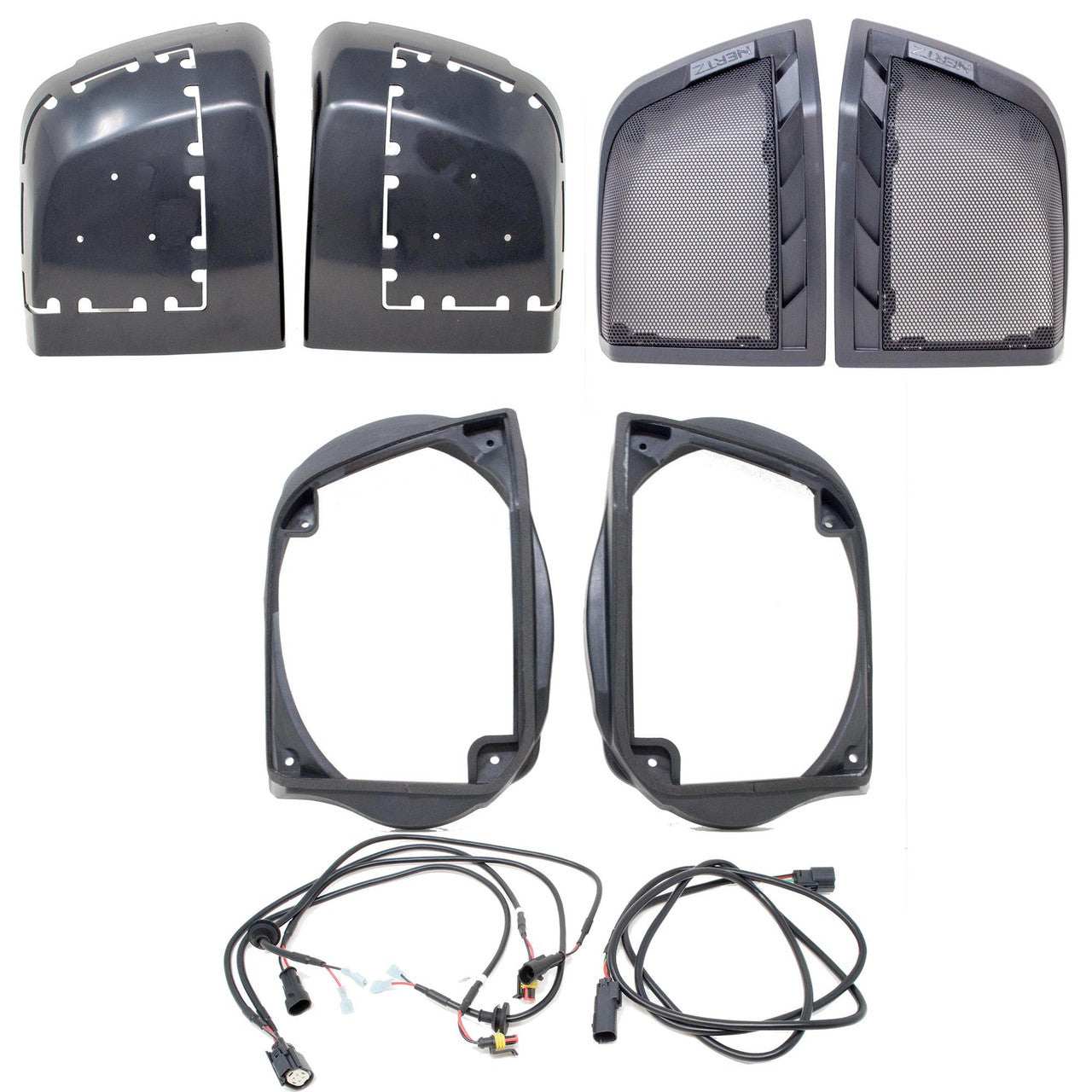

  • HD14H Saddlebag Lid Kit:

The Hertz HD14H Kit includes:

  • HD14 Saddlebag Lid: Specifically designed to perfectly fit the saddlebags of your motorcycle, providing a dedicated space for mounting 6x9 inch Hertz speakers.
  • HBH14 Speaker Harness: A plug & play harness that simplifies installation, allowing you to easily connect the speakers to your existing audio system.
  • Mounting Accessories: Includes a cut-out template, 6x9 inch speaker mounts, speaker grilles, and mounting hardware.

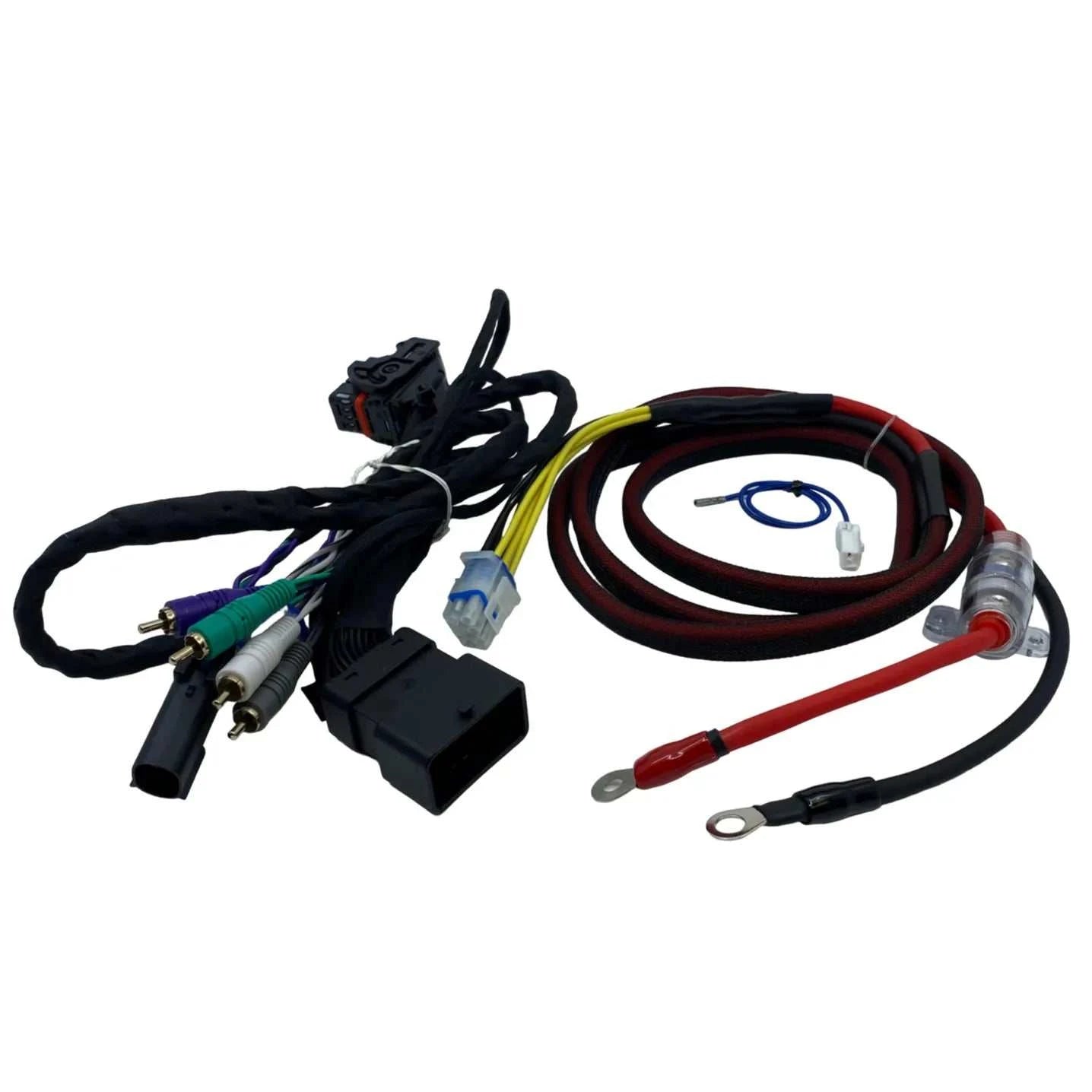

  • HTHP14 T-Power Harness:

The HTHP14 T-Power Harness is designed for use with the SP 4.900 amplifier. It is engineered to simplify the installation process by eliminating the need for any wire cutting. With these harnesses, the installation becomes as easy as Plug and Play.
