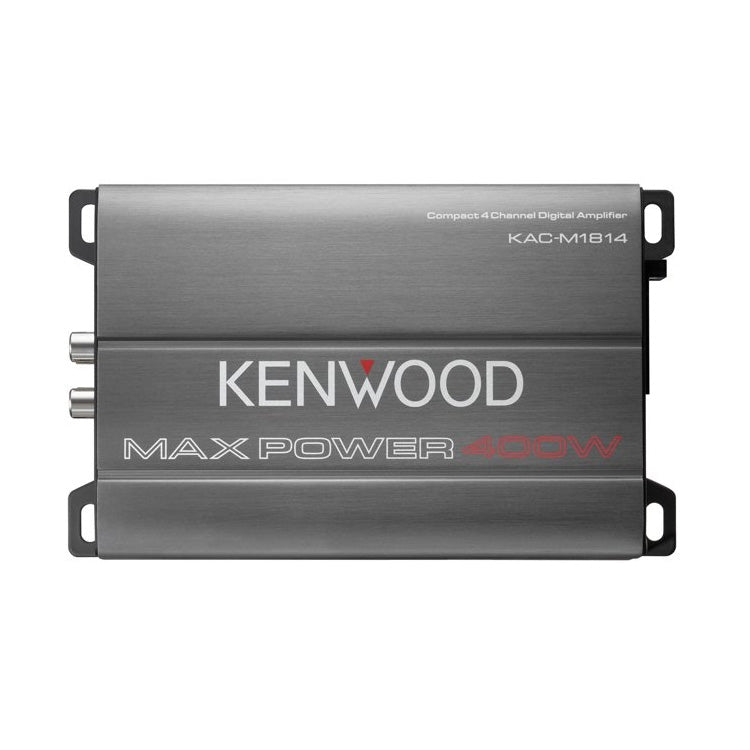

Kenwood KAC-M1814

KAC-M1814

Compact 4-Channel Digital Amplifier

Product Highlights:

• Peak Power 400W
• RMS 45W x 4 (4Ω)
• RMS 45W x 4 (2Ω)
• Conformal Coating for Marine and Other use.
• Speaker Level Input with Signal Sensing Turn on.
• Bridgeable Connection.
• Compact design ( W)5-11/16" x (H)1-3/4" x (D)3-7/8"

Plastic covered connector helps to keep out water and dust.

Conformal Coating provides vibration resistance and helps prevent the PCB from rusting.

Pre-amp and Power-amp sections are separated to reduce radiation noise.

Compact design with controlable interface to adjust the sound from a receiver.
① Filter Frequency Control (A.ch/B.ch)
② Filter Switch to apply HPF / OFF / LPF (A.ch/B.ch).
③ Line In terminal
④ Input Sensitivity Control (A.ch/B.ch)

General Features:

Max Power	400W
RMS Power	45W x 4 (4Ω）
	45W x 4 (2Ω）
	90W x 2 (Bridged)
S/N	Signal to Noise Ratio: 98 dB
Size	(W)5-11/16” x (H)1-3/4” x (D)3-7/8”
Low Pass Filter	50Hz-200Hz, -12dB/oct (A/B)
High Pass Filter	50Hz-200Hz, -12dB/oct (A/B)
	Speaker Level Input
	Signal Sensing Turn-On
	Variable High & Low Pass Filter
	Bridgeable
	Conformal Coating
