Kenwood KAC-M3004
Kenwood KAC-M3004
Regular price
$220.00 USD
Regular price
Sale price
$220.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

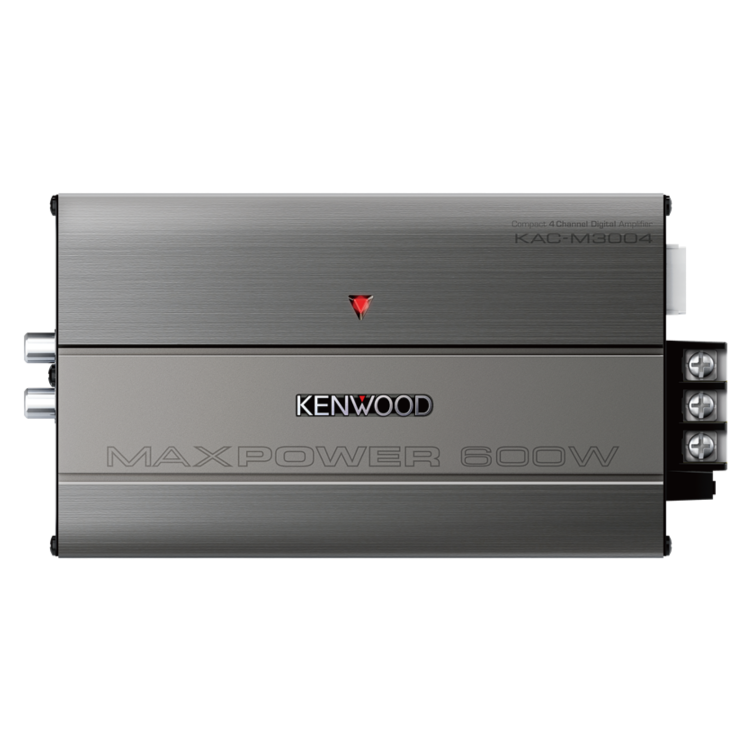

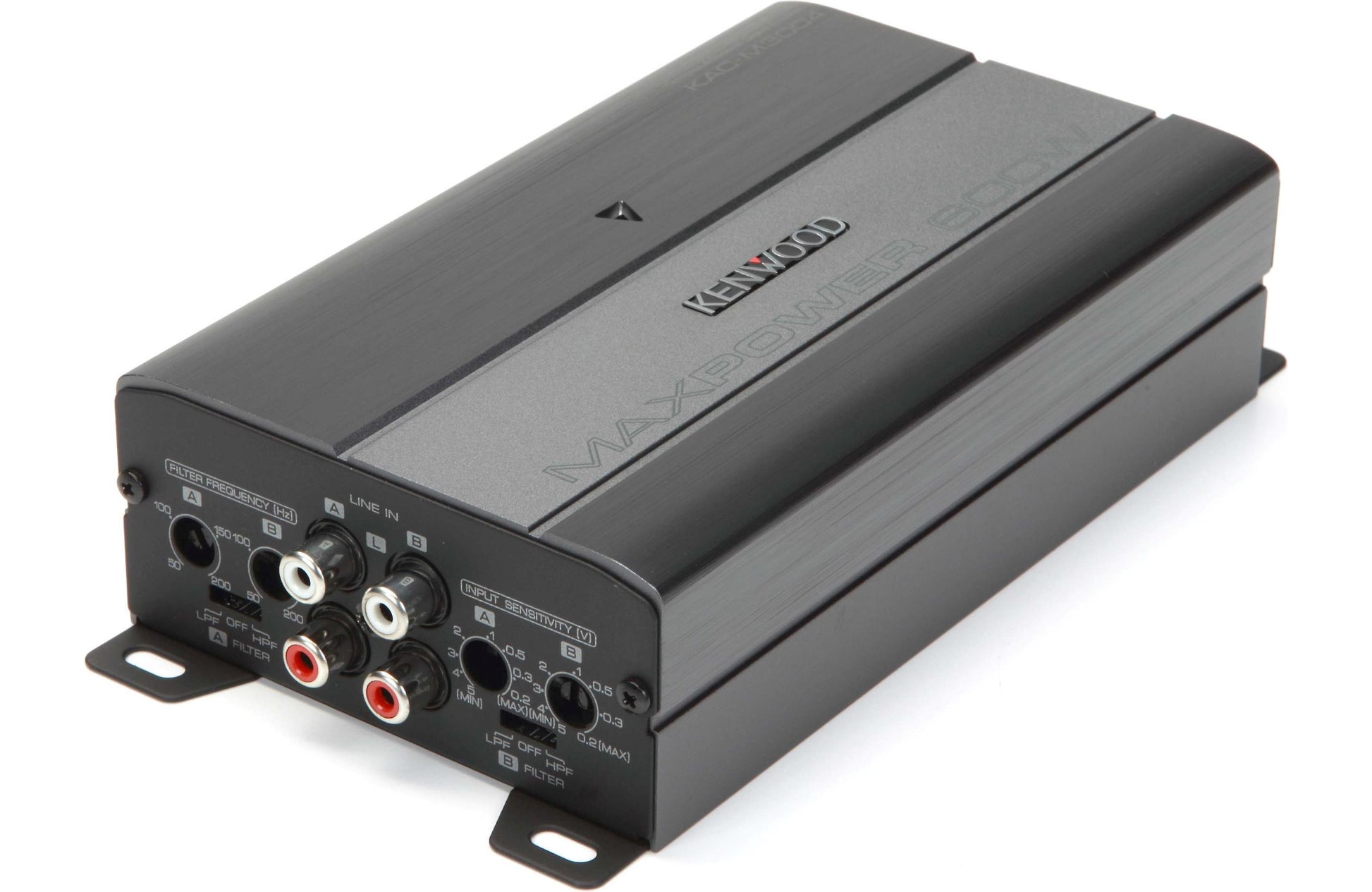

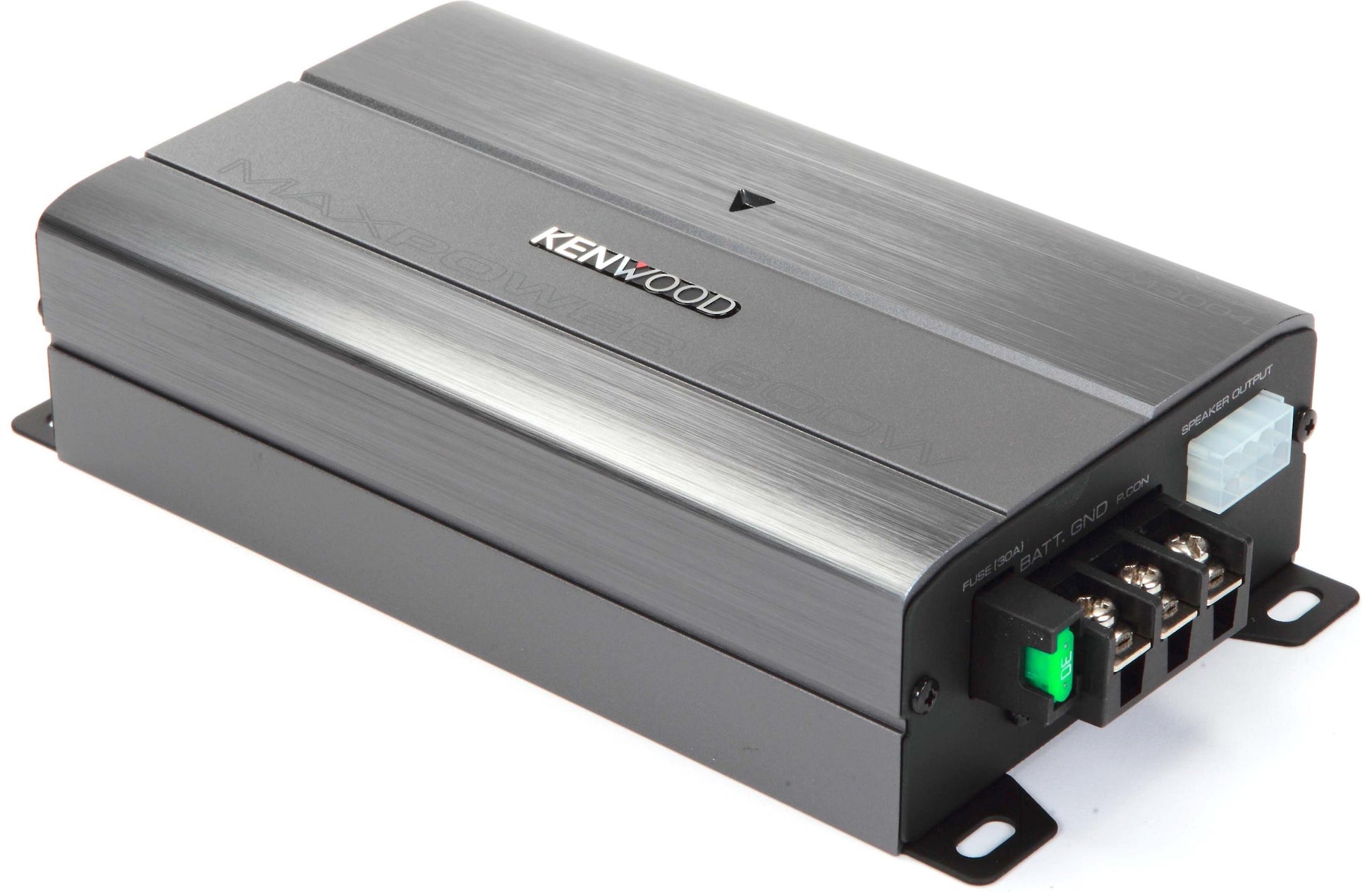

Kenwood Amplifier KAC-M3004: Compact 4-Channel Digital Amplifier
- RMS POWER Output 4Ω: 50W x 4
- RMS POWER Output 2Ω: 75W x 4
- RMS POWER Output Bridged: 150W x 2
- Dimensions(WxHxD): 6-1/2" x 1-3/4" x 3-7/8"
- Singal Sensing Turn-on
- Conformal Coating *1
Many of today’s powersports have very limited space to work in and tend to be a harsh environment for electronics because of the exposure to outdoor environments. KENWOOD’s compact performance amplifiers are small in size so they fit even the most limited installation areas. The amplifiers also use a conformal coated main PCB (printed circuit boards) which offer extra layers of protection to help prevent moisture or damp air from damaging the product.
Title | Compact 4 Channel Digital Amplifier | |
---|---|---|
Amplifier Type | Class D | |
CTA-2006-D Value | Maximum Dynamic Power | 65W at 4ohms and ≤ 10% THD + N |
Continuous Power Output | 50W at 4ohms and ≤ 1% THD + N | |
Signal to Noise | 76dBA reference 1 Watt RMS | |
Maximum Power Output | 600W | |
Specifications | Signal to Noise Ratio | 89dB (Reference: Rated Power into 4Ohms at 14.4V) |
Frequency Response | 20Hz-20kHz (+0dB, -1dB) | |
Input Impedance | 10k ohm | |
Speaker Impedance | 4Ω (2Ω to 8Ω allowable) | |
Bridged connection | 4Ω to 8Ω allowable | |
Audio Section | Low-Pass Filter | Built in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct) |
High-Pass Filter | Built in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct) | |
Filter Selector 1 | LPF-OFF-HPF | |
RCA Input Sensitivity | 0.2 V - 5.0 V | |
Speaker Level Input Sensitivity | 4.0 V - 12.0 V | |
Terminals | Battery & Ground | Screw Type Terminal Block (Ni) (M4) |
Speaker Output | MOLEX Connector with AWG16 200mm Wire | |
Line In | RCA (Ni) | |
General | Dimensions(WxHxD) | '6-1/2 X '1-3/4 X '3-7/8 inch |
Weight(kg) | - | |
Operating Voltage | 14.4V(11-16V allowable) | |
Current Consumption | 22 A | |
Key Features |
CEA-2006 Compliant |
|
Others |
Triangle Indicator |
