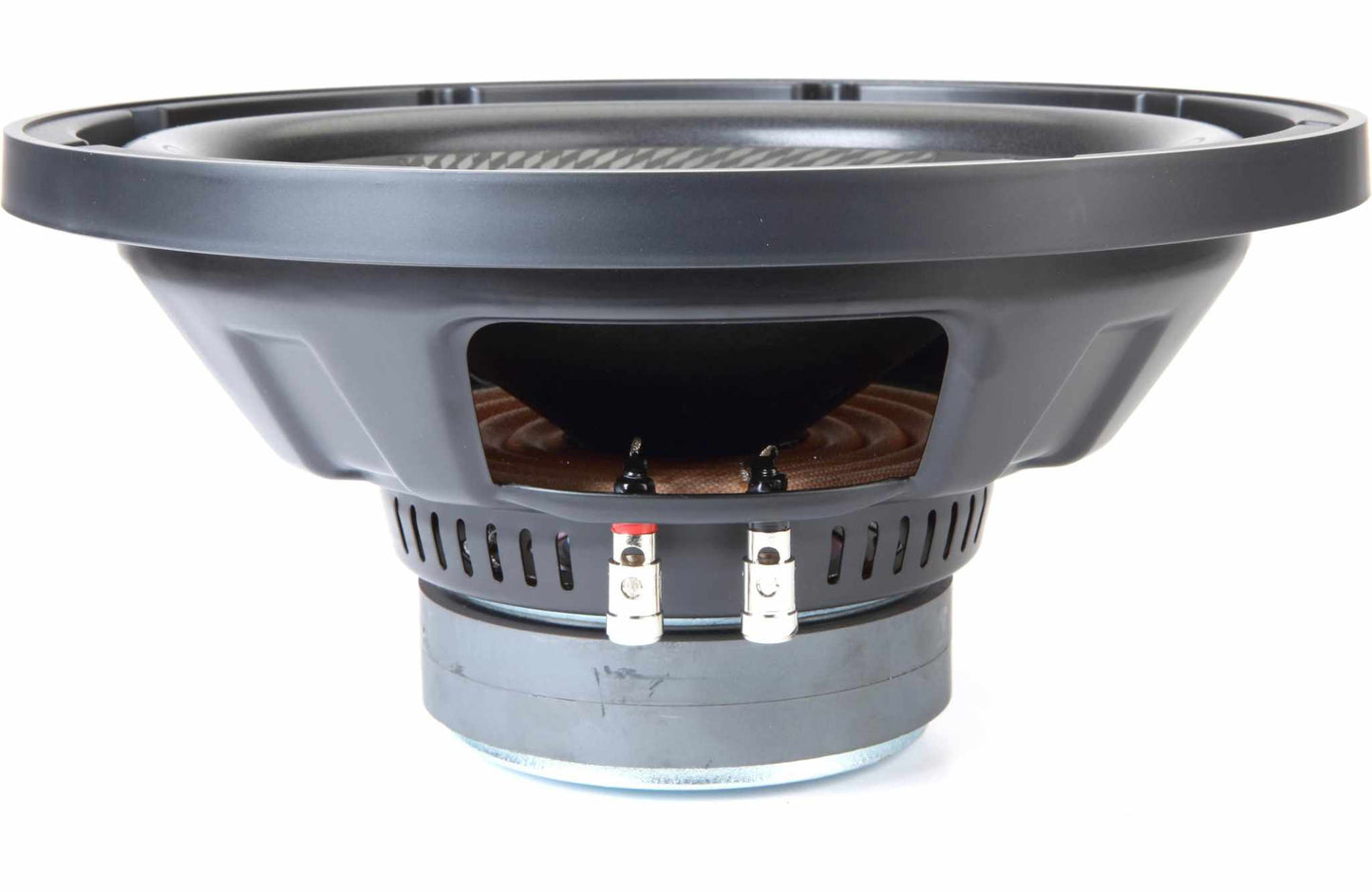

Kenwood KFC XW-1241
Kenwood KFC XW-1241
KFC-XW1241
12" Subwoofer
- Peak Power 2000W
- PP X-motif Cone with Diamond Array Pattern
- Closed Yoke with Advanced Airflow Control
- Stress Controlled Spider
- Robust Thermal Management System
X-Motif Cone with Diamond Array Pattern
X-Motif Cone controls resonance frequency and cuts unnecessary frequency, delivering powerful and solid bass response.
Closed Yoke with Advanced Airflow Control
The KFC-XW1241 has a robust thermal management system implemented. with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control.
Stress Controlled Spider
Computer-optimized damper controls stress and increases mechanical durability.
The Best Match
KFC-XW1241 subwoofer is precisely power matched with the eXcelon X502-1 amplifier.
Recommended Enclosures:
| Model | Type | Inner Volume | W | H | D | Mounting Hole | SW | SH | SL |
|---|---|---|---|---|---|---|---|---|---|
| KFC-XW1241 | Sealed | 1.25 cft (35.4 liter) | 18" (457mm) | 14-1/4" (362mm) | 11-3/4" (299mm) | 11-1/8" (282mm) | |||
| Ported | 1.50 cft (42.5 liter) | 20" (508mm) | 14-1/4" (362mm) | 15-1/2" (394mm) | 1-3/8" (35mm) | 12-3/4" (324mm) | 29" (736mm) |
General Features:
| ELECTRICAL | ||
|---|---|---|
| Impedance (Ω) | 4 | |
| Peak Input Power (W) | 2000 | |
| RMS Power (W) | 300 | |
| Sensitivity (dB at 1m) | 85 | |
| Frequency Response (Hz) | 29 ~ 300 | |
| MOUNTED SPEAKER | ||
| Size | 300mm | 12 inch |
| Diaphragm | Paper | |
| Cap | Injection PP | |
| Surround | Urethane | |
| Basket | Steel | |
| Gasket | ABS | |
| Magnet | Ferrite | φ134-φ70-t30 |
| DIMENSION | ||
| Width | 326mm | 12 - 13/16 inch |
| Height | 326mm | 12 - 13/16 inch |
| Cut-out Diameter | 279mm | 11 inch |
| Depth | 155.4mm | 6 - 1/8 inch |
| Mounting Depth | 137mm | 5 - 3/8 inch |
| WEIGHT | ||
| Woofer without Gasket | 4.2 kg | 9.3 lb |
| Gross Weight | 5.0 kg | 11.0 lb |
| Weight of Magnet | 1560 g | 54.9 oz |
| ACCESSORY | Instruction Manual | |
| Warranty Card | ||
| SPECIAL FEATURE | Injection PP X-motif Cone with | |
| Diamond Array Pattern | ||
| Closed Yoke with Advanced | ||
| Airflow Control | ||
| Aluminum Bobbin | ||
