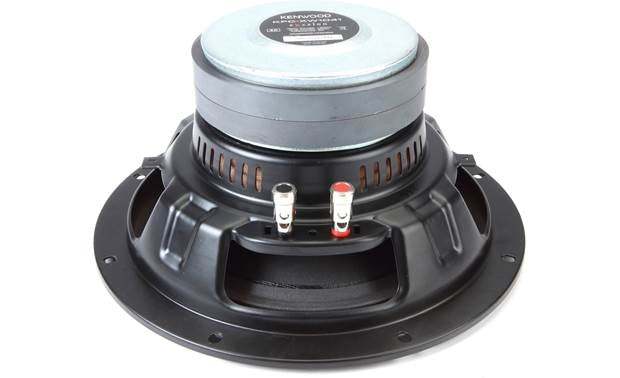

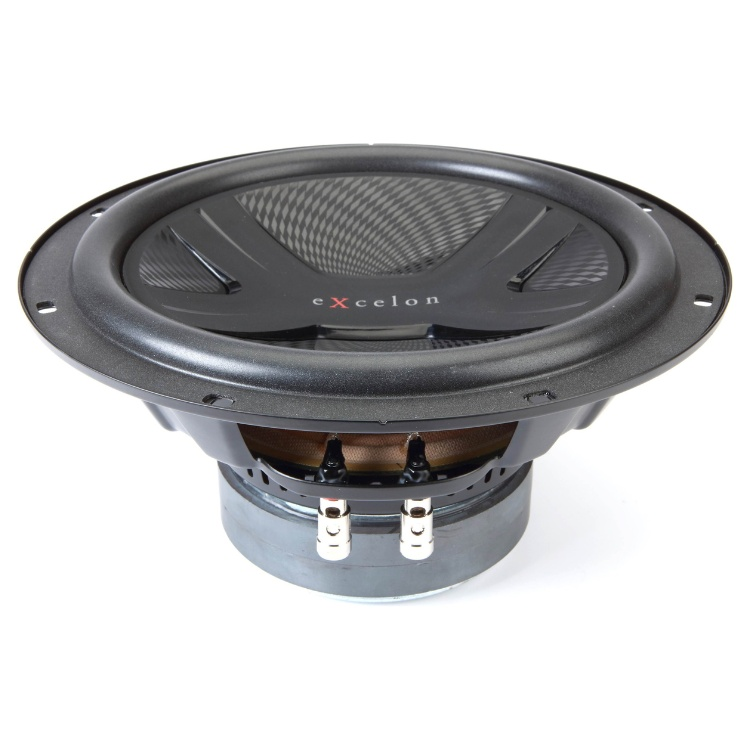

Kenwood KFC-XW1041
Kenwood KFC-XW1041
KFC-XW1041
10" Subwoofer
The KFC-XW1041 sub features a two-piece polypropylene cone with Kenwood's X-Motif design and patterned surface for added rigidity, so you'll get maximum performance with minimal distortion. The sub handles up to 300 watts RMS and works in sealed or ported enclosures as small as 0.65 cubic feet. When you're looking for the impact you need for all kinds of music, this sub is ready to rock.
Product highlights:
- 10" 4-ohm component subwoofer
- 2-piece polypropylene cone with rubber surround
- Power handling: 300 watts RMS (1300 watts peak)
- Frequency response: 33-300 Hz
- Sensitivity: 84 dB
- Top-mount depth: 4-7/8"
- Sealed box volume: 0.65 cubic feet
- Ported box volume: 0.9 cubic feet
- Grille sold separately
- Warranty: 2 years
- PP X-motif Cone with Diamond Array Pattern
- Closed Yoke with Advanced Airflow Control
- Stress Controlled Spider
- Robust Thermal Management System

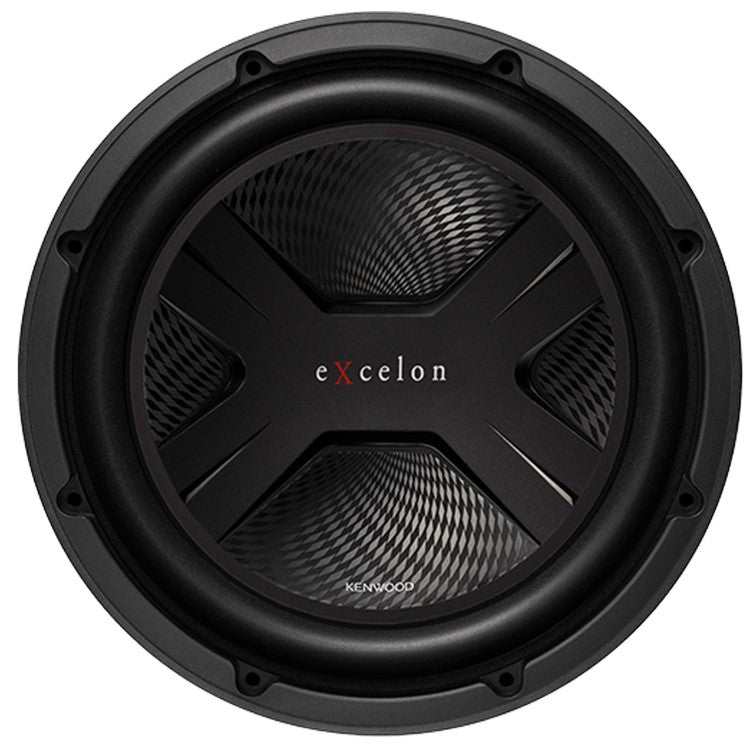

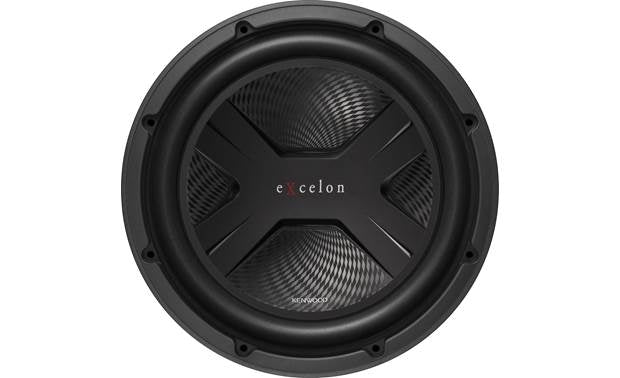

X-Motif Cone with Diamond Array Pattern
X-Motif Cone controls resonance frequency and cuts unnecessary frequency, delivering powerful and solid bass response.
Closed Yoke with Advanced Airflow Control
The KFC-XW1041 has a robust thermal management system implemented. with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control.
Stress Controlled Spider
Computer-optimized damper controls stress and increases mechanical durability.
The Best Match
KFC-XW1041 Subwoofer is precisely power matched with the eXcelon X502-1 amplifier
General Features:
ELECTRICAL | ||
---|---|---|
Impedance (Ω) | 4 | |
Peak Input Power (W) | 1300 | |
RMS Power (W) | 300 | |
Sensitivity (dB at 1m) | 84 | |
Frequency Response (Hz) | 33 ~ 300 | |
MOUNTED SPEAKER | ||
Size | 250mm | 10 inch |
Diaphragm | Paper | |
Cap | Injection PP | |
Surround | Urethane | |
Basket | Steel | |
Gasket | ABS | |
Magnet | Ferrite | φ134-φ70-t30 |
DIMENSION | ||
Width | 275mm | 10 - 13/16 inch |
Height | 275mm | 10 - 13/16 inch |
Cut-out Diameter | 230mm | 9 - 1/16 inch |
Depth | 142.2mm | 5 - 5/8 inch |
Mounting Depth | 124mm | 4 - 7/8 inch |
WEIGHT | ||
Woofer without Gasket | 4.0 kg | 8.8 lb |
Gross Weight | 4.6 kg | 10.1 lb |
Weight of Magnet | 1560 g | 54.9 oz |
ACCESSORY | Instruction Manual | |
Warranty Card | ||
SPECIAL FEATURE | Injection PP X-motif Cone with | |
Diamond Array Pattern | ||
Closed Yoke with Advanced | ||
Airflow Control | ||
Aluminum Bobbin |
