Kenwood P-HD3FR

P-HD3FR

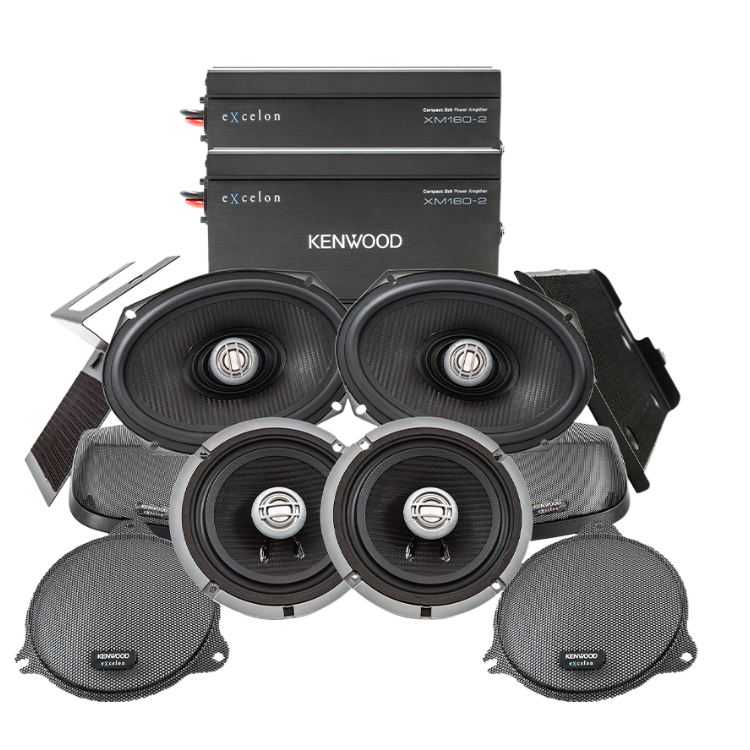

2014-Up Harley Davidson^® Street Glide^® or Road Glide^® Front & Rear Package

TWO 2-CHANNEL POWER AMPLIFIERS, 6.5” FRONT SPEAKERS, 6X9” LID SPEAKERS, & CA-CUT14 CUT-IN LID KIT PACKAGE DESIGNED AND ENGINEERED FOR SELECT 2014-UP HARLEY-DAVIDSON^® MOTORCYCLES

Products Included in Package:

• XM160-2 (Qty 2)
• XM65F (Qty1)

• XM69R (Qty 1)
• CA-CUT14 (Qty 1)

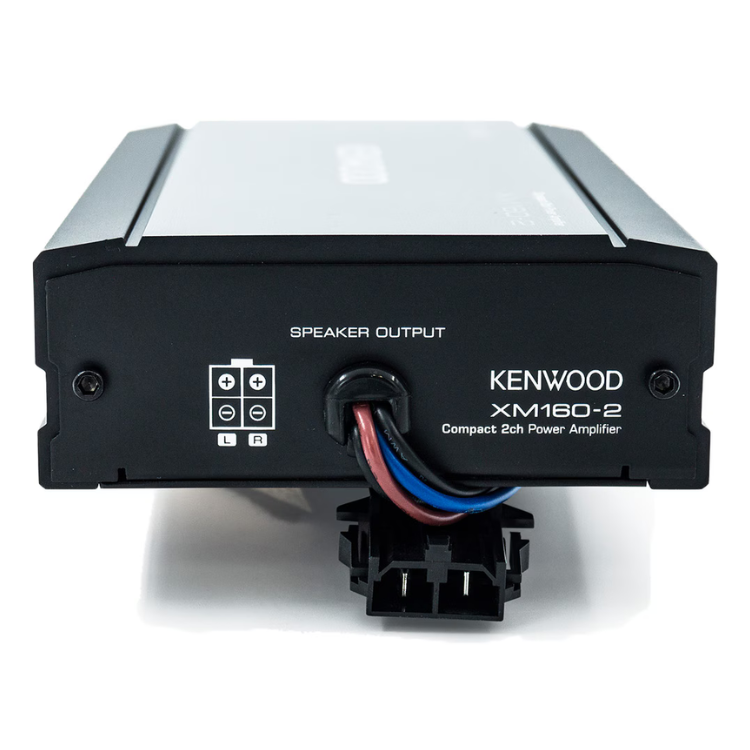

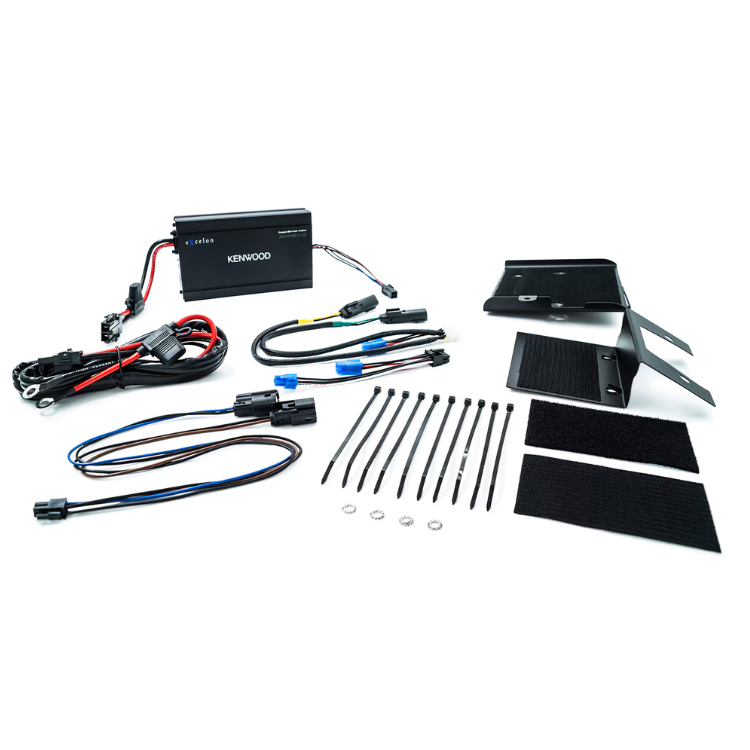

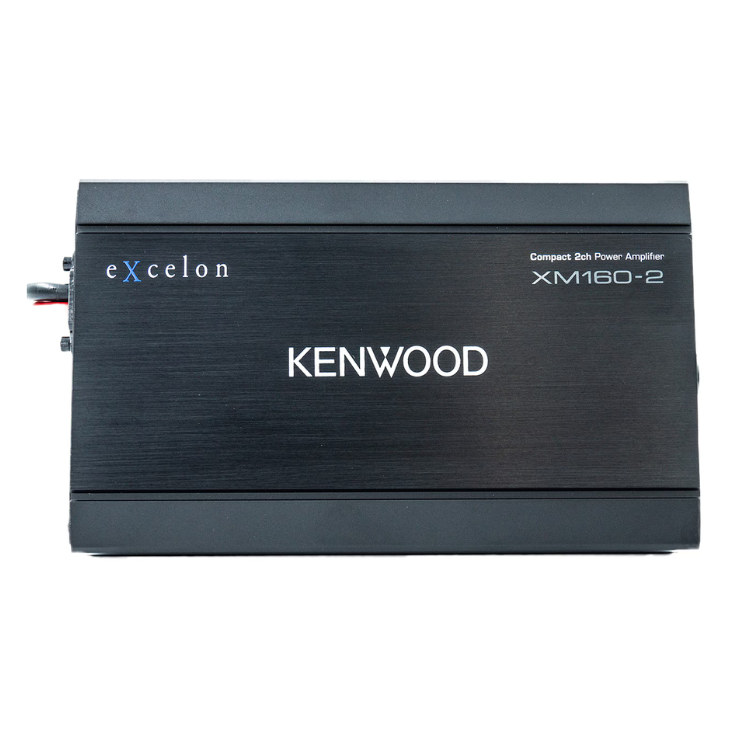

XM160-2 (80W x 2 2-Channel Amplifier) Qty: 2

• Class D 2-Channel Power Amplifier
• 80W x 2 @ 2 ohms (RMS)
• No Radio Flash Required
• Bypass Port For System Expansion

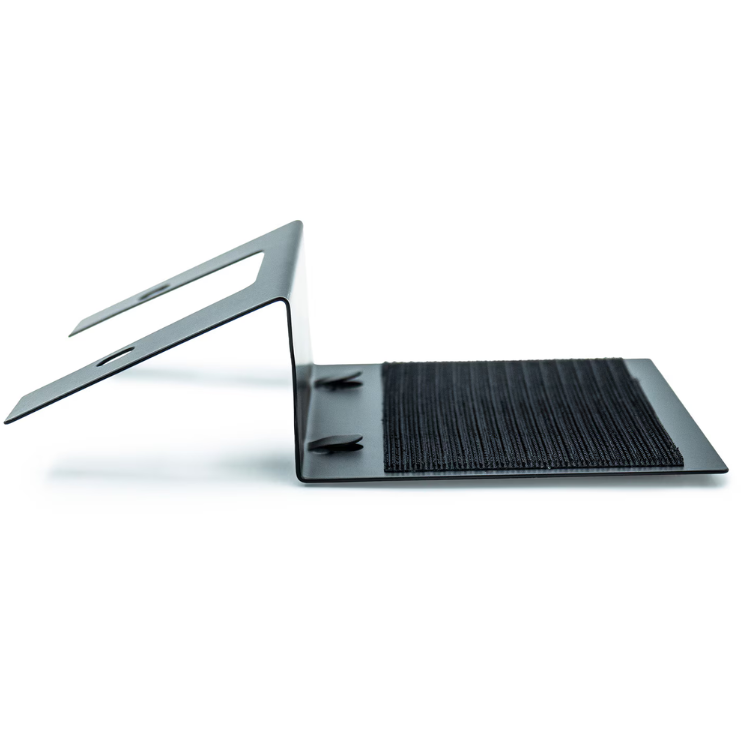

• Street Glide^®/Ultra^® Mounting Plate
• Road Glide^® Mounting Plate
• Plug & Play Power, Speaker, & Input Wiring
• Speaker Level Input For HD OEM Radio or Any Aftermarket Receiver

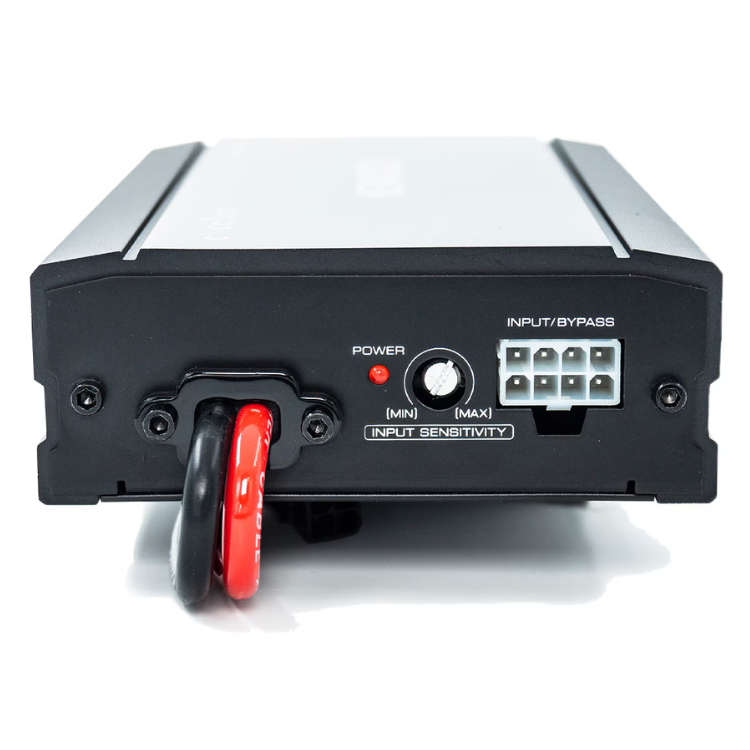

• Input Sensitivity Adjustment
• High Efficiency Design Will Not Overload HD Electrical Systems

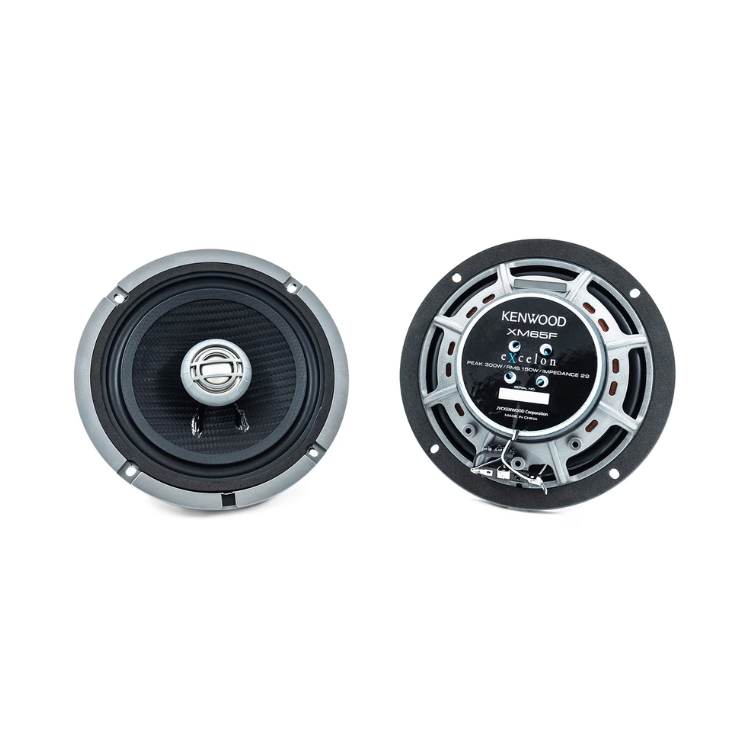

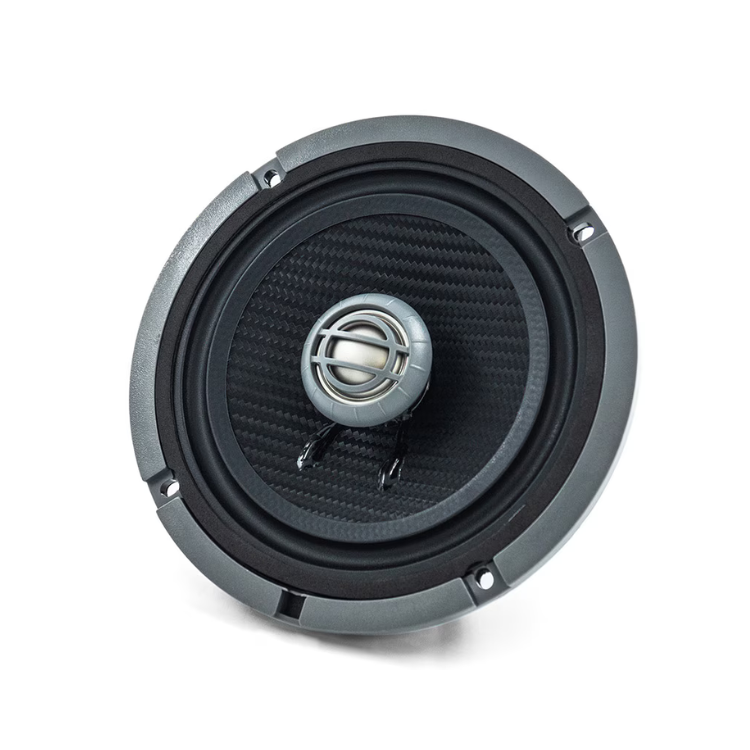

XM65F (6.5" Coaxial Speakers)

• IMPP Woofer Cones
• 1” (PEI) Dome Tweeters

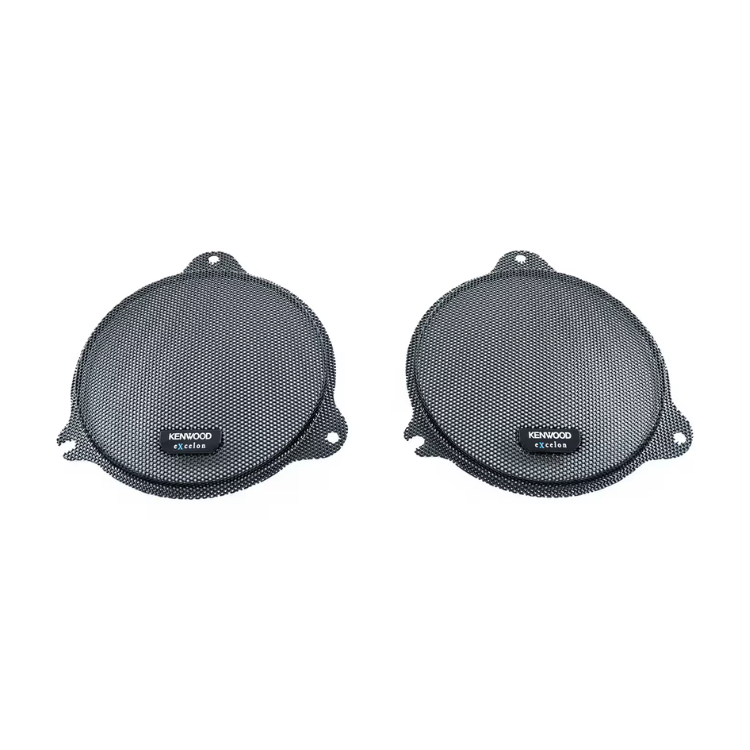

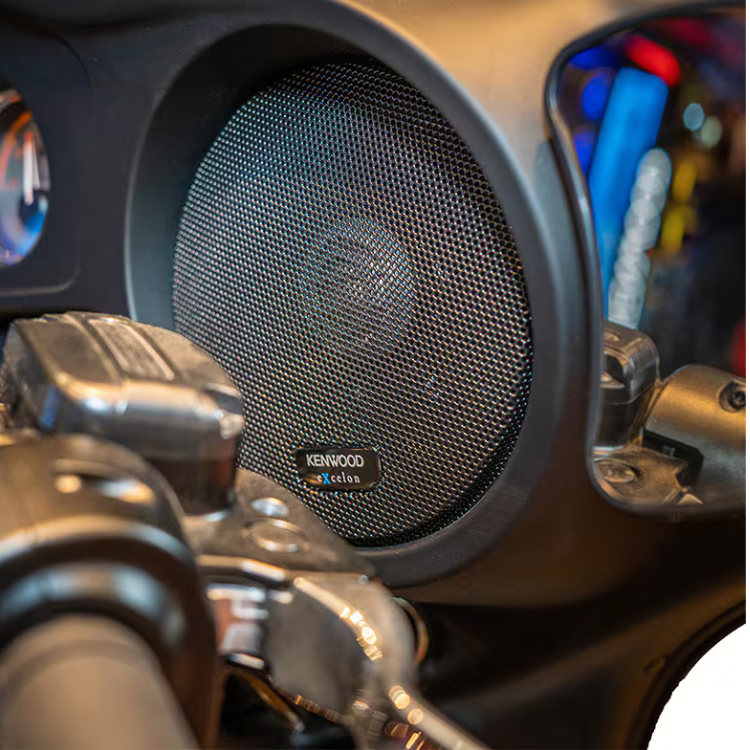

• Street Glide^® Metal Mesh Grilles Included
• Impedance: 2 Ohm
• Mounting Depth: 2.25”
• Sensitivity: 92dB
• Frequency Response: 40Hz-25kHz
• RMS Power Handling: 150W
• Peak Power Handling: 300W

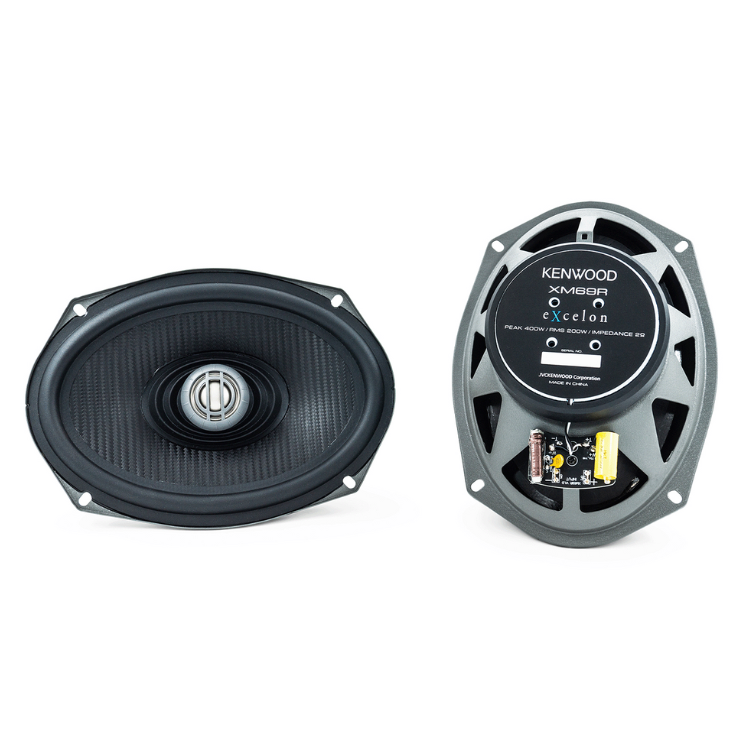

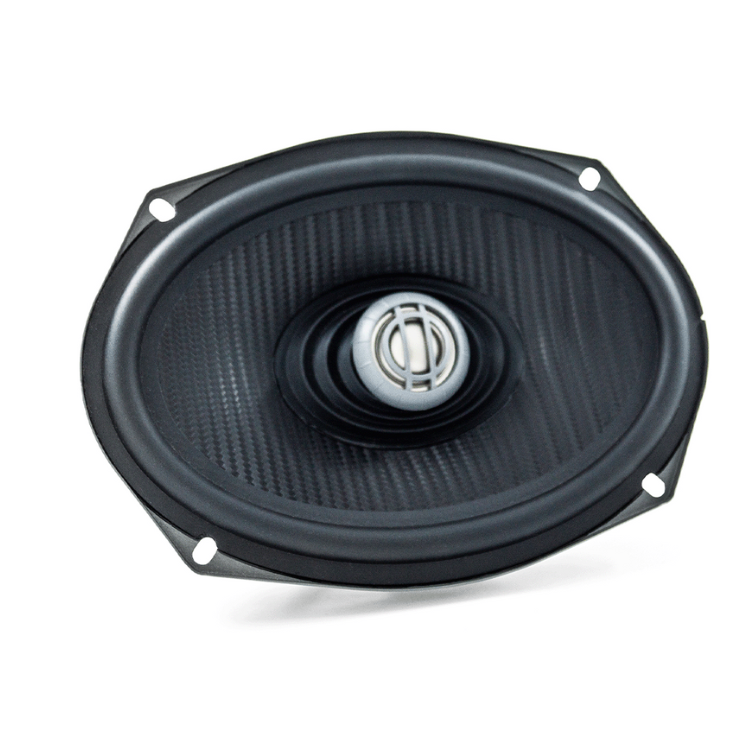

XM69R (6" x 9" Coaxial Speakers)

• IMPP Woofer Cones
• 1” (PEI) Dome Tweeters

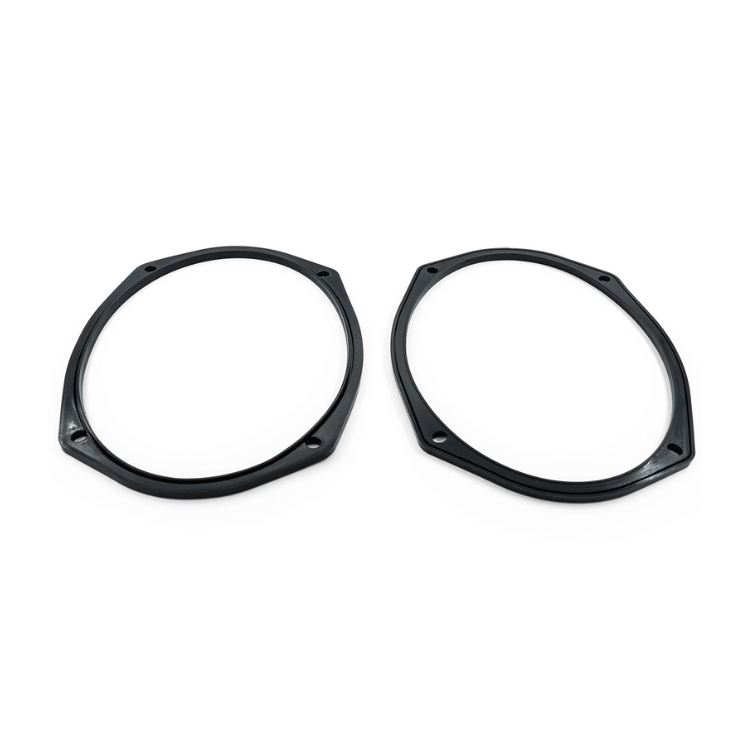

• Silicon Gaskets Included
• Sealed Design Will Not Allow Water To Pass Through Speaker
• Impedance: 2 Ohm
• Mounting Depth: 2.952”
• Sensitivity: 94dB
• Frequency Response: 20Hz-25kHz
• RMS Power Handling: 200W
• Peak Power Handling: 400W

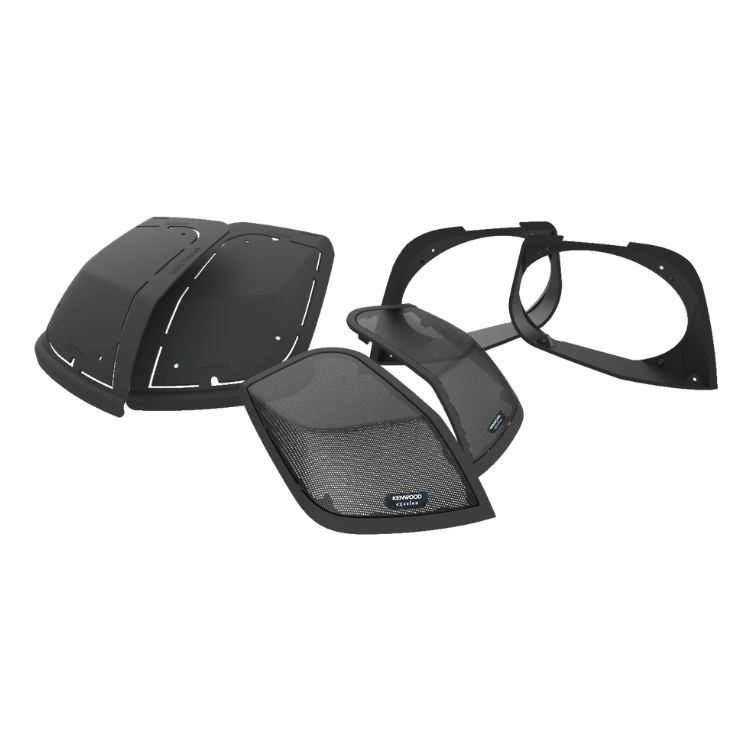

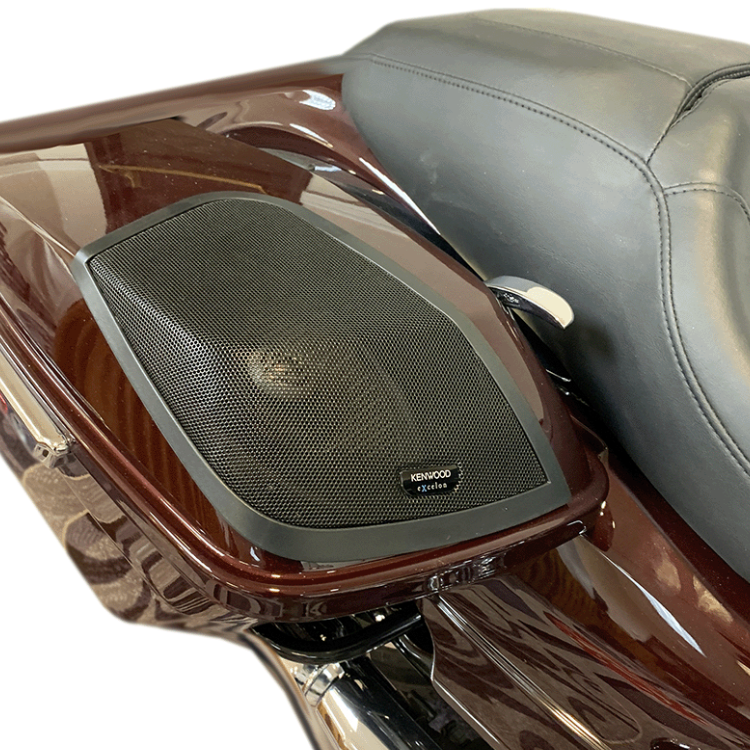

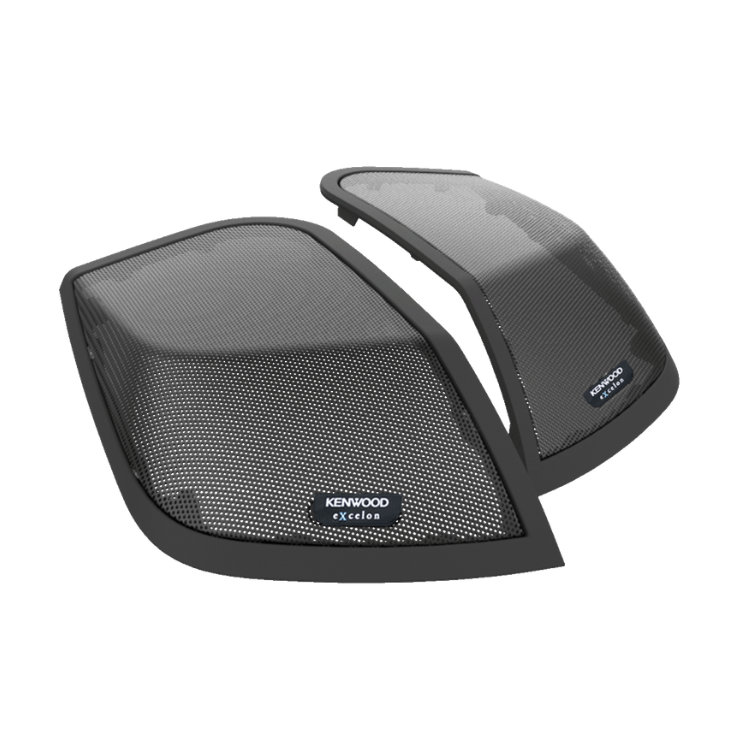

CA-CUT14

• Full Kit For Modifying HD Motorcycle Hard Saddlebag Lids for 6x9” Speakers
• Optimal Speaker Positioning
• Minimal Loss of Bag Space
• Built-in Water Drain Channels

BIKE FITMENT

• 2014-Current FLHX Street Glide
• 2015-Current FLTR Road Glide
• 2014-Current FLHTK Limited Ultra
• 2014-Current FLHTCU Ultra Classic
• 2014-Current FLHTCUG Tri Glide Ultra
• 2016-Current FLTRU Road Glide Ultra
• 2020-Current FLTRK Limited Road Glide Ultra
• 2018-Current FLHT Electra Glide Standard Fairing (with factory radio installed)
• This list is not conclusive. Products may fit additional bikes.
