Kenwood STZ-RF200WD
Kenwood STZ-RF200WD
Catch ALL of the ACTION

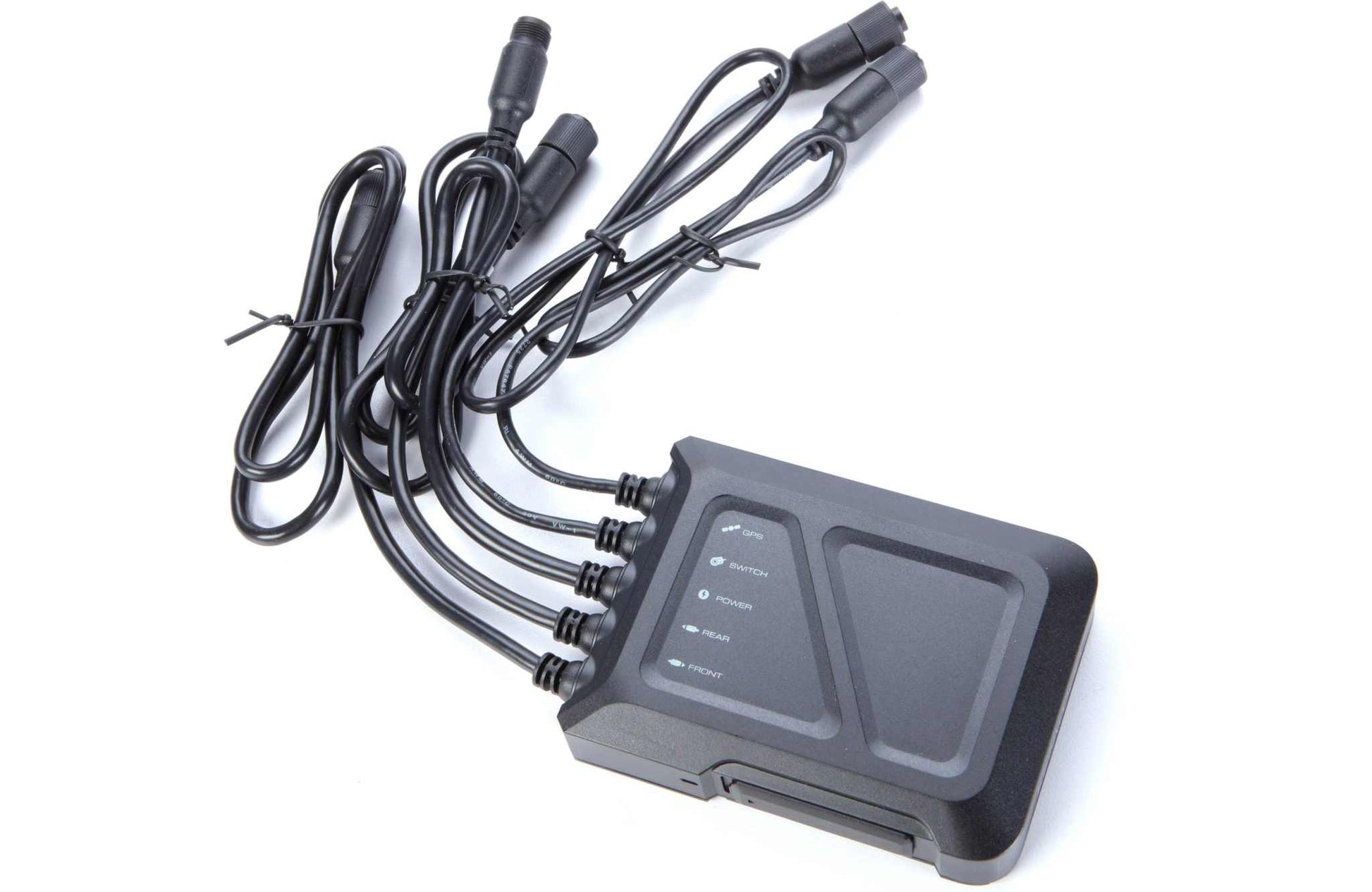

Introducing a motorsports-grade Dual Camera recording system with hide-a-way control box for stealth installations in motorcycles, side-by-sides/UTV's, ATV's, watercraft & more.
*Operating temperature rated at -4°F to 140°F.
2 Megapixel HIGH DEFINITION Recording
Captures clear video from both directions.
FRONT & REAR View Recording

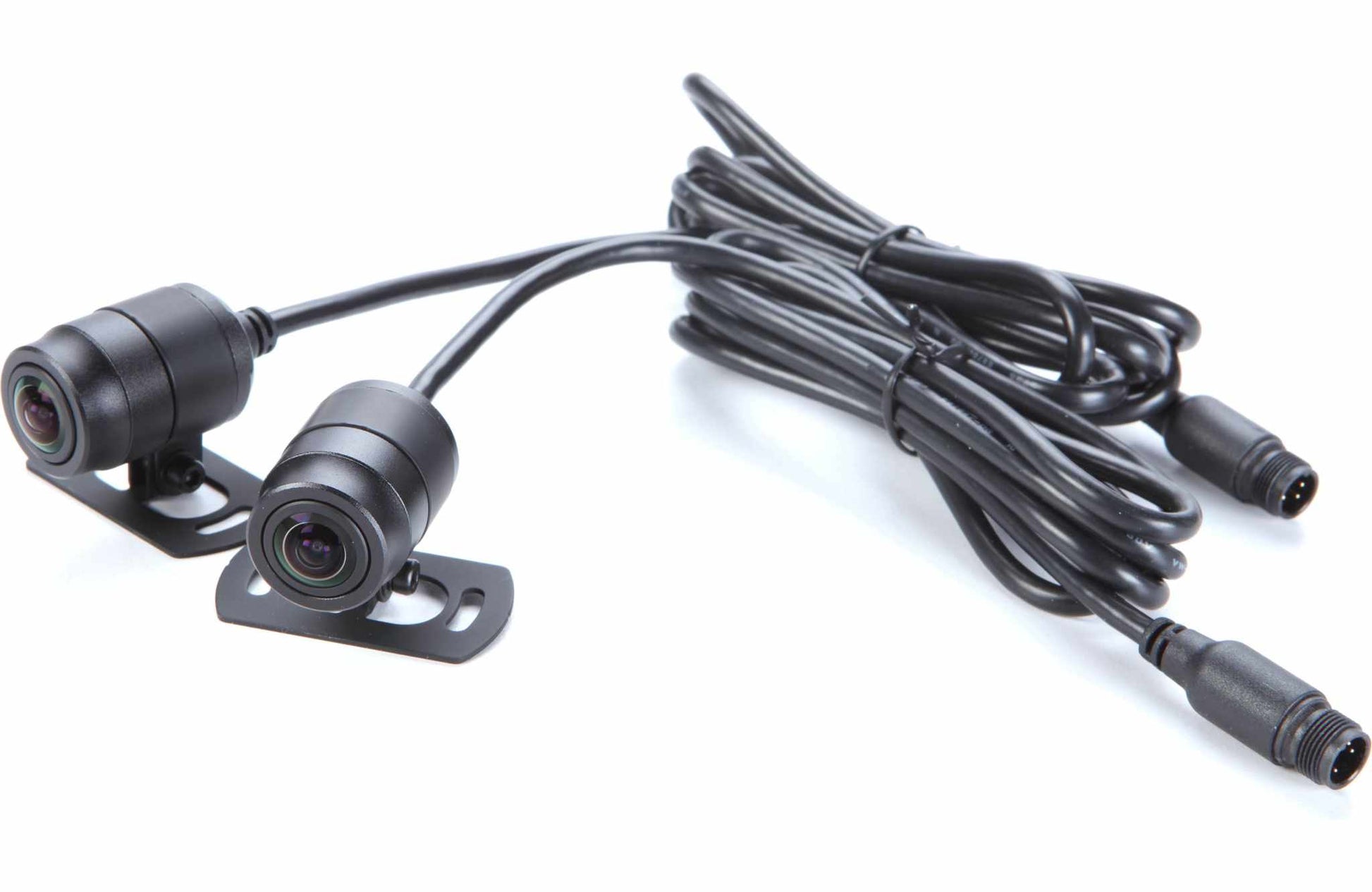

The STZ-RF200WD includes 2 cameras: 1 to record in front of your vehicle and 1 to record behind your vehicle, all at the same time.
EXTRA WIDE VIEW Camera Coverage
Both cameras cover a 195° (diagonal) extra wide range field of view.
HDR (High Dynamic Range) for Backlighting
Built-in HDR easily records clear images in dark or well lit environments without underexposing or overexposing the image, ensuring superior night vision recording.
EIS (Electronic Image Stabilization)
Bumpy roads and surfaces have met their match! Count on smooth and steady images with effective compensation for camera shakes with its Built-in image stabilization.
Waterproof & Dustproof
The cameras, GPS, and switch all carry an IP66/67, meaning that they can resist high-pressure, heavy sprays of water. They are also fully sealed against dust entry. The main unit carries an IP55 rating, meaning that it is protected against dust ingress and low pressure water jets.
General Features
Recording Resolution | 1920 x 1080 (2M) |
---|---|
Recording Format | H.264 (MP4) |
Image Sensor | 1/2.7" CMOS Sensor |
Frame Rate | 27.5fps |
Lens | F=2.2 Fixed Focus Lens |
Lens Viewing Angle | 195° Diagonal (effective angle : 181°) |
Recording Mode | Continuous, Event, Manual |
Operating Temperature | -20℃ to 60℃ / -4℉ to 140℉ |
External Storage | 32GB microSD Included (Supports max 256GB) |
High Dynamic Range (HDR) | Yes |
GPS/GLONASS | Yes |
G-Sensor | Yes |
Super Capacitor | Yes |
Electronic Image Stabilization(EIS) | Yes |
Audio Recording | Yes |
Size (W x D x H) | |
Main Unit | 79 × 104 × 22.5 mm 3-1/8 x 4-1/8 x 7/8 inches |
Cameras | 23.5 (Φ) × 34.4 mm 15/16(Φ) x 13/8 inches |
GPS/GLONASS Antenna | 27.4 × 33 × 13 mm 1-1/8 x 1-5/16 x 1/2 inches |
Control Switch | 25.8 × 36.9 × 9.5 mm 1 x 1-7/16 x 3/8 inches |
