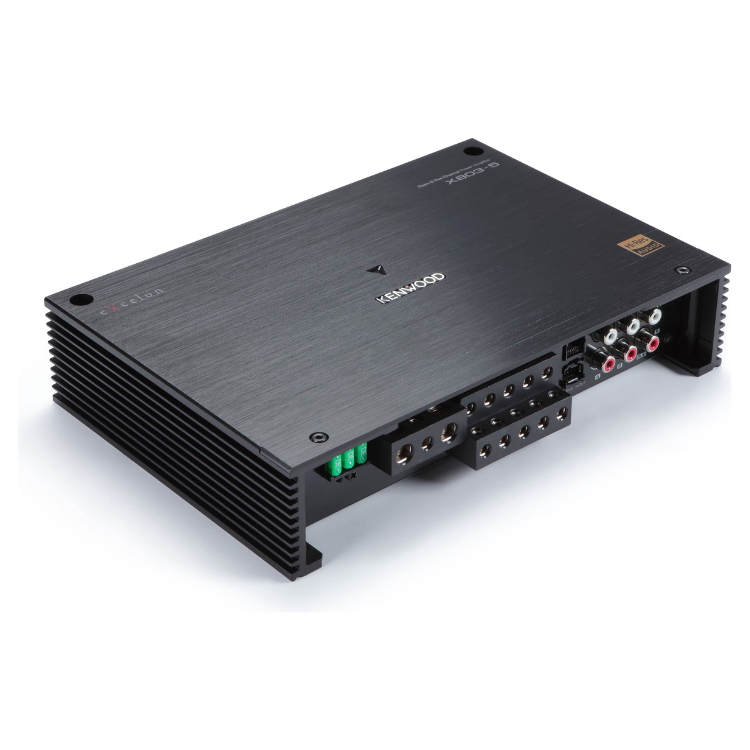

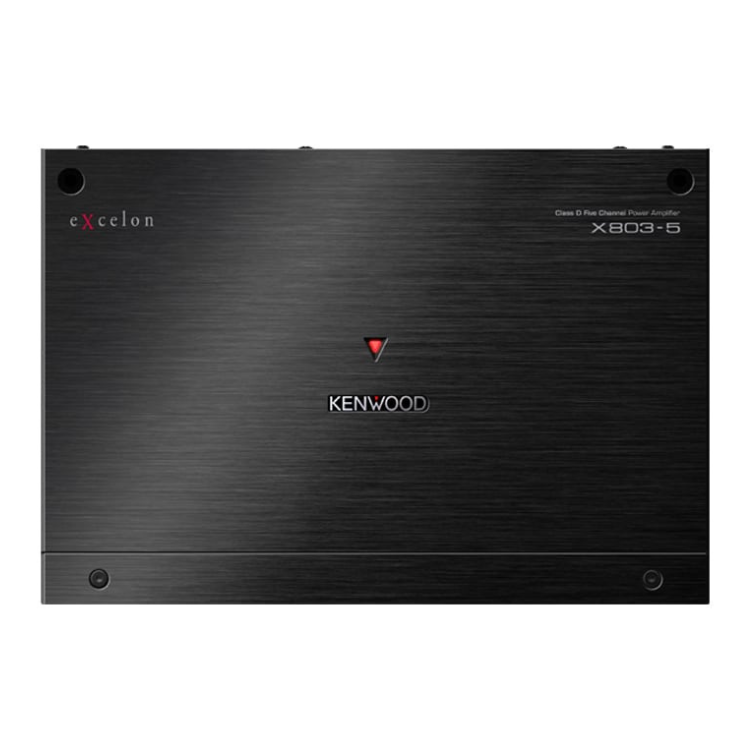

Kenwood X803-5 eXcelon 5-Channel Amplifier 1600W Class-D Car Audio Amp

Class D 5-Channel Power Amplifier

Product Description:

The Kenwood X803-5 is one of those amps that just makes life easy. One amp, full system—doors and a sub—all powered clean and efficiently.

It’s part of the eXcelon lineup, so it’s built a little tighter, sounds a little cleaner, and installs a little nicer than your typical 5-channel. Perfect for clean builds where you don’t want to stack multiple amps.

What it does:

• 5-channel amplifier to run full system + sub
• Clean, efficient Class-D design
• Great for simple, all-in-one installs

Specifications:

• Power Output (RMS):
  • 50W x 4 + 300W x 1 @ 4Ω
  • 75W x 4 + 500W x 1 @ 2Ω
  • 150W x 2 bridged @ 4Ω + sub channel
• Max Power:
  • 1600 Watts
• Amplifier Class:
  • Class-D (efficient, runs cooler)
• Frequency Response:
  • 20Hz – 50kHz (full range channels)
• Signal-to-Noise Ratio:
  • ~90 dB

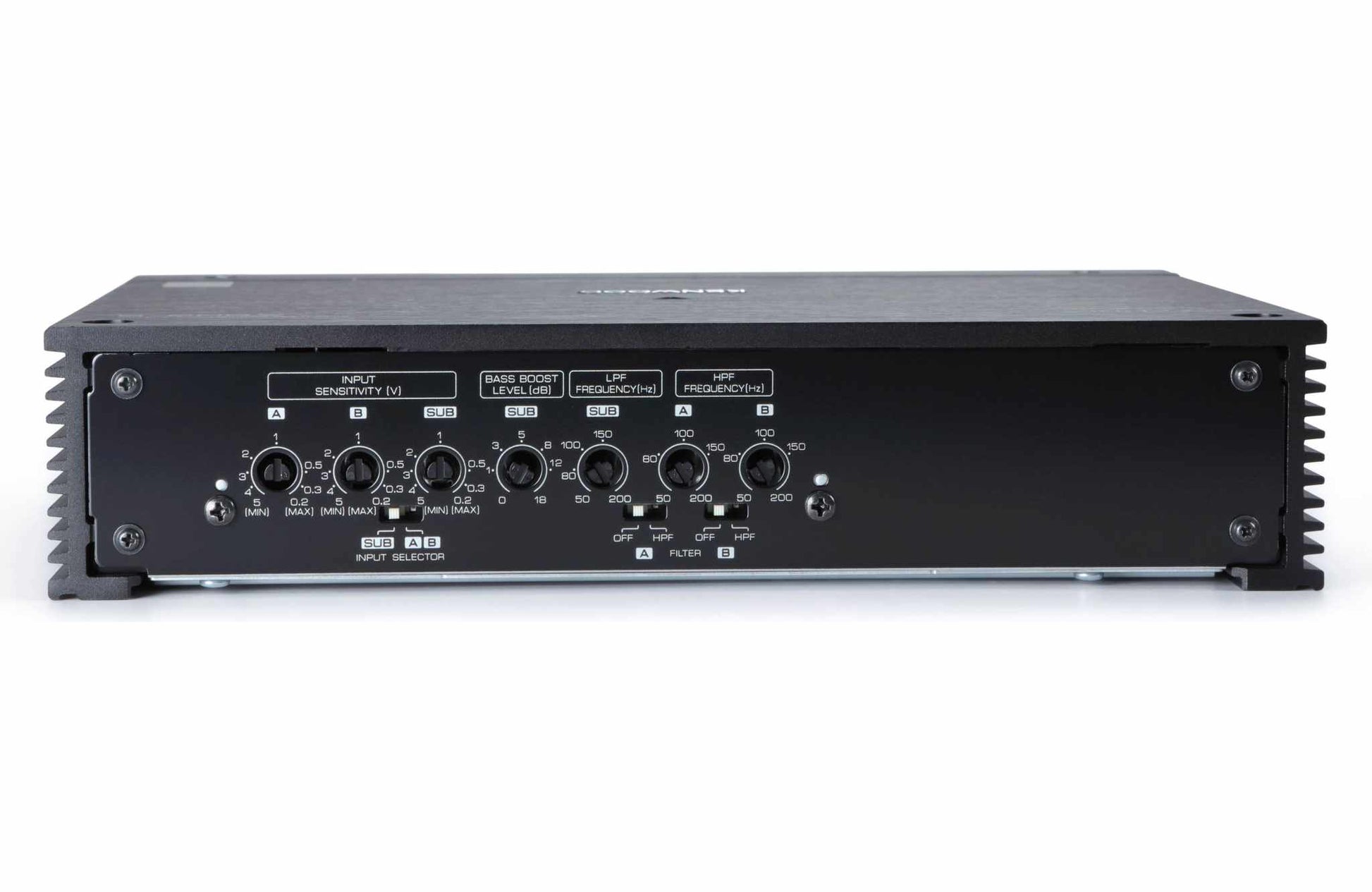

• Crossovers:
  • High-pass (front/rear): 50Hz – 200Hz
  • Low-pass (sub): 50Hz – 200Hz
  • 12 dB/oct (HPF) / 24 dB/oct (LPF)
• Bass Boost:
  • 0 – +18dB @ 40Hz

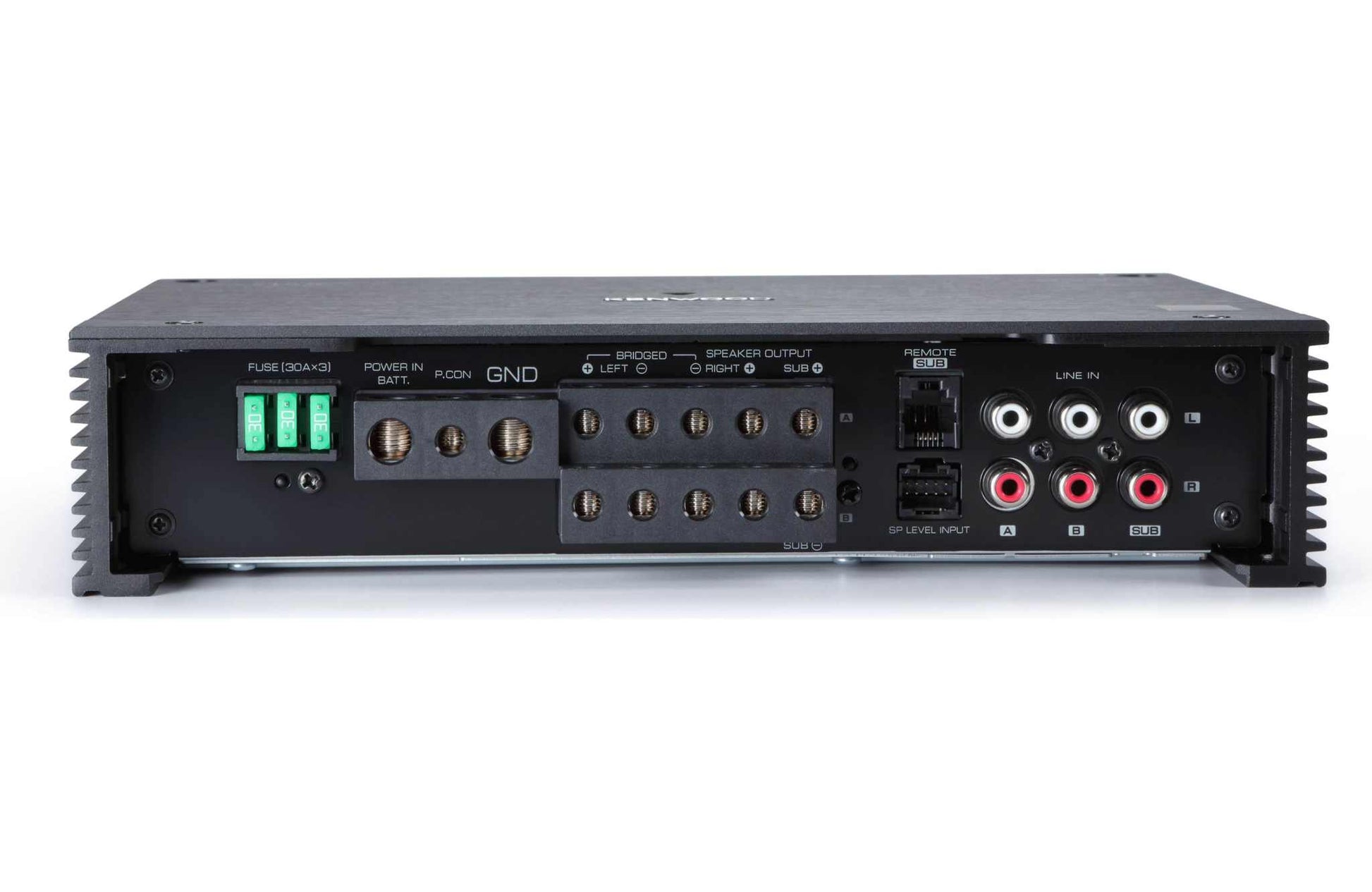

• Inputs:
  • High-level (speaker level) inputs
  • RCA low-level inputs
  • Signal sensing turn-on

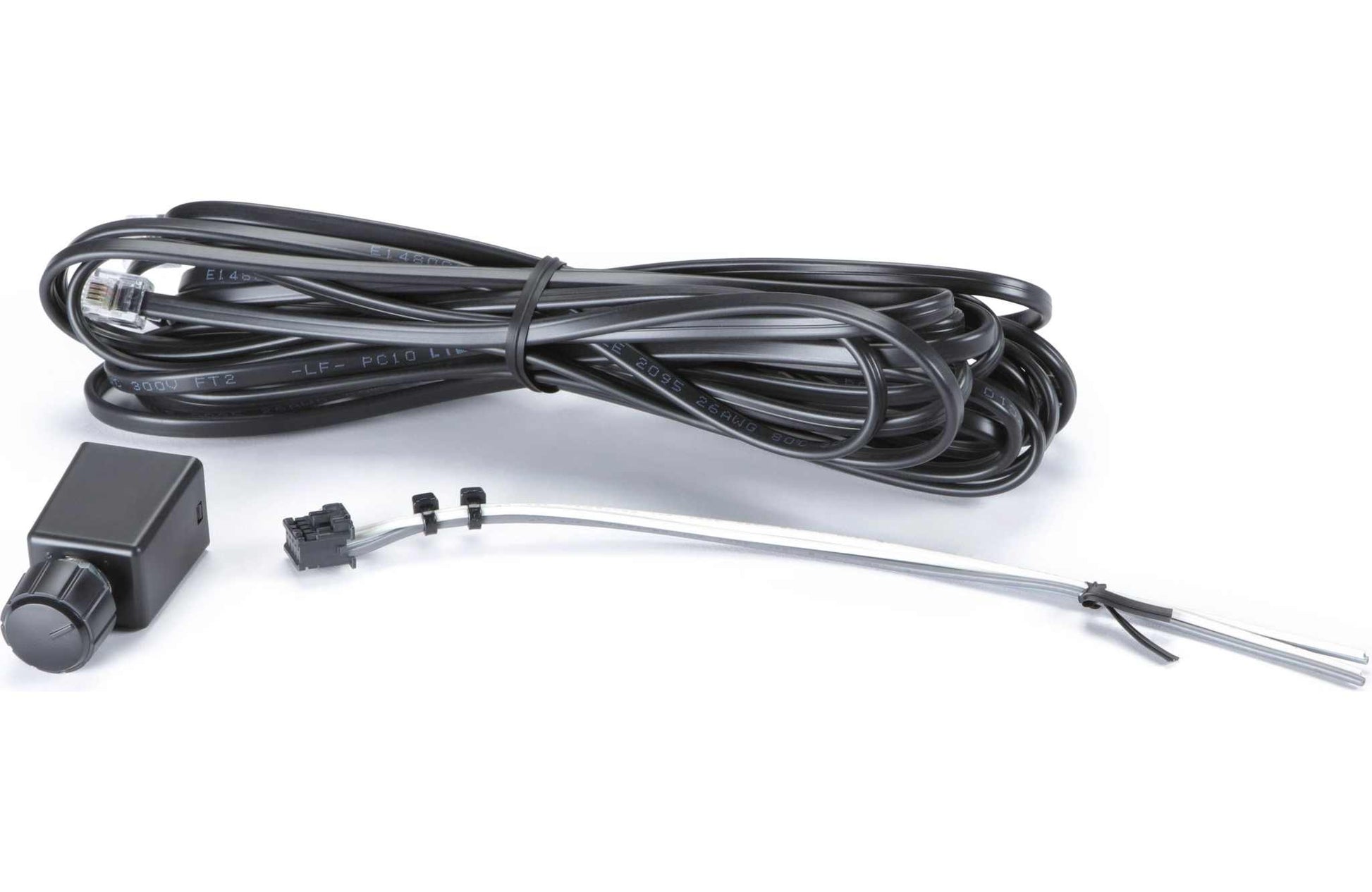

• Remote Bass Control:
  • Included wired bass knob

• Build / Features:

  • Hi-Res Audio certified
  • One-side connections for clean installs
  • 30A x3 fuse rating

• Dimensions:

  • 9.75" W x 2.06" H x 6.6" D
