Reference Series mono subwoofer amplifier — 1,000 watts RMS x 1 at 2 ohms

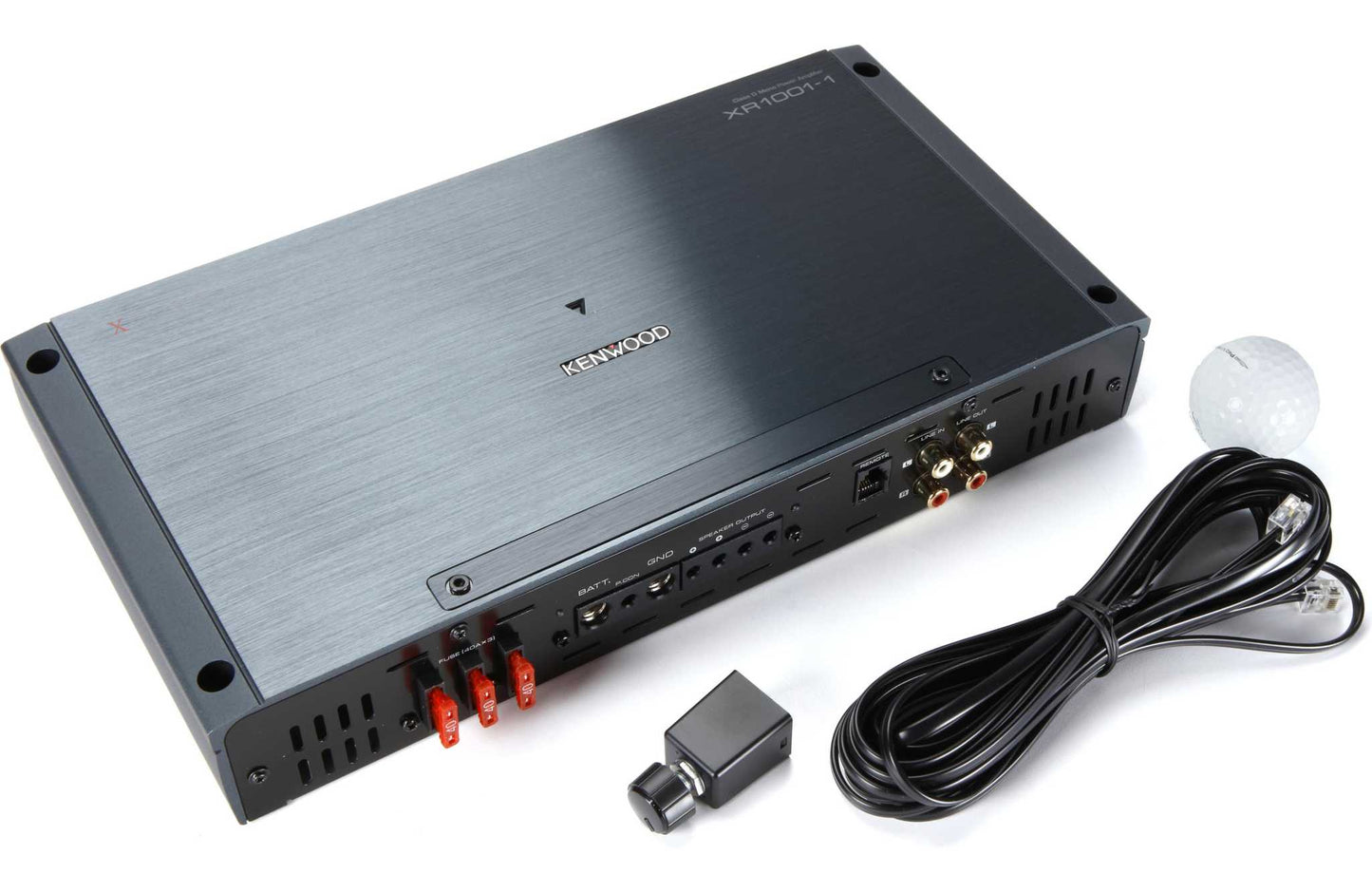

Kenwood's Excelon Reference Series XR1001-1 mono amplifier can power your subwoofer with up to 1,000 watts RMS. An advanced circuit design and upgraded components virtually eliminate noise and maximize sound quality. Even better, the XR1001-1 can fit into many different places in your car because of its incredibly low profile — it's only 2" tall.
Product highlights:
- Mono subwoofer amplifier
- 500 watts RMS x 1 at 4 ohms (1,000 watts RMS x 1 at 2 ohms)
- CTA-2006 compliant
- Class-D amp design — frequency response: 20-200 Hz
- Variable low-pass filter (50-200 Hz, 12 or 24 dB/octave)
- Variable subsonic (infrasonic) filter (15-40 Hz, 24 dB/octave)
- Adjustable bass boost (0-18 dB at 40 Hz)
- Wired remote volume control included
HIGH PERFORMANCE PARTS
Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.
DEEP BASS SOUND
By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.
ENHANCED SIGNAL TO NOISE RATIO
The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.
SPECIALIZED CIRCUIT DESIGN
The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.
WIRED REMOTE CONTROL
The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.
| XR1001-1 | |||
|---|---|---|---|
| Title | Class D Mono Power Amplifier | ||
| Amplifier Type | Class D | ||
| Series | eXcelon | ||
| CTA-2006-D Value | Maximum Dynamic Power | 600W at 4ohms and ≤ 10% THD + N | |
| Continuous Power Output | 500W at 4ohms and ≤ 1% THD + N | ||
| Signal to Noise | 85dBA reference 1 Watt RMS | ||
| Maximum Power Output | MAX POWER | 2000W | |
| Power Output | Rated Power at 14.4V | 500Watts RMS x [ch] (4 Ohms, 20-200Hz, ≤1.00% THD) 1000Watts RMS x [ch] (2 Ohms, 100Hz, ≤1.00% THD) |
|
| Specifications | Signal to Noise Ratio | 100dB (Reference: Rated Power into 4Ohms at 14.4V) | |
| Frequency Response | 20Hz-200Hz (+0dB, -3dB) | ||
| Input Impedance | 10k ohm | ||
| Speaker Impedance | Bridged connection 4Ω (2Ω to 8Ω allowable) | ||
| Audio Section | Low-Pass Filter | Built in Variable Low-Pass Filter (50Hz-200Hz, -12/-24dB/oct) | |
| Infrasonic Filter | Built in Variable Infrasonic Filter (15Hz-40Hz, -24dB/oct) | ||
| Bass Boost | Built in Bass Boost Control (40Hz, 0dB-+18dB) | ||
| RCA Input Sensitivity | 0.2[V] - 5.0[V] | ||
| Speaker Level Input Sensitivity | 4.0[V] - 12.0[V] | ||
| Terminals | Battery & Ground | XR Series Type Terminal (capable for 4 guage)(Ni) | |
| P.CON | XR Series Type Terminal (capable for 8 guage) | ||
| Speaker Output | XR Series Type Terminal (capable for 8 guage) | ||
| Line In | RCA (Gold Colored) | ||
| Line Out | RCA (Gold Colored) | ||
| Speaker Input | RCA IN A Channel | ||
| General | Dimensions(WxHxD) | 320 [mm] x 51 [mm] x 169 [mm] 12-5/8 inch x 2 inch x 6-5/8 inch |
|
| Operating Voltage | 14.4V（11-16V allowable） | ||
| Current Consumption | 60 [A] | ||
| Key Features | CTA-2006 Compliant Class D 2 Ohms Load Capability Dual Σdrive Speaker Level Input Signal Sensing Turn-on Terminal Cover Cooling Fan Power MOS-FET Switching Power Supply Extruded Aluminum Heat Sink Design Line Output Terminals for Extension |
||
| Others | Triangle Indicator | ||
More Features:
- Cooling fan
- Preamp inputs and outputs
- Speaker-level inputs (require speaker wire to RCA adapters) feature signal-sensing turn-on
- Fuse rating: 40A x 3
- Wiring and hardware not included with amplifier
- 4-gauge power and ground leads recommended
- 12-9/16"W x 2-1/8"H x 7-1/4"D
- Warranty: 2 years
