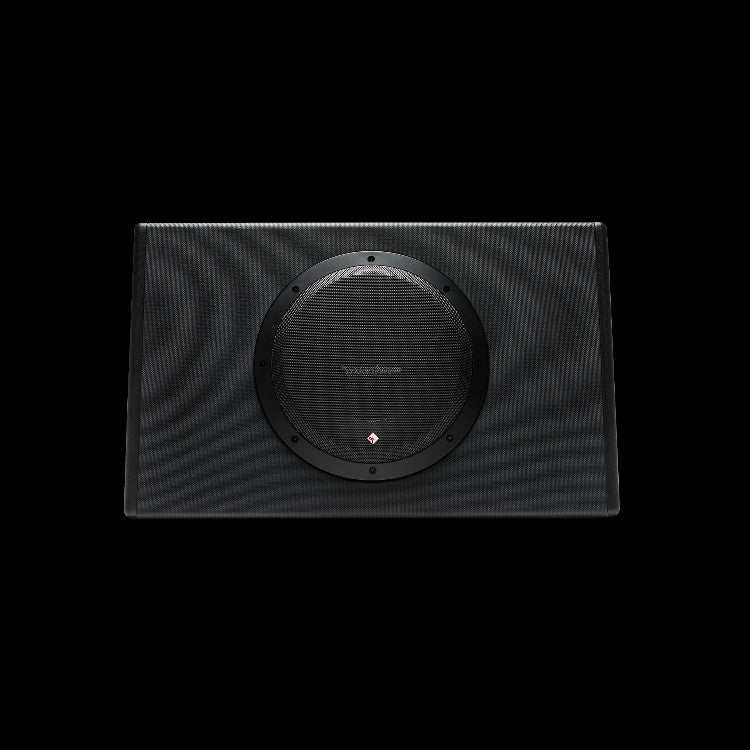

Punch 10" 300-Watt Powered Truck Enclosure

The Punch 300-10T is a self-contained subwoofer enclosure with built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 10" high output subwoofer is impedance optimized for the built in 300-watt class-D amplifier that features a low-pass crossover, bass EQ and phase switch. The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-on/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks.

FEATURES AT A GLANCE

• High-Efficiency, Low Current Amplifier Design
• Optimized 10" Low Impedance Woofer
• 300 Watt Class-D Amplifier with Optimized "Closed Loop" Design
• On Board Phase Switch
• Adjustable 12db/Octave low pass crossover
• Intelligent auto turn on/off function
• Quick Input Connections for Easy Removal
• On Board Adjustable Bass EQ
• Robust Power/Ground connections
• Remote bass level control included
• Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
• Separate low level and speaker level inputs
• Thermal and over/under voltage protection
• Slim Design For Truck Applications
• 1 Year Warranty

Specifications:

CEA-2031 Compliant

Frequency Response: 25 Hz to 200 Hz

Woofer Quantity: 1

Woofer Size: 10"
