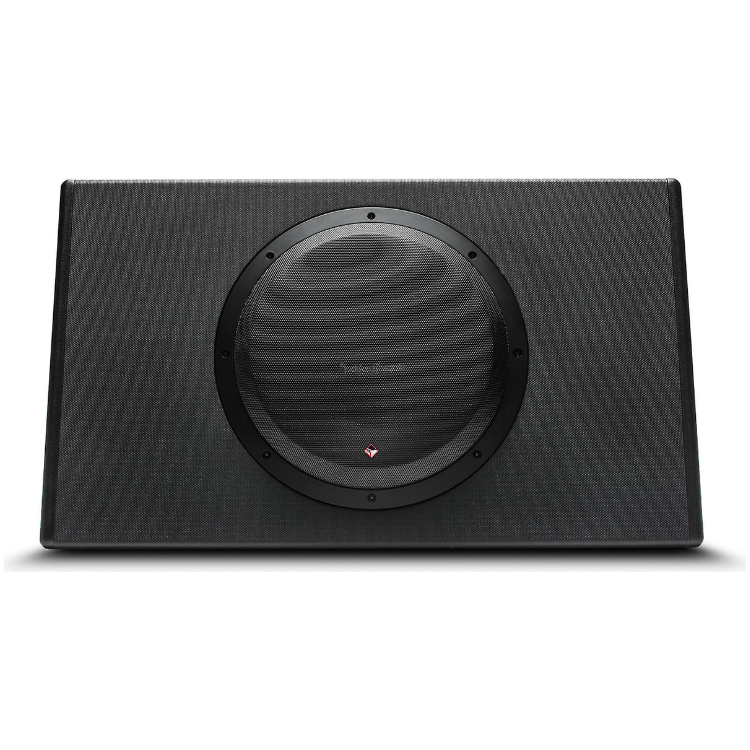

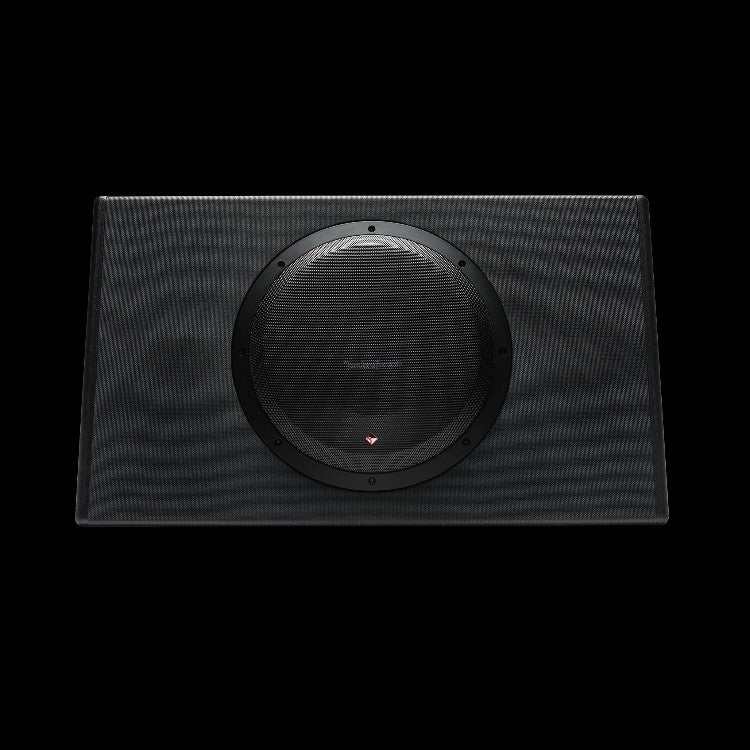

Punch 12" 300-Watt Powered Truck Enclosure

Punch 12" 300-Watt Powered Truck Enclosure

Regular price $349.99 USD
Regular price Sale price $349.99 USD
Sale Sold out
Shipping calculated at checkout.

Punch 12" 300-Watt Powered Truck Enclosure

Model: P300-12T

The Punch P300-12T is an "all in one" solution for dropping Bass in any factory or aftermarket system. This model features a 12" high output woofer with a 300-watt internal amplifier in a slim design enclosure that's great for universal truck applications. The enclosure features quick release input and power connectors for easy removal when extra space is required.

The Punch 300-12T is a self-contained subwoofer enclosure with built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 12" high output subwoofer is impedance optimized for the built in 300-watt class-D amplifier that features a low-pass crossover, bass EQ and phase switch. The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-of/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks.



FEATURES AT A GLANCE

  • Optimized 12" Low Impedance Woofer
  • Adjustable 12db/Octave low pass crossover
  • On Board Phase Switch
  • Intelligent auto turn on/off function
  • 300 Watt Class-D Amplifier with Optimized "Closed Loop" Design
  • Robust Power/Ground connections
  • Remote bass level control included
  • On Board Adjustable Bass EQ
  • Quick Input Connections for Easy Removal
  • Separate low level and speaker level inputs
  • Thermal and over/under voltage protection
  • Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
  • Slim Design For Truck Applications
  • 1 Year Warranty

Specifications:

CEA-2031 Compliant

Frequency Response: 20 Hz to 200 Hz

Woofer Quantity: 1

Woofer Size: 12"

Woofer Series: Proprietary

Nominal Impedance: —

Power Handling (Watts RMS): 300 Watts RMS

Enclosure Type: Sealed

Enclosure Material: 5/8" MDF (Medium Density Fiberboard)

Speaker Connector: —

Integrated Amplifier: 300 Watts RMS

Crossover Controls: Variable 50 Hz to 200 Hz; 12dB/Octave Butterworth

Tone Controls: Bass Boost; 0 dB to +12 dB

Phase Control: 0° to 180°

Remote Control: Punch Level Control (Included)
Auto Turn-On Selector: Remote Trigger; DC Offset Sense; Audio Sense
Input Switch: High-Level (Speaker Line); Low-Level (RCA)
Signal Input: Low/High-Level: 1 RCA Pair (L/R Summed)
Input Sensitivity: Low-Level: 150 mV to 6 V; High-Level: 300 mV to 12 V
Input Impedance: 20k Ohms
Power Input Connector: Quick Disconnect
Power Wire Gauge: B+/GND: 8 AWG; REM: 18 AWG
Circuit Topology Class: Class-D
Heatsink Type: Extruded Aluminum
Cooling: Convection
Visual Indicators: Power/Protect LED

Fuses: 20 Amp (2 x 10 Amp ATO Fuse)

Dimensions (Box H x W x D; Wedge H x W x D1 x D2): 15" x 25.8" x 4.8" x 8.5" (380 mm x 656 mm x 122 mm x 215 mm)
