Punch 12" 500-Watt Powered Enclosure-P500-12P

Punch 12" 500-Watt Powered Enclosure-P500-12P

Regular price $489.99 USD
Regular price Sale price $489.99 USD
Sale Sold out
Shipping calculated at checkout.

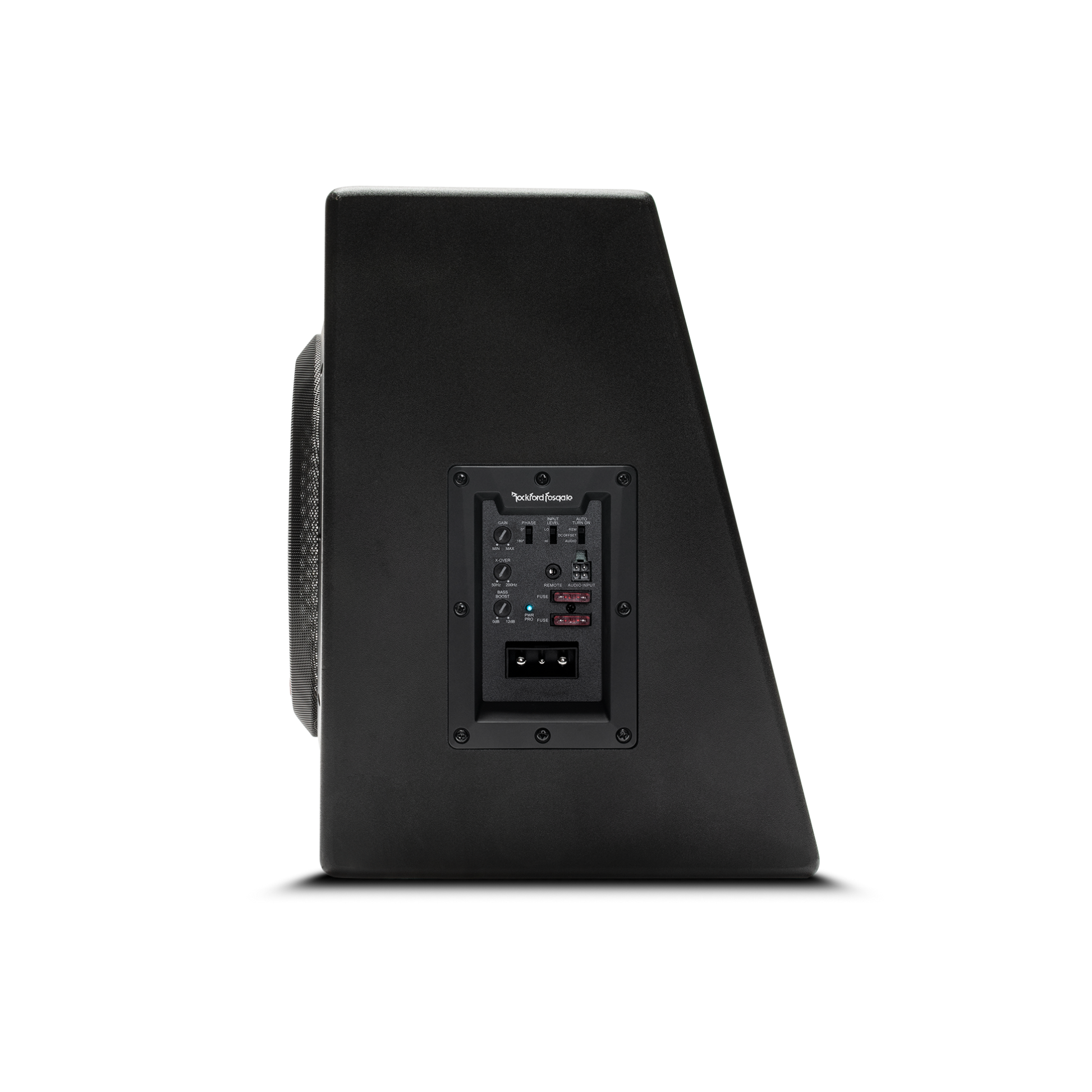

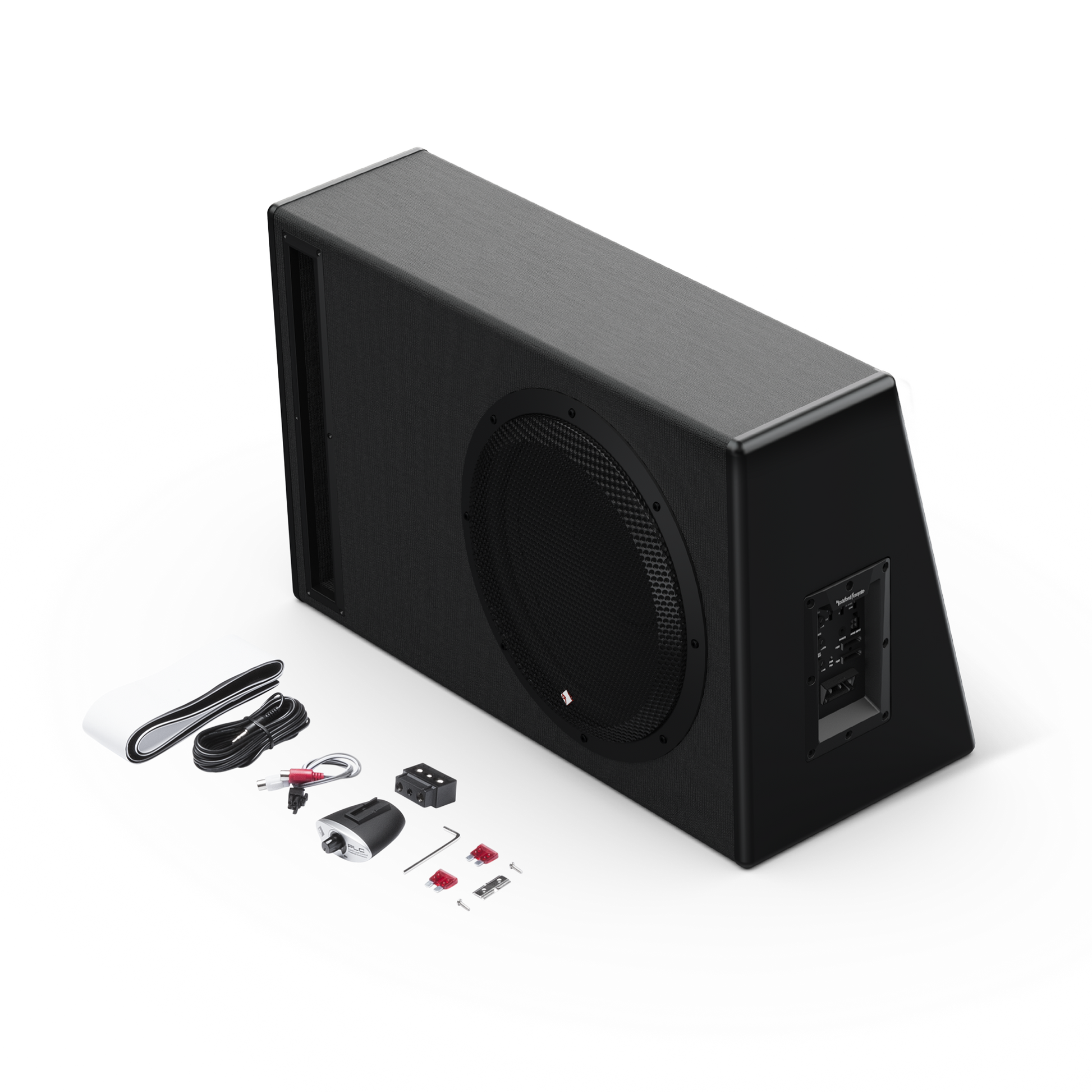

The Punch 500-12P is a self-contained subwoofer enclosure with built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 12" high output subwoofer is impedance optimized for the built in 500-watt class-D amplifier that features a low-pass crossover, bass EQ and phase switch. You can change the amount of bass on the fly with the included remote level control. The slot port provides powerful output at lower frequencies for enhanced bass reproduction. The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-of/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks. The enclosure also features a quick-release connectors for easy removal when you need extra cargo space.


  • Optimized 12" Low Impedance Woofer
  • 500 Watt Class-D Amplifier with Optimized "Closed Loop" Design
  • Adjustable 12db/Octave low pass crossover
  • Intelligent auto turn on/off function
  • On Board Phase Switch
  • Robust Power/Ground connections
  • Quick Input Connections for Easy Removal
  • Remote bass level control included
  • On Board Adjustable Bass EQ
  • Separate low level and speaker level inputs
  • Thermal and over/under voltage protection
  • Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
  • Designed For Hatchback, Sedan, and SUV Applications
  • 1 Year Warranty


  • Power Handling (Watts RMS): 500 Watts RMS
  • Speaker Connector: —
  • Enclosure Material: 5/8" MDF (Medium Density Fiberboard)
  • Enclosure Type: Ported
  • Crossover Controls: Variable 50 Hz to 200 Hz; 12dB/Octave Butterworth
  • Integrated Amplifier: 500 Watts RMS
  • Nominal Impedance: —
  • Woofer Series: Proprietary
  • Woofer Size: 12"
  • Woofer Quantity: 1
  • Frequency Response: 20 Hz to 200 Hz
  • Tone Controls: Bass Boost; 0 dB to +12 dB @ 45 Hz
  • Phase Control: 0° to 180°
  • Remote Control: Punch Level Control (Included)
  • Input Switch: High-Level (Speaker Line); Low-Level (RCA)
  • Auto Turn-On Selector: Remote Trigger; DC Offset Sense; Audio Sense
  • Signal Input: Low/High-Level: 1 RCA Pair (L/R Summed)
  • Input Impedance: 20k Ohms
  • Power Input Connector: Quick Disconnect
  • Power Wire Gauge: B+/GND: 8 AWG; REM: 18 AWG
  • Heatsink Type: Extruded Aluminum
  • Input Sensitivity: Low-Level: 150 mV to 6 V; High-Level: 300 mV to 12 V
  • Circuit Topology Class: Class-D
  • Cooling: Convection
  • Visual Indicators: Power/Protect LED
  • Fuses: 30 Amp (2 x 15 Amp ATO Fuse)
  • Dimensions: Box H x W x D- 15.00” x 24.76” x 10.91 x 7.71” (38.1 cm x 62.9 cm x 27.7 cm x 189.2 cm)
  • Shipping Weight: 48.2 Lbs. (21.9 kg)
