Rockford Fosgate P1000X5
Rockford Fosgate P1000X5
Regular price
$629.99 USD
Regular price
Sale price
$629.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

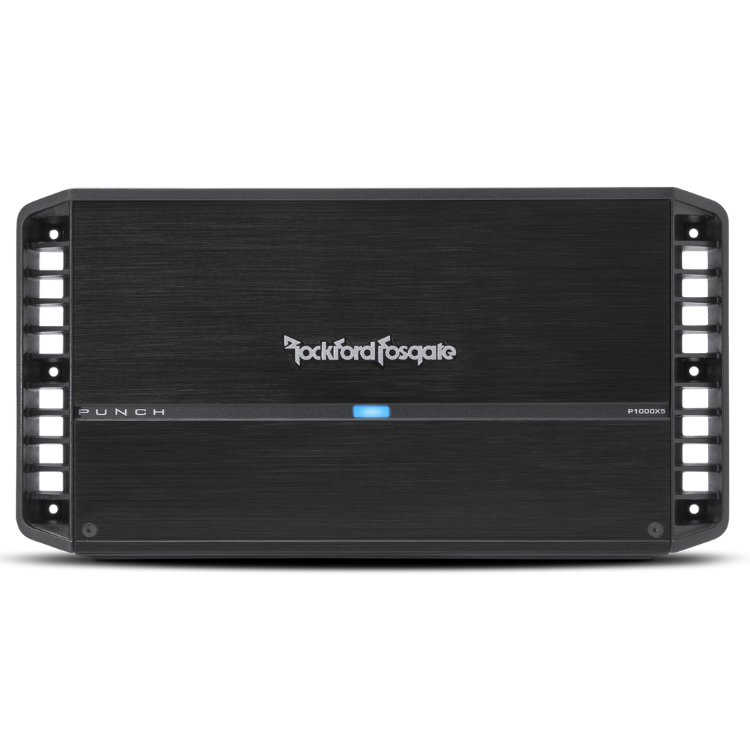

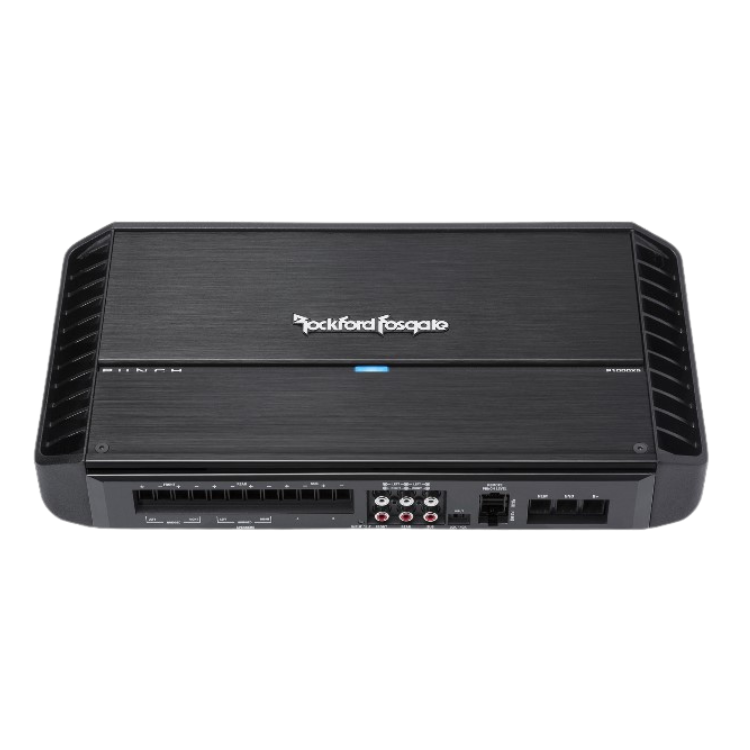

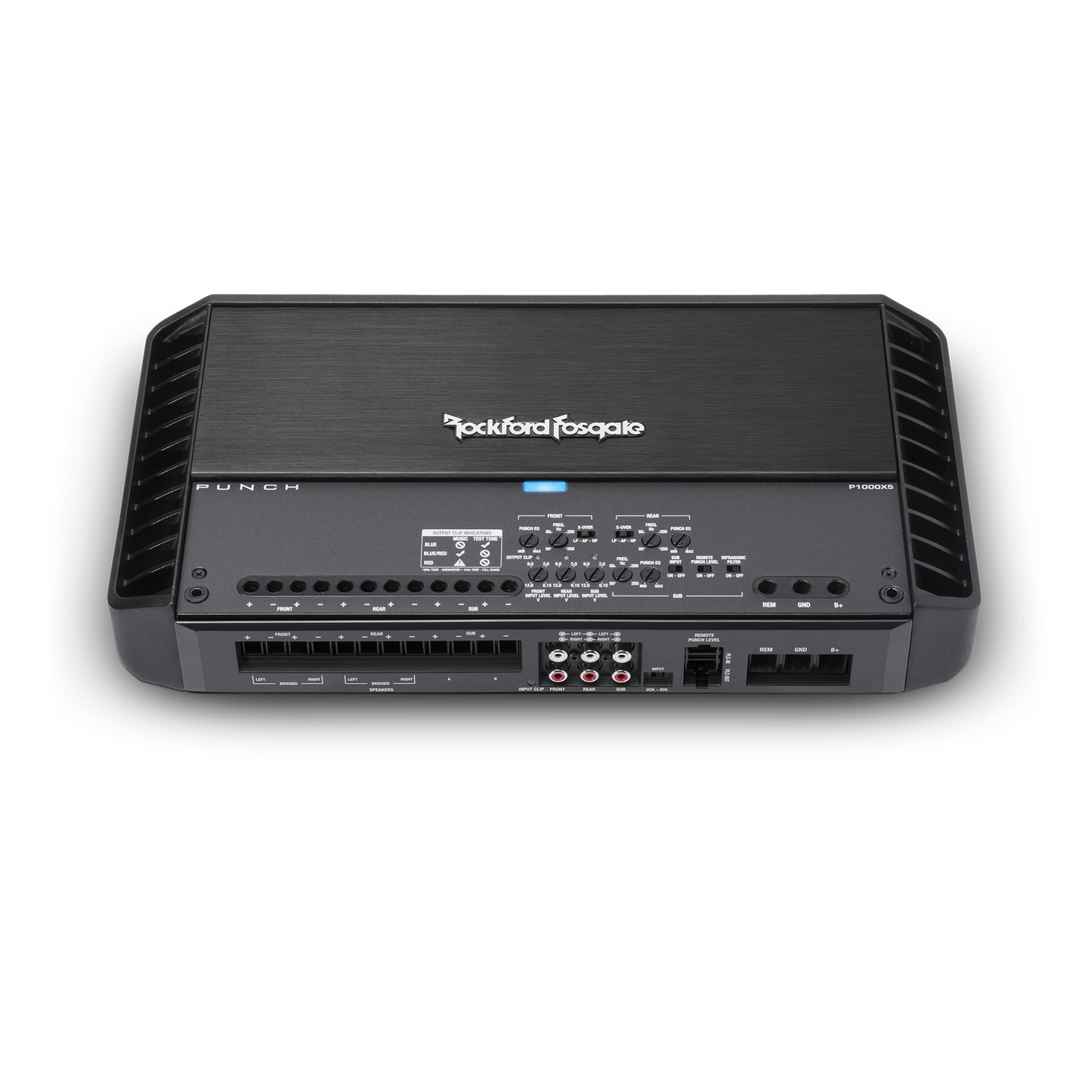

Rockford Fosgate's Punch P1000X5 amplifier can power your entire system, delivering 75 watts RMS to each of your front and rear speakers, along with up to 500 watts RMS to a subwoofer. The sub channel's low-pass and subsonic filters come in handy for getting the right sound from your sub/enclosure combo, and you can use the amp's high-pass filters to remove the bass from your full-range speakers so they'll play more efficiently. The Punch EQ2 includes bass and treble boosts, in case you want to liven up the mix.
5-channel car amplifier
75 watts RMS x 4 + 150 watts RMS x 1 at 4 ohms
125 watts RMS x 4 + 300 watts RMS x 1 at 2 ohms
250 watts RMS x 2 bridged at 4 ohms + 500 watts RMS at 1 ohm
CEA-2006 compliant
variable high- and low-pass filters (50-250 Hz, 12 dB/octave)
variable PEQ2 bass/treble boost (0-18 dB at 45 Hz and 0-14 dB at 12.5K Hz)
switchable subsonic filter (28 Hz, 12 dB/octave) on subwoofer channel
C.L.E.A.N. gain setup system includes test tone CD
test tones also available as MP3 download from Amazon On Demand, Rhapsody, Google Play, and Spotify, labeled "3sixty.3 setup disc" (Punch amps and the 3sixty.3 use the same test tone tracks for setup)
Class-BD amplifier design
frequency response: 20-20K Hz
Dynamic Thermal Management and MEHSA MOSFET cooling systems
MOSFET power and output stages
preamp and speaker-level inputs (speaker-level inputs require a speaker wire to RCA adapter)
signal-sensing turn-on with speaker-level inputs eliminate need for remote turn-on lead
optional PLC2 wired remote level control with clip light available
4-gauge power and ground leads and an 150-amp fuse recommended — wiring and hardware not included with amplifier
no onboard fuses — when installing multiple amps in a system, an additional 150-amp in-line fuse between the distribution block and the amplifier is recommended
15-1/8"W x 2-7/16"H x 8-13/16"D
warranty: 1 year
Specifications:
RMS Power Output (Watts x Channels) - 75 x 4
150 x 1
Power at 2 Ohms (Watts x Channels) - 125 x 4
Bridged Power (Watts x Channels) - 250 x 2
Minimum Impedance Bridged - 4
Minimum Impedance Unbridged - 2
Best Frequency Response - 20-20k Hz
THD at Rated RMS Power - 1%
Signal to Noise Ratio - 85 dB
Input Voltage - 14.4v
Amplifier Class - AB/D
Low-Pass Crossover Frequency - 50-250 Hz
Low-Pass Slope (dB/octave) - 12 dB/octave
High-Pass Crossover Frequency - 50-250 Hz
High-Pass Slope (dB/octave) - 12 dB/octave
Bass Boost - 0-18 dB
Bass Boost Frequency - 45 Hz
Fan Cooled - No
Fuse Rating - 150
Speaker Level Inputs RCA
Preamp Outputs - No
Width (inches) - 15-1/8
Height (inches) - 2-7/16
Depth (inches) - 8-13/16
