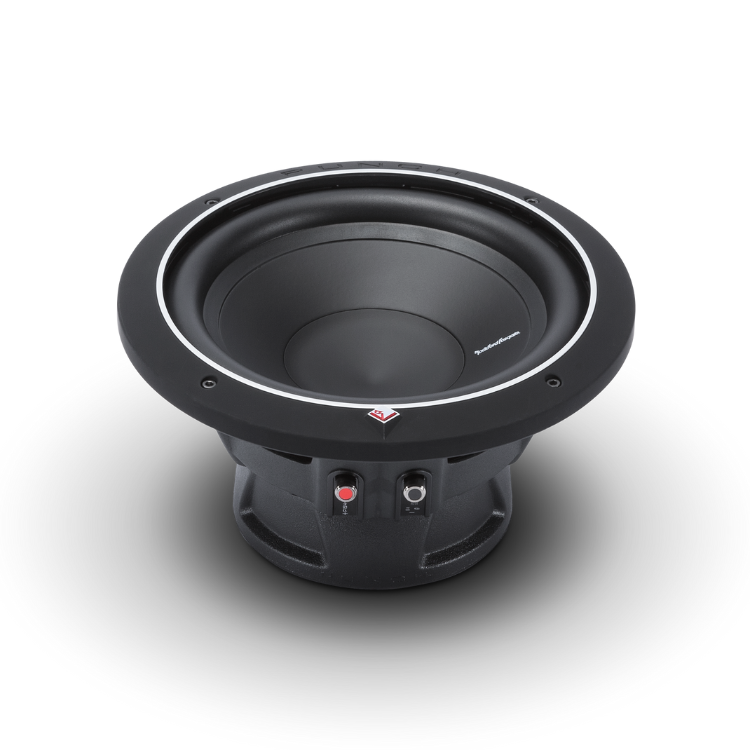

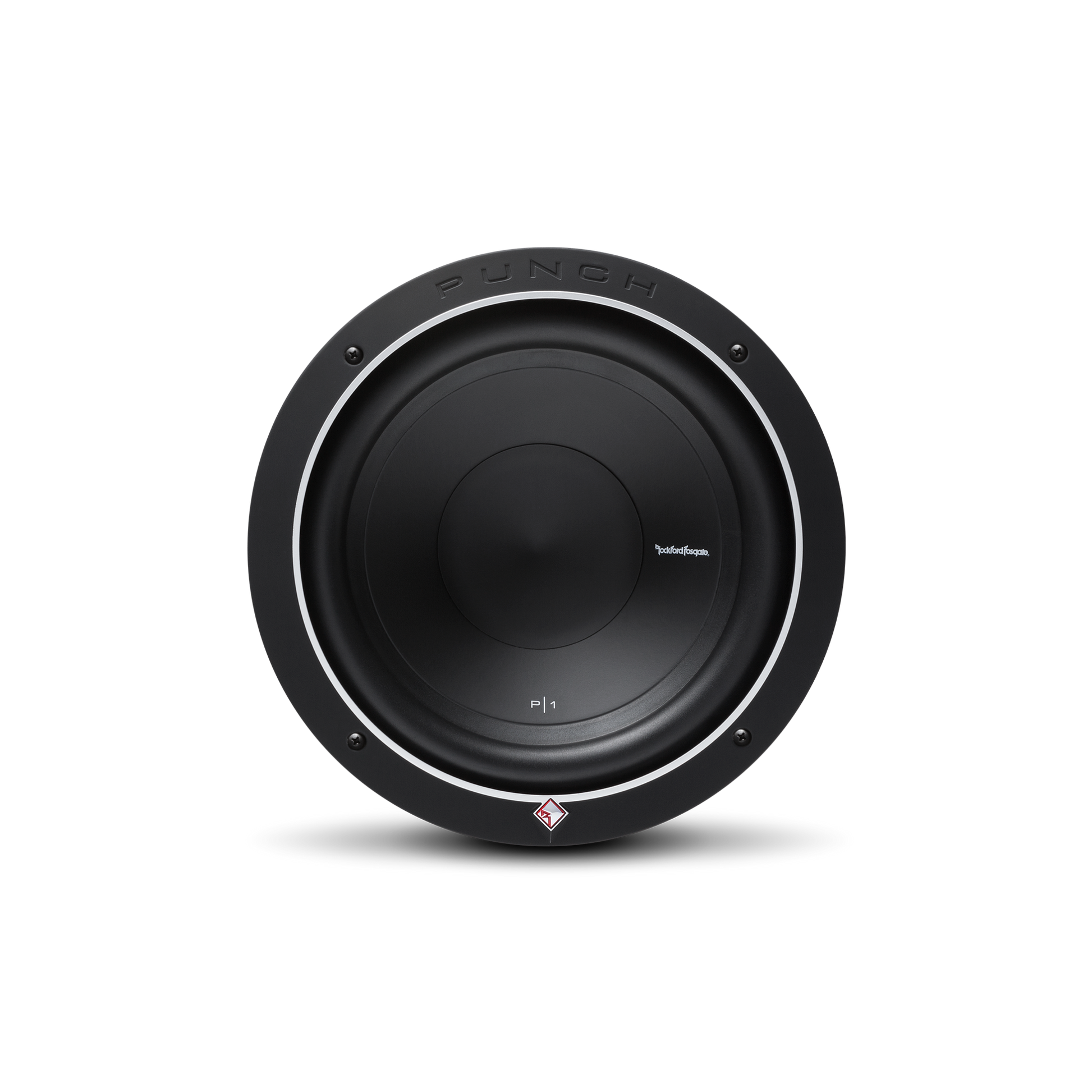

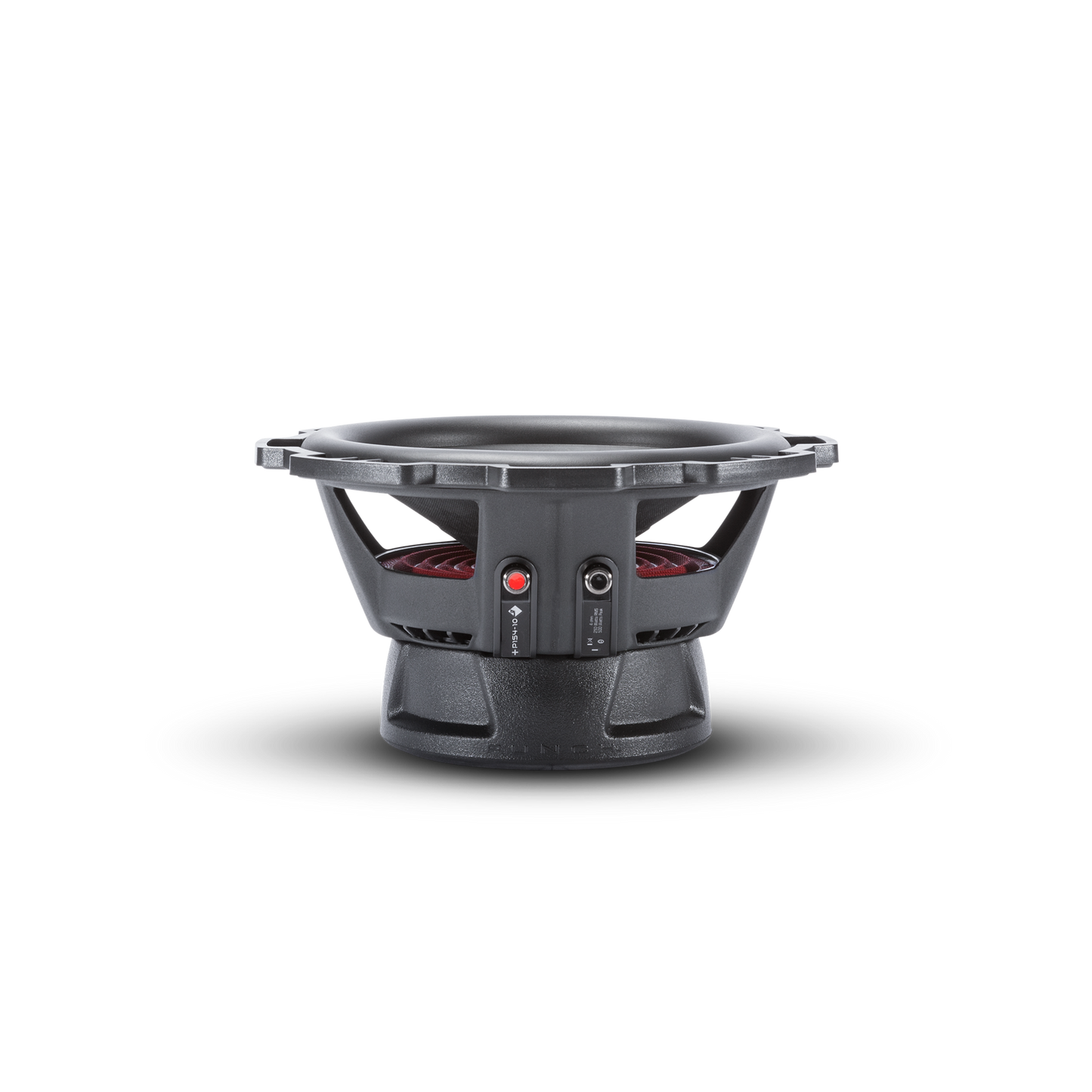

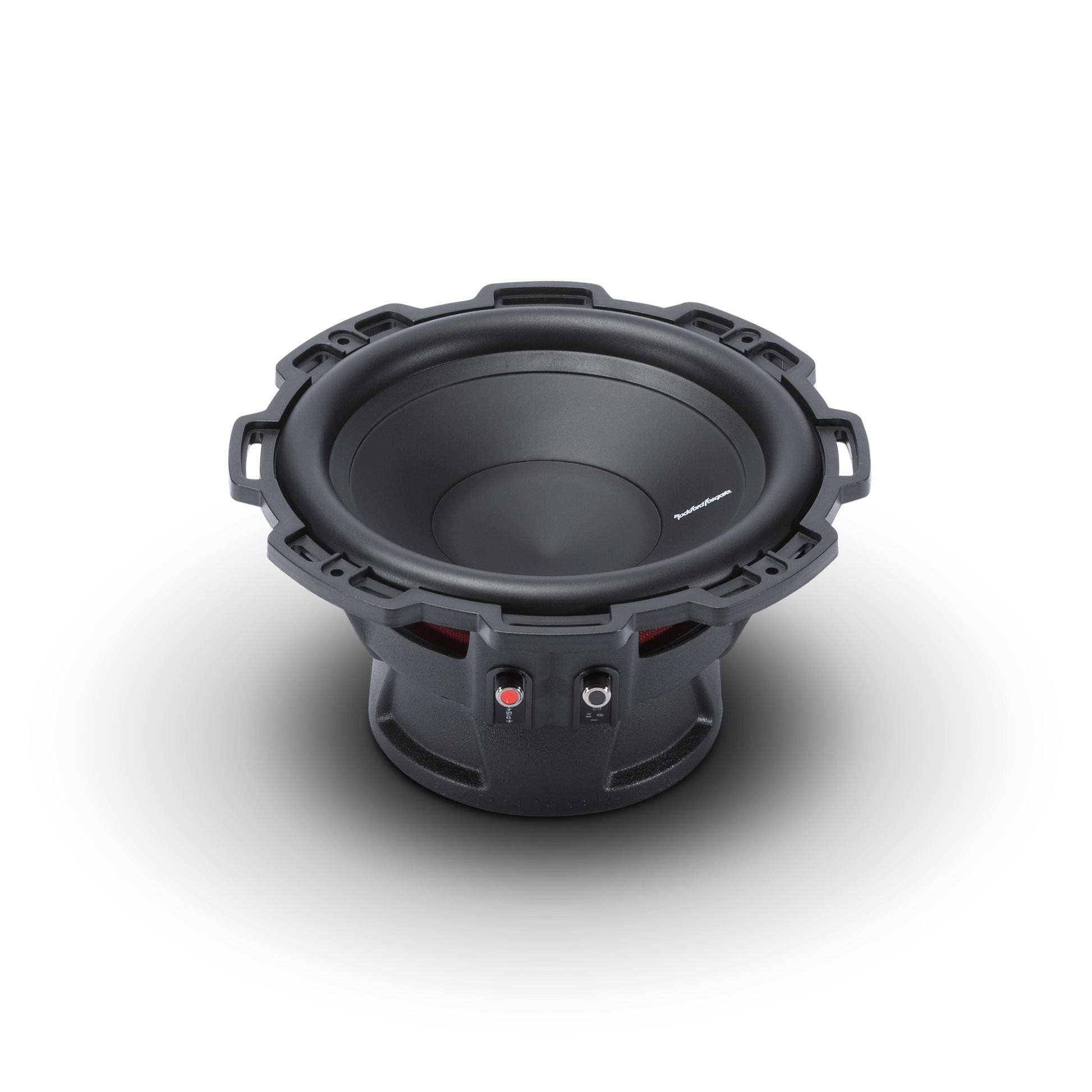

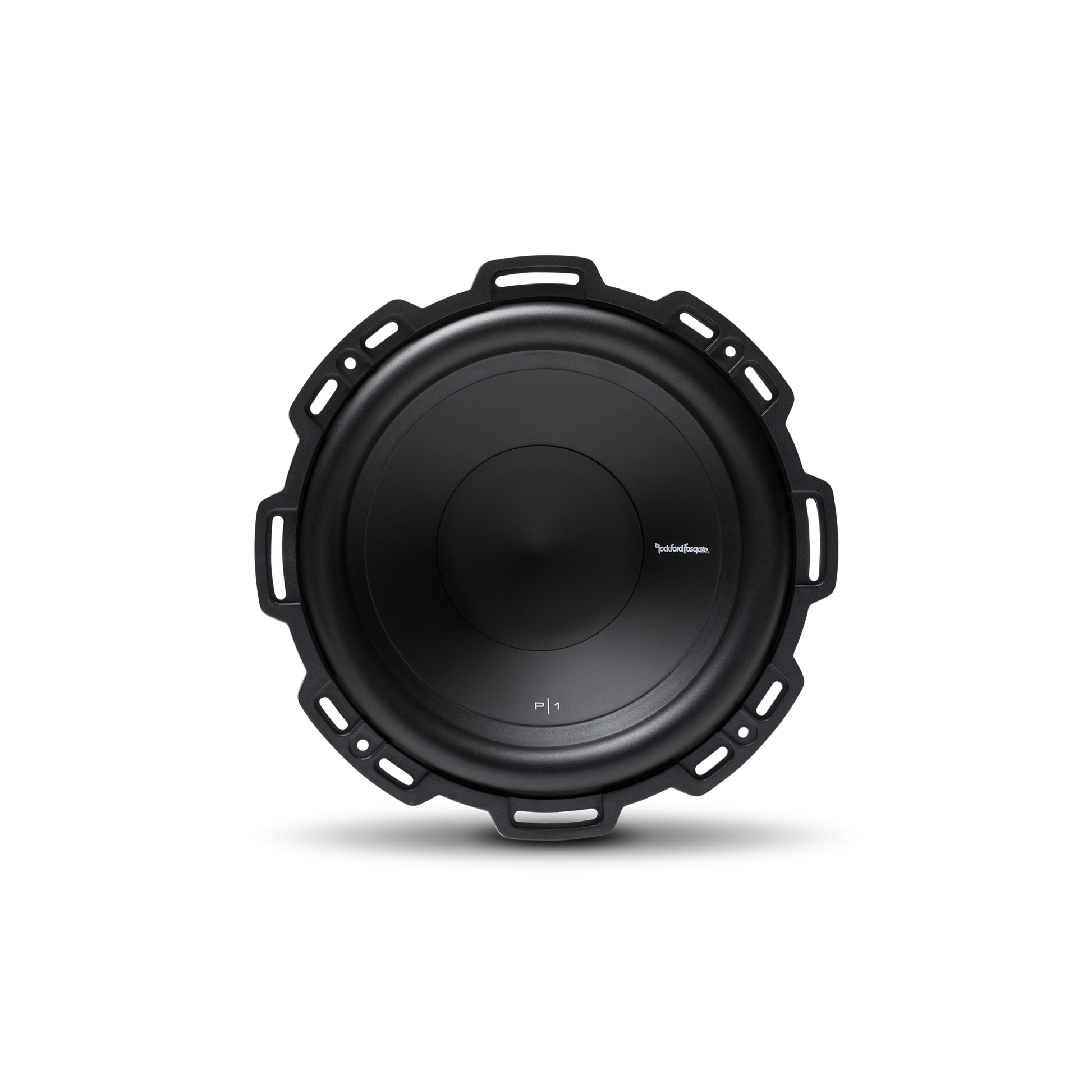

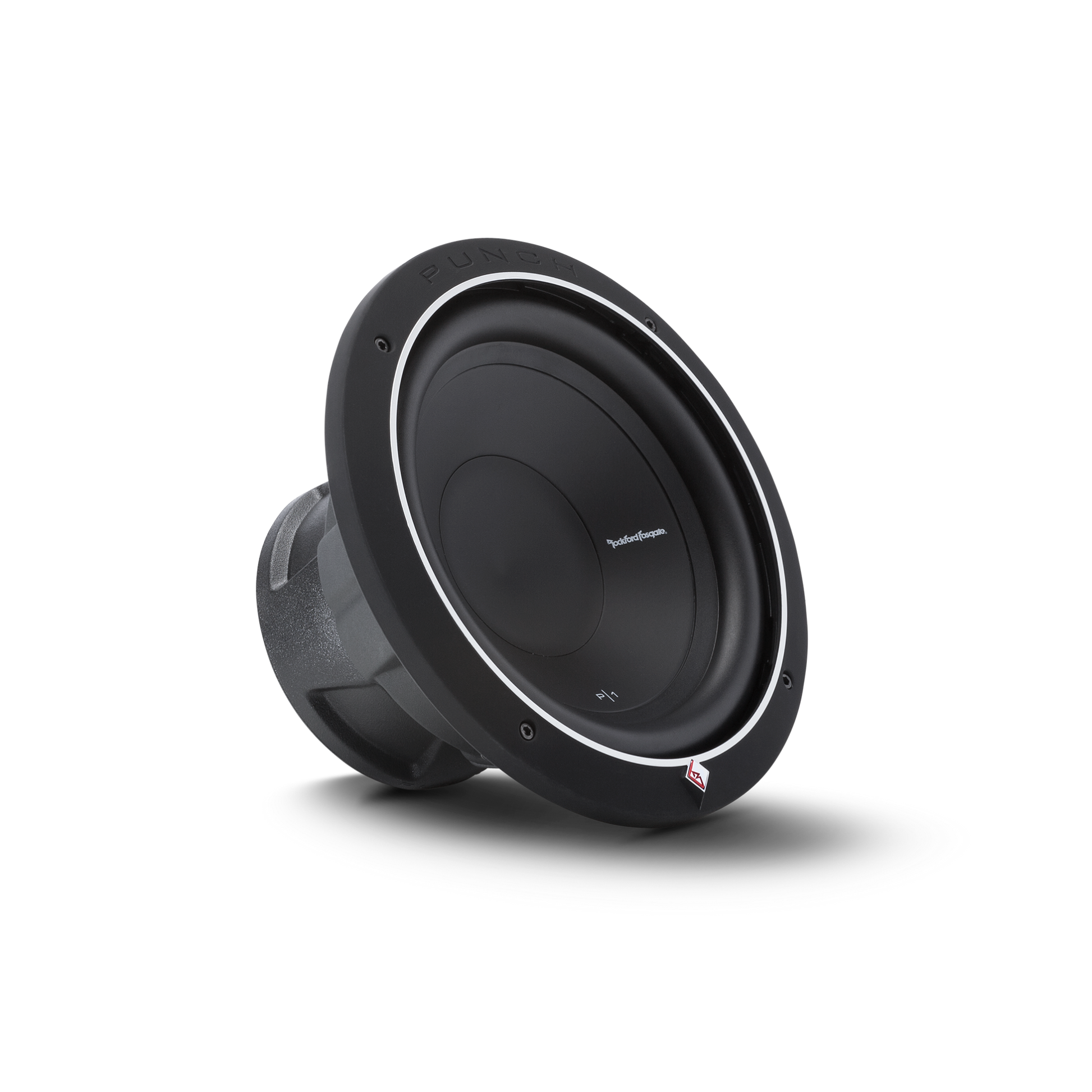

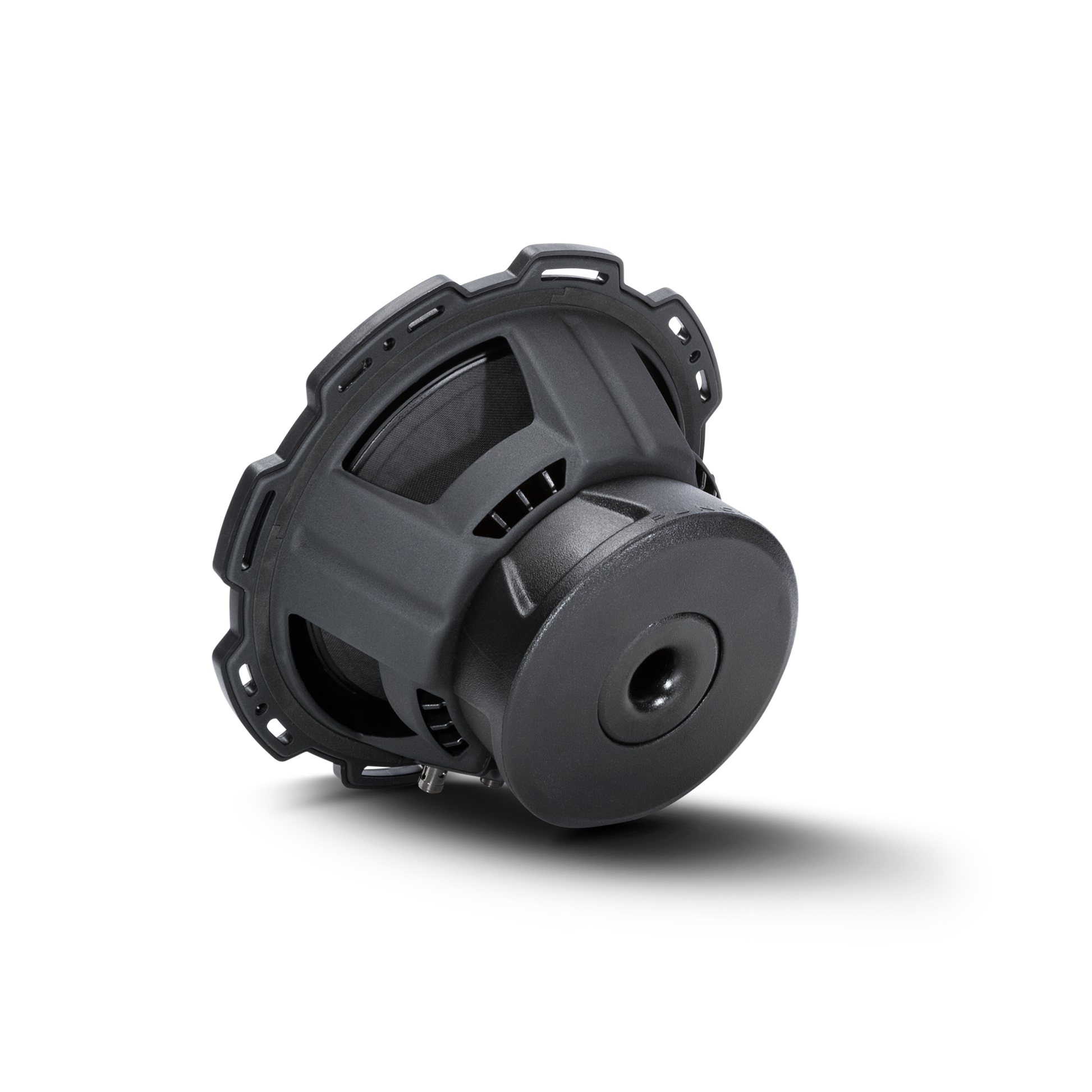

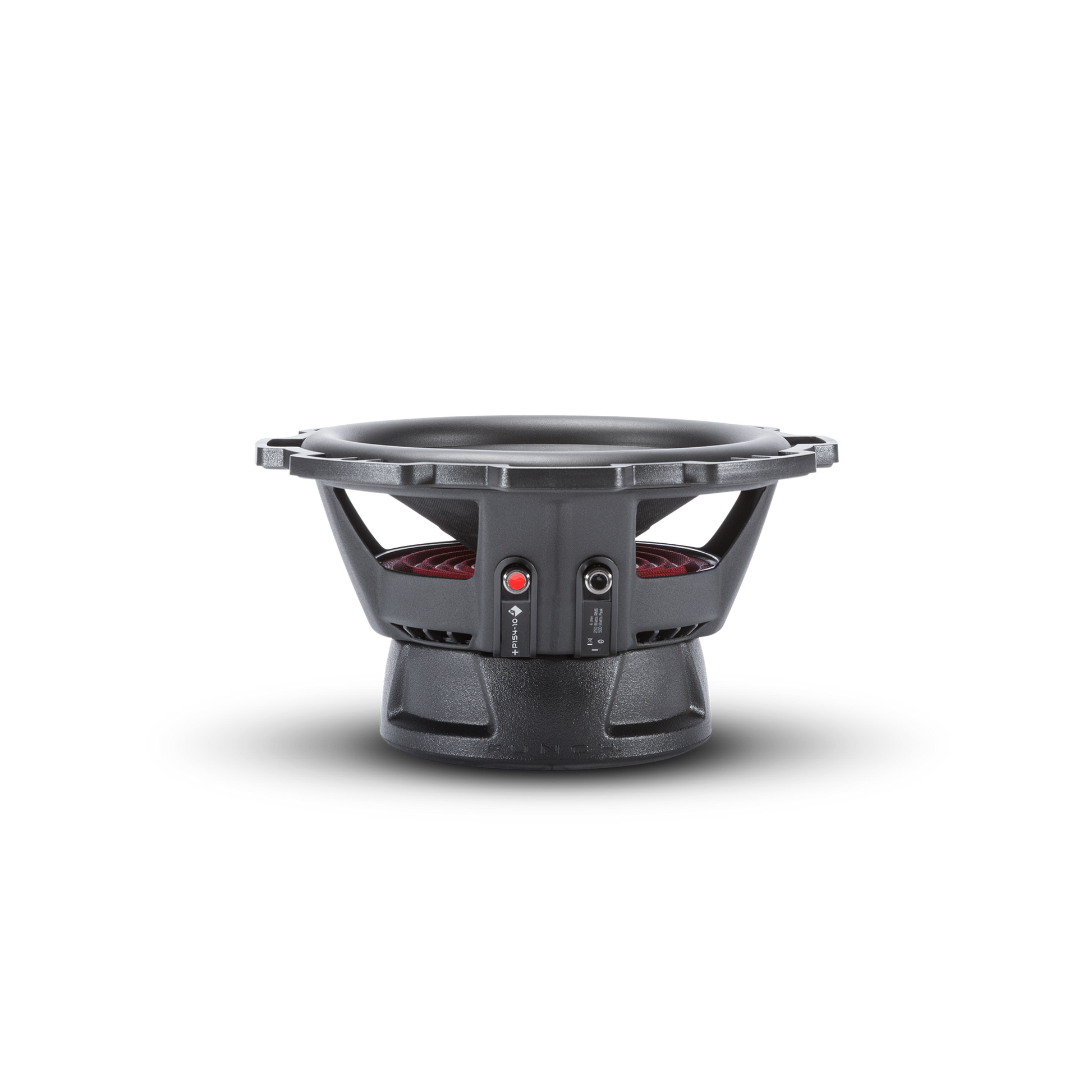

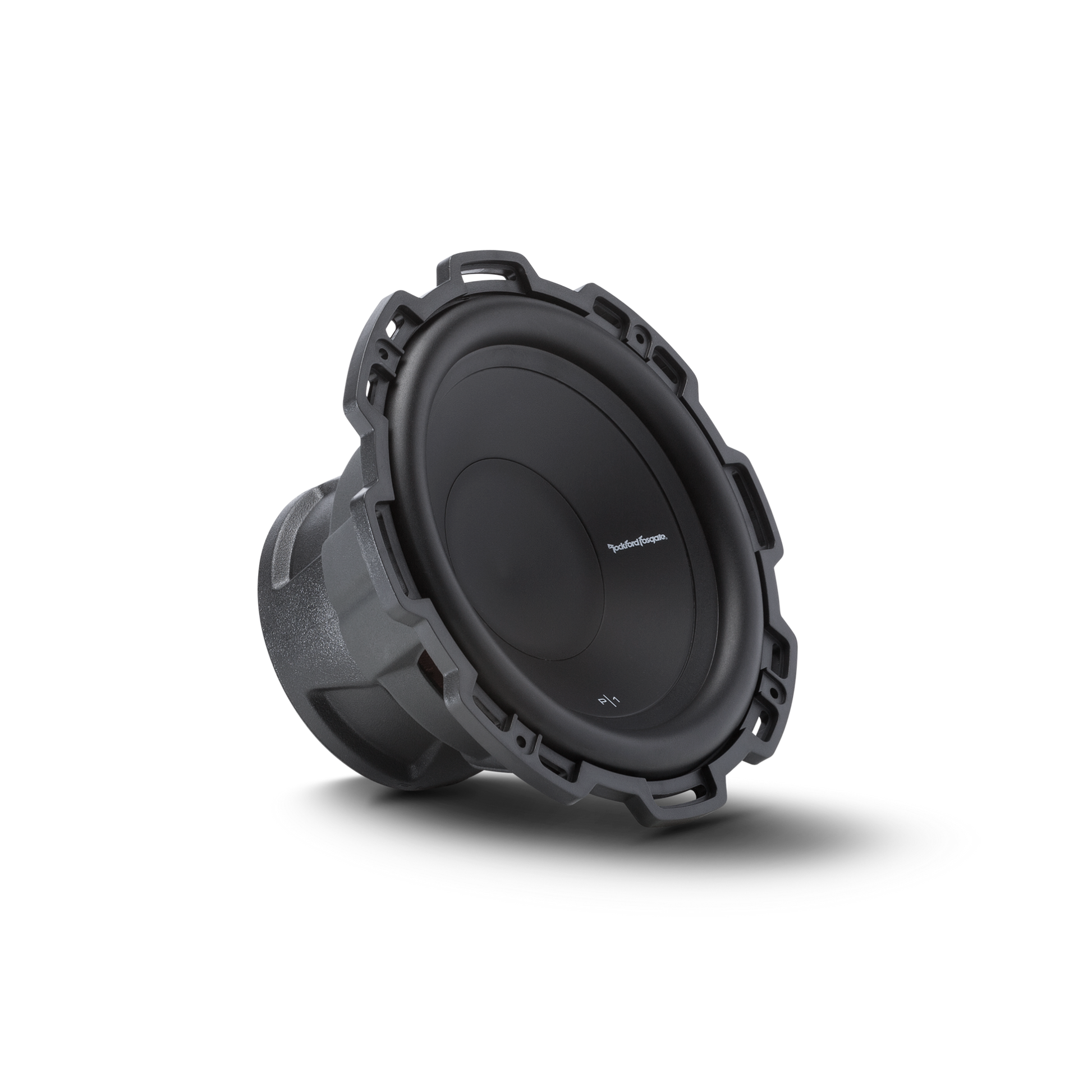

Rockford Fosgate P1S4-10

Rockford Fosgate P1S4-10

Regular price $99.99 USD
Regular price Sale price $99.99 USD
Sale Sold out
Shipping calculated at checkout.

Punch 10" P1 4-Ohm SVC Subwoofer

P1S4-10

Rockford Fosgate P1 10" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.

The P1S4-10 features a 4-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.

FEATURES AT A GLANCE

  • Rubberized ABS trim ring with optional grille
  • StampCast basket with integrated spider venting
  • Linear spider with embedded 16 AWG tinsel leads
  • Kevlar fiber reinforced paper cone
  • Custom 10-AWG nickel plated push terminals
  • Extended pole piece and bumped vented backplate
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • 1 Year Warranty
  • Protective PVC textured magnet cover

 Specifications:

  • Magnet Weight (oz): 45 oz. (1.28 kg.)
  • Voice Coil Type: Single Voice Coil
  • Subwoofer Type: Standard
  • Nominal Impedance: 4-Ohm
  • Size: 10"
  • Power Handling (Watts RMS): 250 Watts RMS/500 Watts Max
  • Qms: 3.00
  • Qes: 0.61
  • Qts: 0.52
  • Fs (Hz): 30
  • Voice Coil Diameter: 2.0" (51.6 mm)
  • Speaker Connector: Dual 10 AWG compression
  • Re (Ohms):
    3.6
  • Vas (Liters): 40
  • Xmax (mm): 9.0
  • Le (mH): 2.81
  • Sd (cm2): 370
  • SPL (dB @ 1w/1m): 85
  • SPL (dB @ 2.8v/1m): 88
  • Mounting Depth: 5.33 in. (135.4 mm)
  • Cutout Diameter: 9.14 in. (232 mm)
  • Woofer Displacement: 0.056 cu. ft. (1.6 Liters)
  • Sealed Box Volume (Vb): 0.59 cu. ft. (16.7 Liters)
  • Vented Box Volume (Vb): 1.4 cu. ft. (39.6 Liters)
