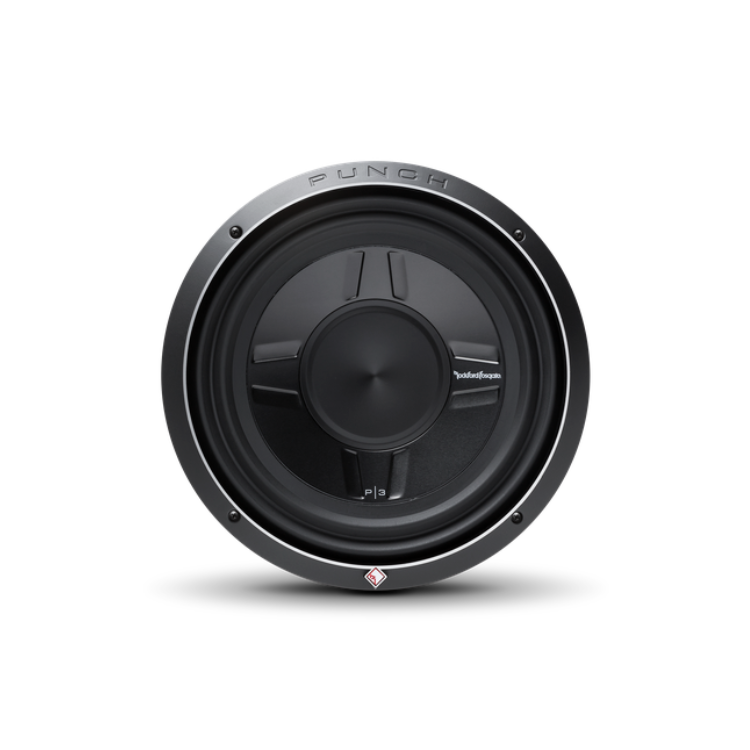

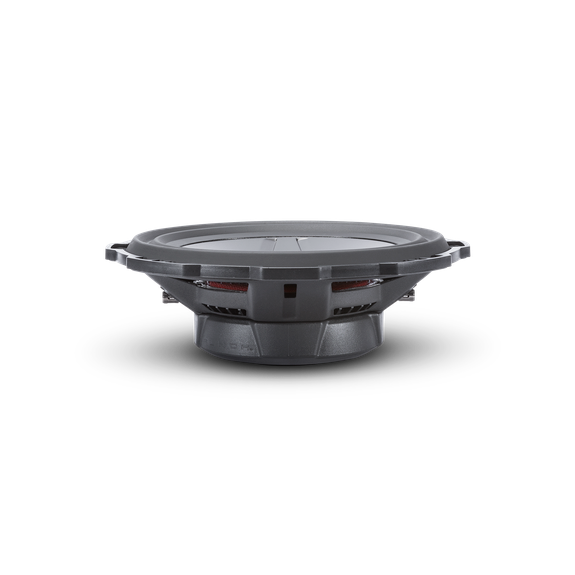

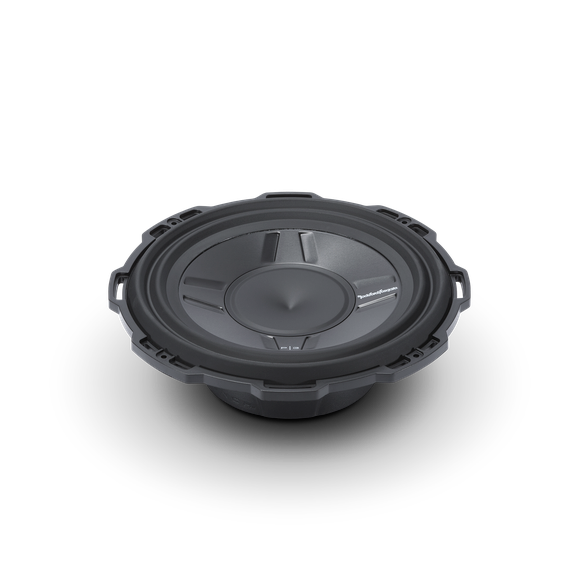

The Rockford Fosgate P3S 12" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

FEATURES AT A GLANCE

• Diamond cut cast aluminum trim ring with optional grille
• Dual linear spider with embedded 16 AWG tinsel leads
• StampCast basket with integrated spider venting
• Shallow Motor Assembly
• Optimized for both sealed and vented enclosures
• Anodized aluminum cone and dustcap
• M-Roll Santoprene™ surround
• 1 Year Warranty

Specifications:

• Power Handling (Watts RMS): 400 Watts RMS; 800 Watts Max
• Size:12"
• Speaker Connector: Dual 10 AWG Compression
• Nominal Impedance: Dual 2-Ohm
• Magnet Weight (oz): 51 oz. (1.45 kg.)
• Voice Coil Diameter: 2.5" (65.5 mm)
• Shipping Weight: 13.25 Lbs. (6.01 kg.)
• SPL (dB @ 1w/1m): 85
• Cutout Diameter: 11.22 in. (285.0 mm)
• Woofer Displacement: 0.086 cu. ft. (2.45 Liters)
• Fs (Hz): 34
• Qts: 0.67
• Vas (Liters): 35.3
• Qes: 0.75
• Mounting Depth: 3.65 in. (92.5 mm)
• Qms: 6.60
• Xmax (mm): 8.4
• CEA-2031 Compliant: CEA-2031 Guidelines
• Re (Ohms): 3.40
• Le (mH): 2.8
• Sd (cm2): 500
• Subwoofer Type: Shallow
• Voice Coil Type: Dual Voice Coil
• Sealed Box Volume (Vb): 1.0 cu. ft. (28.3 Liters)
• Vented Box Volume (Vb): 1.25 cu. ft. (35.3 Liters)

Punch 12" P3S Shallow 4-Ohm DVC Subwoofer

P3SD4-12
