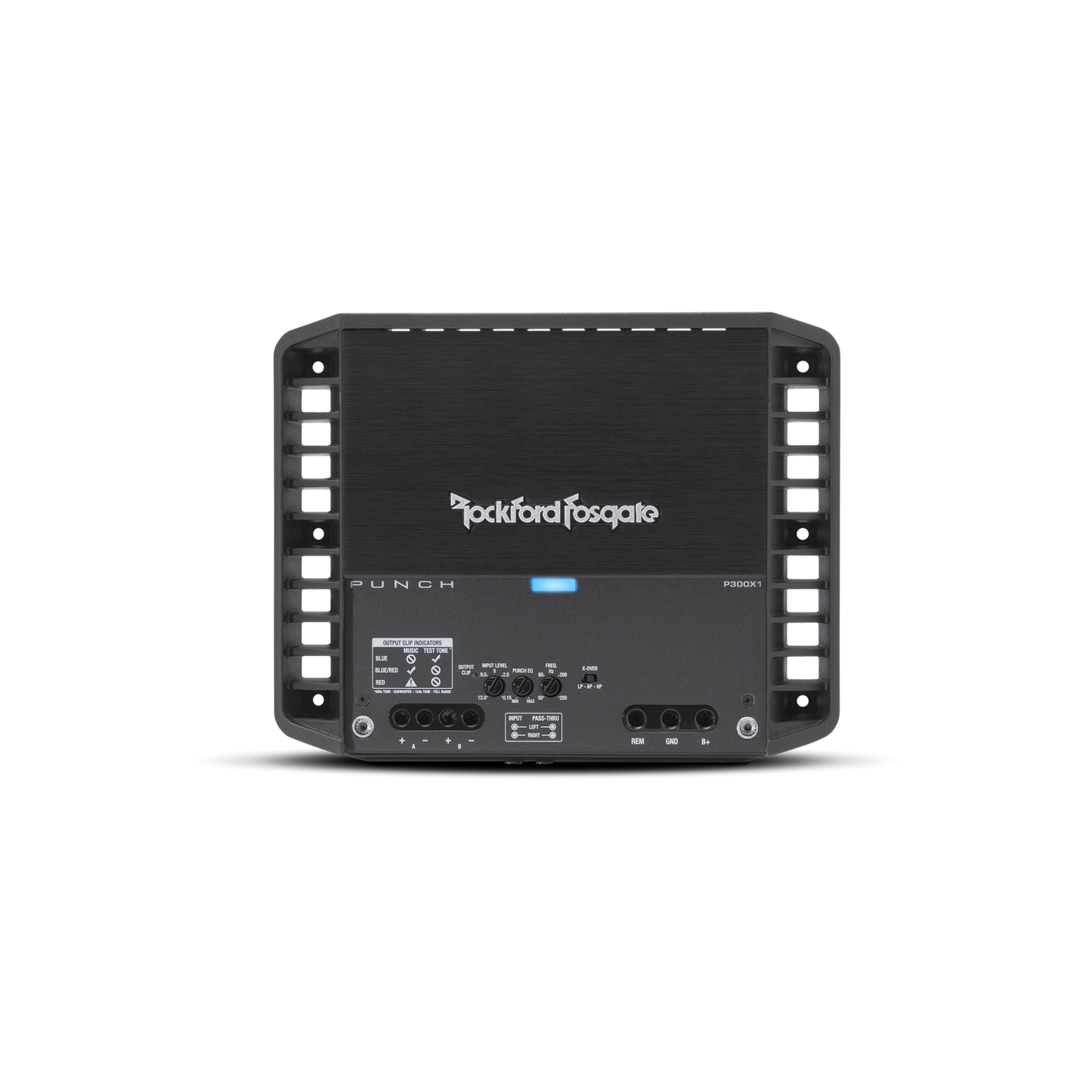

Rockford Fosgate P300X1

Rockford Fosgate P300X1

Regular price $249.99 USD
Regular price Sale price $249.99 USD
Sale Sold out
Shipping calculated at checkout.
Rockford Fosgate's Punch P300X1 mono amplifier produces up to 300 watts RMS, giving you plenty of clean power for your rhythm track. With frequency response from 20 to 20,000 Hz, this full-range amp can also power a center channel or component speaker. You can use the low-pass filter to tune the sizzle away from your sub, or the high-pass filter to keep the lows out of a component speaker. The Punch EQ2 gives you a variable bass and treble boost, in case you want to add a little of that boom and sizzle back into the mix.

full-range mono amplifier
frequency response: 20-20,000 Hz
200 watts RMS x 1 at 4 ohms (300 watts RMS x 1 at 2 ohms)
CEA-2006 compliant
variable high- and low-pass filter filter (50-250 Hz, 12 dB/octave)
variable PEQ2 bass/treble boost (0-18 dB at 45 Hz and 0-14 dB at 12.5K Hz)
C.L.E.A.N. gain setup system includes test tone CD
test tones also available as MP3 download from Amazon On Demand, Rhapsody, Google Play, and Spotify, labeled "3sixty.3 setup disc" (Punch amps and the 3sixty.3 use the same test tone tracks for setup)
Class-AB amplifier design
Dynamic Thermal Management and MEHSA MOSFET cooling systems
MOSFET power and output stages
preamp inputs and outputs
speaker-level inputs (speaker wire to RCA adapter required)
signal-sensing turn-on with speaker-level inputs eliminate need for remote turn-on lead
optional PLC2 wired remote level control with clip light available
8-gauge power and ground leads and an 50-amp fuse recommended — wiring and hardware not included with amplifier
no onboard fuses — when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
9-15/16"W x 2-7/16"H x 7-13/16"D
warranty: 1 year

Specification:
RMS Power Output (Watts x Channels) - 200 x 1
Power at 2 Ohms (Watts x Channels) - 300 x 1
Minimum Impedance Unbridged - 2
Best Frequency Response - 20-20k Hz
THD at Rated RMS Power - 1%
Signal to Noise Ratio - 85 dB
Input Voltage - 14.4v
Amplifier Class - AB
Low-Pass Crossover Frequency - 50-250 Hz
Low-Pass Slope (dB/octave) - 12 dB/octave
High-Pass Crossover Frequency - 50-250 Hz
High-Pass Slope (dB/octave) - 12 dB/octave
Bass Boost - 0-18 dB
Bass Boost Frequency - 45 Hz
Fan Cooled - No
Fuse Rating - 50
Speaker Level Inputs RCA
Preamp Outputs - 1 pair
Width (inches) - 9-15/16
Height (inches) - 2-7/16
Depth (inches) - 8-13/16
