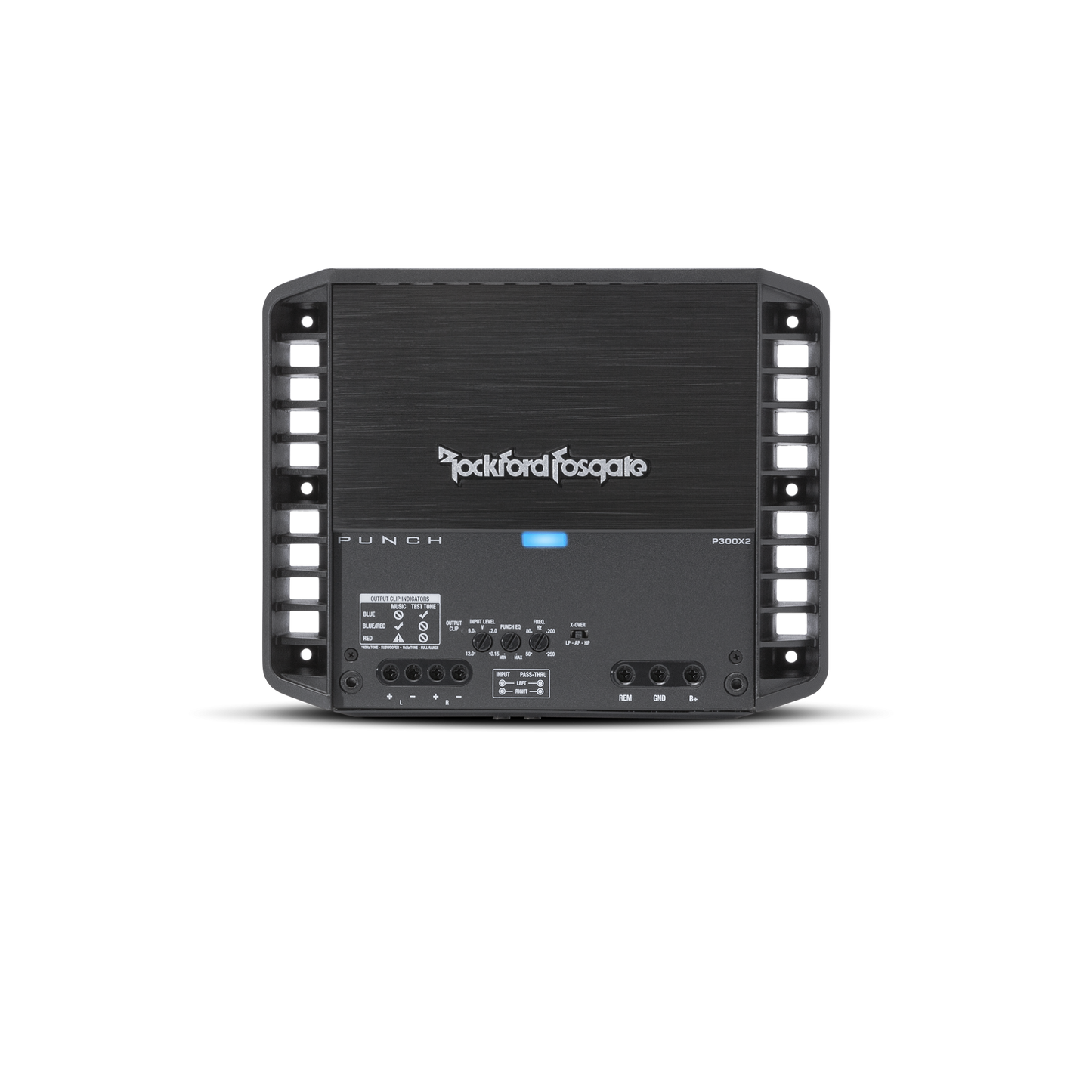

Rockford Fosgate P300X2

Rockford Fosgate's Punch P300X2 amplifier sends 100 watts RMS per channel to your speakers, filling your ride with clean music. You can use the high-pass filter to keep the low bass out of your speakers so they perform more efficiently. You can also switch this versatile amp into mono mode to drive a subwoofer with up to 300 watts RMS, then use the built-in low-pass filter to send the correct bass frequencies to your sub. The Punch EQ2 features bass and treble boosts, in case you want to add a little boom or sizzle back into the mix.

Product Highlights:

• 2-channel car amplifier
• 100 watts RMS x 2 at 4 ohms (150 watts RMS x 2 at 2 ohms)
• 300 watts RMS x 1 bridged at 4 ohms (4-ohm stable in bridged mode)
• CEA-2006 compliant
• Variable high- and low-pass filter filter (50-250 Hz, 12 dB/octave)
• Variable PEQ2 bass/treble boost (0-18 dB at 45 Hz and 0-14 dB at 12.5K Hz)
• Frequency response: 20-20,000 Hz
• Dynamic Thermal Management and MEHSA MOSFET cooling systems
• MOSFET power and output stages
• Preamp inputs and outputs
• Speaker-level inputs (speaker wire to RCA adapter required)
• Signal-sensing turn-on with speaker-level inputs eliminate need for remote turn-on lead
• Optional PLC2 wired remote level control with clip light available
• 8-gauge power and ground leads and an 50-amp fuse recommended — wiring and hardware not included with amplifier
• No onboard fuses — when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
• 9-15/16"W x 2-7/16"H x 8-13/16"D
• Warranty: 1 year

• RMS Power Output (Watts x Channels) - 100 x 2
• Power at 2 Ohms (Watts x Channels) - 150 x 2
• Bridged Power (Watts x Channels) - 300 x 1
• Minimum Impedance Bridged - 4
• Minimum Impedance Unbridged - 2
• Best Frequency Response - 20-20k Hz
• THD at Rated RMS Power - 1%
• Signal to Noise Ratio - 85 dB
• Input Voltage - 14.4v
• Amplifier Class - AB
• Low-Pass Crossover Frequency - 50-250 Hz
• Low-Pass Slope (dB/octave) - 12 dB/octave
• High-Pass Crossover Frequency - 50-250 Hz
• High-Pass Slope (dB/octave) - 12 dB/octave
• Bass Boost- 0-18 dB
• Bass Boost Frequency- 45 Hz
• Fan Cooled - No
• Fuse Rating - 50
• Speaker Level Inputs RCA
• Preamp Outputs - 1 pair
• Width (inches) - 9-15/16
• Height (inches) - 2-7/16
• Depth (inches) - 8-13/16
