Rockford Fosgate P3D2-12
Rockford Fosgate P3D2-12
Regular price
$219.99 USD
Regular price
Sale price
$219.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

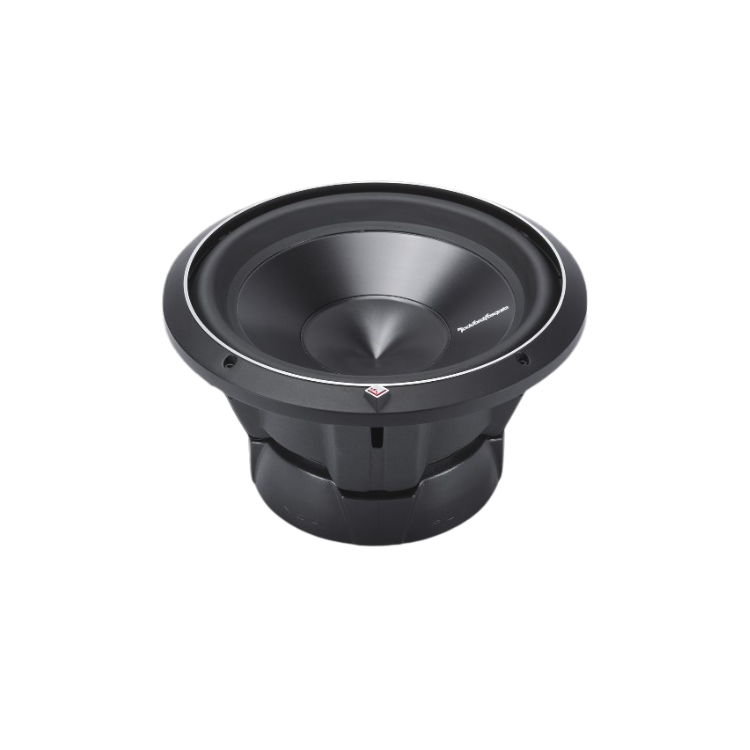

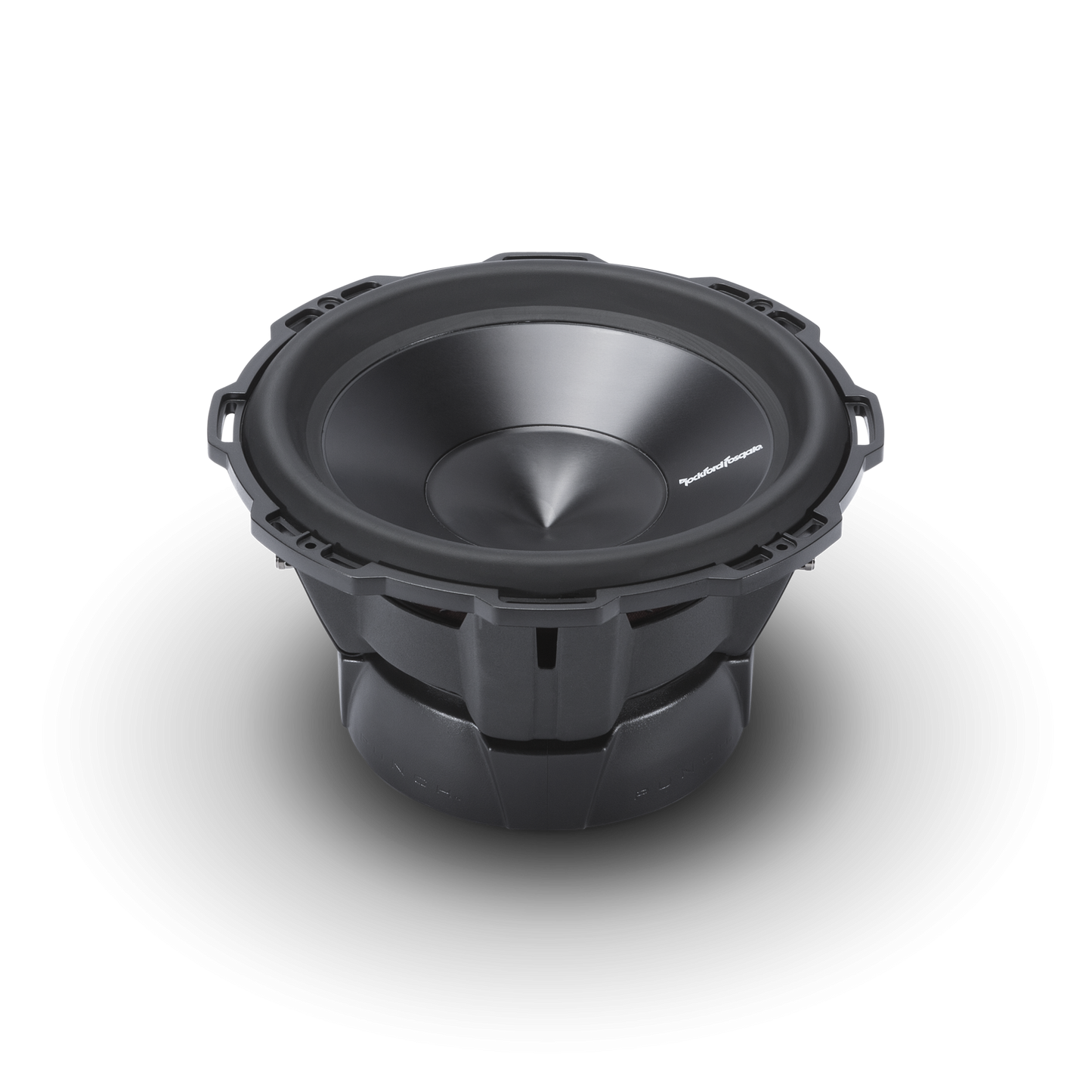

The Rockford Fosgate Punch P3D2-12 is a 12-inch subwoofer with dual 2Ω voice coils. The sub features a hybrid StampCast basket, quick-release compression terminals, anodized aluminum cone, and Santoprene surround. An anodized aluminum voice coil former and spider venting help keep the subwoofer cool.
12" subwoofer with dual 2-ohm voice coils
anodized aluminum cone with Santoprene surround
hybrid StampCast basket provides strength while minimizing weight and resonance
Vertical Attach Surround Technique (VAST™) increases cone area
power range: 300-600 watts RMS (1200 watts peak power)
frequency response: 27-250 Hz
sensitivity: 85 dB
top-mount depth: 6-11/16"
sealed box volume: .75-1.25 cubic feet
ported box volume: 1.79 cubic feet
grille not included
warranty: 1 year
Specifications:
Size - 12 -inch
Impedance - 1 ohm or 4 ohms
Cone Material - Anodized Aluminum
Surround Material - Santoprene
Ideal Sealed Box Volume (cubic feet) - 1.02
Ideal Ported Box Volume (cubic feet) - 1.79
Port diameter (inches) - 4
Port length (inches) - 10
Free-Air - No
Dual Voice Coil - Yes
Sensitivity - 85 dB at 1 watt
Frequency Response - 27 - 250 Hz
Max RMS Power Handling - 600
Peak Power Handling (Watts) - 1200
Top Mount Depth (inches) - 6 11/16
Cutout Diameter or Length (inches) - 11 1/16
Vas (liters) - 57.7
Fs (Hz) - 26.5
Qts - 0.49
Xmax (millimeters) - 13.3
12" subwoofer with dual 2-ohm voice coils
anodized aluminum cone with Santoprene surround
hybrid StampCast basket provides strength while minimizing weight and resonance
Vertical Attach Surround Technique (VAST™) increases cone area
power range: 300-600 watts RMS (1200 watts peak power)
frequency response: 27-250 Hz
sensitivity: 85 dB
top-mount depth: 6-11/16"
sealed box volume: .75-1.25 cubic feet
ported box volume: 1.79 cubic feet
grille not included
warranty: 1 year
Specifications:
Size - 12 -inch
Impedance - 1 ohm or 4 ohms
Cone Material - Anodized Aluminum
Surround Material - Santoprene
Ideal Sealed Box Volume (cubic feet) - 1.02
Ideal Ported Box Volume (cubic feet) - 1.79
Port diameter (inches) - 4
Port length (inches) - 10
Free-Air - No
Dual Voice Coil - Yes
Sensitivity - 85 dB at 1 watt
Frequency Response - 27 - 250 Hz
Max RMS Power Handling - 600
Peak Power Handling (Watts) - 1200
Top Mount Depth (inches) - 6 11/16
Cutout Diameter or Length (inches) - 11 1/16
Vas (liters) - 57.7
Fs (Hz) - 26.5
Qts - 0.49
Xmax (millimeters) - 13.3
