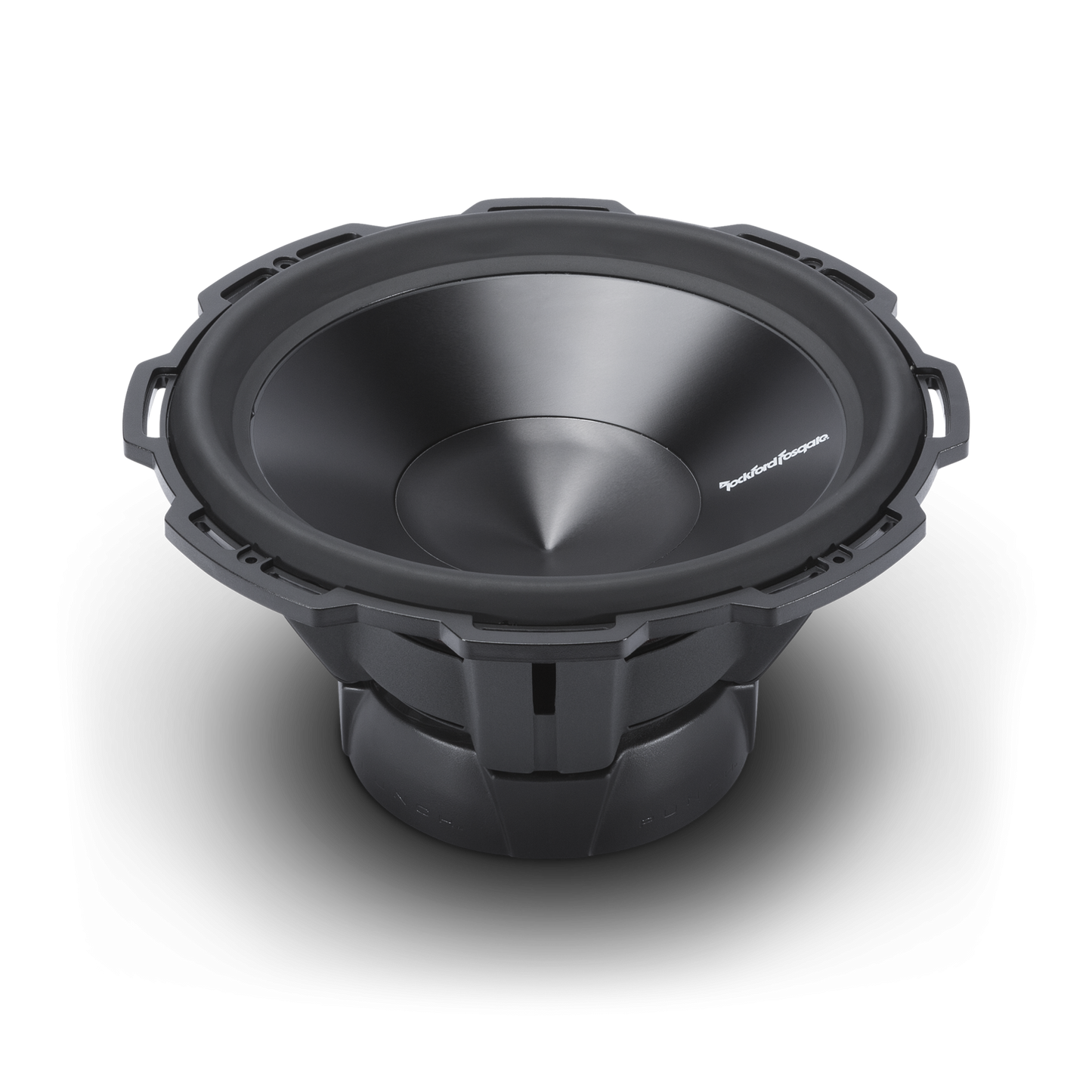

Rockford Fosgate P3D2-15
Rockford Fosgate P3D2-15
Regular price
$279.99 USD
Regular price
Sale price
$279.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Rockford Fosgate Punch P3D2-15 is a 15-inch subwoofer with dual 2Ω voice coils. The sub features a hybrid StampCast basket, quick-release compression terminals, anodized aluminum cone, and Santoprene surround. An anodized aluminum voice coil former and spider venting help keep the subwoofer cool.
15" subwoofer with dual 2-ohm voice coils
anodized aluminum cone with Santoprene surround
hybrid StampCast basket provides strength while minimizing weight and resonance
Vertical Attach Surround Technique (VAST™) increases cone area
power range: 300-600 watts RMS (1200 watts peak power)
frequency response: 22-250 Hz
sensitivity: 86 dB
top-mount depth: 7-5/8"
sealed box volume: 1.5-3.0 cubic feet
ported box volume: 2.66 cubic feet
grille not included
warranty: 1 year
Specifications:
Size - 15 -inch
Impedance - 1 ohm or 4 ohms
Cone Material - Anodized Aluminum
Surround Material - Santoprene
Ideal Sealed Box Volume (cubic feet) - 1.58
Ideal Ported Box Volume (cubic feet) - 2.66
Port diameter (inches) - 4
Port length (inches) - 10
Free-Air - No
Dual Voice Coil - Yes
Sensitivity - 86 dB at 1 watt
Frequency Response - 22 - 250 Hz
Max RMS Power Handling - 600
Peak Power Handling (Watts) - 1200
Top Mount Depth (inches) - 7 11/16
Cutout Diameter or Length (inches) - 13 11/16
Vas (liters) - 155.8
Fs (Hz) - 21.7
Qts - 0.54
Xmax (millimeters) - 13.3
15" subwoofer with dual 2-ohm voice coils
anodized aluminum cone with Santoprene surround
hybrid StampCast basket provides strength while minimizing weight and resonance
Vertical Attach Surround Technique (VAST™) increases cone area
power range: 300-600 watts RMS (1200 watts peak power)
frequency response: 22-250 Hz
sensitivity: 86 dB
top-mount depth: 7-5/8"
sealed box volume: 1.5-3.0 cubic feet
ported box volume: 2.66 cubic feet
grille not included
warranty: 1 year
Specifications:
Size - 15 -inch
Impedance - 1 ohm or 4 ohms
Cone Material - Anodized Aluminum
Surround Material - Santoprene
Ideal Sealed Box Volume (cubic feet) - 1.58
Ideal Ported Box Volume (cubic feet) - 2.66
Port diameter (inches) - 4
Port length (inches) - 10
Free-Air - No
Dual Voice Coil - Yes
Sensitivity - 86 dB at 1 watt
Frequency Response - 22 - 250 Hz
Max RMS Power Handling - 600
Peak Power Handling (Watts) - 1200
Top Mount Depth (inches) - 7 11/16
Cutout Diameter or Length (inches) - 13 11/16
Vas (liters) - 155.8
Fs (Hz) - 21.7
Qts - 0.54
Xmax (millimeters) - 13.3
