Please contact us if you are looking for this item-We can special order

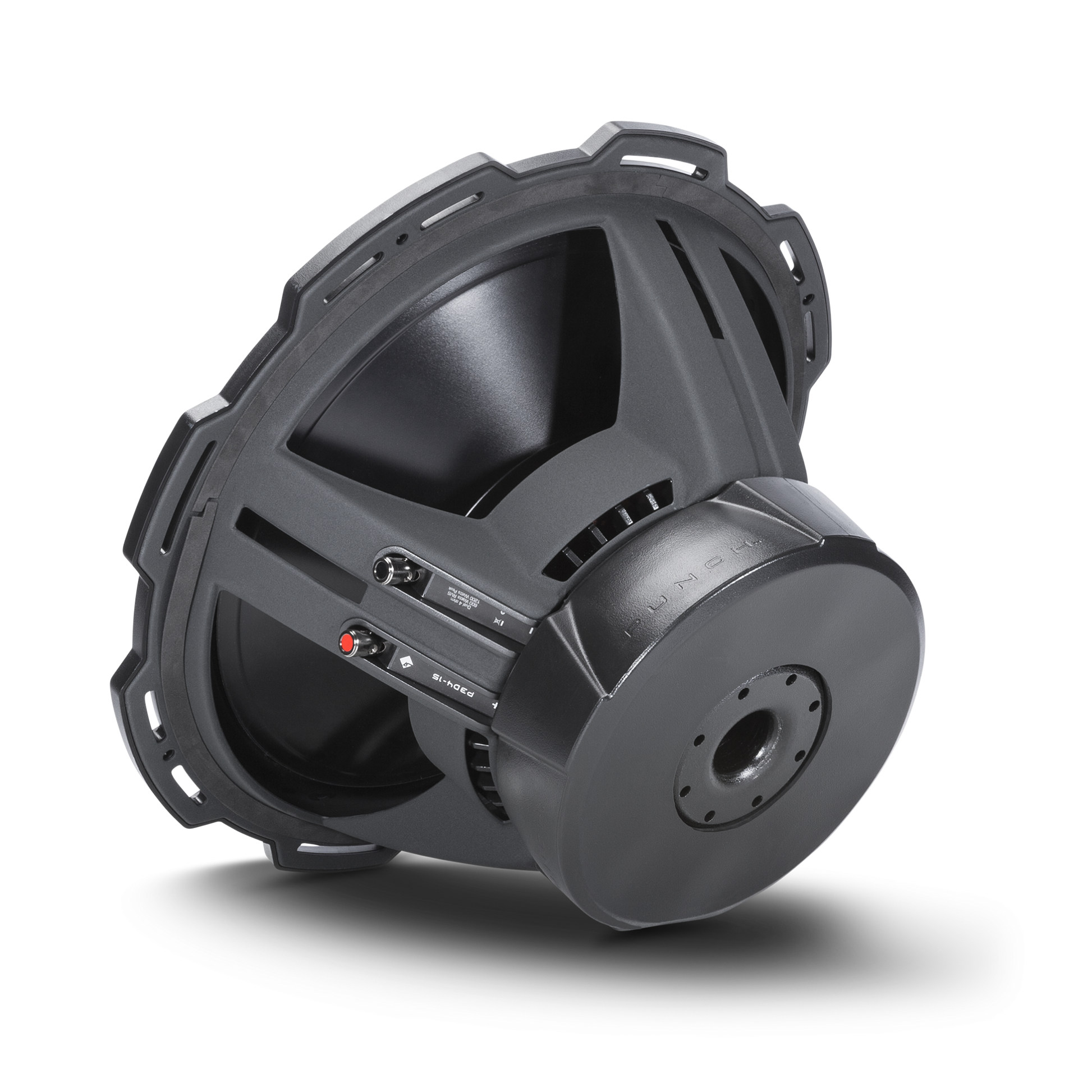

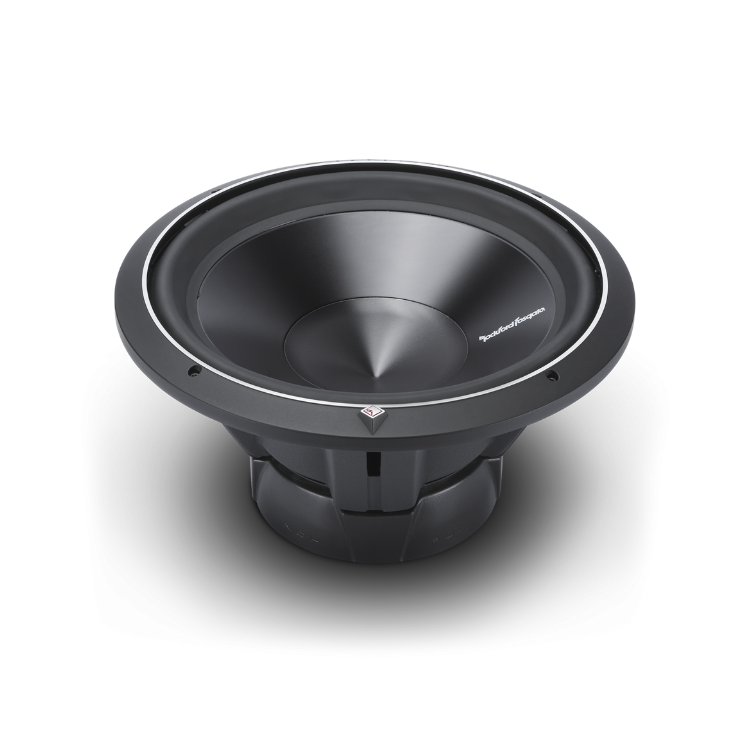

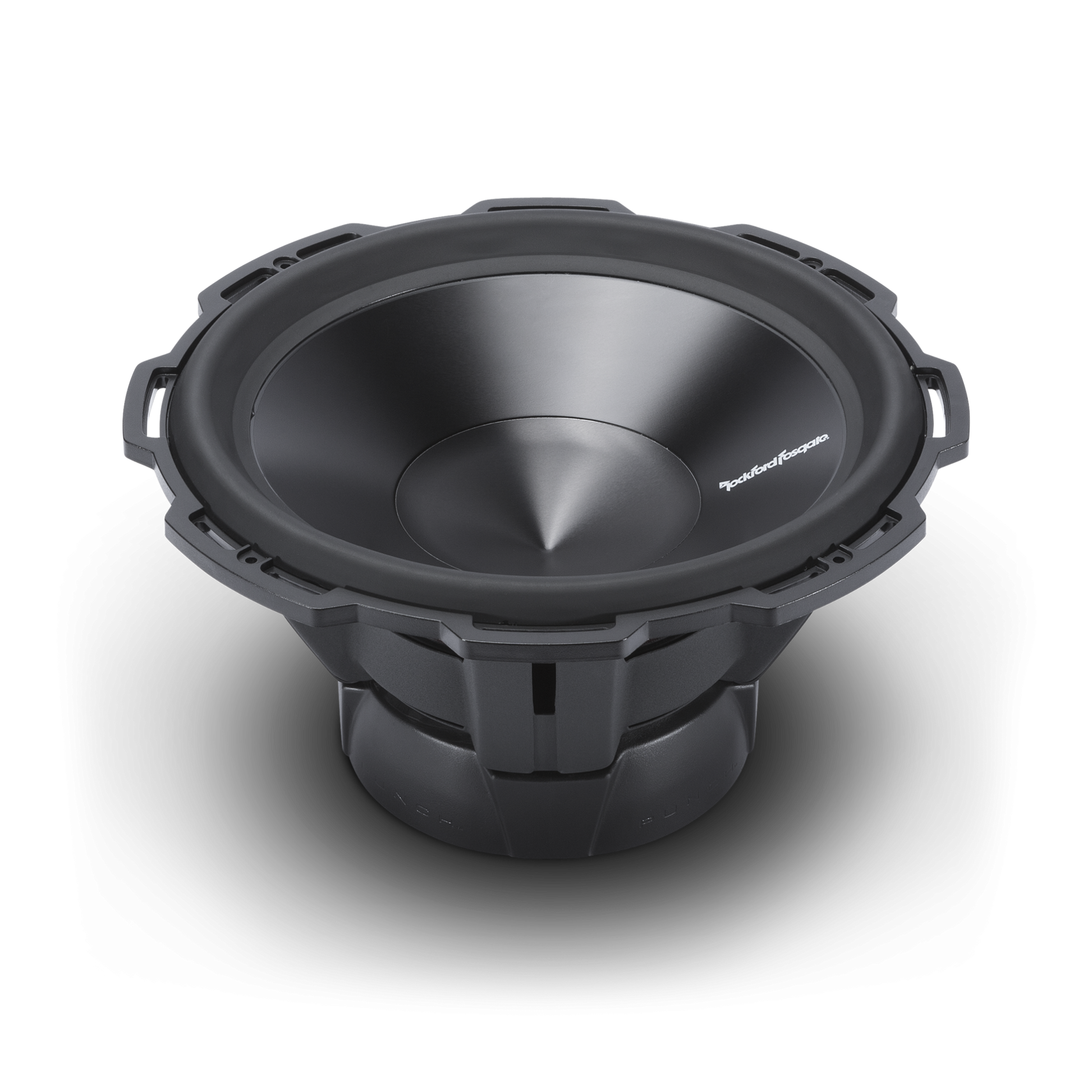

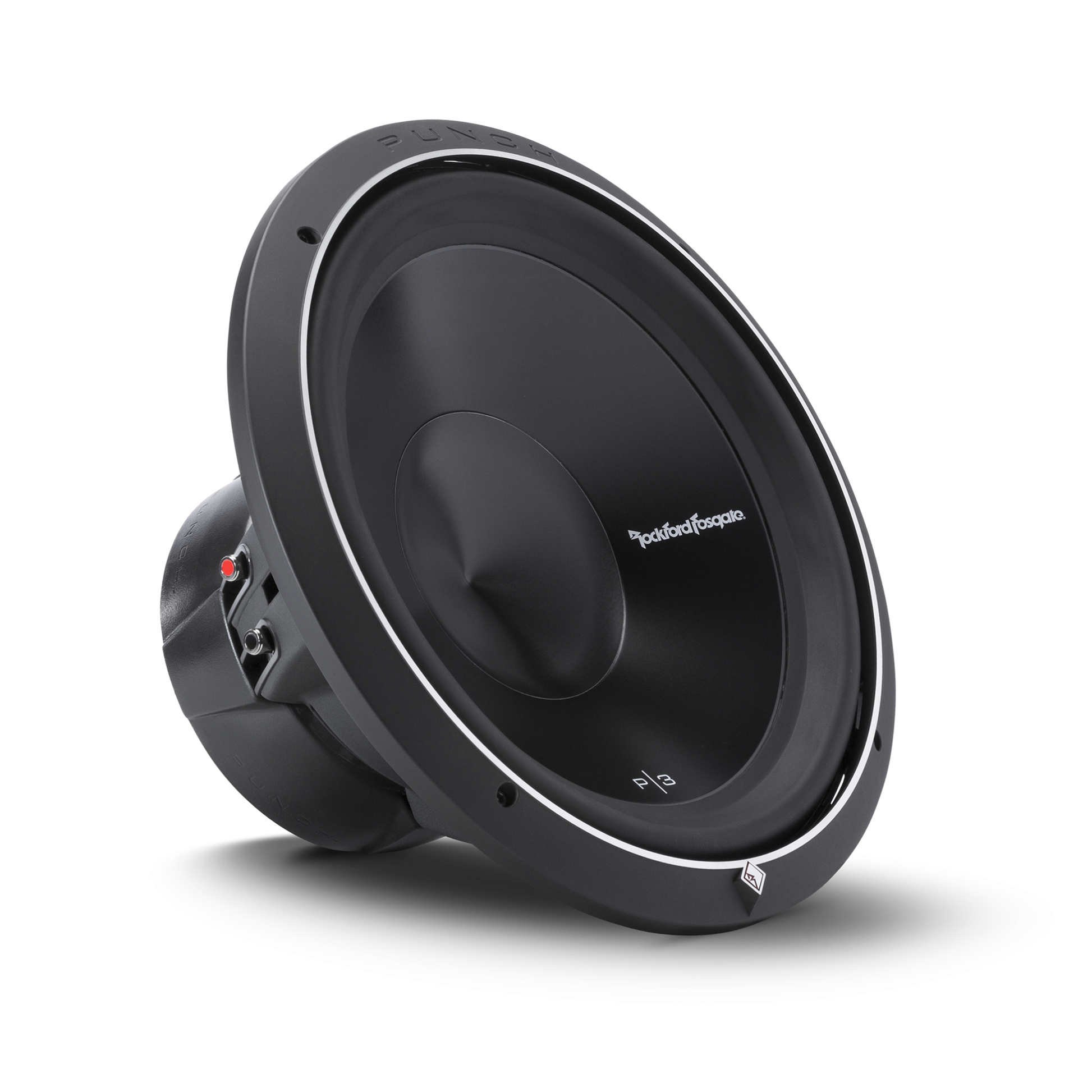

Punch 15" P3 2-Ohm DVC Subwoofer

P3D2-15

• • Power Handling (Watts RMS): 600 Watts RMS; 1200 Watts Max
  • Speaker Connector: Dual 10 AWG compression
  • Shipping Weight: 23.3 Lbs. (10.56 kg)
  • Size: 15"
  • Magnet Weight (oz): 96 oz. (2.73 kg.)
  • Nominal Impedance: Dual 2-Ohm
  • Mounting Depth: 7.58 in. (192.5 mm)
  • Voice Coil Diameter: 2.5" (65.5 mm)
  • Cutout Diameter: 13.94 in. (353 mm)
  • Woofer Displacement: 0.148 cu. ft. (4.2 Liters)
  • Qts: 0.54
  • Vas (Liters): 155.8
  • Fs (Hz): 21.7
  • Qes: 0.58
  • Le (mH): 4.06
  • Qms: 7.20
  • SPL (dB @ 1w/1m): 86
  • CEA-2031 Compliant: CEA-2031 Guidelines
  • Xmax (mm): 15.2
  • Re (Ohms): 3.20
  • Sd (cm2): 894
  • Subwoofer Type: Standard
  • Voice Coil Type: Dual Voice Coil
  • Vented Box Volume (Vb): 2.66 cu. ft. (75.3 Liters)
  • Sealed Box Volume (Vb): 1.58 cu. ft. (44.7 Liters)



  Punch 15" P3 4-Ohm DVC Subwoofer

  P3D4-15

  The P3D4-15 is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

  FEATURES AT A GLANCE

  • 1 Year Warranty
  • Anodized aluminum cone and dustcap
  • Diamond cut cast aluminum trim ring with optional grille
  • StampCast basket with integrated spider venting
  • Custom 10-AWG nickel plated push terminals
  • Protective PVC textured magnet cover
  • Extended pole piece and bumped vented backplate
  • Dual linear spider with embedded 16 AWG tinsel leads
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar



  Specifications:

  • Size: 15"
  • Mounting Depth: 7.58 in. (192.5 mm)
  • Voice Coil Diameter: 2.5" (65.5 mm)
  • Magnet Weight (oz): 96 oz. (2.73 kg.)
  • Power Handling (Watts RMS): 600 Watts RMS; 1200 Watts Max
  • Nominal Impedance: Dual 4-Ohm
  • Speaker Connector: Dual 10 AWG compression
  • Shipping Weight: 23.3 Lbs. (10.56 kg)
  • Fs (Hz): 22.4
  • Cutout Diameter: 13.94 in. (353 mm)
  • SPL (dB @ 1w/1m): 86
  • Qts: 0.57
  • Qes: 0.64
  • Qms: 4.90
  • Vas (Liters): 155.8
  • Woofer Displacement: 0.148 cu. ft. (4.2 Liters)
  • Re (Ohms):6.40
  • Le (mH): 6.45
  • CEA-2031 Compliant
  • Xmax (mm): 15.9
  • Sd (cm²): 894
  • Subwoofer Type: Standard
  • Voice Coil Type: Dual Voice Coil
  • Sealed Box Volume (Vb): 1.58 cu. ft. (44.7 Liters)
  • Vented Box Volume (Vb): 2.66 cu. ft. (75.3 Liters)
