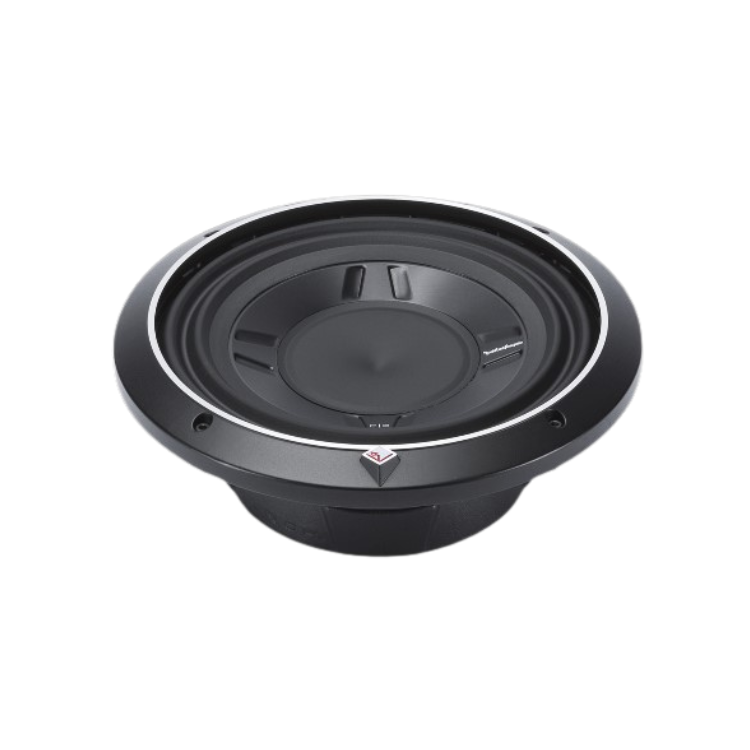

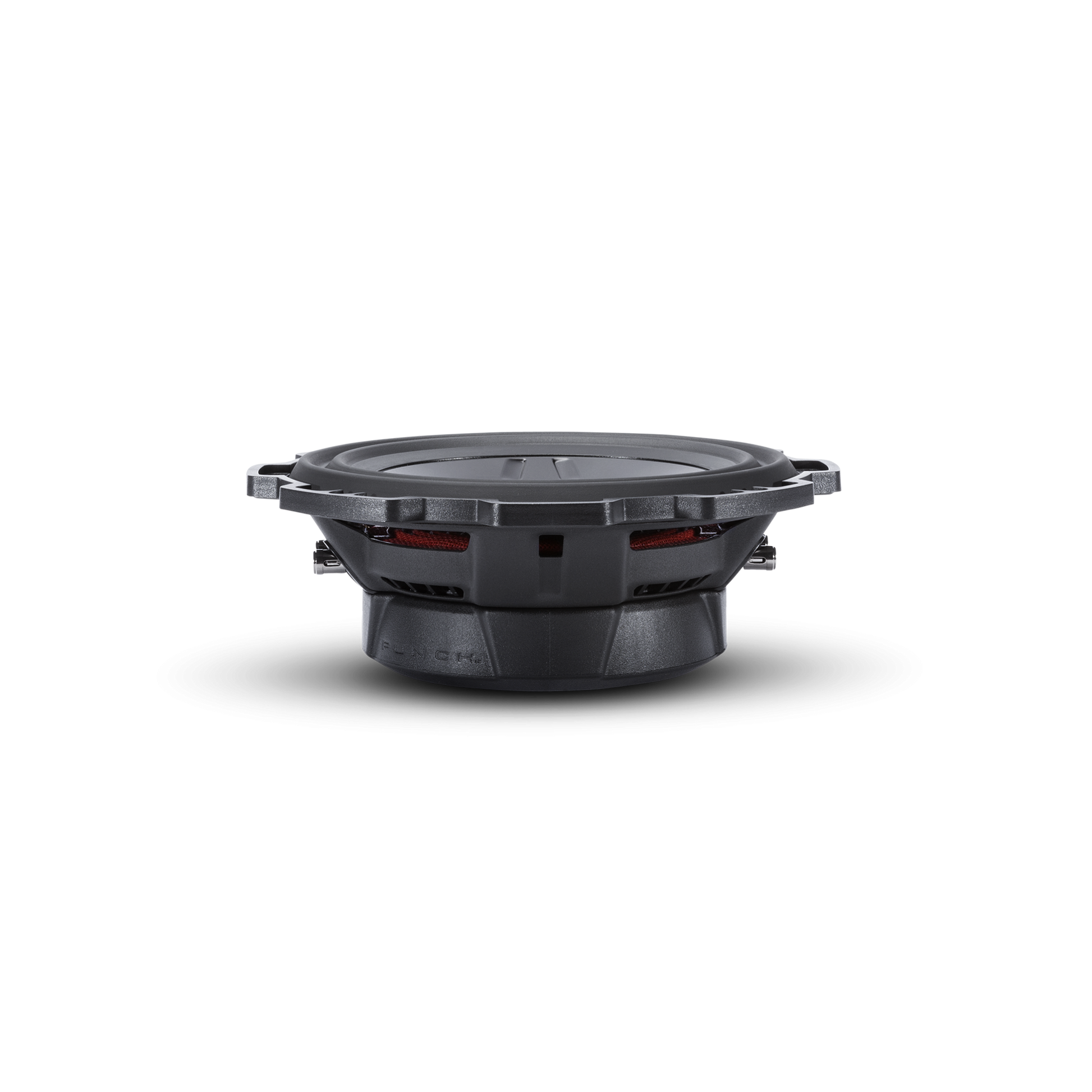

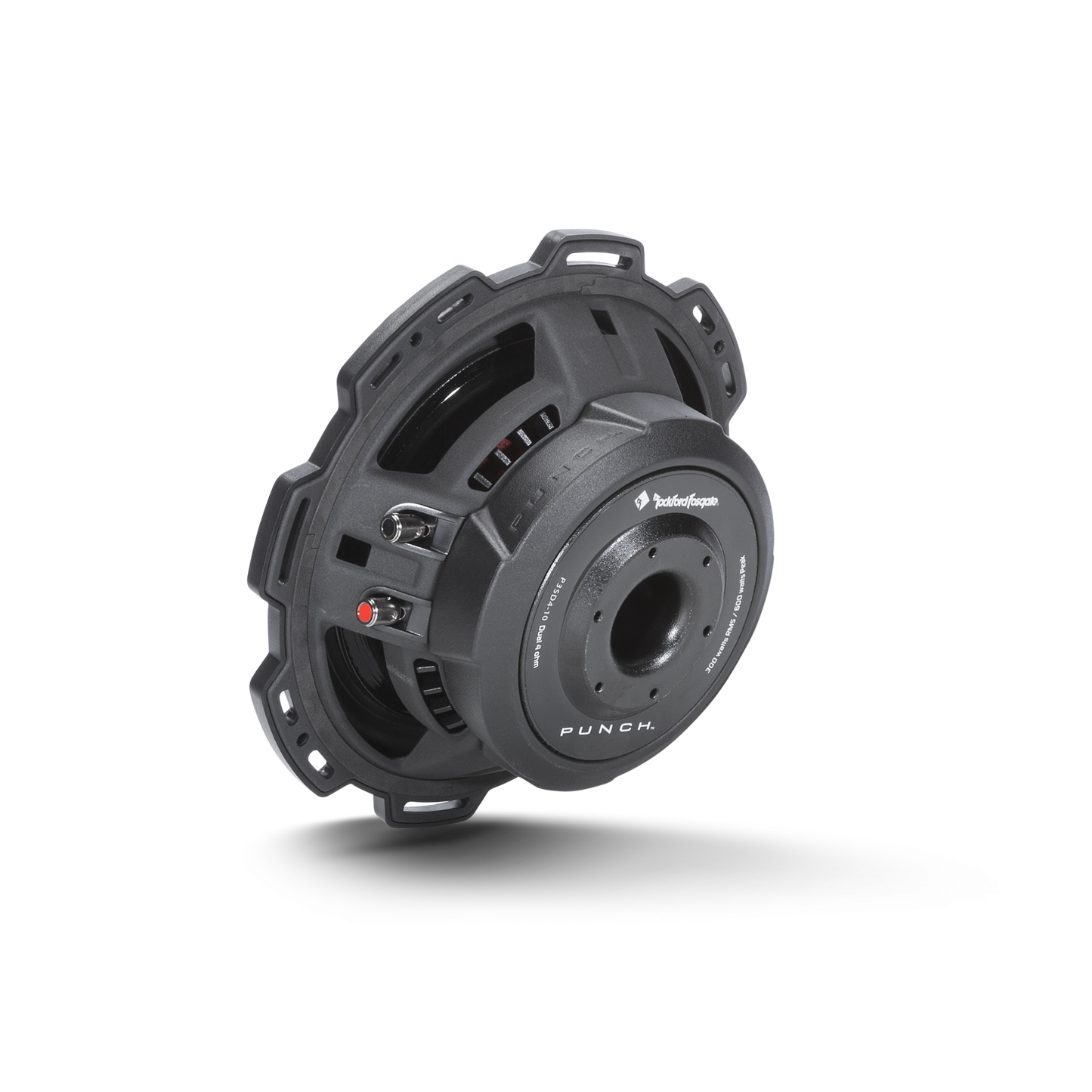

Rockford Fosgate P3SD2-10

The Rockford Fosgate Punch P3SD2-10 Shallow Subwoofer is designed and engineered with a more shallow motor assembly which reduces the overall depth of the woofer, allowing it to fit in smaller locations in your vehicle. The P3SD2-10 used an anodized aluminum cone and Santoprene surround. An anodized aluminum voice coil former and spider venting help keep the subwoofer cool.

10" shallow-mount subwoofer with dual 2-ohm voice coils
anodized aluminum cone with M-Roll Santoprene™ surround
power range: 50-300 watts RMS (150 watts per voice coil)
peak power handling: 600 watts
frequency response: 40-250 Hz
sensitivity: 83 dB
top-mount depth: 3-9/16"
sealed box volume: 0.40-1.00 cubic feet
ported box volume: 1.00 cubic feet
grille not included
warranty: 1 year
MFR # P3SD2-10

Specifications:
Size - 10 -inch
Impedance - 1 ohm or 4 ohms
Cone Material - Anodized Aluminum
Surround Material - Santoprene
Ideal Sealed Box Volume (cubic feet) - 0.5
Ideal Ported Box Volume (cubic feet) - 1
Port diameter (inches) - 4
Port length (inches) - 12
Free-Air - No
Dual Voice Coil - Yes
Sensitivity - 83 dB at 1 watt
Frequency Response - 40 - 250 Hz
Max RMS Power Handling - 300
Peak Power Handling (Watts) - 600
Top Mount Depth (inches) - 3 9/16
Cutout Diameter or Length (inches) - 9 1/16
Vas (liters) - 14.3
Fs (Hz) - 40
Qts - 0.64
Xmax (millimeters) - 8.4
