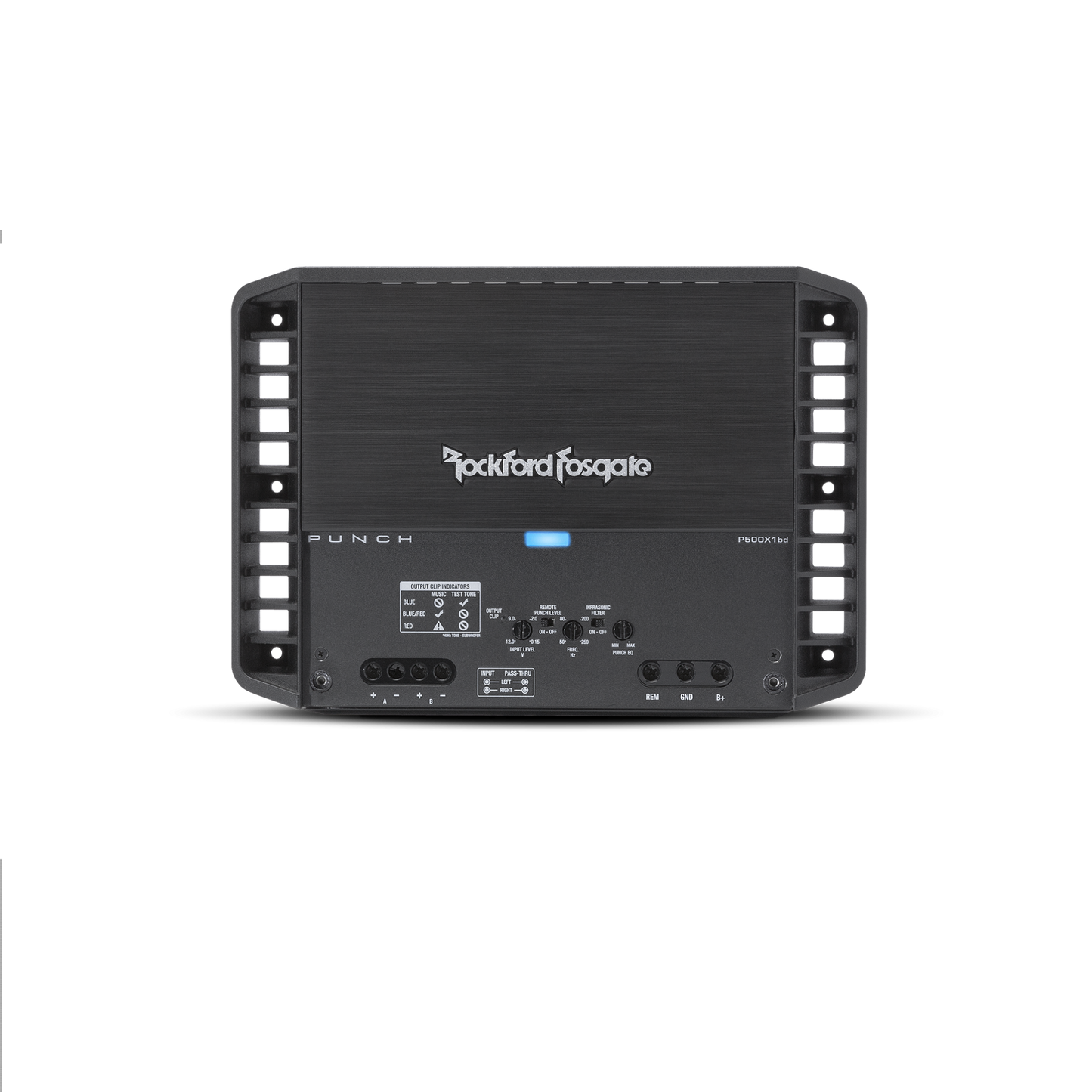

Rockford Fosgate P500X1BD
Rockford Fosgate P500X1BD
Regular price
$389.99 USD
Regular price
Sale price
$389.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Rockford Fosgate's Punch P500X1bd subwoofer amp can produce up to 500 watts RMS, giving you plenty of clean power for your rhythm track. And the P500X1bd can drive a 1-ohm load, so you can power multiple subs without any trouble. A low-pass filter keeps the high notes away from your sub, while a subsonic filter helps you rein in runaway boom. The Punch bass boost lets you add some of that boom back into the mix when it's needed.
mono subwoofer amplifier
150 watts RMS x 1 at 4 ohms (300 watts RMS x 1 at 2 ohms)
500 watts RMS x 1 at 1 ohm
CEA-2006 compliant
variable low-pass filter filter (50-250 Hz, 12 dB/octave)
selectable subsonic filter (28Hz, 12 dB/octave)
variable PEQ2 bass boost (0-18 dB at 45 Hz)
C.L.E.A.N. gain setup system includes test tone CD
test tones also available as MP3 download from Amazon On Demand, Rhapsody, Google Play, and Spotify, labeled "3sixty.3 setup disc" (Punch amps and the 3sixty.3 use the same test tone tracks for setup)
Class-BD amplifier design
frequency response: 20-250 Hz
Dynamic Thermal Management and MEHSA MOSFET cooling systems
MOSFET power and output stages
preamp inputs and outputs
speaker-level inputs (speaker wire to RCA adapter required)
signal-sensing turn-on with speaker-level inputs eliminate need for remote turn-on lead
optional PLC2 wired remote level control with clip light available
4-gauge power and ground leads and an 80-amp fuse recommended — wiring and hardware not included with amplifier
no onboard fuses — when installing multiple amps in a system, an additional 80-amp in-line fuse between the distribution block and the amplifier is recommended
11-1/8"W x 2-7/16"H x 8-13/16"D
warranty: 1 year
RMS Power Output (Watts x Channels) - 150 x 1
Power at 2 Ohms (Watts x Channels) - 300 x 1
Minimum Impedance Unbridged - 1
Best Frequency Response - 20-250 Hz
THD at Rated RMS Power - 1%
Signal to Noise Ratio - 80 dB
Input Voltage - 14.4v
Amplifier Class - BD
Low-Pass Crossover Frequency - 50-250 Hz
Low-Pass Slope (dB/octave) - 12 dB/octave
Bass Boost- 0-18 dB
Bass Boost Frequency - 45 Hz
Fan Cooled - No
Fuse Rating - 80
Speaker Level Inputs RCA
Preamp Outputs - 1 pair
Width (inches) - 11-1/8
Height (inches) - 2-7/16
Depth (inches) - 8-13/16
mono subwoofer amplifier
150 watts RMS x 1 at 4 ohms (300 watts RMS x 1 at 2 ohms)
500 watts RMS x 1 at 1 ohm
CEA-2006 compliant
variable low-pass filter filter (50-250 Hz, 12 dB/octave)
selectable subsonic filter (28Hz, 12 dB/octave)
variable PEQ2 bass boost (0-18 dB at 45 Hz)
C.L.E.A.N. gain setup system includes test tone CD
test tones also available as MP3 download from Amazon On Demand, Rhapsody, Google Play, and Spotify, labeled "3sixty.3 setup disc" (Punch amps and the 3sixty.3 use the same test tone tracks for setup)
Class-BD amplifier design
frequency response: 20-250 Hz
Dynamic Thermal Management and MEHSA MOSFET cooling systems
MOSFET power and output stages
preamp inputs and outputs
speaker-level inputs (speaker wire to RCA adapter required)
signal-sensing turn-on with speaker-level inputs eliminate need for remote turn-on lead
optional PLC2 wired remote level control with clip light available
4-gauge power and ground leads and an 80-amp fuse recommended — wiring and hardware not included with amplifier
no onboard fuses — when installing multiple amps in a system, an additional 80-amp in-line fuse between the distribution block and the amplifier is recommended
11-1/8"W x 2-7/16"H x 8-13/16"D
warranty: 1 year
RMS Power Output (Watts x Channels) - 150 x 1
Power at 2 Ohms (Watts x Channels) - 300 x 1
Minimum Impedance Unbridged - 1
Best Frequency Response - 20-250 Hz
THD at Rated RMS Power - 1%
Signal to Noise Ratio - 80 dB
Input Voltage - 14.4v
Amplifier Class - BD
Low-Pass Crossover Frequency - 50-250 Hz
Low-Pass Slope (dB/octave) - 12 dB/octave
Bass Boost- 0-18 dB
Bass Boost Frequency - 45 Hz
Fan Cooled - No
Fuse Rating - 80
Speaker Level Inputs RCA
Preamp Outputs - 1 pair
Width (inches) - 11-1/8
Height (inches) - 2-7/16
Depth (inches) - 8-13/16
