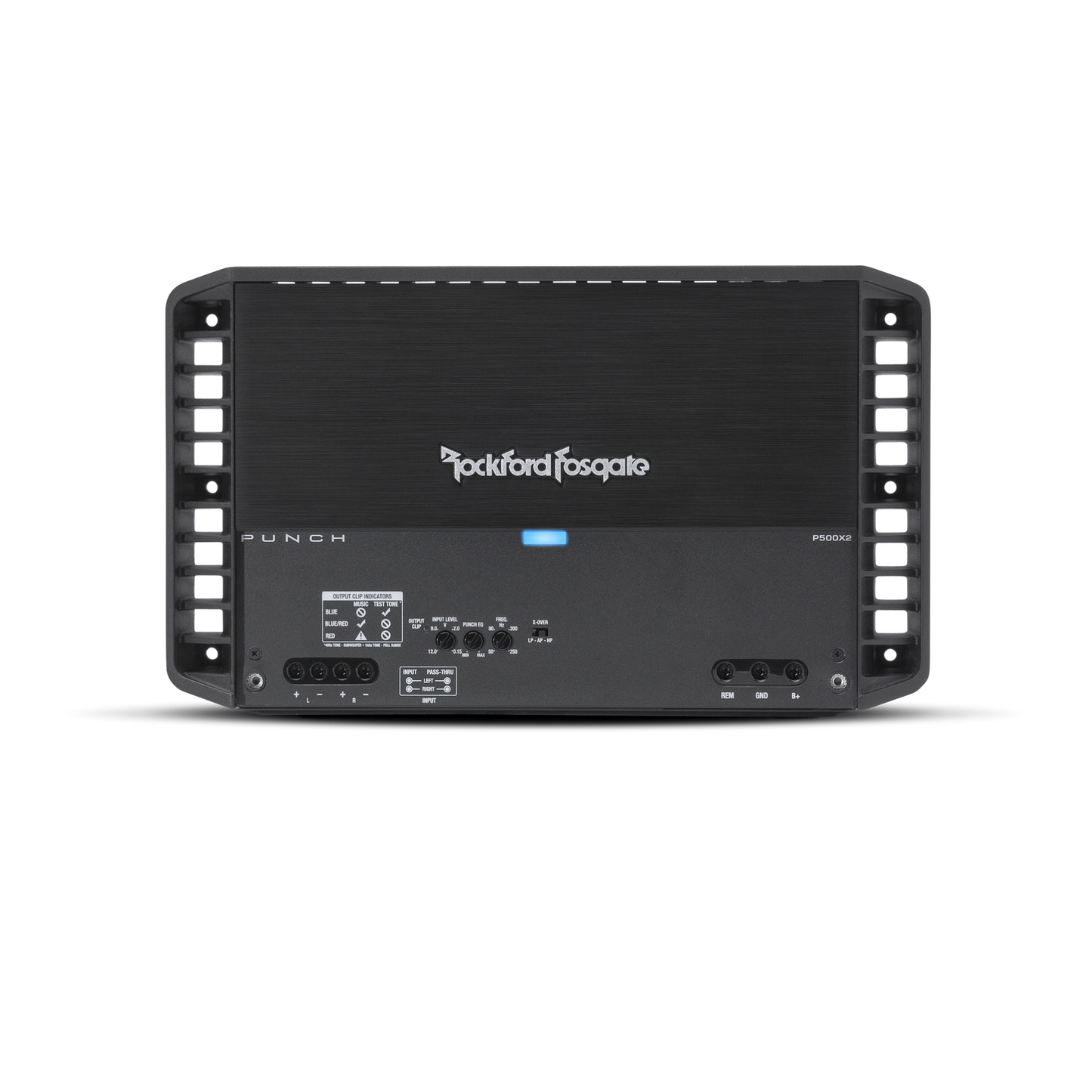

Rockford Fosgate P500X2
Rockford Fosgate P500X2
Regular price
$389.99 USD
Regular price
Sale price
$389.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Rockford Fosgate's Punch P500X2 amplifier sends 150 watts RMS per channel to your speakers, filling your ride with clean music. You can use the high-pass filter to keep the low bass out of your speakers so they perform more efficiently. You can also switch this versatile amp into mono mode to drive a subwoofer with up to 500 watts RMS, then use the built-in low-pass filter to send the correct bass frequencies to your sub. The Punch EQ2 features bass and treble boosts, in case you want to add a little boom and sizzle back into the mix.
2-channel car amplifier
150 watts RMS x 2 at 4 ohms (250 watts RMS x 2 at 2 ohms)
500 watts RMS x 1 bridged at 4 ohms (4-ohm stable in bridged mode)
CEA-2006 compliant
variable high- and low-pass filter filter (50-250 Hz, 12 dB/octave)
variable PEQ2 bass/treble boost (0-18 dB at 45 Hz and 0-14 dB at 12.5K Hz)
C.L.E.A.N. gain setup system includes test tone CD
test tones also available as MP3 download from Amazon On Demand, Rhapsody, Google Play, and Spotify, labeled "3sixty.3 setup disc" (Punch amps and the 3sixty.3 use the same test tone tracks for setup)
Class-AB amplifier design
frequency response: 20-20,000 Hz
Dynamic Thermal Management and MEHSA MOSFET cooling systems
MOSFET power and output stages
preamp inputs and outputs
speaker-level inputs (speaker wire to RCA adapter required)
signal-sensing turn-on with speaker-level inputs eliminate need for remote turn-on lead
optional PLC2 wired remote level control with clip light available
4-gauge power and ground leads and an 80-amp fuse recommended — wiring and hardware not included with amplifier
no onboard fuses — when installing multiple amps in a system, an additional 80-amp in-line fuse between the distribution block and the amplifier is recommended
13-3/8"W x 2-7/16"H x 8-13/16"D
warranty: 1 year
Specifications:
RMS Power Output (Watts x Channels) - 150 x 2
Power at 2 Ohms (Watts x Channels) - 250 x 2
Bridged Power (Watts x Channels) - 500 x 1
Minimum Impedance Bridged - 4
Minimum Impedance Unbridged - 2
Best Frequency Response - 20-20k Hz
THD at Rated RMS Power - 1%
Signal to Noise Ratio - 85 dB
Input Voltage - 14.4v
Amplifier Class - AB
Low-Pass Crossover Frequency - 50-250 Hz
Low-Pass Slope (dB/octave) - 12 dB/octave
High-Pass Crossover Frequency - 50-250 Hz
High-Pass Slope (dB/octave) - 12 dB/octave
Bass Boost - 0-18 dB
Bass Boost Frequency - 45 Hz
Fan Cooled - No
Fuse Rating - 80
Speaker Level Inputs RCA
Preamp Outputs - 1 pair
Width (inches) - 13-3/8
Height (inches) - 2-7/16
Depth (inches) - 8-13/16
