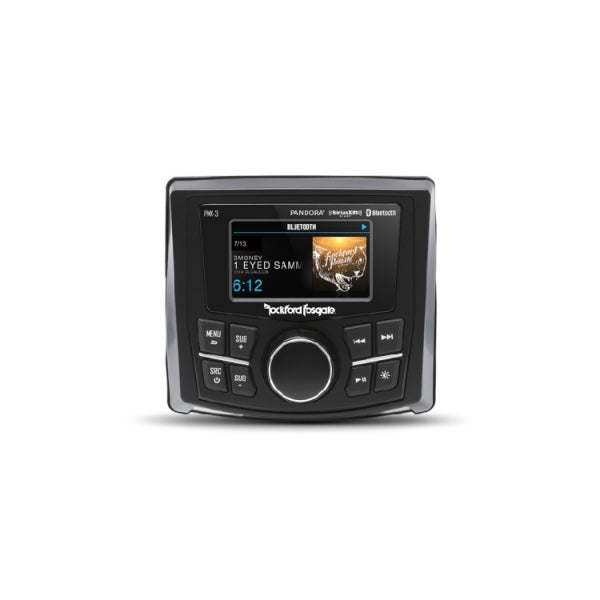

Rockford Fosgate PMX-3

We've also upgraded the unit to feature a reverse camera composite video input with reverse trigger control and a day/ night display mode for better viewing in low light conditions. Finally, add in the EEprom memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you'll ever need.

• 2.7" Full color Thin Film Transistor display
• SiriusXM-Ready™ (SXV300 module) with color channel logos (18 channel presets)
• Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
• Integrated voltage gauge w/ low voltage alert
• Wired remote ready (up to 3 remotes)
• Two-piece mounting system to secure panel to mounting surface
• Front Panel Sub Control
• Upgradeable Firmware and Bluetooth Software via USB
• IPX6 Water Intrusion Rating: Water projected in powerful jets from any direction shall have no harmful effects
• ASTM: B117 Salt Fog & D4329 UV Exposure Tested
• Single Zone output with 2 channels front full range and 2 channels rear/ subwoofer selectable rated at 2 volt
• Internal power amplifier 4x45W 2Ω stable
• Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive broadcast information
• Licensed Pandora control (Apple direct USB or BT/Android via Bluetooth)
• Made for iPhone apple certified
• Bluetooth streaming audio (A2DP) protocol version 1.4 installed
• Rear USB With 1A Charging Only
• Rear AUX-In (L/R)
• Simple Secure Pairing (SSP)
• Display album art from connected iPhones on the radio display
• Folder browsing via BT connected iPhones
• Dedicated DSP audio processors for each zone with independent 7 Band EQ + Punch EQ
• Selectable high pass and low pass crossover points for each zone
• Selectable crossover slopes of 12dB or 24 dB for each zone
• Adjustable input gain for each source
• Waterproof Rotary Encoder Volume Control
• Tactile convex buttons for easy identification
• White LED Button Illumination
• Wired and front panel illumination control
• Wet Bonded Display
• Epoxy coated circuit board for water resistance
• External trigger input to activate reverse camera mode
• Direct composite video input connection
• Day/Night display mode
• 2 Year Warranty

Product Specs:

• FM TUNER: Frequency Range 87.5 MHz - 107.9 MHz
• Sensitivity 8 dB
• AM TUNER: Frequency Range 530 kHz - 1710 kHz
• Usable Sensitivity 40 dB

RCA Output:

• Voltage 2V RMS
• Does not clip at full output
• RCA Output Impedance 500Ω
• Speaker Impedance 2-Ohms

Power Output:

• CEA-2006 Guidelines CEA-2006 Power Rating
• 25W x 4 @ 4Ω RMS
• 50W x 4 @ 2Ω Peak
• ≤1.0% THD+N
• Fuse Rating 20 A

Dimensions:

• (HxWxD)Width 4.5" (11.5cm)
• Face Depth 1.5" (3.8cm)
• Mount Depth 2.9" (7.4cm)
• Height 4.2" (10.6cm)

MEDIA PLAYER:

• Audio Format Compatibility MP3, WMA
• TUNER N/A
• Clock
• (Yes/No)No

• PMX-1R
• PMX-0R
• (3 Remote Limit, 100 ft Total Wired Distance)
• Speaker Outputs
• (Yes/No)Yes

• Android Compatibility Bluetooth® Only

• (1 pr) Front
• (1 pr) Rear (or Sub-out)

• Digital-Media Receiver
• SiriusXM-Ready®
• (Yes/No)Yes

• Frequency Range162.40 - 162.55
• (US & Canada)
• TUNER
• Number Of Presets 18 FM / 12 AM / 6 WB
• USB Version 2.0
• AUX Input
• (Yes/No)Yes (1pr)
• Steering Wheel Control Ready
• (Yes/No)No
• Multi-Zone/Multi-Source
• (Yes/No)No
• Operating Voltage10.5 V - 16 V

• 32Gb max
• 999 Folders max
• 999 Songs max

• 2.7” Color TFT

• (Yes/No)Yes

• (Yes/No)Yes

• USB Output Current1A

• (Yes/No)Yes
• Frequency Response 20 Hz - 20 kHz

• (Yes/No)Yes
• Limited functionality on Android. See owners manual.
• Back Panel Cutout3" (77mm)
• Shipping Weight3.1 Lbs. (1.41 Kg)
