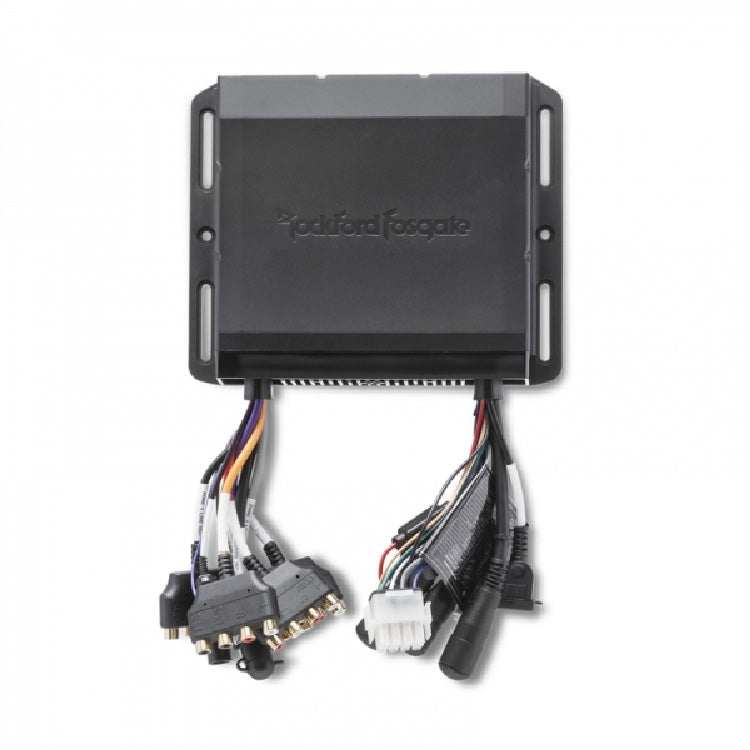

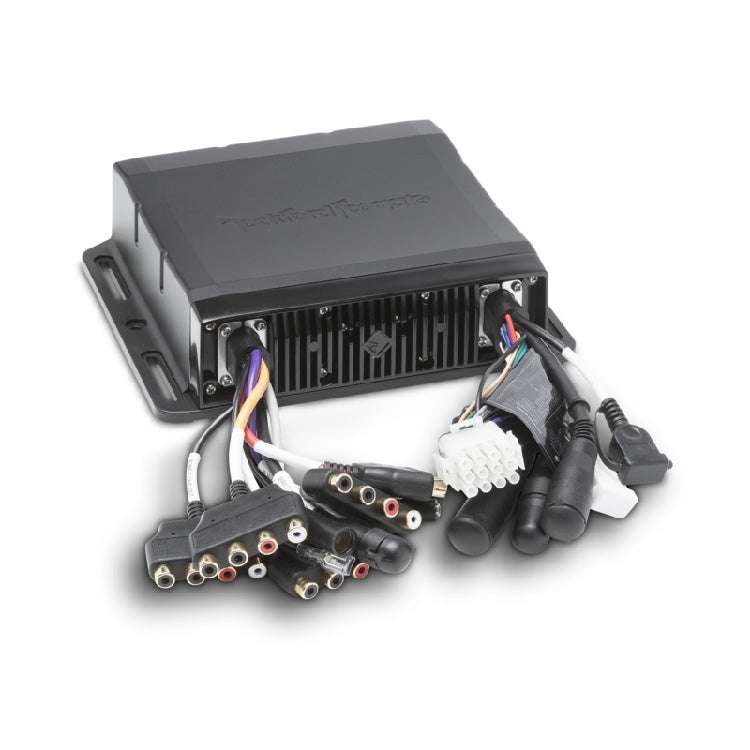

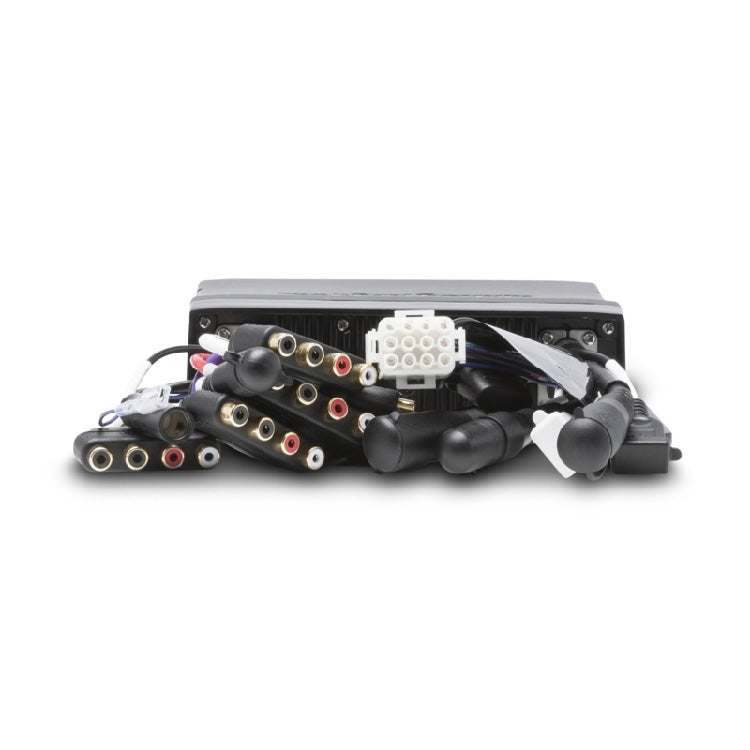

Rockford Fosgate PMX-8BB

Rockford Fosgate's PMX-8BB is a hide-away digital media receiver black box designed for use with the PMX-8DH controller. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using PMX-CAN.

Product Highlights:

• Global AM/FM/WB Tuner
• SiriusXM Ready
• Full iOS/Android
• Made for iPod
• Dual USB Input w/ Video Playback
• BLUETOOTH avrcp 1.5
• 2-Source Zone Control
• 4-Zone Volume Control
• 6 Channel F/R/S 4V Zone 1&2 Preouts
• 2 Channel Zone 3&4 4V Preouts
• 7-Band Graphic Equalizer
• Punch EQ, A/V Input
• Video Output
• CAN Ready
• EEPROM Non-Volatile Memory
• Wired Illumination Control
• Steering Wheel Control Ready
• Automotive grade AM/FM Radio
• Weatherband Radio digital tuner
• Supports Radio Data System (RDS) to receive and display broadcast information
• Licensed Pandora control (apple direct USB or BT/ android via bluetooth)
• Made for iPhone apple certified
• Bluetooth
• A2DP only
• AVRCP 1.4
• Simple secure pairing bluetooth profile for android & iOS
• Display album art from connected iPhones on the radios display
• Folder browsing via BT connected iPhones
• 4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output
• Internal power amplifier 4x50w 2 ohm stable
• Selectable high pass and low pass crossover points for each independent zone
• Selectable crossover slopes of 12dB or 24 dB for each independant zone
• Dedicated DSP audio processors for each zone with independent 7 Band EQ+Punch EQ
• Adjustable input gain for each source
• Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
• Integrated voltage gauge w/ low voltage alert
• Wired remote ready (up to 3 remotes)
• Rear aux-in (L/R)
• External steering wheel remote control interface compatible
• External trigger input to activate reverse camera mode
• Wired illumination control
• Optional CAN-BUS transceiver ready (PMX-CAN)
• Rear USB with 1a charging (supports album art on USB connected iPhones)
• Epoxy coated circuit board
• Upgradeable Firmware and Bluetooth Software via USB
• IPX5 Water Intrusion Rating: Water projected from nozzles from any direction shall have no harmful effects.
• CANbus (Controller Area Network) compatible. Requires PMX-CAN accessory
• Compatible with a Multi-Funtion Display using NMEA2K entertainment standard.
• *Antenna not included
• 2 Year Warranty

Product Specs:

FM TUNER:

• Frequency Range 87.5 MHz - 107.9 MHz

RCA Output Voltage 4V:

• Operating Voltage 10.5V - 16V
• Fuse Rating 15A

Dimensions (HxWxD):

• H4.25" x W8.3" x D2.2"
• (108mm x 211mm x 56mm)

USB Capacity:

• 32Gb max
• 999 Folders max
• 999 Songs max

MEDIA PLAYER:

• Audio Format CompatibilityMP3, WMA

Speaker Outputs:

• (Yes/No)Yes

Device Type:

• Digital-Media Black Box

Pandora® Internet Radio:

• (Yes/No) Yes

WB TUNER:

• Frequency Range162.40 - 162.55
• (US & Canada)

• TUNER:
• Number Of Presets: 18 FM / 12 AM / 6 WB
• USB Version: 2.0
• AUX Input: Yes
• USB Charging: Yes
• Steering Wheel Control Ready: Yes
• Apple®/Android™ Compatible: Yes
• Multi-Zone/Multi-Source: Yes
• AM TUNER: Frequency Range 530 kHz - 1710 kHz
• RCA Output Impedance: 500Ω
• Speaker Impedance: 2-Ohms
• Power Output: CEA-2006 Guidelines CEA-2006 Power Rating
• 25W x 4 @ 4Ω RMS
• 50W x 4 @ 2Ω Peak
• ≤1.0% THD+N
• TUNER: N/A
• Made for iPod Models:
• iPod Touch (5th generation)
• iPod Touch (4th generation)
• iPod Nano (7th generation)
• iPod Nano (6th generation)
• Android Compatibility: Bluetooth® Only
• SPEAKER OUTPUTS: N/A
• RCA OUTPUTS: N/A
• Display Size: N/A
• SiriusXM-Ready®: Yes
• Requires SXV300
• Bluetooth®: Yes
• 3.0+EDR, A2DP 1.3
• USB Output Current: 1A
• Frequency Response: 20 Hz - 20 kHz
• Made for iPhone Models:
• iPhone 7 Plus
• iPhone 7
• iPhone 6s Plus
• iPhone 6s
• iPhone 6 Plus
• iPhone 6
• iPhone 5S
• iPhone 5C
• iPhone 5
• iPhone 4S
• iPhone 4
• iPhone 3GS


• Compatible Remotes:
• PMX-8DH (25-ft. max cable to PMX-8BB)
• PMX-1R
• PMX-0R
• (3 Remote Limit, 100 ft Total Wired Distance)
•

• NOTE: When using a PMX-8DH as your main display, it will not work with an extension cable longer than 25-feet in length. The PMX-8DH already comes with a 10 foot cable (PMX10C) in the box. If you require a longer extension cable, you may use the PMX16C or PMC25C.
