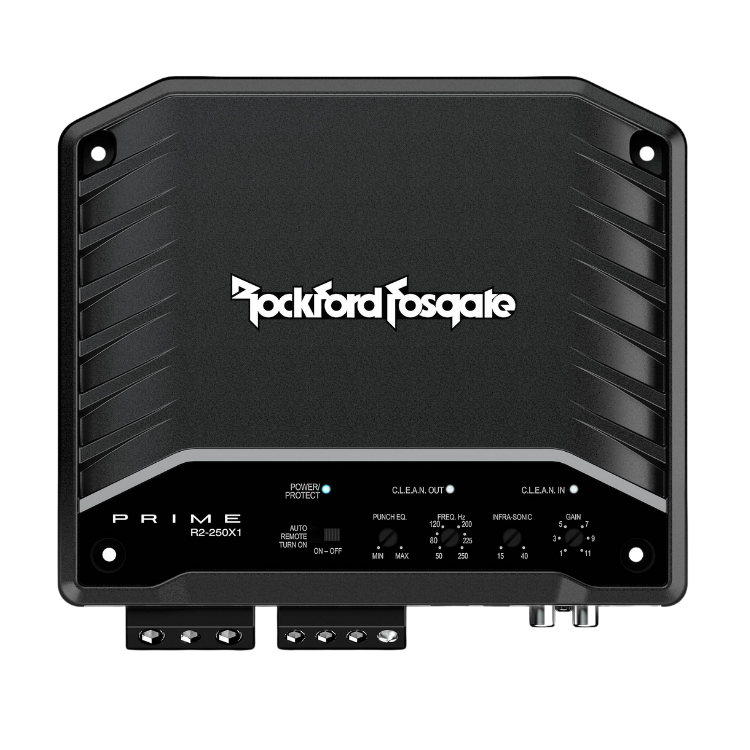

Rockford Fosgate R2-250X1

Rockford Fosgate's Prime Series R2-250X1 amplifier can power your subwoofer with up to 250 watts RMS. You can adjust the low-pass filter, infrasonic filter, and Rockford Fosgate's famous Punch boost to get the best possible bass from the sub and enclosure in your vehicle.

Product Highlights:

• Mono subwoofer amplifier
• 150 watts RMS x 1 at 4 ohms
• 250 watts RMS x 1 at 2 ohms
• CTA-2006 compliant
• Class D amplifier design
• Variable low-pass filter (50-250 Hz, 12 dB/octave)
• Variable bass boost (0-18 dB at 45 Hz)
• Variable subsonic filter (15-40 Hz, 12 dB/octave)
• C.L.E.A.N. gain setup system includes clip lights
• Wired remote Punch Level Control included
• Auto remote turn-on
• Preamp and speaker-level inputs
• Preamp outputs
• Wiring, fuse. and hardware not included with amplifier
• 4-gauge power and ground leads and a 50-amp fuse recommended
• Dimensions: 8-1/8"W x 2"H x 7-3/4"D
• Warranty: 1 year

Specifications:

• RMS Power Output (Watts x Channels) - 150 x 1
• Power at 2 Ohms (Watts x Channels) - 250 x 1
• Speaker Level Inputs Harness
• Preamp Outputs - 1 pair
• Cta-2006 Compliant
• Number of Channels: 1
• Total Power (Sum of Rated Power): 250 Watts
• Rated Power (RMS Continuous Power): 150 Watts x 1 @ 4Ω, 250 Watts x 1 @ 2Ω
• Dynamic Power (PVC/PowerCube®): 209 Watts x 1 @ 4Ω, 328 Watts x 1 @ 2Ω
• Bridgeable: No
• Frequency Response: 20 Hz - 250 Hz
• Input Sensitivity: Low-Level: 150 mV - 4 V
• -High-Level: 450 mV - 12 V
• Circuit Topology Class: Class-D
• Efficiency (average)
• Total Harmonic Distortion (THD+Noise): 4Ω: <1.0%, 2Ω: <1.0%

• Signal Input: Low-Level: 2 RCA
• -High-Level: 4-Pin Molex
• Signal Output: Low-Level: 2 RCA
• (Pass-Thru active with RCA or Hi-Level input)
• Tone Controls: 0 to +18 dB @ 45 Hz
• Crossover Controls: Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
• -Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth
• Remote Controls: Yes
• Visual Indicators: POWER (Blue) / PROTECT (Red)
• -C.L.E.A.N. IN (Red)
• -C.L.E.A.N. OUT (Blue/Red)
• Power Wire Gauge: 4 AWG
• Power Input Connector: Compression Terminal Block
• Speaker Wire Gauge: 8 AWG
• Speaker Output Connector: Compression Terminal Block
• Cooling: Convection
• Heatsink:
• Operating Voltage: 9 - 16 VDC
• Recommended Fuse (not included): 50 A
• Average Current Draw (13.8V Music):
• Max. Current Draw (13.8V Sinewave): 30 V
• Suggested Alternator:
• Dimensions (H x W x D): 1.9" x 6.8" x 8.1" (4.9 cm x 17.3 cm x 20.5 cm)
