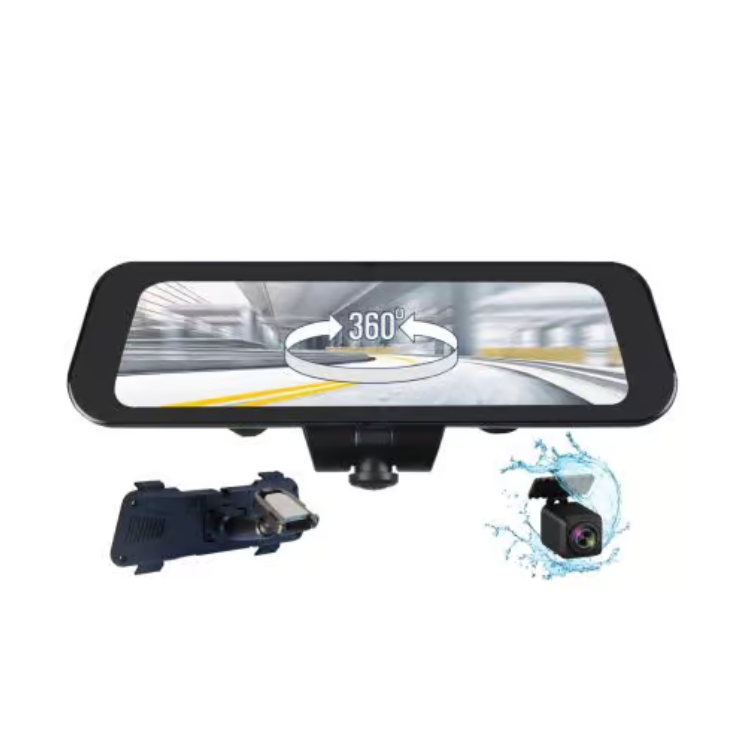

Rydeen 360 VIEW-SPL 360 Surround View Frameless Rearview Mirror with 4K Dash and Backup Cameras
Rydeen 360 VIEW-SPL 360 Surround View Frameless Rearview Mirror with 4K Dash and Backup Cameras
Couldn't load pickup availability
360 VIEW-SPL
360 Surround View Frameless Rearview Mirror with 4K Dash and Backup Cameras
Features:
- 360-degree video rearview replacement mirror with touchscreen
- 10-inch mirror DVR with TFT screen
- Auto sensing photo sensor for TFT screen brightness control
- AHD Rear Camera
Product Details
The 360 VIEW-SPL is a universal touchscreen 10-inch frameless rearview mirror with built-in dash cam/HD monitor with 360 surround video recording features. Users can then choose to display the front of the car, sides of the car and the rear seat, for monitoring passengers. Frameless Infinity Polished Edge Mirror Design for clean look, using optic bonding for monitor assembly with no air gap between the front glass and TFT screen for ultra-high brightness, and high color contrast viewing. Includes an auto sensing photo sensor for TFT screen brightness control, so automatically set to maximum brightness during daytime and less bright during night. Users can swipe left and right on the mirror to view the particular perspective they wish to see, with split screen views of multiple angle options, 360 VIEW-SPL can show a 360-degree view simultaneously on all multiple view selections for complete viewing coverage.
Product Specs
Basic Parameters
- Video Input (backup camera): AHD
- System Language: English, French, Spanish
- Screen Dimensions: 9.55 inches
- Touch Screen Type: Resistive
- Front Camera: H360°/27.5 fps
- Audio Line-Out: Built-in 8Ω/ 2W speaker* 1 for audio/voice playback
- Audio Power (Internal): 4Q2W
- Power Supply Voltage: DC 9V to 24V
- Rated Current: 600mA
- Super Capacitor Size: 8.5*17*32MM
- System: Linux
- Storage: Built-in Micro-SD slot
- Operational Temperature: -10℃~ +60℃
- Storage Temperature: -30℃~ +70℃
- Operational Humidity: 45%~80%RH
- Storage Humidity: 30%~90%RH
GPS Hardware Parameters
- Date Update Rate: 1Hz
- Warm Startup Time: 1 Sec (average)
- Cold Startup Time: <33 Sec (average)
- Maximum Speed Rate: <280 m/s
- GPS Antenna Gain: 30dB
- Power Voltage: 3.3V
In the Box
- 360 View-SPL Main Unit
- Backpack Adaptor for Mirror Stem
- AHD Backup Camera
- AHD Camera Extension Cable
- Power Wire Harness for Hardwire Installation
- VSM-AV Mirror Stem Fit Most Vehicles
- D-Tab
- GPS Unit
- Mounting Adhesive
- Velcro Straps
- MicroSD Inserted in Slot
- Mirror Cleaning Cloth
- Pry Tool
- Screw Driver
- L-shaped Tool for MV Series
